Wall-mounted Touch Sensitive DMX Lighting Controller ~ Nicolaudie STICK-DE3

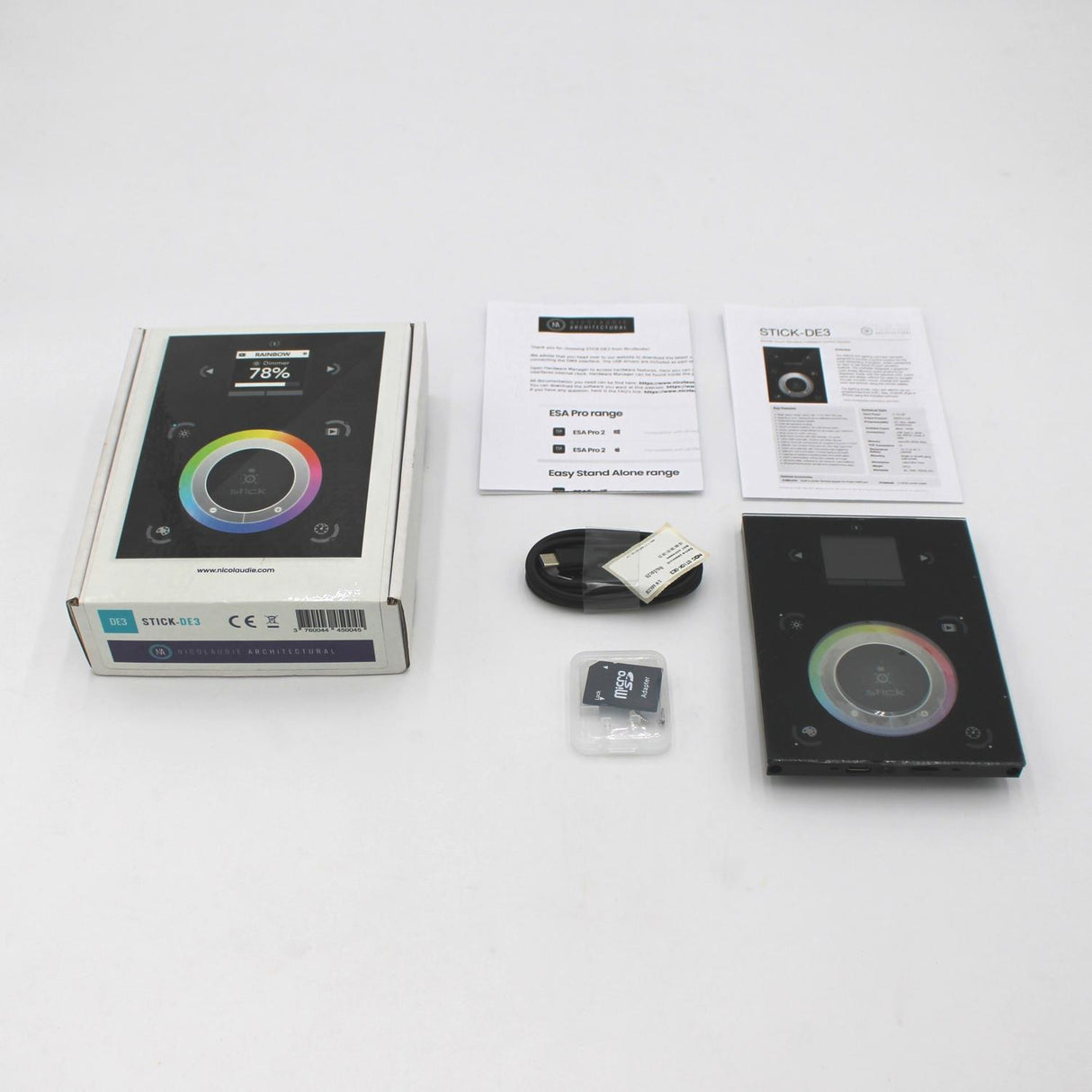

Controller only ~ power supply and all other accessories are sold separately

Description

The Nicolaudie STICK-DE3 wall-mounted touch controller is a powerful DMX lighting controller supporting two 512-channel DMX universes. This feature rich lighting control solution is capable of handling the most demanding projects and yet it is easy enough for anyone to use.

The simple user interface on the Nicolaudie STICK-DE3 allows for intuitive selection and control of zones and scenes, with adjustments for dimming, color selection and speed. The color wheel control makes it easy to quickly select RGB colors or control brightness with a simple touch.

The front panel for this DMX wall controller is made of glass for a durable, long lasting solution. A color graphical display allows for scene images to be displayed, and means that you can easily view the selected zone, scene name and design without having to navigated a complex menu structure.

For installations which need scene control based on the time of day, the Nicolaudie STICK-DE3 also has a real-time clock and calendar. This allows you to setup autonomous DMX scene control for your installation or project by pre-programming your scene selections for different times of the day.

This compact wall-mounted lighting controller offers wired connections for DMX-512 output as well as Dry Contact, RS232 and Ethernet control inputs. Programming and configuration can be conveniently done via the USB connection on the bottom of the front plate, without removing the controller from the wall box.

For effortless remote access to your lighting system, the Nicolaudie STICK-DE3 can also be controlled via the Acrolis Remote mobile app. Simply download the Acrolis Remote app for mobile devices from the Apple App Store or Google Play, and gain easy access to advanced lighting control features at your fingertips.

The main lighting control features are:

• Zones: Select a zone and run up to 10 scenes simultaneously
• Scenes: Choose from 50 static or dynamic scenes
• Dimmer: Control the brightness and saturation of your lighting
• Speed: Increase or decrease the playback speed of dynamic scenes
• Color control: Scroll through 16 million colors on the color wheel, or blend your adjustable white LEDs

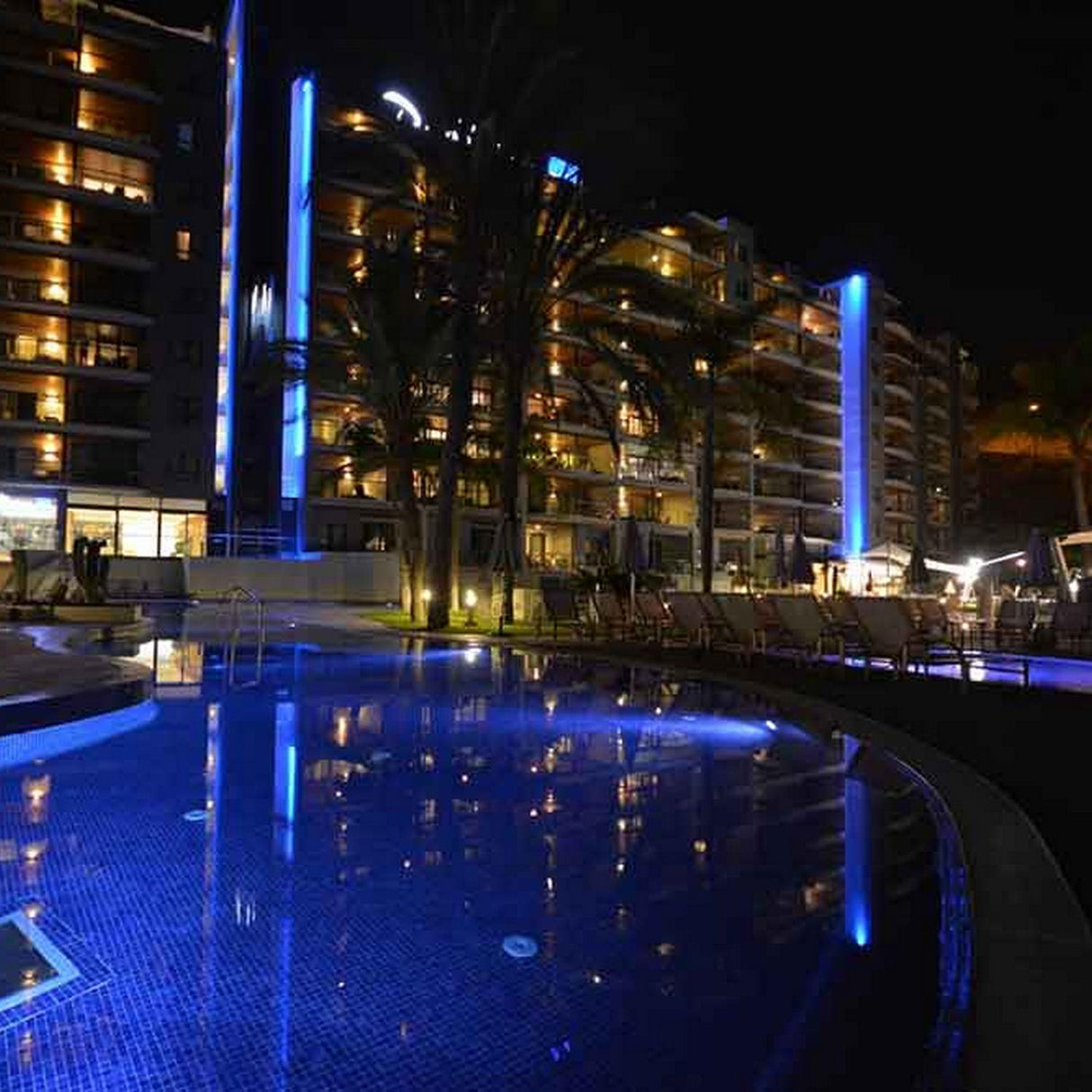

Typical architectural lighting control applications include:

• Landscape lighting control
• Monument lighting control
• Fountain lighting control
• Theme park lighting control
• Building facade lighting control
• Stadium lighting control
• Airport lighting control
• Museum lighting control
• Hotel lighting control
• Commercial and mall lighting control
• Office and workspace lighting control
• Upmarket residential lighting control
• Yacht lighting control

You can install this DMX user interface into a standard single or double electrical wall backbox. You will also need to connect a DC power supply to it (5-15V) and then connect your DMX-512 wiring to the controller output. The STICK-DE3 offers two 512-channel DMX universes worth of control output and the ability to store 500 scenes across 10 zones, making it capable of coordinating very complex lighting installations from a simple and easy to use interface. When you look at the feature set for this controller, it makes one of the best value propositions on the market today. It is no wonder that the STICK-DE3 is a favorite in the architectural lighting control market!

General specifications

• Display: Graphical color display
• User interface: 10 buttons + touch wheel
• Zone: Up to 10 zones
• Scenes: Up to 500 scenes (50 per zone)
• Output channels: 1024 DMX-512 channels (2 universes)
• Connectivity: USB, RS232, Ethernet, Dry-contact
• Storage: MicroSD card
• Software: Windows (PC) & Mac
• Remote control: iPhone, iPad & Android

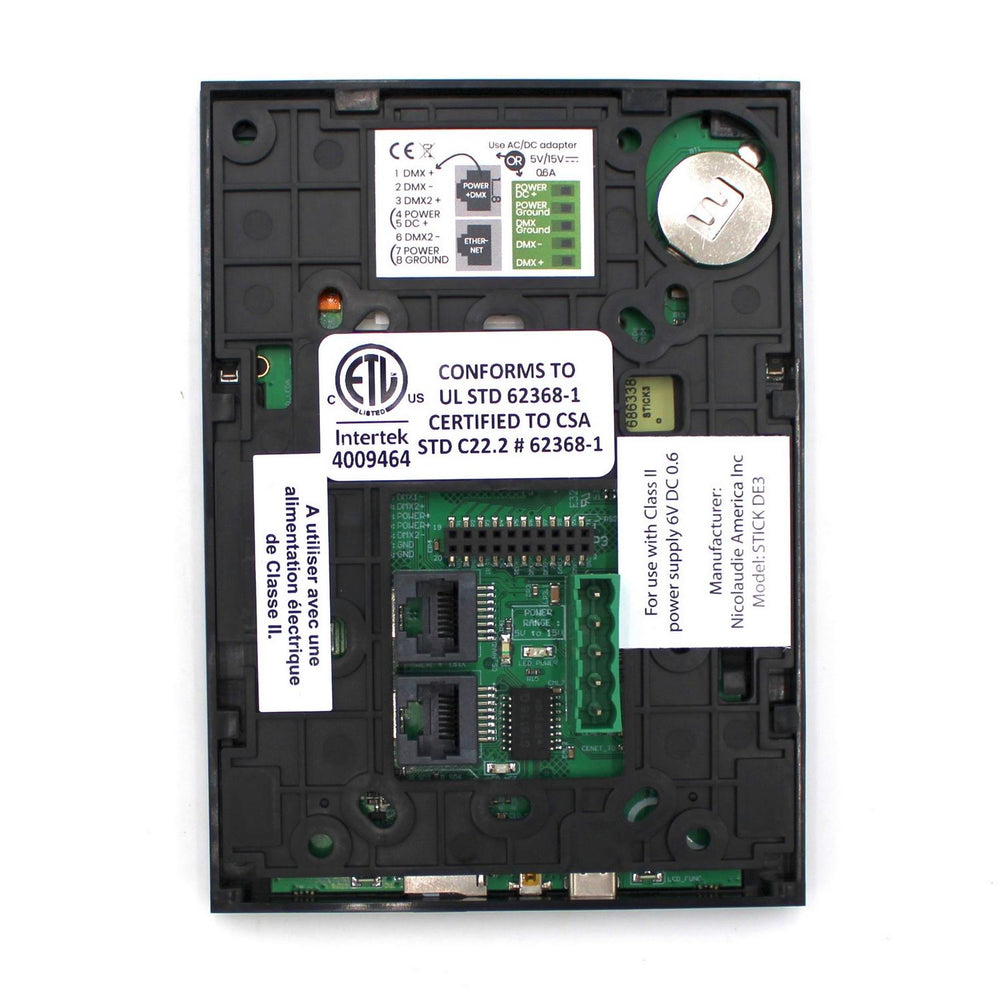

• Electrical connection: Screw terminal or RJ45 (Power & DMX combined)
• Power supply: 5-15V DC
• Dimensions: 106 x 146 x 10mm (4.17 x 5.75 x 0.39")

Model variations

This DMX keypad is also available in other faceplate colors and styles, and with alternative styles for the color wheel. Please contact us if you require a specific combination for your project and we will gladly assist you.

Faceplate styles:

BD1	WD1	AD1	DD1

Color wheel styles:

DE3	CU4	PAD	LUM	ARC

Downloads

Documentation:

• Nicolaudie Controllers Brochure
• Nicolaudie STICK-DE3 Datasheet
• Nicolaudie STICK3 Ethernet remote control protocol
• DMX to  Casambi wiring diagram

Mobile app:

• Acrolis Remote mobile app


Software:

• Arcolis Remote mobile app
• Easy Stand Alone 2 software for Windows
• Easy Stand Alone 2 software for Mac
• ESA Pro 2 software for Windows
• ESA Pro 2 software for Mac
• Hardware Manager for Windows (firmware)
• Hardware Manager for Mac (firmware)
• All software...

Wireless integration

Did you know that you can turn your wall-mounted souch sensitive DMX lighting controller - Nicolaudie STICK-DE3 into a Casambi color wheel wall mount RGBW controller? While there are currently no Casambi-enabled color wheel controllers on the market, you can use the DMXcas to link your STICK-DE3 controller to the Casambi network and achieve this functionality.

With this integration, you can take advantage of the Casambi platform's advanced wireless mesh network features for control and automation of lighting and other devices. To achieve this integration, you will need to connect the DMXcas to your STICK-DE3 controller's DMX output, and then use the Casambi app to set up and configure the DMXcas controller on the Casambi network. Once the integration is complete, you will be able to control your Casambi-enabled lighting fixtures from the STICK-DE3 touch controller, essentially turning the STICK-DE3 into a wall-mount Casambi color wheel LED controller.

Contact Wired4Signs USA to learn more about this powerful and versatile lighting controller, as well as how to integrate it with the Casambi DMXcas for even more advanced control and automation.

Important notes

• Items in stock are shipped the same day from Knoxville, Tennessee, United States.
• Bulk pricing is available on request.
