LED Glass Railing Edge-Lit LED Strip Channel ~ Model Alu-Glass [Profile Only]

Original price - Original price
Original price
-
Current price
SKU LED-AL-GLS-2

Profile only - covers, endcaps and all other accessories are sold separately

Description

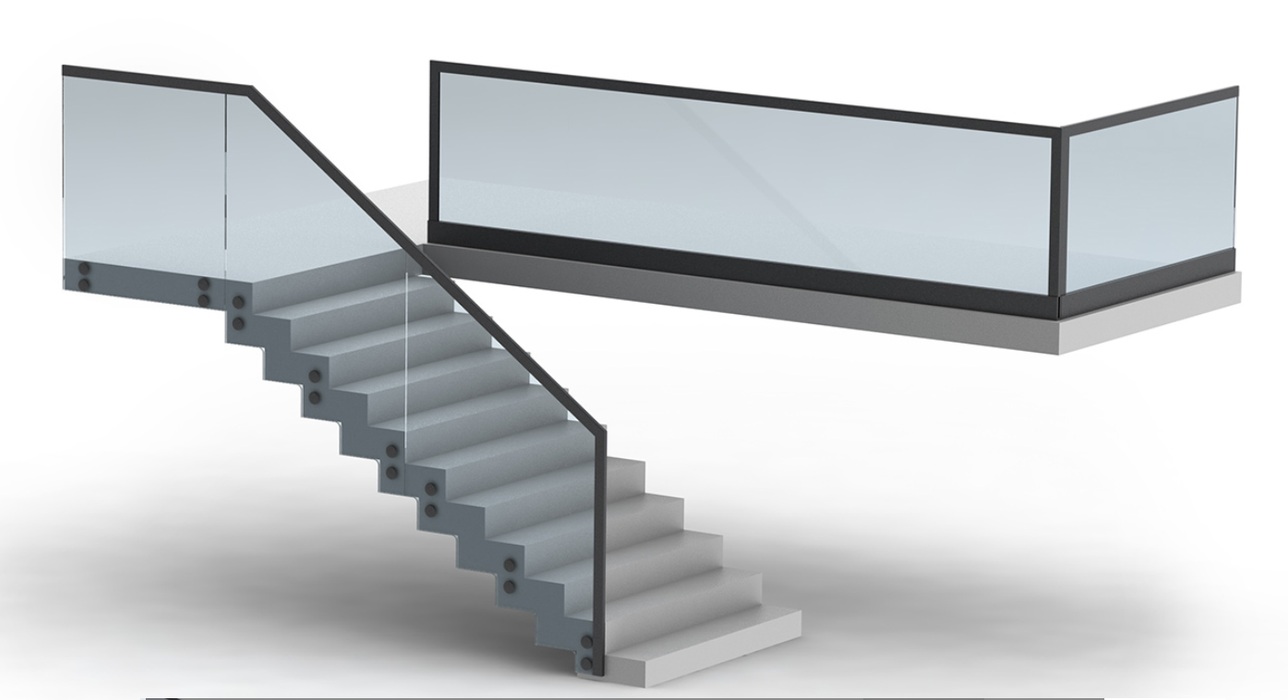

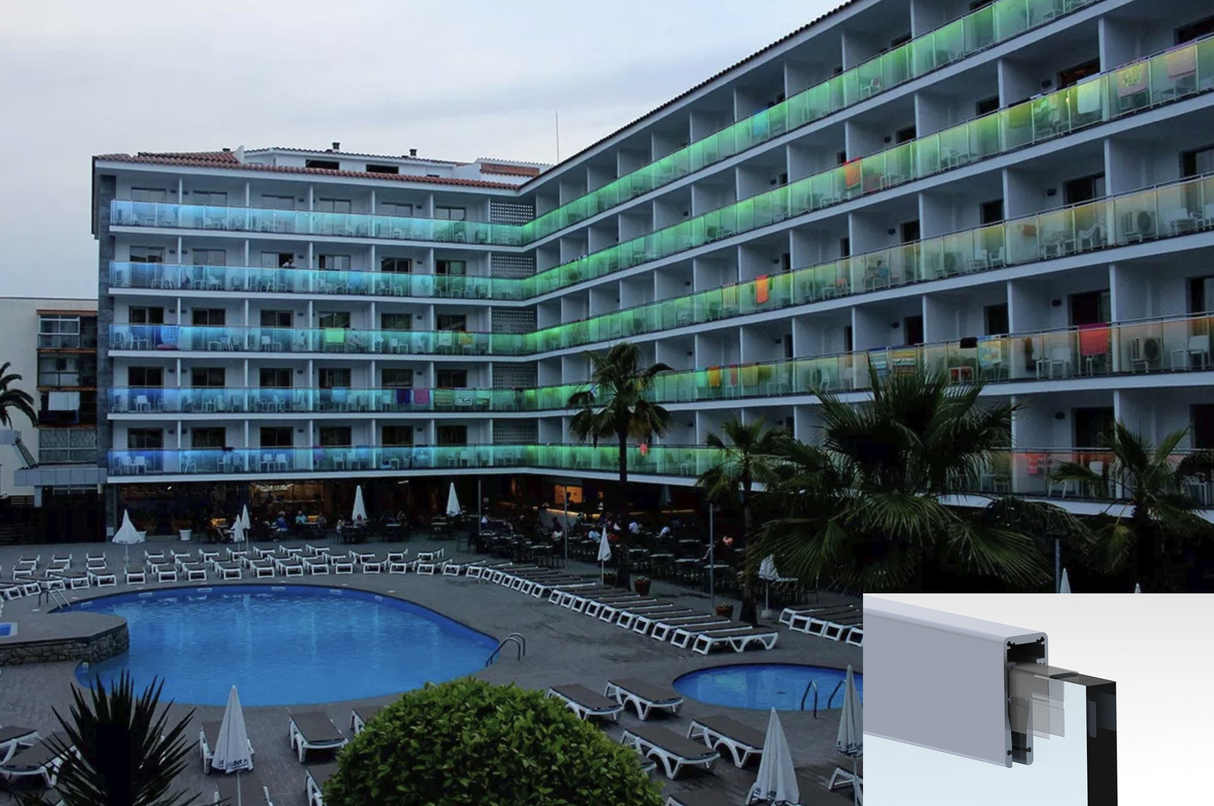

LED Illuminated glass panels provide an elegant look to any building

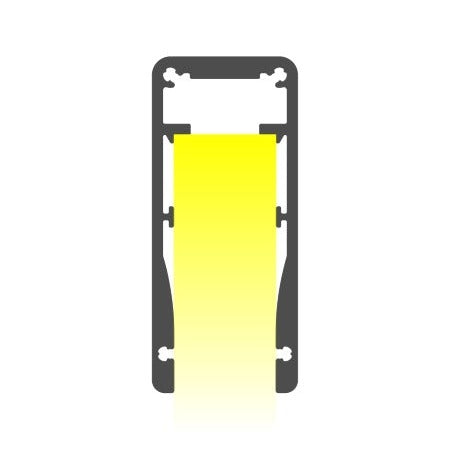

Model Alu-Glass LED strip channel glass rail is good for glass barriers thickness of 17.5mm [2x8mm+safe foil between].

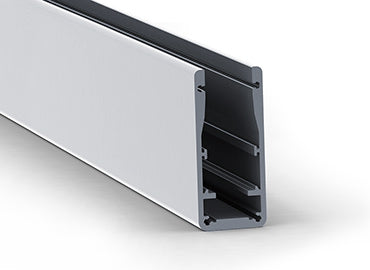

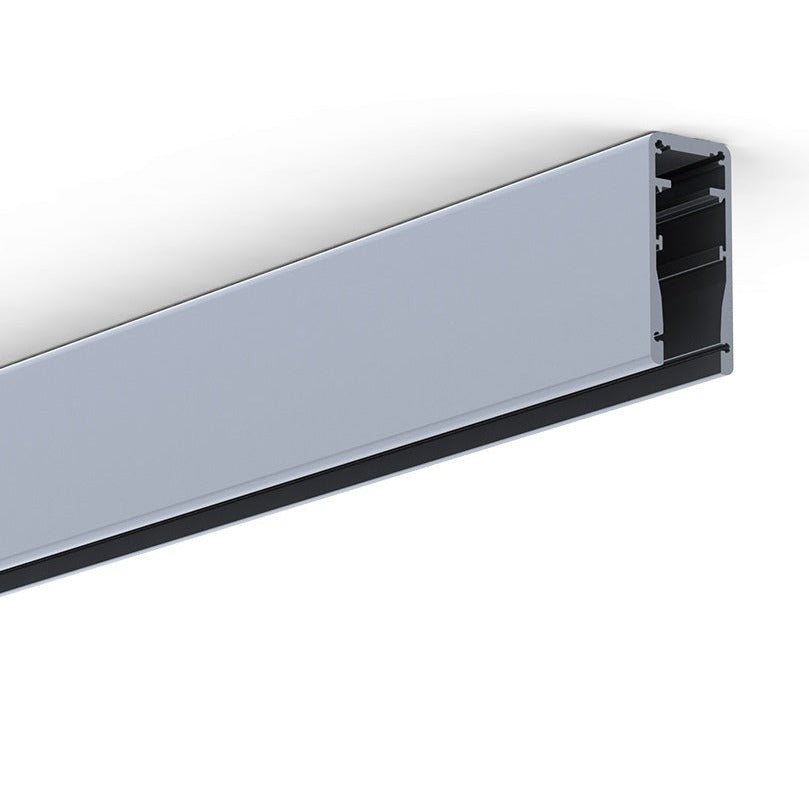

The design is simple and aesthetic and ideally, close the glass barrier finish from the top. Aluminum base holds the massive weight of the glass and the top profile match the base and close the top in an elegant fashion.

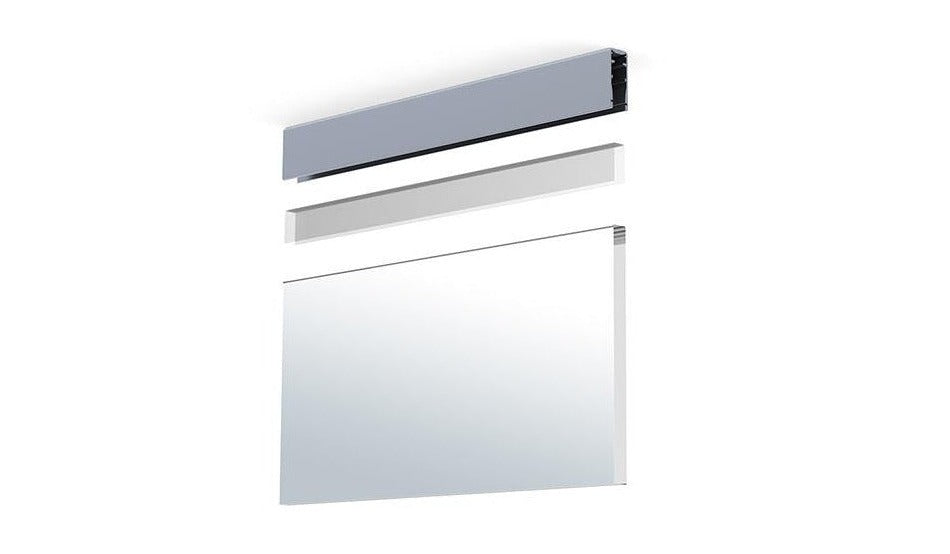

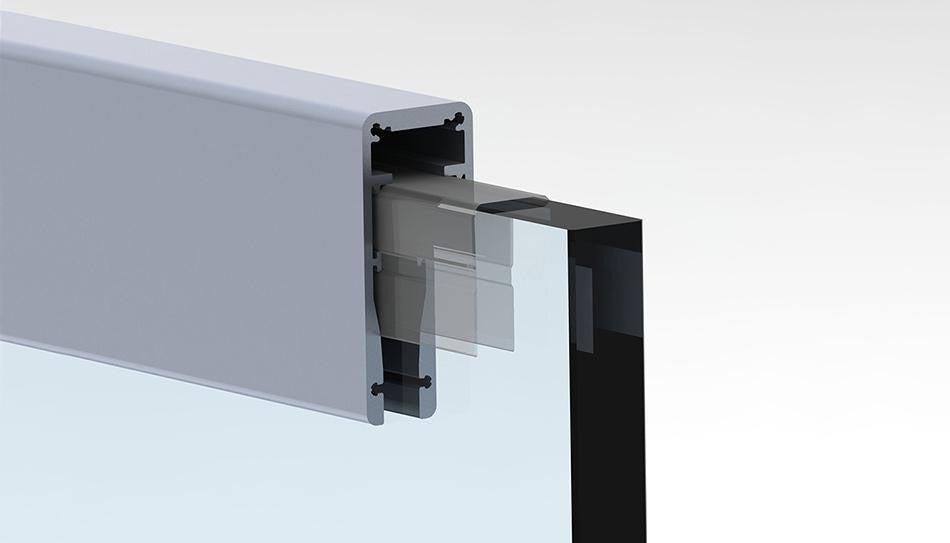

We have two colors matt black and the matt silver as our standard colors. The matte finish does not allow fingerprints to be left on the handrail. The profile comes with the silicone, light transmitting gasket to hold the glass to the profile firmly. Additionally, the LED chamber stops the glass at a certain depth to allow LEDs illuminate the glass edge from within.

The angle connections need to be measured first then cut and place face to face. The solid made design will last a long time even under heavy traffic in public places

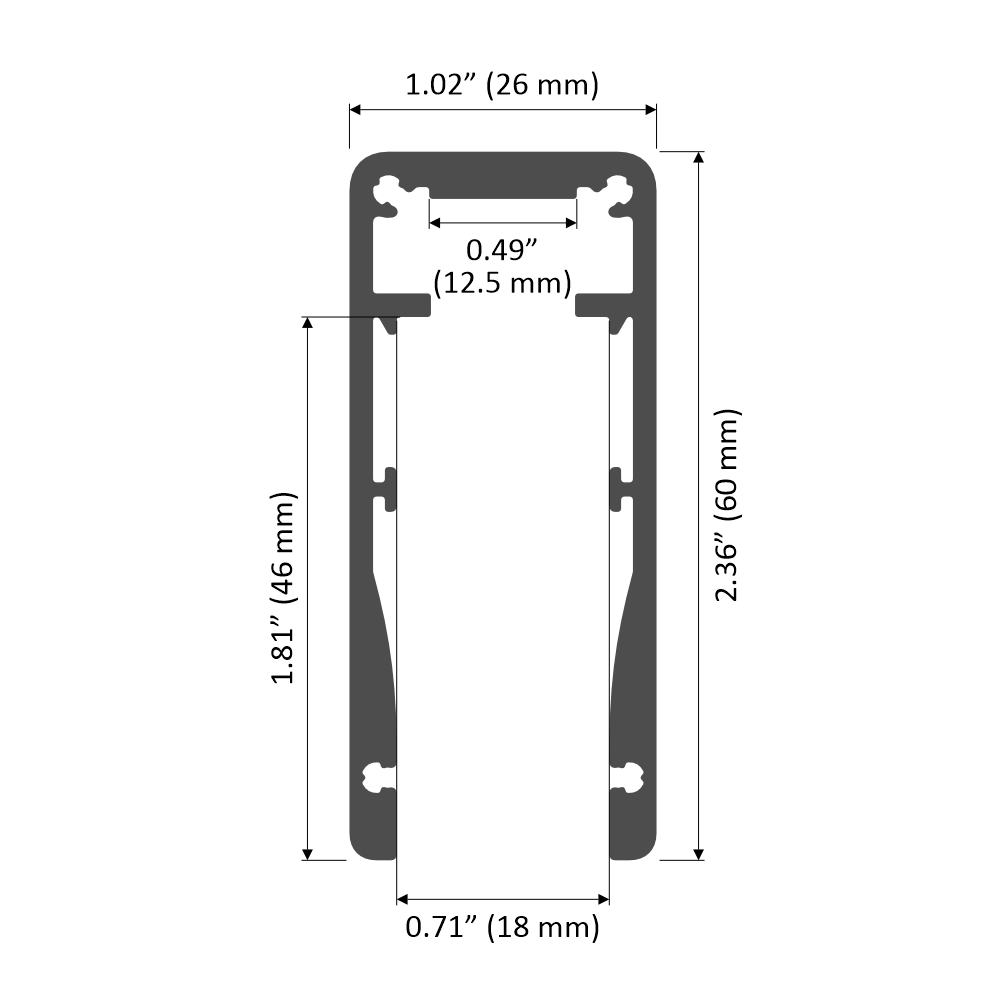

General specifications

  • For glass barriers with a thickness of 17.5mm [2x8mm+safe foil between]
  • Maximum LED width 12.2mm
  • Sold in 2 meter (6.56ft) lengths

Downloads


Important notes

  • LED strip, covers, mounting brackets, endcaps, shelf/sign panels and other accessories are sold separately from the aluminum profile. Select the available components below.
  • LED profiles can easily be cut by hand or by machine.
  • For your convenience Wired4Signs USA can cut LED profiles according to your requirements. Please leave instructions in the order comment box.
  • We can also assemble a plug and play light fitting with this profile according to your specifications.
  • Please note that we cannot refund or replace LED profiles and covers that have been cut.
  • Items in stock are shipped the same day from Knoxville, Tennessee, United States.
  • Bulk pricing is available on request
