LED Channels

Shop LED Channel Profiles by Installation Type

LED Channels for Surface, Recessed, Corner, and Drywall Installs

LED profile systems help you match the housing to the way your strip lights will be installed before choosing strip width, diffuser style, finish, and accessories. Surface profiles suit finished cabinets, shelves, displays, and retrofit spaces where routing is not planned. Recessed profiles fit grooves in millwork, stair details, counters, and linear slots. Corner profiles direct light across adjoining surfaces. Drywall and trimless profiles suit ceiling lines, wall details, and built-in lighting where the profile needs to sit into the finish.

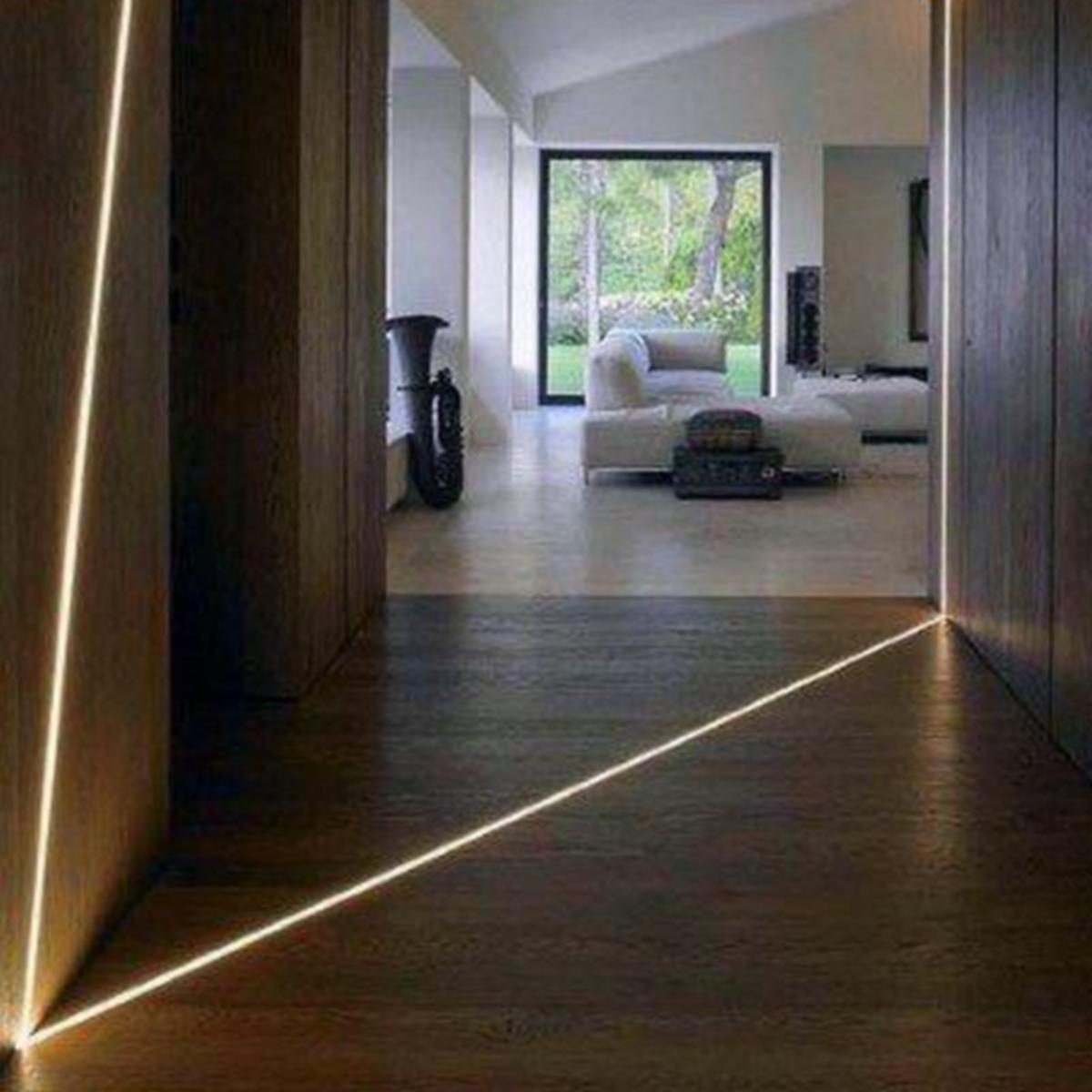

LED Profiles for Plaster-In, Tile-In, Wall Mount, and Suspended Lighting

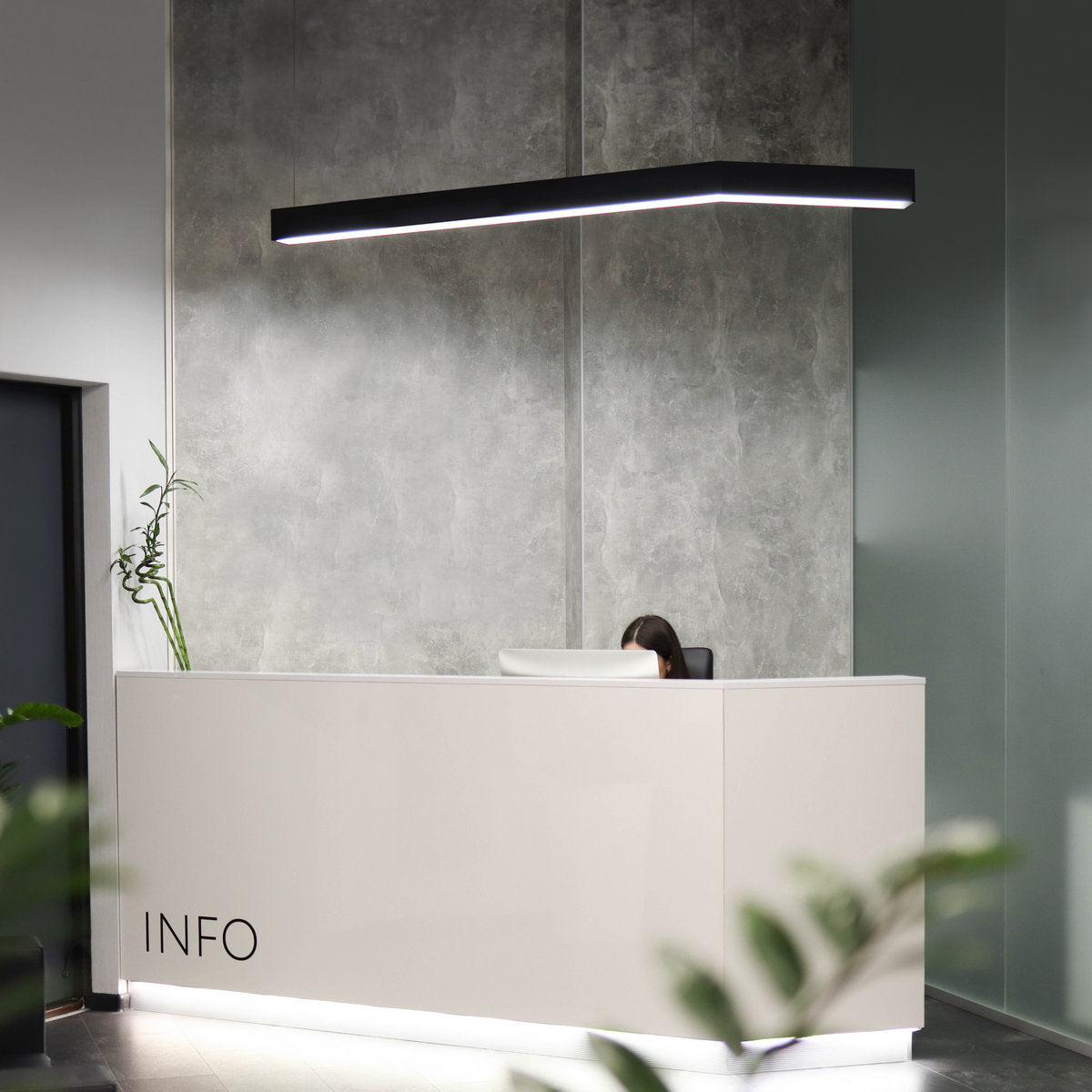

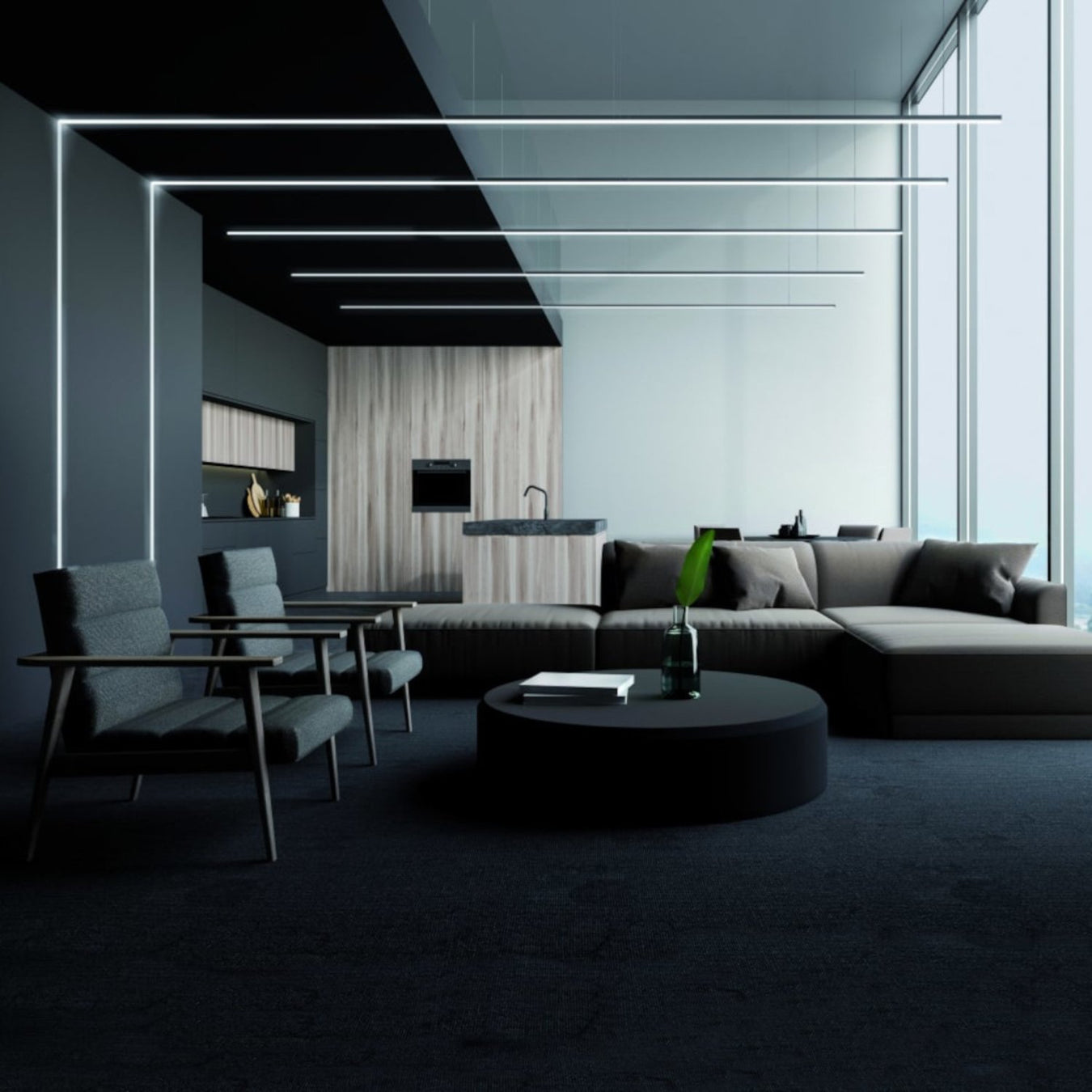

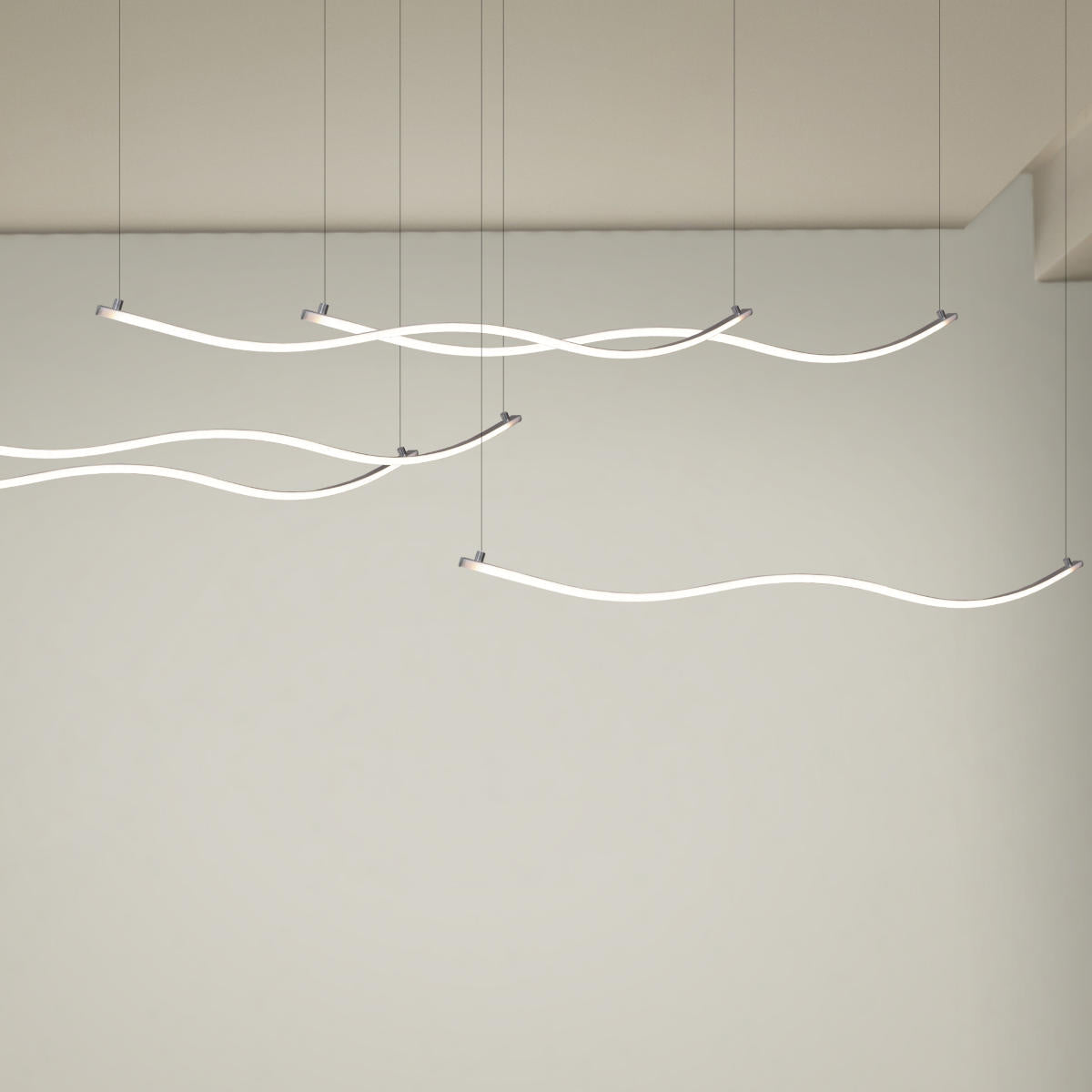

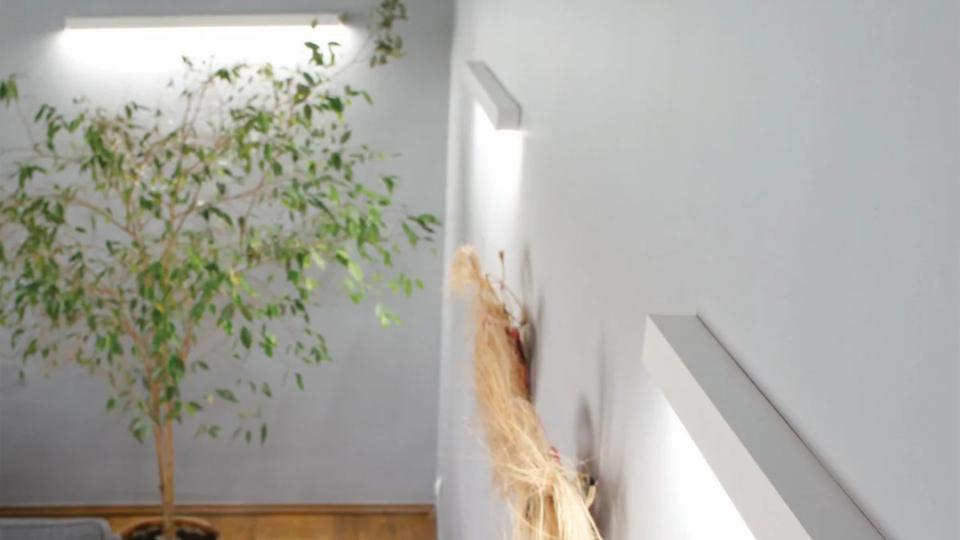

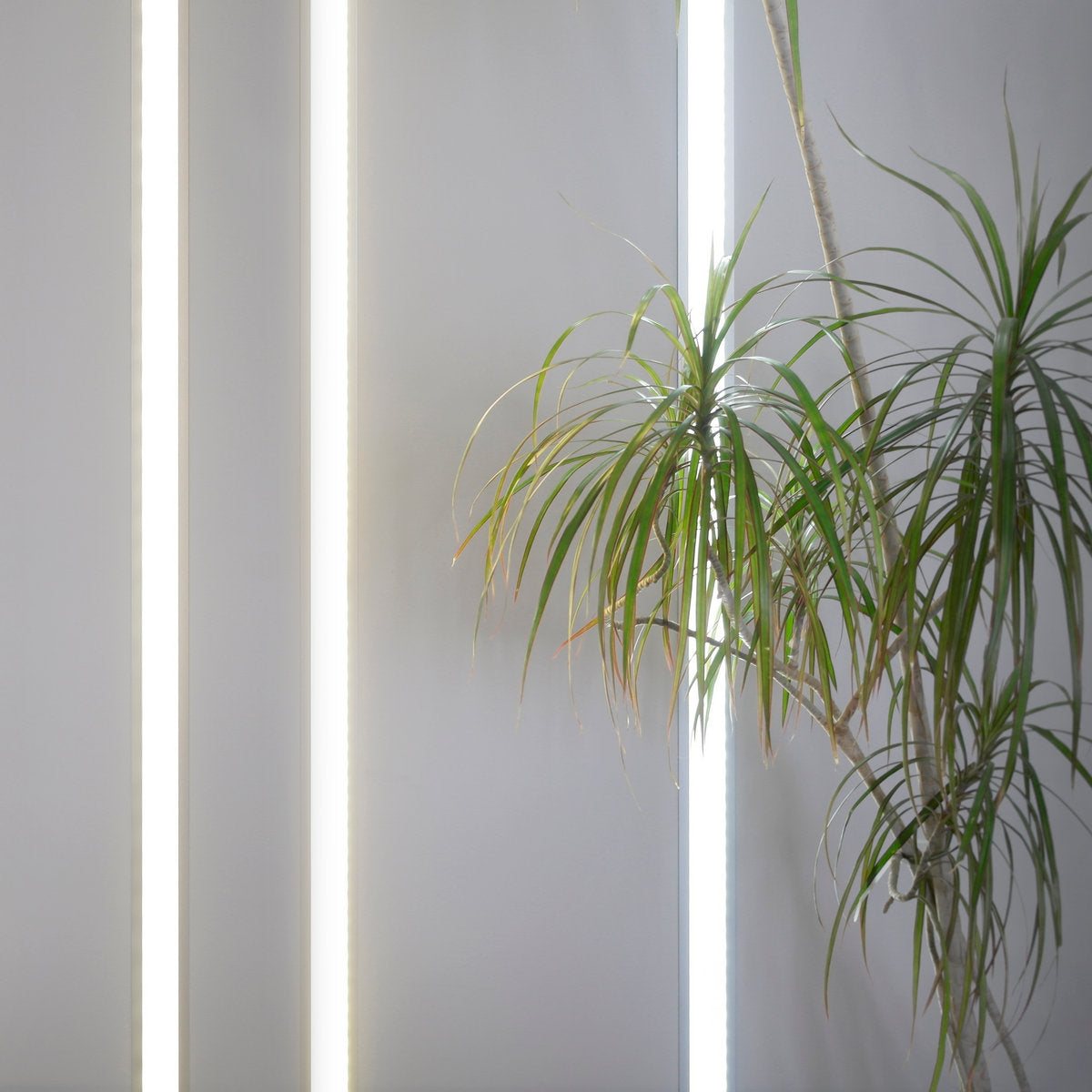

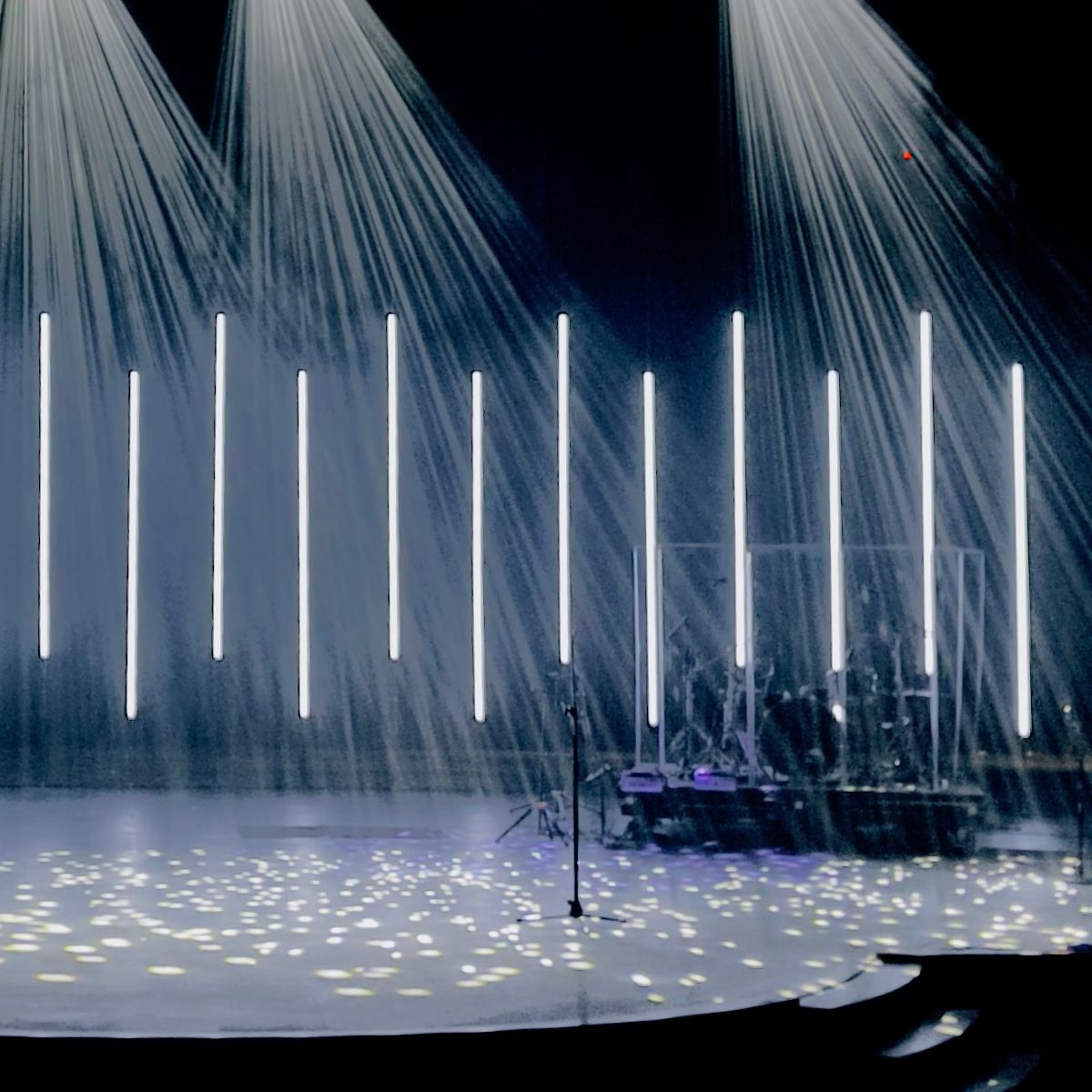

Some installations need a profile that becomes part of the structure rather than a visible add-on. Plaster-in and tile-in profiles work well when the lighting detail is planned before the wall, ceiling, or surface is finished. Wall-mount profiles suit vertical light lines, grazing effects, and mounted architectural details. Suspended profiles are better when the light source needs to hang below the ceiling plane. Tube lighting and LED diffuser tubes suit round linear effects where a standard rectangular profile does not match the design.

Shop similar collections: 6mm LED Strip Lights | 8mm LED Strip Lights | 10mm LED Strip Lights | 12mm LED Strip Lights | 24V DC Power Supplies

LED Profile Buyer Guide for Fit, Strip Width, and Accessories

Start with the mounting surface, then check the internal channel width against the LED strip. A narrow strip may fit inside a miniature profile, while wider tape needs more room for the circuit board, solder points, wiring, and end caps. The strip should sit flat, with enough clearance under the diffuser. This matters for DIY cabinet lighting, retail displays, signage returns, commercial interiors, and any project where the same part needs to repeat cleanly across several runs.

LED Light Channels by Diffuser, Depth, and Beam Control

Diffuser choice changes the finished light line. Clear covers keep more brightness but show more diode detail. Frosted and opal diffusers soften the output and reduce glare when the strip is visible under cabinets, inside displays, along shelving, or across stair details. Deeper profiles usually create smoother diffusion because the lens sits farther from the LEDs. Optic-lens profiles are better when the light needs direction, throw, or controlled spread instead of a simple cover.

LED Channel Profiles for Cabinets, Shelves, Stairs, and Millwork

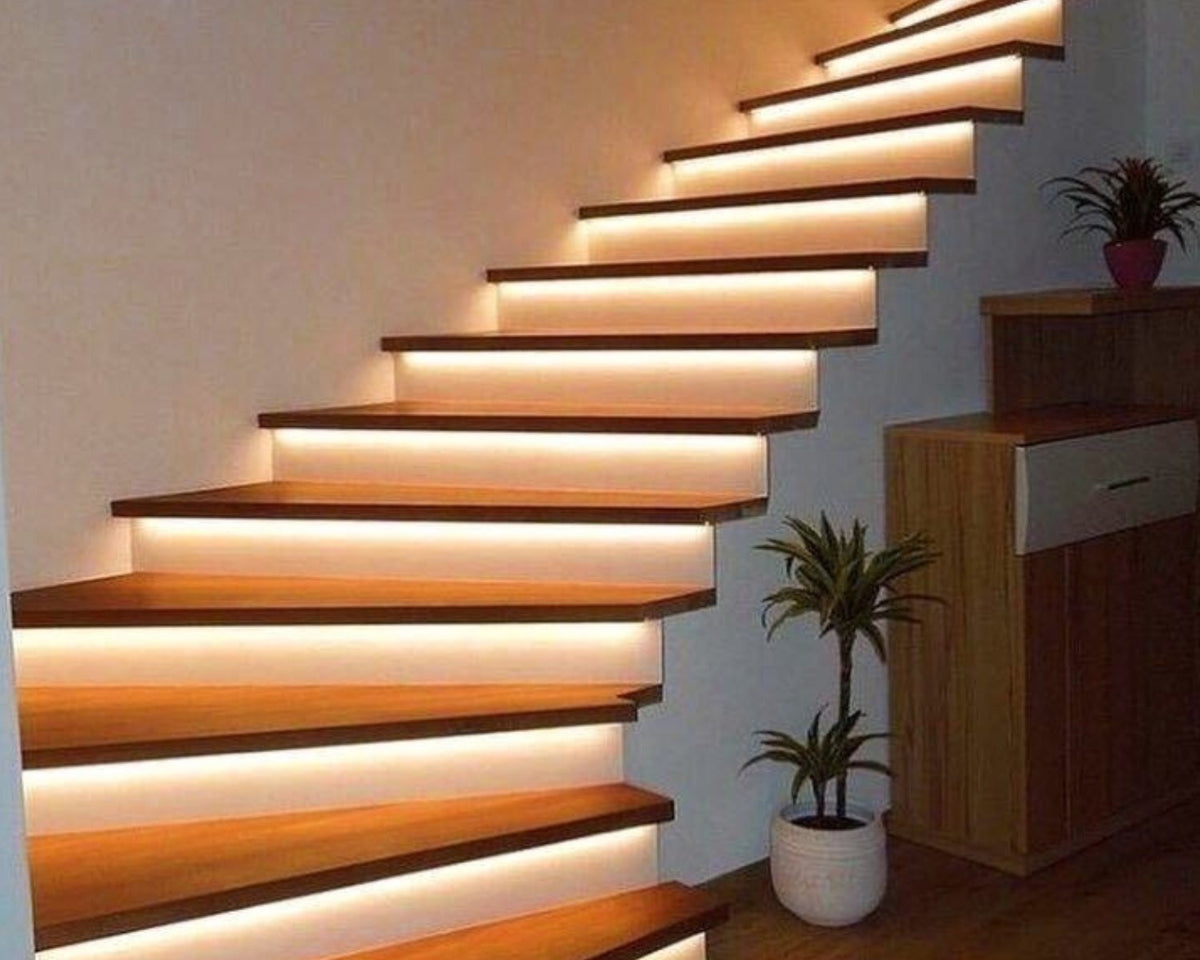

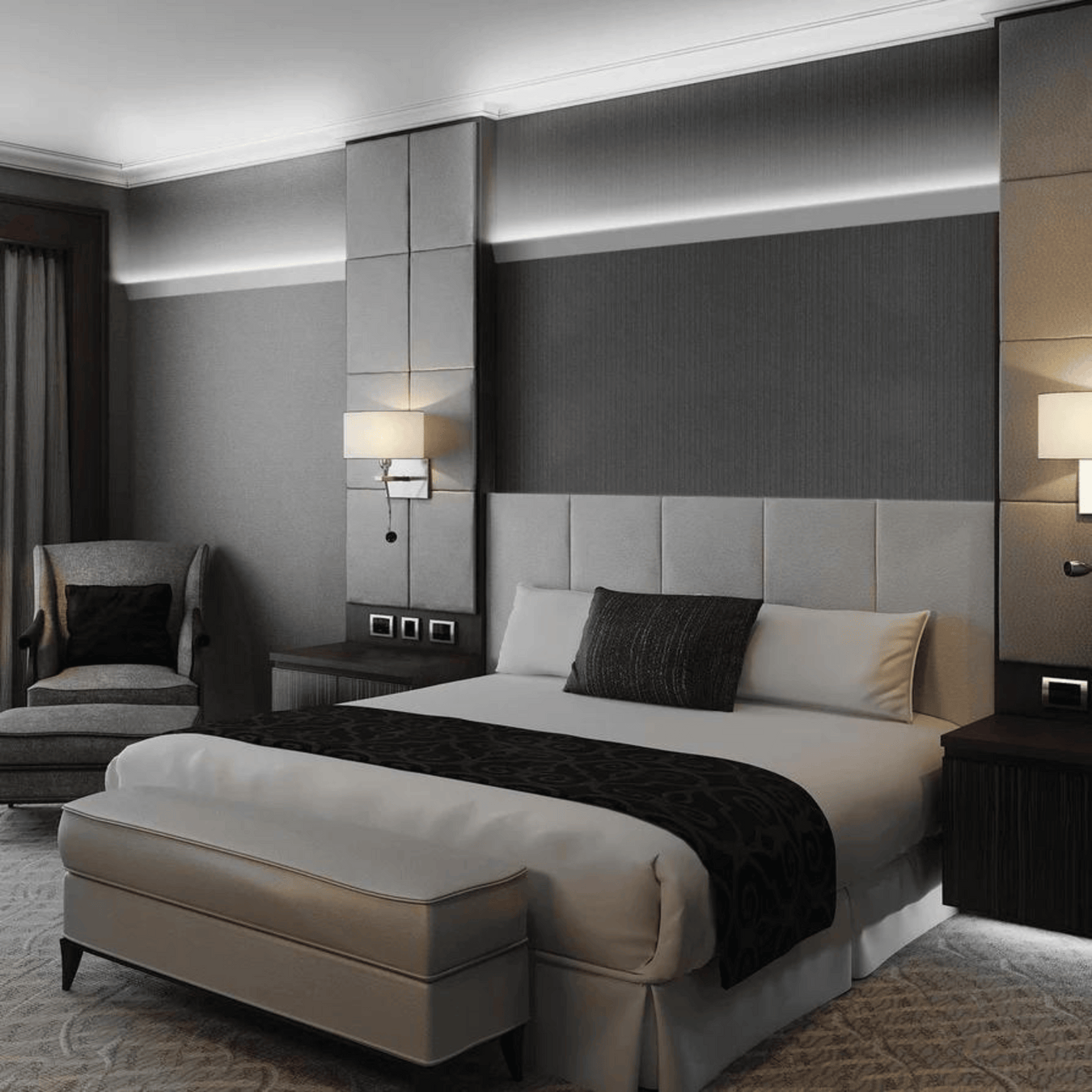

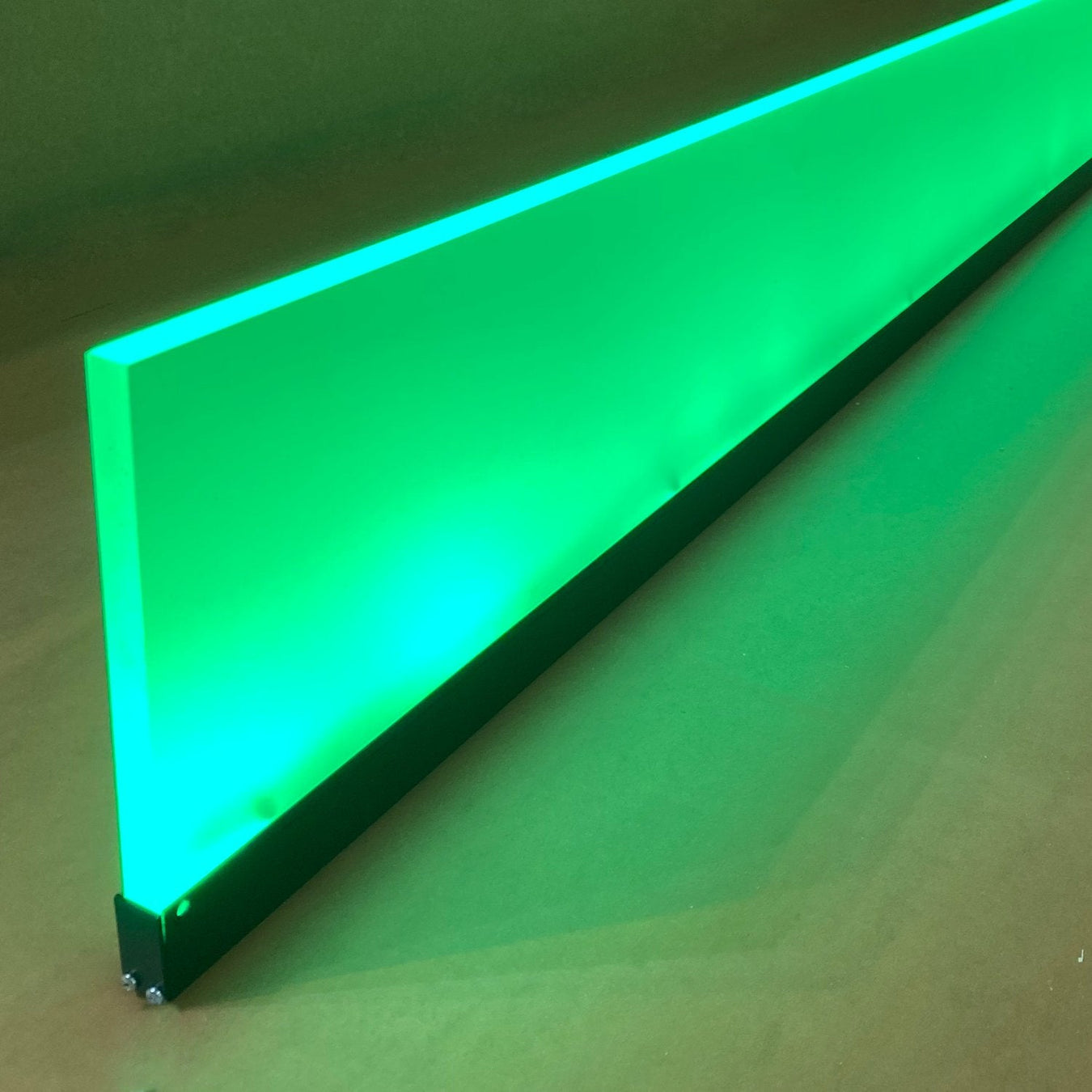

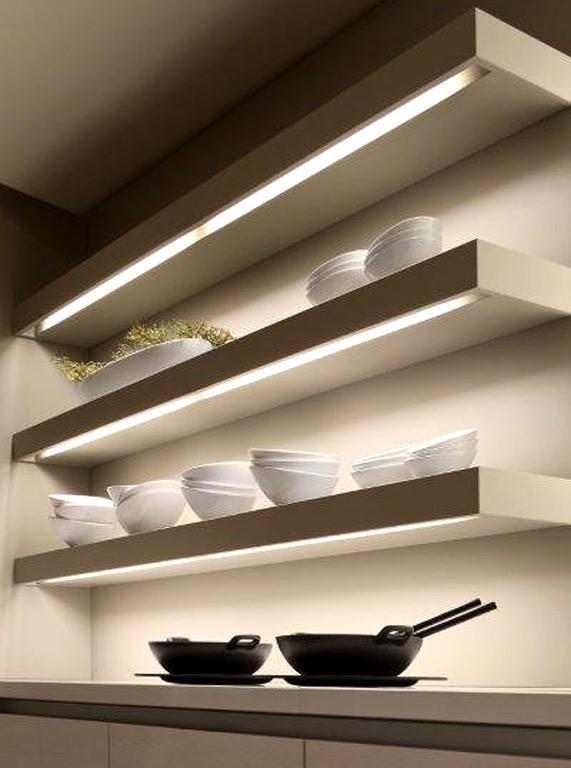

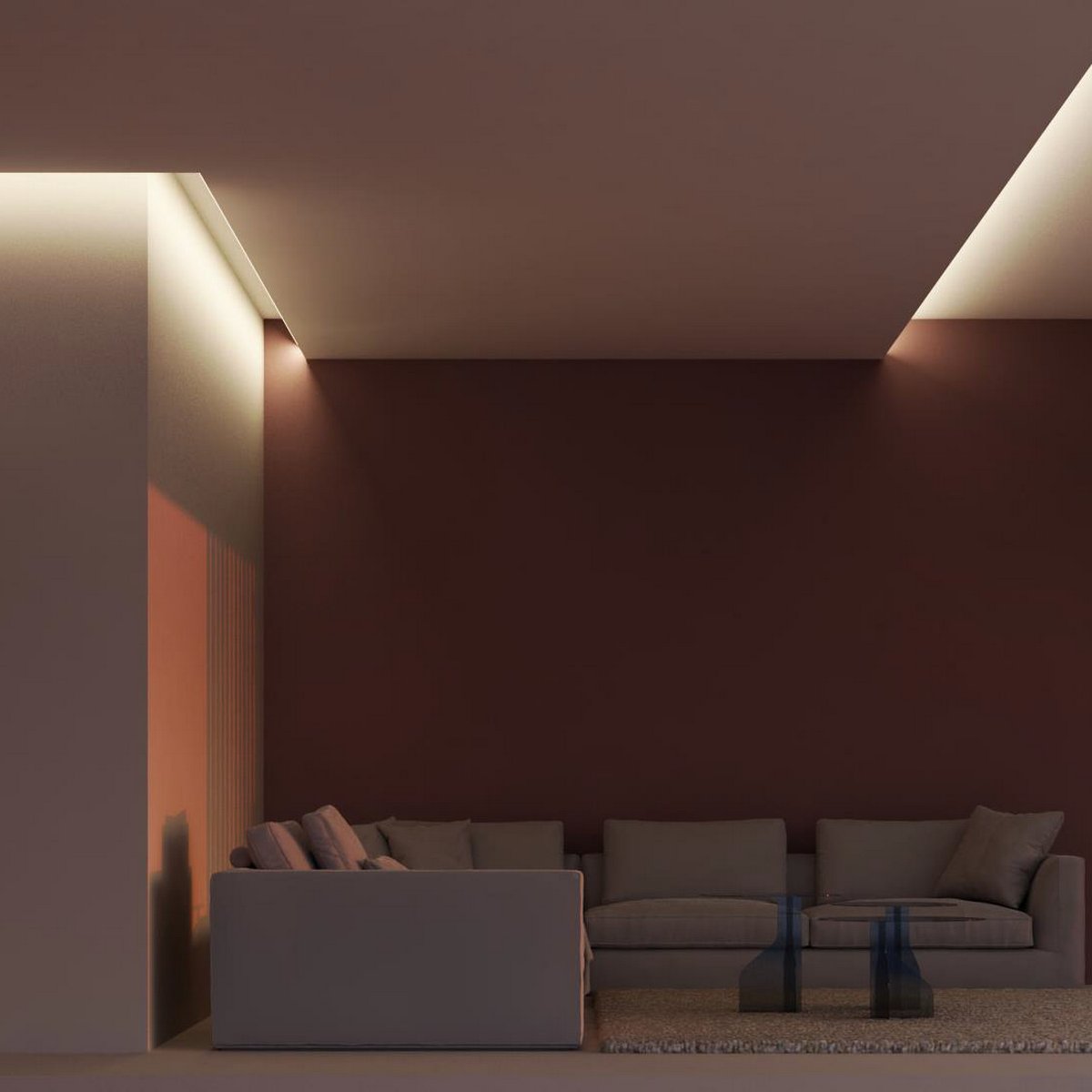

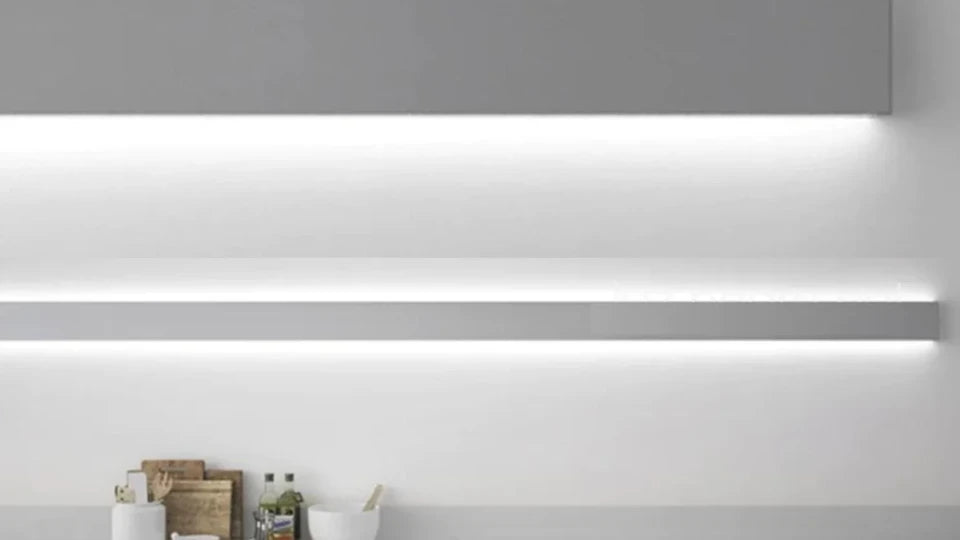

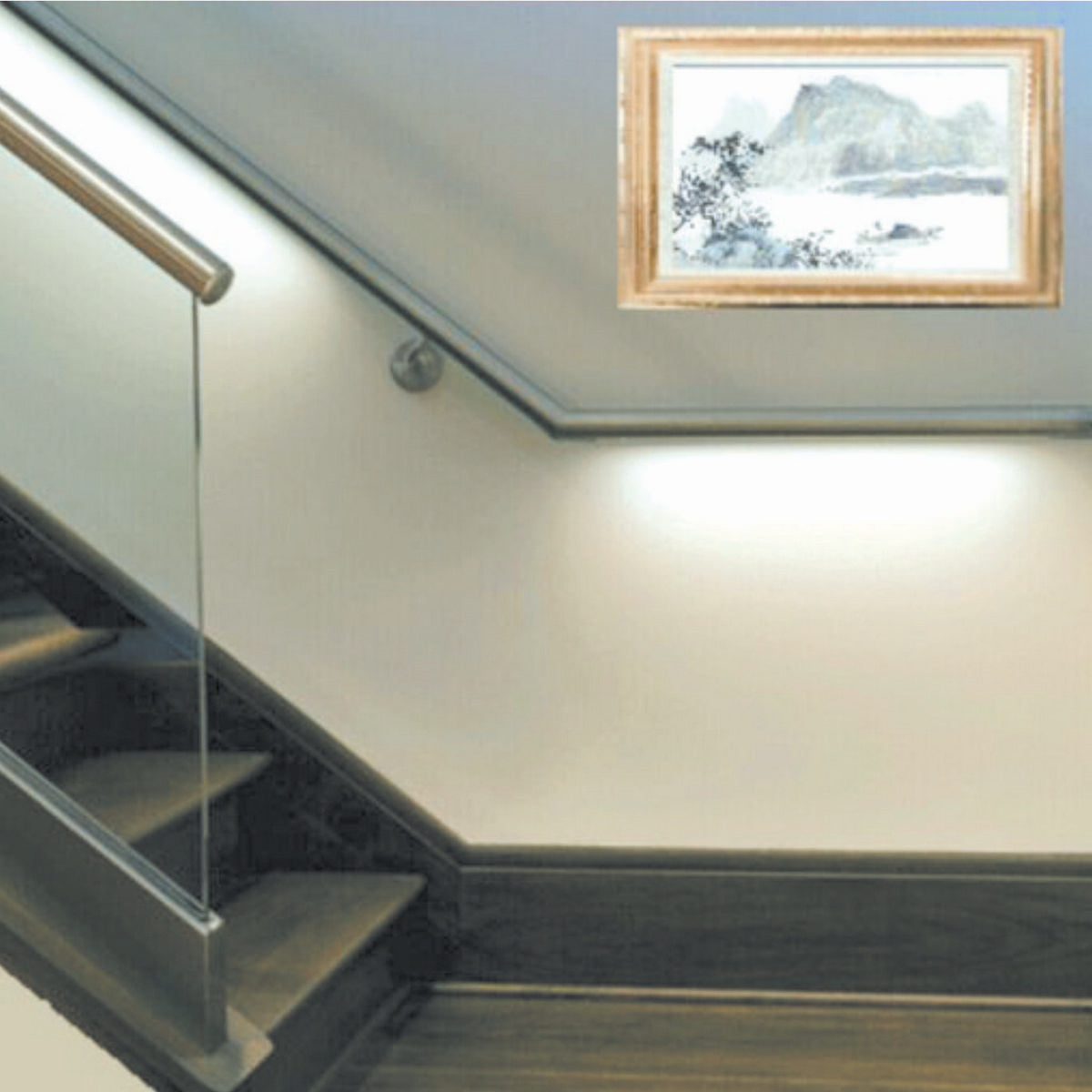

Application matters as much as installation type. Under-cabinet and shelf lighting often need a low-profile housing with a diffuser that cuts glare from normal viewing height. Stair and handrail lighting need clean alignment, safe placement, and enough protection from contact. Closet, millwork, slat wall, cove, valance, cornice, and crown molding lighting need profiles that fit the surrounding detail without making the light source look oversized. Edge-lit projects may need a different profile style than standard strip-light runs.

Shop similar collections: Surface Mounted LED Channels | Recessed LED Lighting Channels | Corner LED Channels | Waterproof LED Channels | LED Channel Kits

Waterproof and Specialty LED Channels for Site Conditions

Waterproof profiles suit damp, splash-prone, exterior-facing, driveway, floor, and in-ground applications when the full system has the correct exposure rating. The channel alone does not protect the whole installation. The strip, wiring, connectors, driver location, and sealing method also need to match the environment. Standard dry-location profiles work for protected interiors. Splash-proof, waterproof, and immersible options should be selected based on the actual exposure, not just where the channel will be mounted.

LED Profile Sample Packs, Fixture Kits, and Custom Fixture Options

Sample packs are useful when the finish, lens shape, depth, or mounting method needs approval before a larger order. Fixture kits can simplify smaller jobs because the key parts are grouped around a specific profile setup. Custom fixtures are better when a standard channel does not match the required length, output, wiring path, or mounting condition. Diffusers, LED diffuser tubes, end caps, clips, and strip lights should be checked at the same time so the final order arrives as a working system.

Our LED Channel Profiles: Stocked Parts and Signage Manufacturing Experience

We stock this range for DIY homeowners, cabinet makers, lighting installers, sign shops, contractors, designers, and wholesale buyers who need the profile, diffuser, end caps, clips, strip lights, and driver to work together. Our signage manufacturing experience helps us catch common fit issues before they slow a project down. We also operate a Knoxville-area micro-factory for Uniform Linear fixtures and custom fabrication. Eligible in-stock items ship same day, with free shipping over $450 and 30-day returns.

FAQ

Do LED channels work with all strip lights?

No. The strip width, wattage, and diffuser clearance must match the profile. Always check the internal channel width before pairing a strip with a housing.

Which LED profile type is best for cabinets?

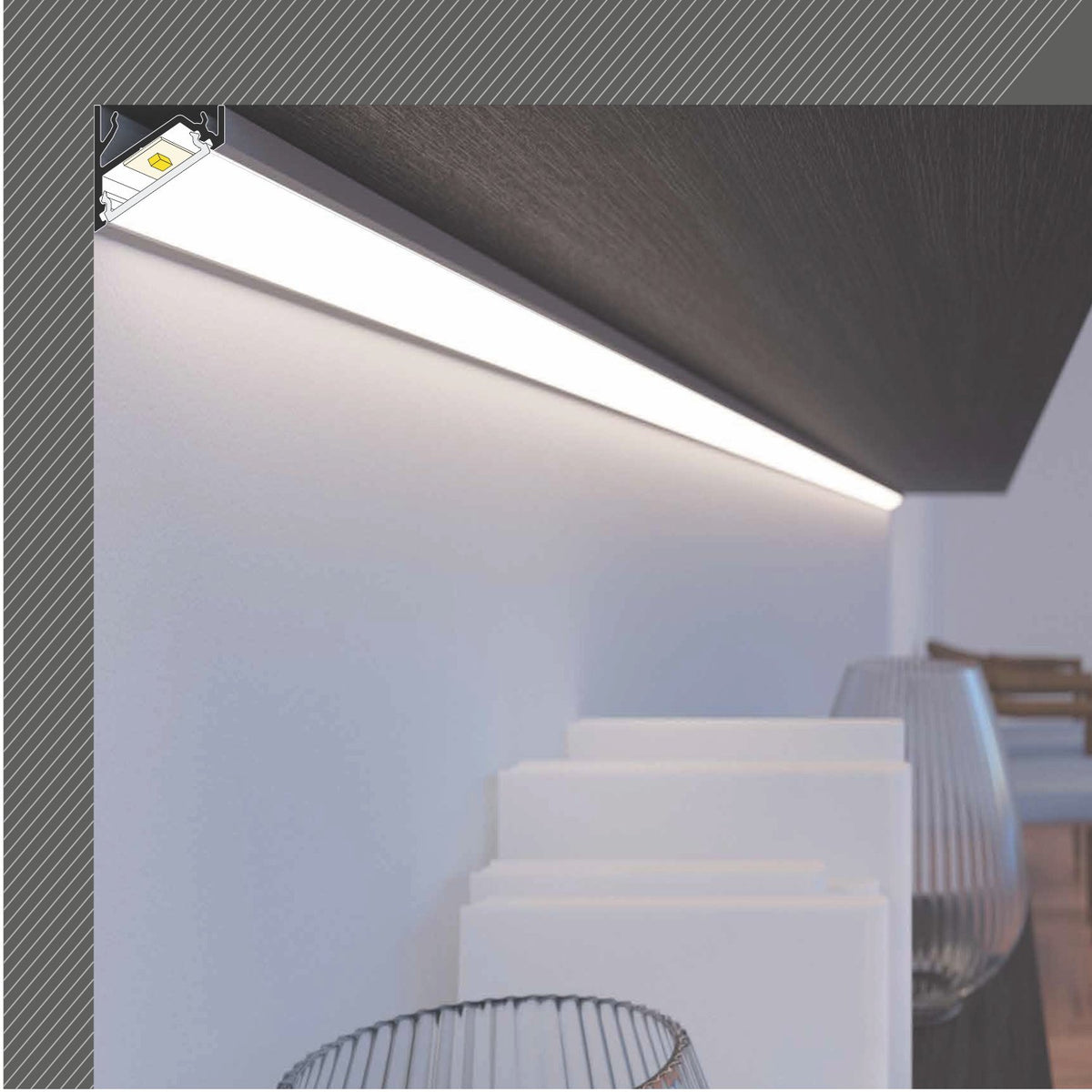

Surface-mount profiles usually work best for finished cabinets because they attach underneath without routing. Recessed profiles are better when the cabinet, shelf, or millwork detail is being built or modified.

What is the difference between a recessed LED channel and a surface LED channel?

A recessed LED channel sits inside a routed groove or prepared slot, so the lens can finish closer to the surrounding material. A surface channel mounts on top of an existing surface and is usually easier to access after installation.

What is a plaster-in LED profile used for?

A plaster-in LED profile is used for drywall, ceiling, and wall details where the channel needs to sit into the finished surface. It is usually planned before the surface is closed or finished.

When should you use a waterproof LED profile?

Use a waterproof LED profile where moisture, splashes, cleaning exposure, or exterior conditions could reach the strip. The channel, strip, wiring, connectors, and power supply still need to match the required exposure rating.

Are LED diffuser tubes the same as LED channels?

No. LED diffuser tubes create a round or tubular light effect, while most channels use a linear profile with a flat or shaped diffuser. The right choice depends on the visual effect and mounting method.

Are LED profile sample packs worth ordering?

Yes, sample packs are useful when the finish, depth, lens shape, or mounting style needs approval before a larger order. They also help compare how different diffusers look with the same strip.

How do you choose the right LED channel depth?

Choose channel depth by strip density, diffuser type, and viewing distance. Deeper profiles usually reduce visible diode points better than shallow profiles, especially when the light line is directly visible.
