Floor Transition Strip LED Channel ~ Model Broadway

Profile only ~ diffuser, end caps and all other accessories are sold separately

Coming soon

Description

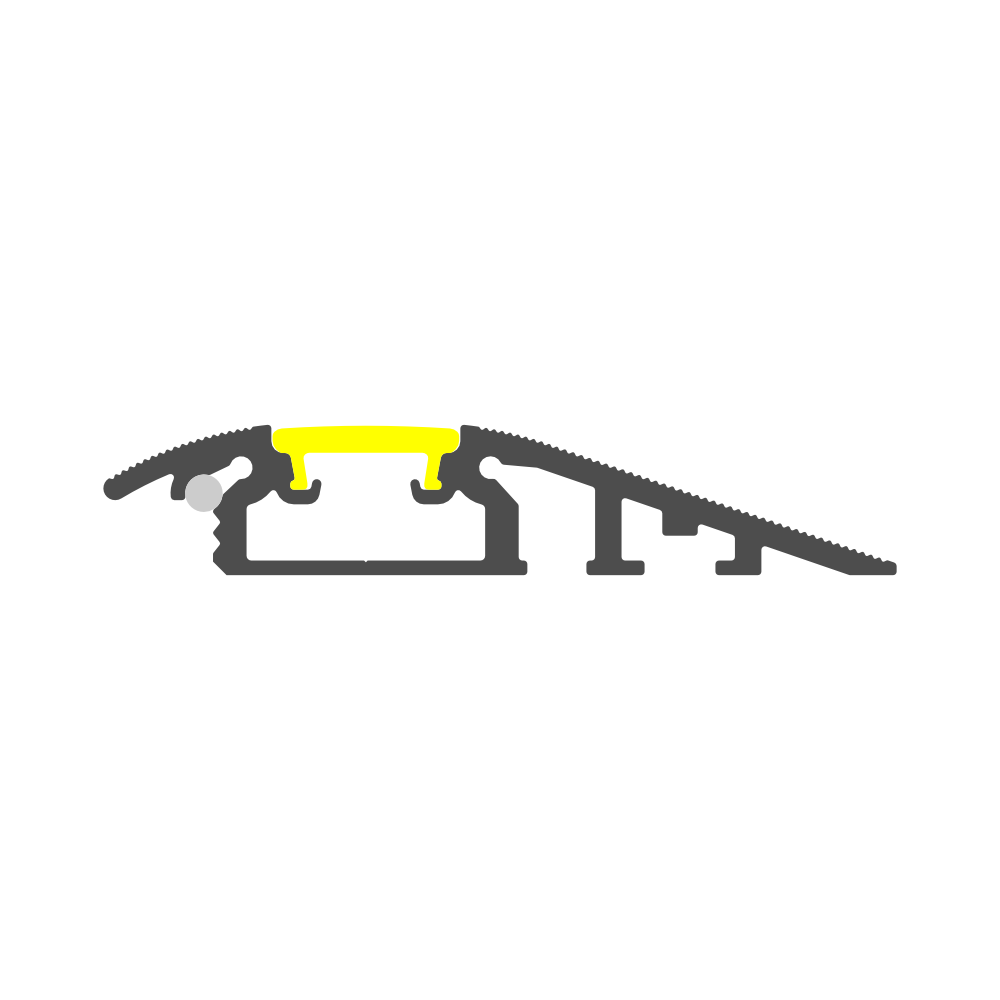

The Broadway profile is a floor transition LED channel designed and manufactured in the USA. This treadable floor transition LED channel is built for indoor applications, providing both functional and aesthetic lighting. It is specifically engineered to create illuminated transitions between hard floor surfaces such as tile, stone, or concrete and softer flooring types like carpet, parquet, or laminate wood.

It is finished with a specialized hard-coat two-step anodizing process that provides an extremely durable and weather-resistant finish.

The internal cavity is large enough to fit LED strips up to 20mm wide, and is high enough to fit waterproof strips. It is also designed with space that can be used to run wiring for powering long lengths of LED strip.

Lengths of this profile can be joined using the wide range of Q9 connectors.

The Broadway profile is supplied with a rubber gasket to help prevent water damage to laminate floors.

The Broadway LED profile enhances safety and visibility while adding a modern design element to floor transitions. Its durable construction ensures it can withstand foot traffic while maintaining consistent light distribution.

General specifications

• Made in USA
• Material: Aluminum
• Colors: Black two-step hard-wearing anodized
• Maximum LED strip width: 20mm

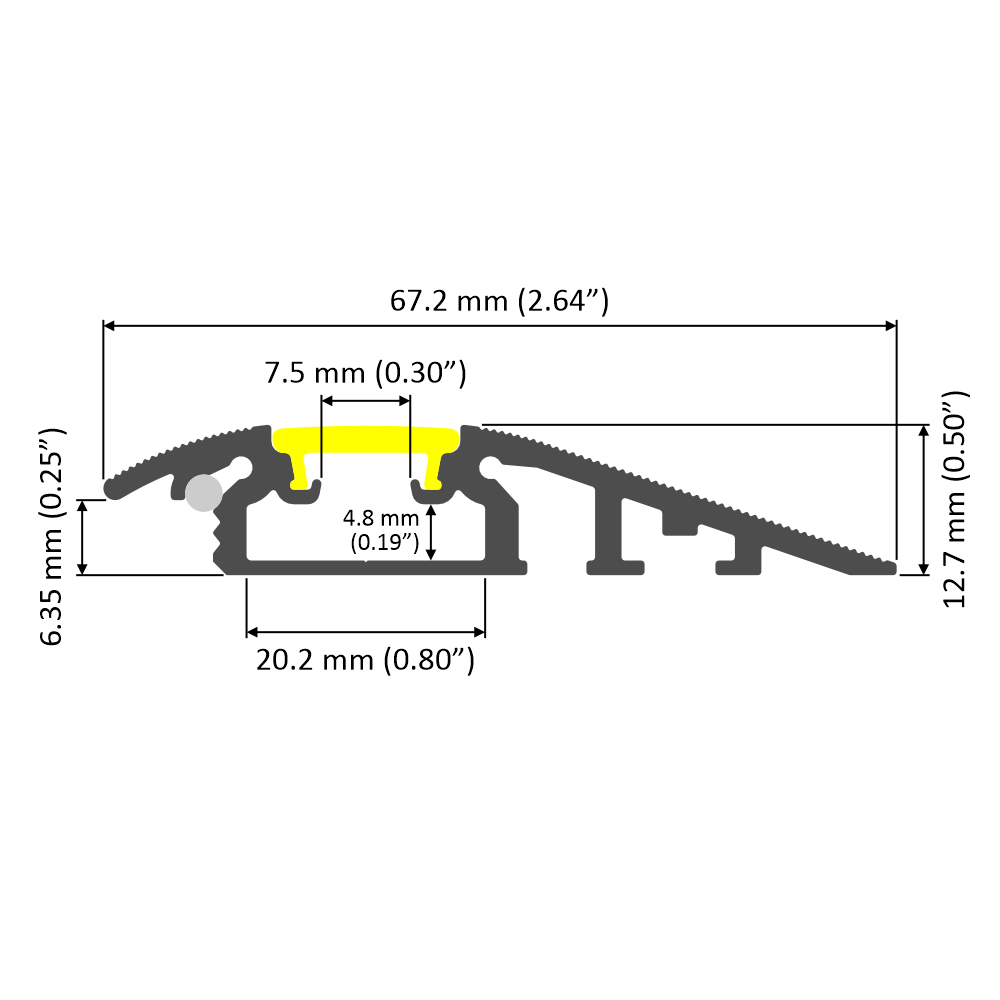

• Overall dimensions: 67.17mm x 12.73mm (2.64" × 0.50")

Downloads

• Broadway cut sheet - to be added

Important notes

• You can easily cut LED profiles by hand or by machine.
• For your convenience, Wired4Signs USA can cut LED profiles according to your requirements. Please leave instructions in the order comment box.
• We recommend double-checking the measurements before cutting LED profiles and covers to avoid any unnecessary loss. Please note that if you cut LED profiles and covers, we cannot refund or replace them.
• Items in stock are shipped the same day from Knoxville, Tennessee, United States.
• Bulk pricing is available on request.
