Nicho Series Waterproof Tile Lighting

Shop Waterproof Tile Edge Lighting for Wet Areas

Nicho Waterproof Tile Lighting for Flat and Corner Profiles

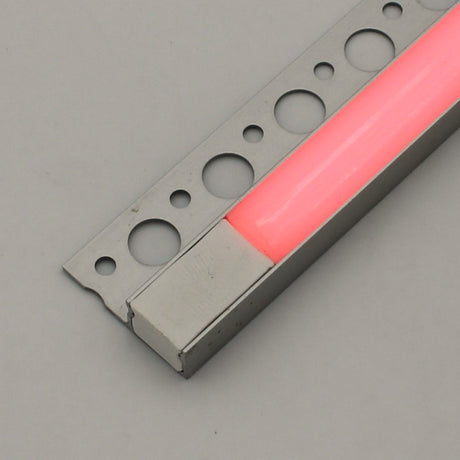

Nicho tile lighting integrates the light source into the tiled finish rather than mounting a separate fixture over it. The 180-degree Uni-Tile12 profile suits flat surfaces and tile-ending trims. The 90-degree version follows inside corners, including shower niches, while the 270-degree profile wraps outside corners and architectural edges. Each white-light kit uses a 24V silicone strip rated IP67 when any cut ends are correctly resealed. The 15.6W/m strip produces 3000K warm white light at 120 LEDs per meter. The aluminum extrusion manages heat and supports an even line across ceramic, stoneware, and tiled surfaces.

Installing Nicho Tile Edge Lighting in Wet Areas

Select the profile angle before measuring the illuminated edge: use 180 degrees for a flat run, 90 degrees for an internal corner, or 270 degrees for an external corner. For installers researching how to fit waterproof tile edge lighting in a shower, test the strip and driver first, cut the profile to length, and trim the white strip only at its marked 50mm intervals. Seal every cut end, route the lead wire through the rear of the profile, and secure the extrusion before laying the surrounding tile. Complete all mains-voltage wiring through a qualified professional.

Shop similar collections: 24V DC Power Supplies | Dimmable LED Drivers | LED Dimmers and Controllers | LED Under Cabinet Lighting

Our Nicho Tile Lighting: European-Made Strip and Three-Year Warranty

Each of our Nicho kits combines the Uni-Tile12 profile, a pre-wired silicone strip, two soft TPU end blanks, and clear silicone sealant in one specified system. We have the white strip manufactured in Europe to our specifications, and it carries a three-year warranty. Our Knoxville micro-factory can cut the aluminum profile for project-specific dimensions. We can also check connected wattage, driver capacity, dimming compatibility, cable routing, and wet-area sealing requirements before you order. Orders over $450 qualify for free shipping, and our 30-day free-return policy adds purchase confidence.

If you're dreaming of elevating your space with sophisticated, functional lighting, the Nicho Series Waterproof Tile Lighting Kits offer the perfect solution. Designed for tiled surfaces in wet areas, these kits combine elegance, durability, and simplicity, making them a must-have for your next home upgrade.

Wired4Signs USA provides complete, ready-to-install kits that include everything needed for a professional installation. Each tile LED kit features premium components specifically designed for wet environments, ensuring long-lasting performance and reliability.

What’s Included in the Nicho Series Kit?

• 1x Uni-Tile12 LED profile (available in 90, 180, & 270 degree LED profile)
• 1x Silicone white LED strip with lead wire
• 2x Soft TPU end blanks
• 1x Tube of clear silicone sealant

How to Install the Nicho Series Waterproof LED Light Kit?

While the Nicho Series is designed for straightforward installation, professional installation is recommended to ensure proper waterproofing and electrical safety. For detailed instructions, refer to this link for our complete installation guide.

Frequently Asked Questions

Can the Nicho Series lighting kit lights be dimmed?

Yes, the LED strip is compatible with dimmers, allowing you to create customized lighting effects.

Where can I install the Nicho Series lighting kit?

This complete set is ideal for tiled surfaces in showers, bathrooms, kitchens, and any other tiled area requiring waterproof accent lighting.

Can the aluminum profile and LED strip be cut to size?

Yes, the aluminum LED profile in the Nicho Series can be cut to any length you need to fit your specific installation requirements. The Nicho White LED strip can be cut every 50mm (approximately 2") at the marked intervals, making it customizable for various applications. However, the RGB Nicho Series LED strip cannot be cut. For further guidance or assistance with your project, please feel free to contact us.

What type of power supply is required for the LED strip?

The LED strip can be connected to a suitable LED power supply. Contact us for recommendations.
