Casambi Long-Range Wireless Trailing Edge AC Dimmer ~ Eulum TRED-CSB-2A-XSF
Product details
Wireless Trailing Edge Dimmer only ~ all other accessories are sold separately
Description
The TRED-CSB-2A-XSF is a Casambi-enabled, long-range compatible, AC trailing-edge dimmer for wireless lighting control, designed to integrate incandescent bulbs and other AC phase-dimmable systems into the Casambi wireless system. This smart dimmer ensures smooth trailing-edge dimming, making it suitable for both residential and commercial applications.
The TRED dimmer supports loads of up to 2A, allowing compatibility with a wide range of lighting types. You can control tungsten and halogen lamps, dimmable LED and CFL lamps, trailing-edge dimmable LED drivers, and electronic transformers. Note that it is not compatible with magnetic/inductive loads such as iron core transformers – this will permanently damage the TRED. Also, do not mix load types.
It operates seamlessly within the Casambi network, offering full app-based control and smart lighting functionality. Long-range compatibility improves network stability and performance. A remote antenna configuration is also available to optimize wireless reception in installations with coverage challenges.
General specifications
- Model: Eulum TRED-CSB-2A-XSF
- Input voltage: 120-277V AC
- Max input current: 2A (3A Fused)
- No-load standby power: <300mW
- Dimming method: Trailing-Edge Phase Control
- Dimming output: Logarithmic/Linear, 0-100%, 0.4% Resolution
- Channels: 1
- Max output power:
- Tungsten or halogen lamps: 460W @ 230V AC / 240W @ 120V AC
- Dimmable LED and CFL lamps: 150W @ 230V AC / 75W @ 120V AC
- Trailing-edge dimmable LED drivers, electronic transformers: 150W @ 230V AC / 75W @ 120V AC
- Max output current: 2A
- Min load requirement: 1W
- Wireless protocol: Casambi
- Environmental protection: IP20
- Ambient temperature: 0°C to +50°C (32°F to 122°F)
- Storage temperature: -40°C to +80°C (-40°F to 176°F)

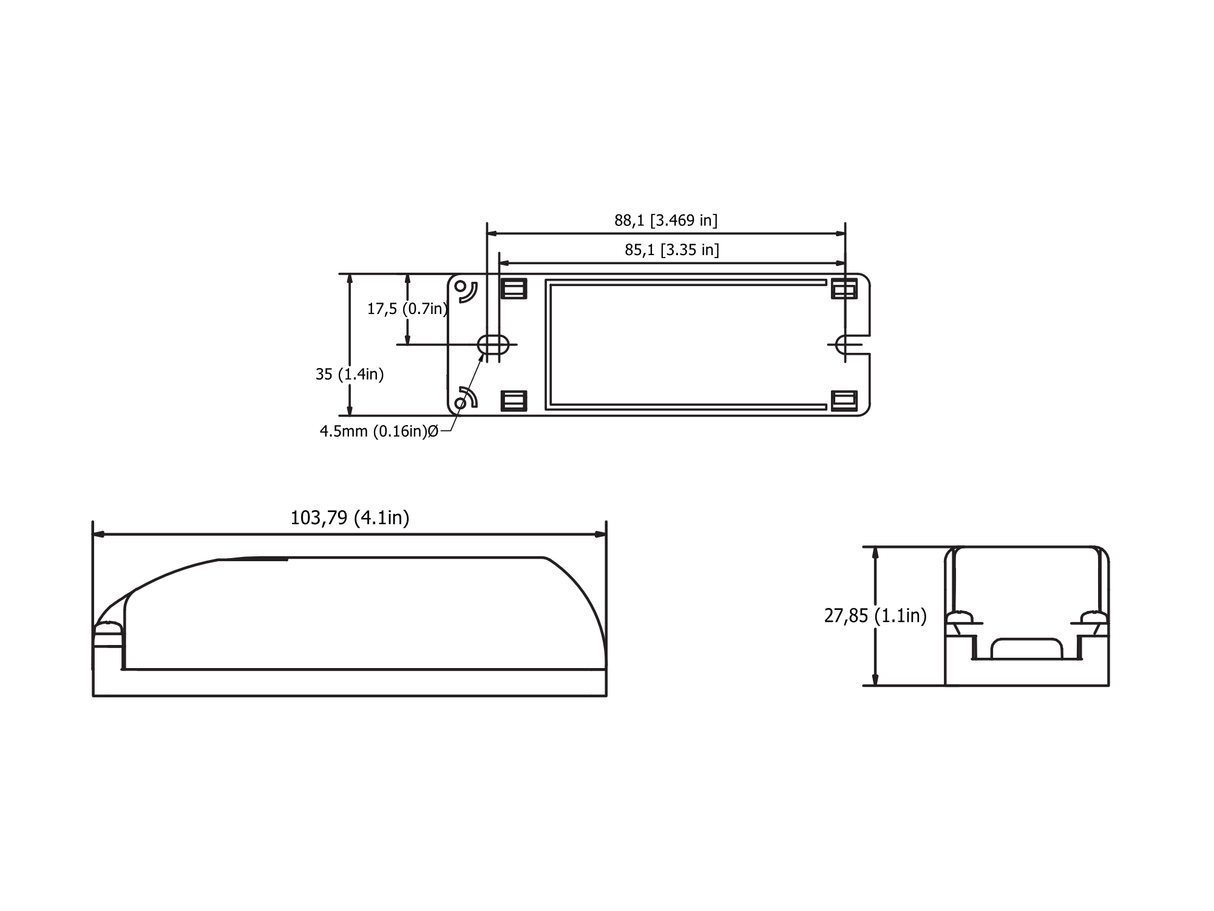

- Dimensions: 103 x 35 x 28mm (4.06" x 1.38" x 1.10")
- Mounting: Screw down
