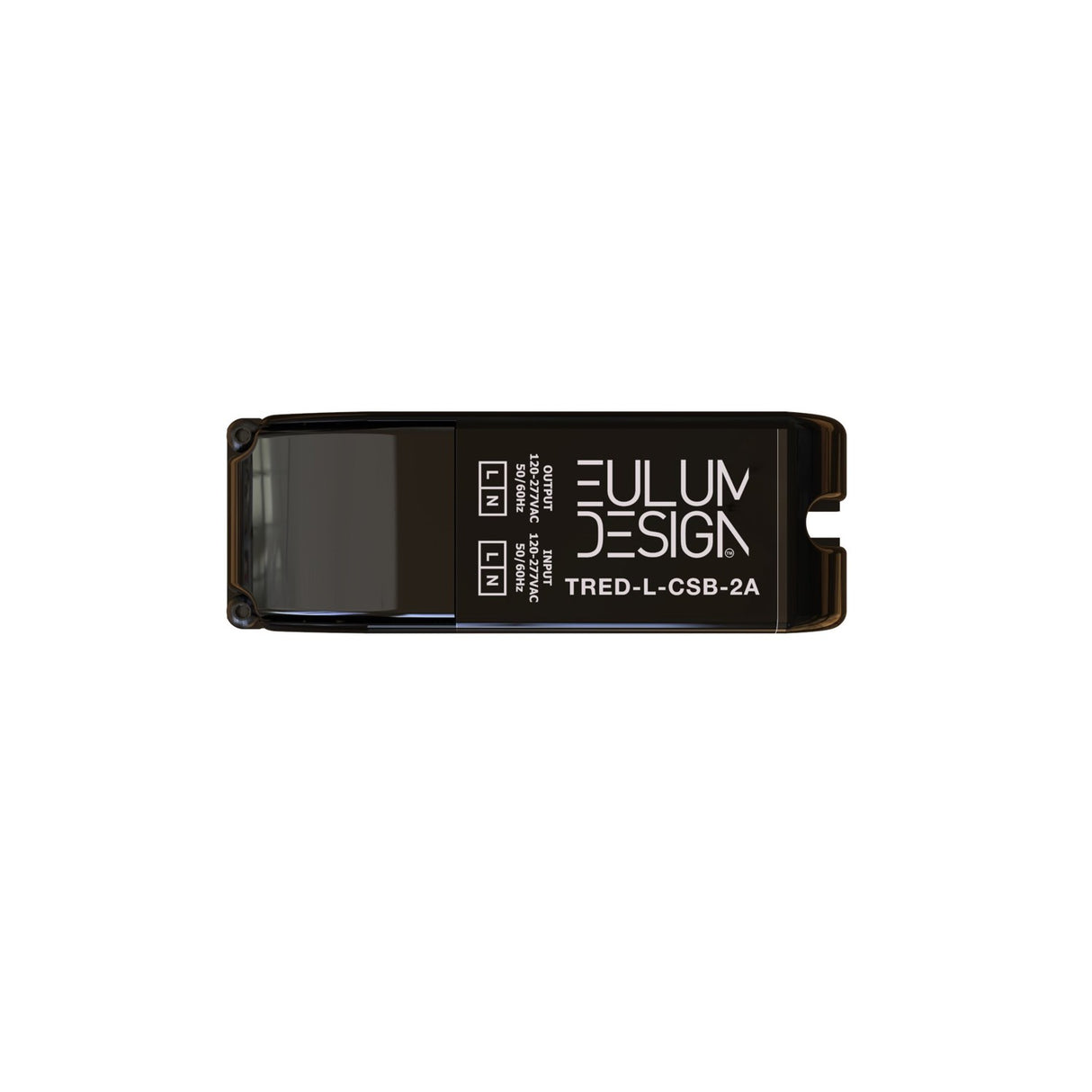

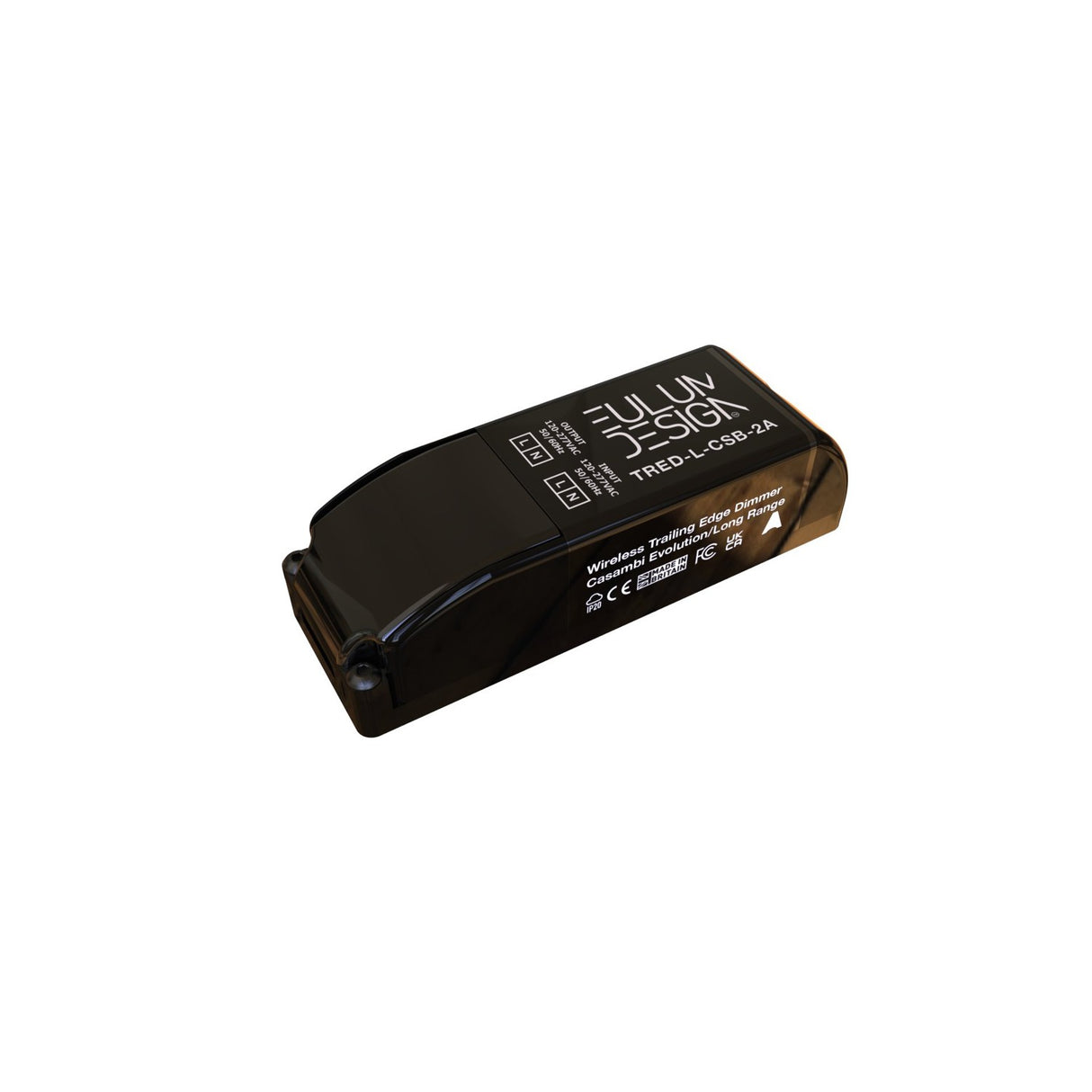

Casambi Long-Range Wireless Trailing Edge AC Dimmer ~ Eulum TRED-CSB-2A-XSF

Wireless Trailing Edge Dimmer only ~ all other accessories are sold separately

Description

The TRED-CSB-2A-XSF is a Casambi-enabled, long-range compatible, AC trailing-edge dimmer for wireless lighting control, designed to integrate incandescent bulbs and other AC phase-dimmable systems into the Casambi wireless system. This smart dimmer ensures smooth trailing-edge dimming, making it suitable for both residential and commercial applications.

The TRED dimmer supports loads of up to 2A, allowing compatibility with a wide range of lighting types. You can control tungsten and halogen lamps, dimmable LED and CFL lamps, trailing-edge dimmable LED drivers, and electronic transformers. Note that it is not compatible with magnetic/inductive loads such as iron core transformers – this will permanently damage the TRED. Also, do not mix load types.

It operates seamlessly within the Casambi network, offering full app-based control and smart lighting functionality. Long-range compatibility improves network stability and performance. A remote antenna configuration is also available to optimize wireless reception in installations with coverage challenges.

General specifications

• Model: Eulum TRED-CSB-2A-XSF
• Input voltage: 120-277V AC
• Max input current: 2A (3A Fused)

• No-load standby power: <300mW
• Dimming method: Trailing-Edge Phase Control
• Dimming output: Logarithmic/Linear, 0-100%, 0.4% Resolution
• Channels: 1

• Max output power:
  • Tungsten or halogen lamps: 460W @ 230V AC / 240W @ 120V AC
  • Dimmable LED and CFL lamps: 150W @ 230V AC / 75W @ 120V AC
  • Trailing-edge dimmable LED drivers, electronic transformers: 150W @ 230V AC / 75W @ 120V AC
• Max output current: 2A
• Min load requirement: 1W
• Wireless protocol: Casambi
• Environmental protection: IP20
• Ambient temperature: 0°C to +50°C (32°F to 122°F)
• Storage temperature: -40°C to +80°C (-40°F to 176°F)

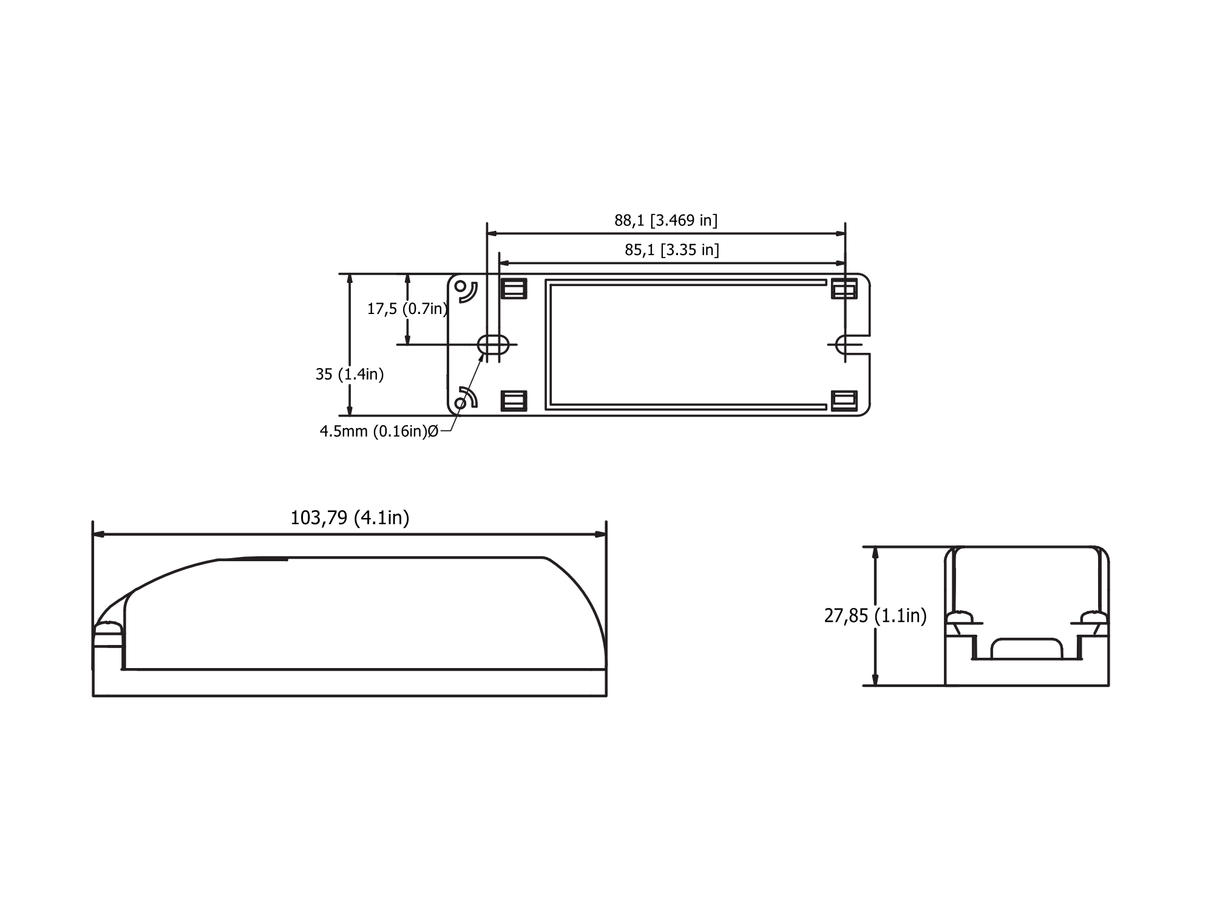

• Dimensions: 103 x 35 x 28mm (4.06" x 1.38" x 1.10")
• Mounting: Screw down

Downloads

• TRED-CSB-2A-XSF cut sheet
