Constant Voltage LED Power Supply With Casambi Dimming (24V / 160W)

Constant Voltage LED Power Supply With Casambi Dimming (24V / 160W)

Original price - Original price
Original price
-
Current price
SKU LED-808631
In stock and ready to ship

🚚 - Free shipping on most orders over $350 - T&C Apply

Channel & Strip Combo Discount!

Buy any LED channel and get 10% off any LED strip.

Power supply only ~ LED strip not included

Description

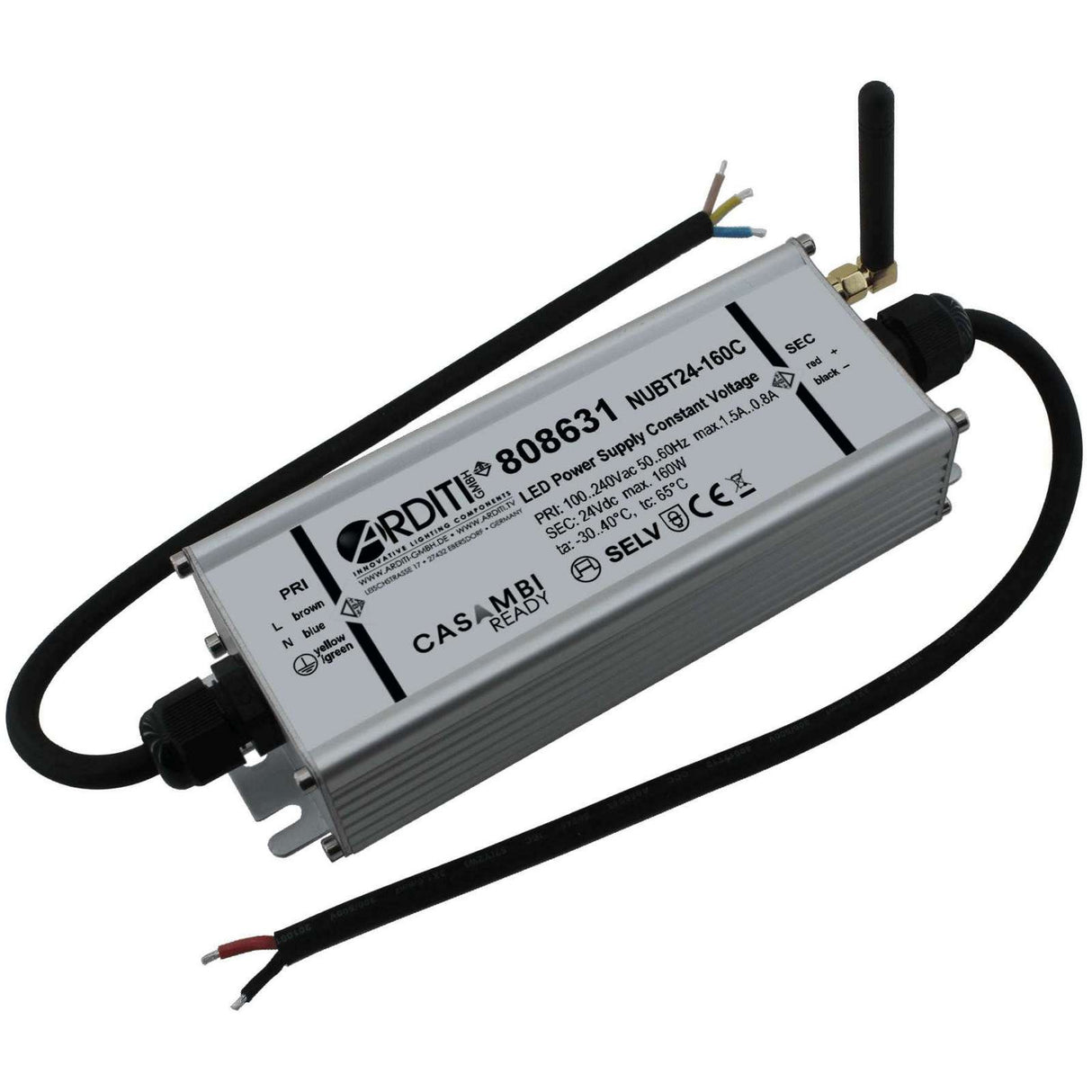

This 160W constant voltage LED power supply has built-in Casambi bluetooth lighting control. If you use this wirelessly controlled power supply, you can also set up dimmable LED lighting which you can control directly from a smartphone.

Note that this is a single channel power supply and therefore can only control single color LED strip. It is intended for dimming applications and not for RGB/RGBW control.

This power supply comes with an external antenna for extended signal range and an optional extension cable in case you need to position the antenna outside an electrical enclosure. Using this power supply, there is no need for a separate power supply and dimming controller. Additionally, this power supply can be used with or without a Casambi gateway, depending on your existing environment.

Furthermore, the Casambi smart home system enables easy smart home control of all your LED lighting straight from your smart phone, with apps available for Apple and Android devices.


General specifications

  • Control system: Casambi bluetooth
  • Gateway: Compatible, but not required
  • Output channels: 1-channel (single color dimming)
  • Supply voltage: 100-240V AC / 50-60Hz
  • Output voltage: 24V DC
  • Power: 160W
  • PWM Frequency: User selectable - 500, 1000, 2000 or 4000 Hz
  • Protection: Overload and Short-circuit
  • Environmental protection: IP50 Indoor

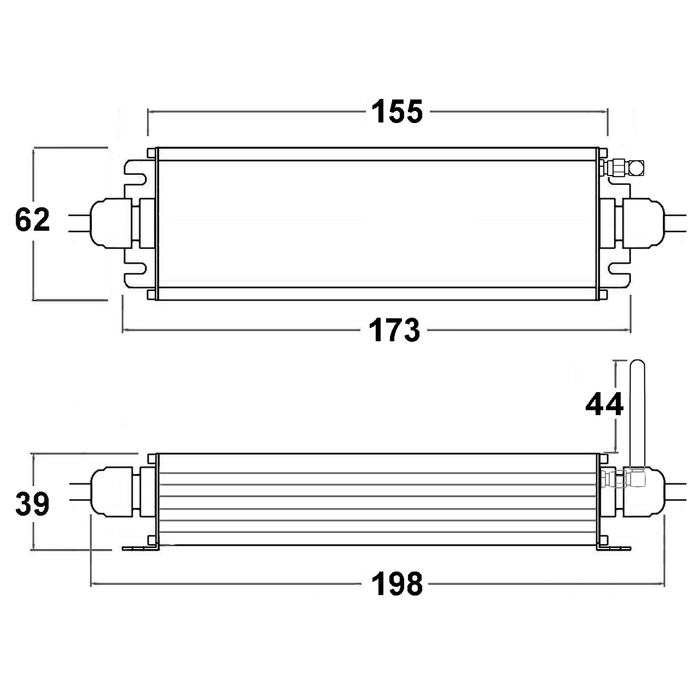

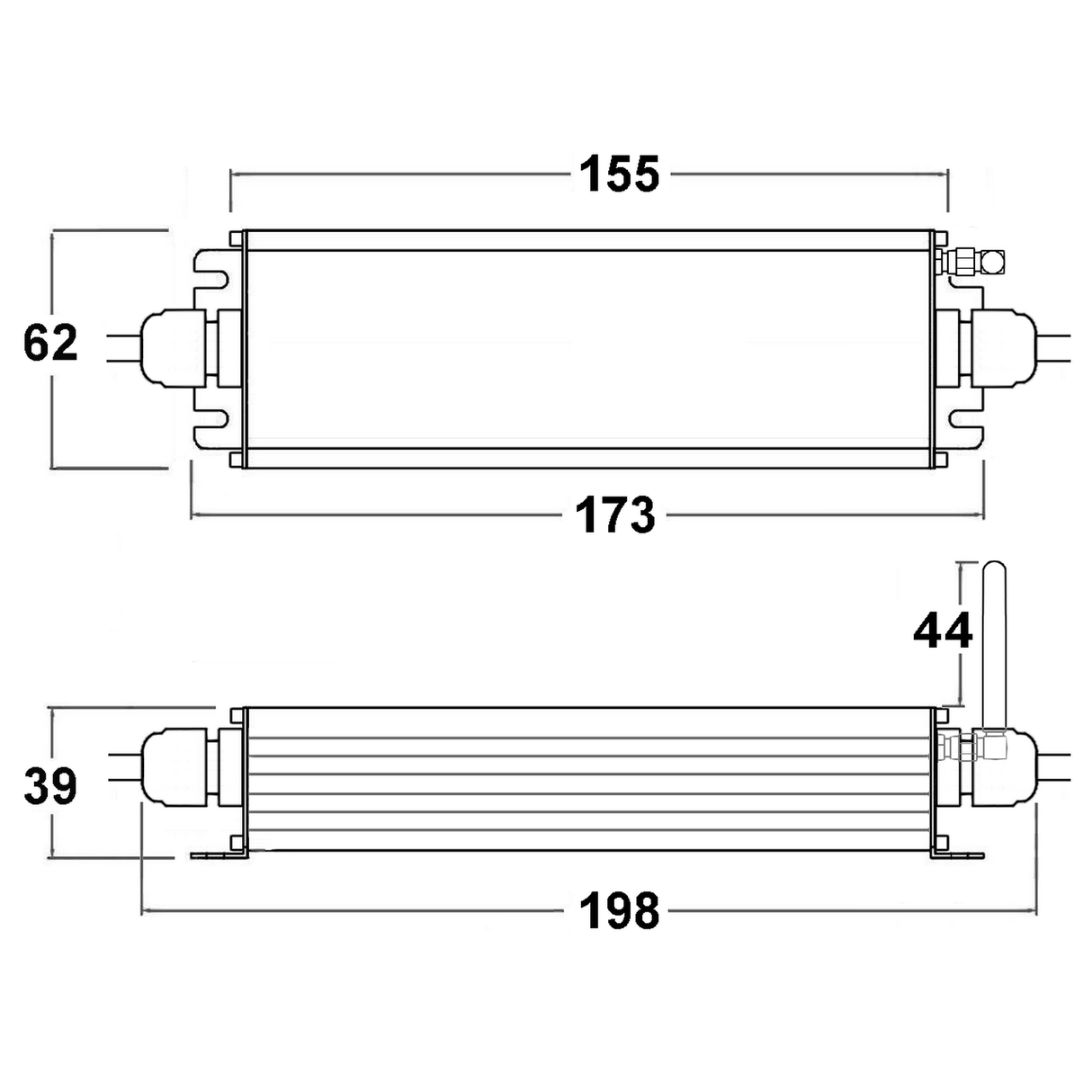

  • Dimensions: 198 x 62 x 39mm (7-3/4" x 2-7/16" x 1-1/2")
  • Connection cable length: 30cm (~ 12")
  • Optional antenna cable length: 520mm (~ 20")
