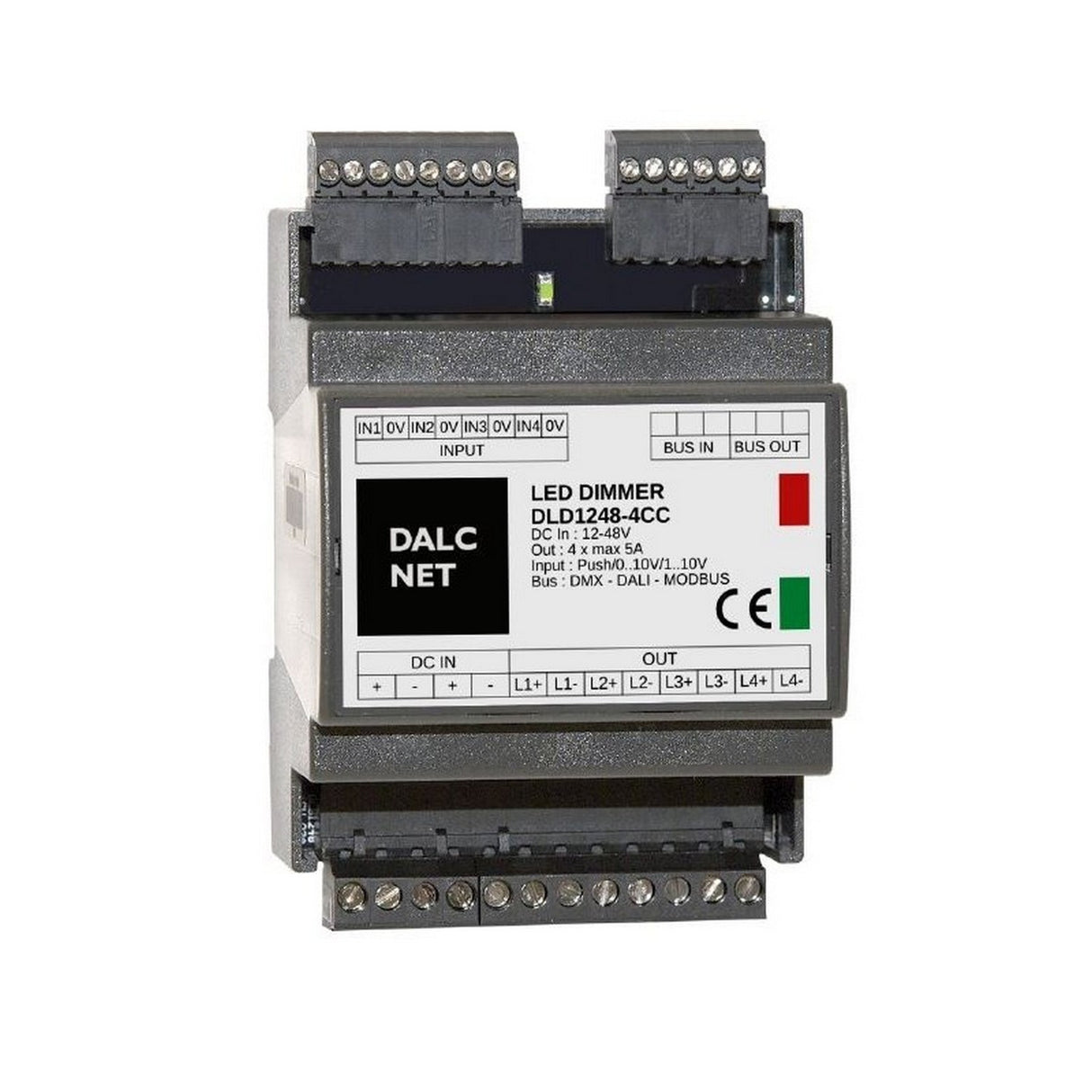

DIN-rail 4-Channel Constant Current LED Dimmer with Modbus ~ Model DLD1248-4CC-MODBUS

Controller only ~ power supply, LEDs and all other accessories are sold separately

Description

The DLD1248-4CC-MODBUS from Dalcnet is a 4-channel constant current LED dimmer for DIN-rail installation. This RGBW LED controller offers Modbus remote control capabilities as well as four local inputs which can be used for push button or potentiometer control, or as 0-10V or 1-10V remote control signal inputs. This variety of control inputs allows you to create a custom lighting control solution to suit your needs perfectly.

Offering the flexibility to finely adjust brightness levels, from full intensity to dimmed-off, the dimmer sets a new standard for lighting ambiance. Experience unparalleled control with a minimum brightness level of 0.1% (or 1% in push mode), facilitated by D-PWM modulation.

Tailor the performance to your preference with adjustable D-PWM frequencies of 300, 600, and 1200 Hz, as well as professional output curve options like Linear, Quadratic, and Exponential. Embracing user comfort, the dimmer features soft start, soft stop, and smooth dimming regulation.

Operating reliably across extended temperature ranges, the DLD1248-4CC-MODBUS LED dimmer epitomizes cutting-edge lighting control technology, empowering you to shape your environment with precision and finesse.

General specifications

• Model: DLD1248-4CC-MODBUS
• Input Range: 12-48V DC
• Output Current: 1x 1.0-2.8A or 4x 250-700mA
• Channels Output: 4-Channel
• Bus Command: Modbus
• Local Command: 4x N.O. push button (with or without memory), 0-10V, 1-10V and Potentiometer 10K Ohm
• Control modes: Dimmer, Dim to Warm, Tunable White, RGB, RGBW
• Adjusting the brightness up to completed off (Dim to Dark)
• Adjusting D-PWM frequency: 300 / 600 / 1200 Hz
• Adjusting output curve: Linear / Quadratic / Exponential
• Working Temperature Range: -40/+60°C
• Constant current dimmer: use with constant current LED strip.
• Dimensions: 72 x 92 x 62mm (2.83" x 3.62" x 2.44")
• Warranty: 5 years

Downloads

• DLD1248-4CC-MODBUS cut sheet
