LED Strip Vaulted Ceiling Light Channel ~ Model Alu-Asymetric

Profile only ~ all other components are sold separately.

Description

LED Strip Vaulted Ceiling Light Channel ~ Model Alu-Asymetric

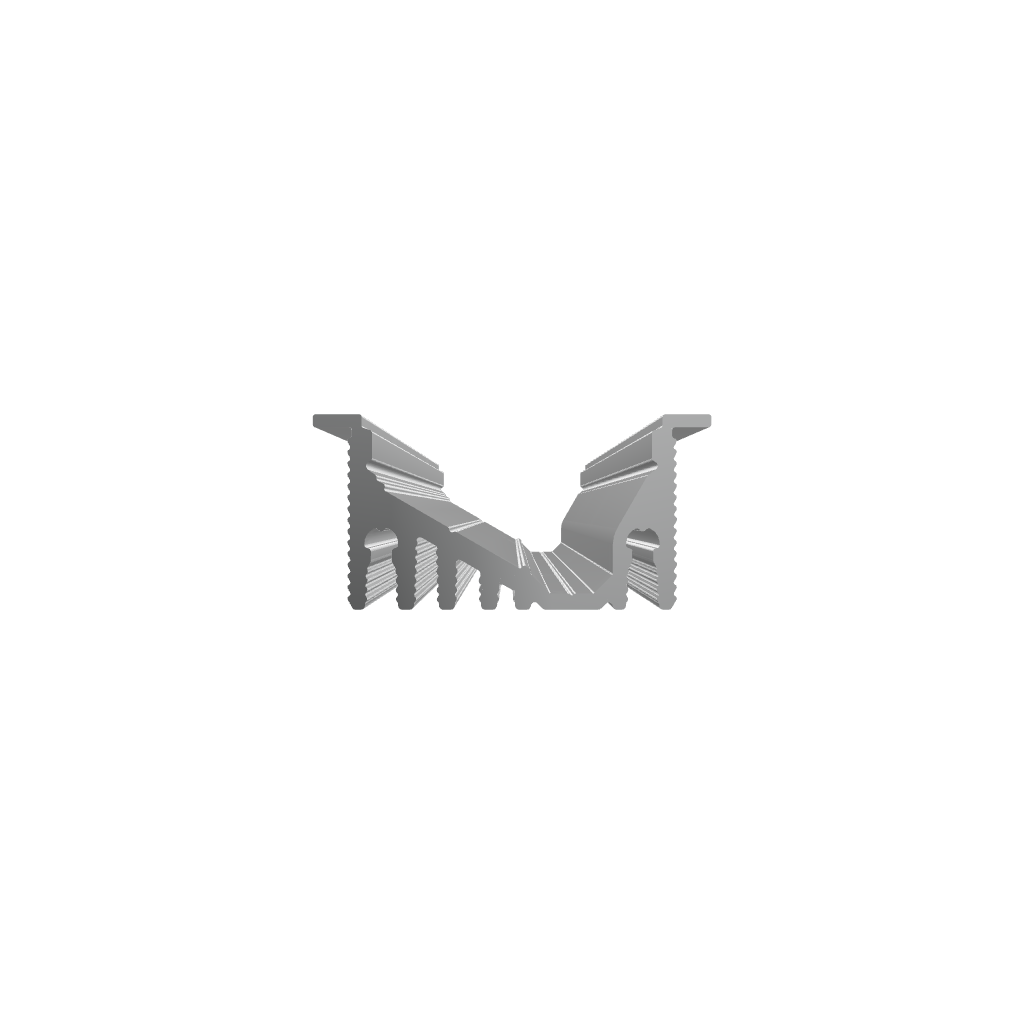

Our Alu-Asymetric - 2 Meter (6.56ft) LED Strip Vaulted Ceiling Channel is designed to be built into any kind of surface.

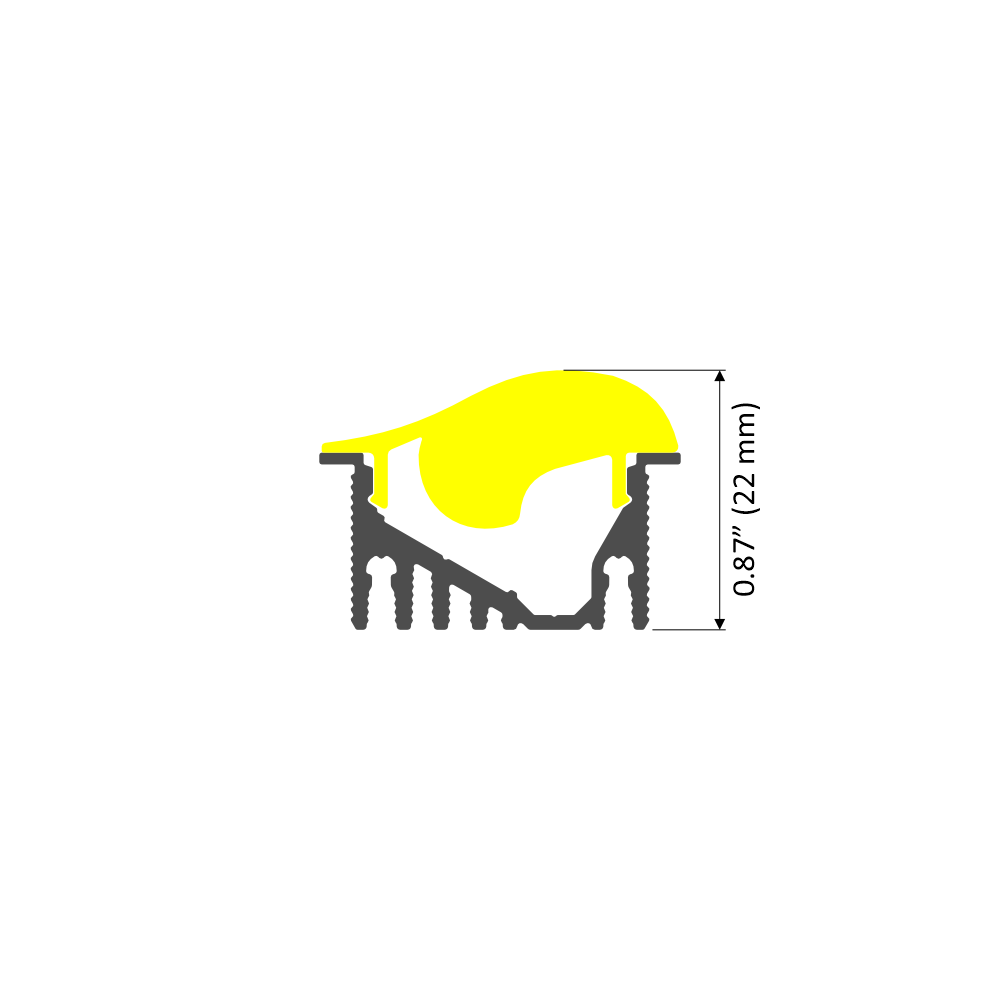

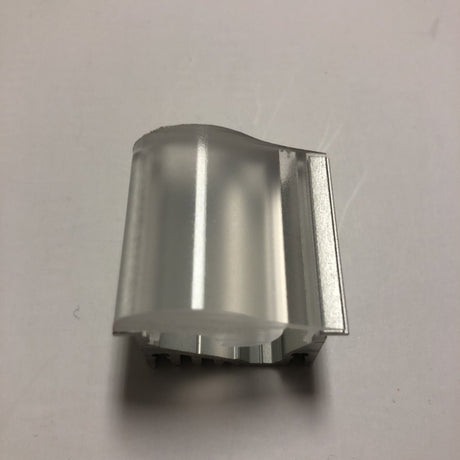

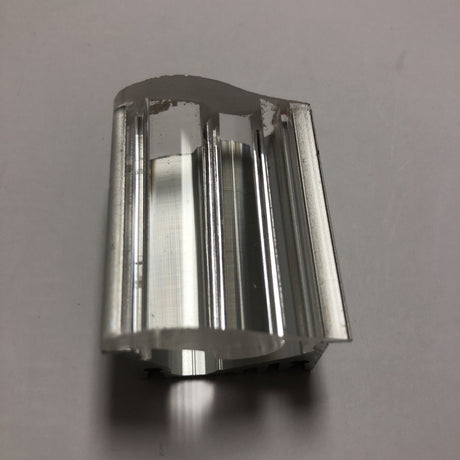

This unique channel with LED Optic Lens or Linear Lens, with its asymmetric lens, projects the light beam at the angle of 55/65°. This profile is ideal for applications like projecting light up ceilings or walls.

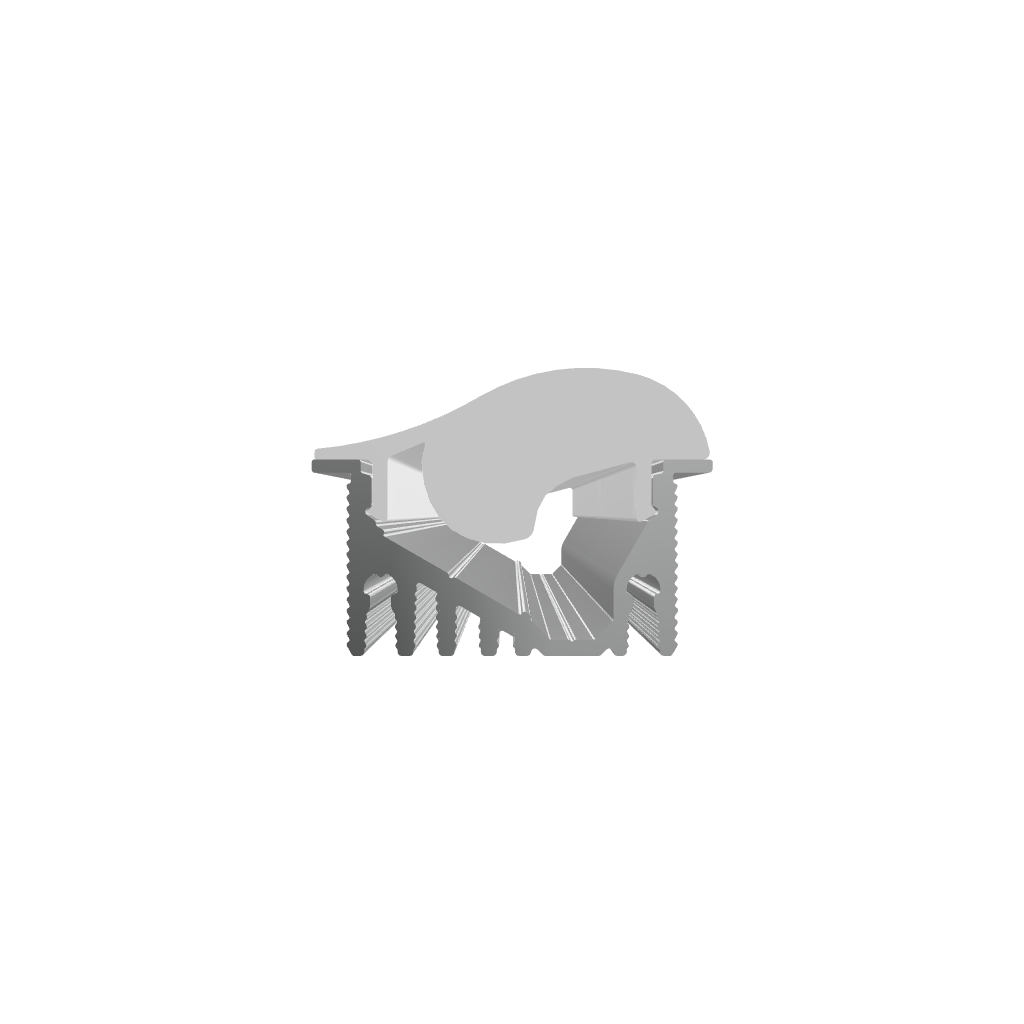

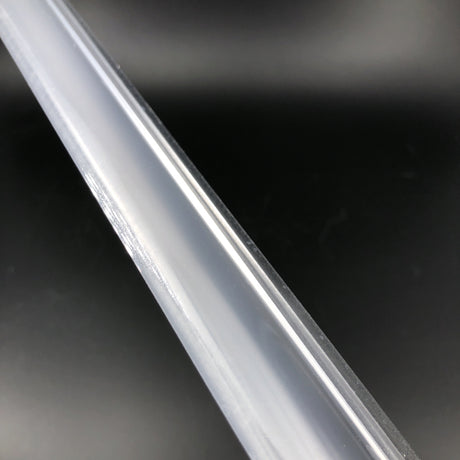

Additionally, the aluminum of the Alu-Asymetric Linear Lens channel guarantees effective heat dissipation for LED in the maximum load of 35W/m. We offer two types of Linear Lens for this LED profile: smooth clear Linear Lens and matte clear Linear Lens.

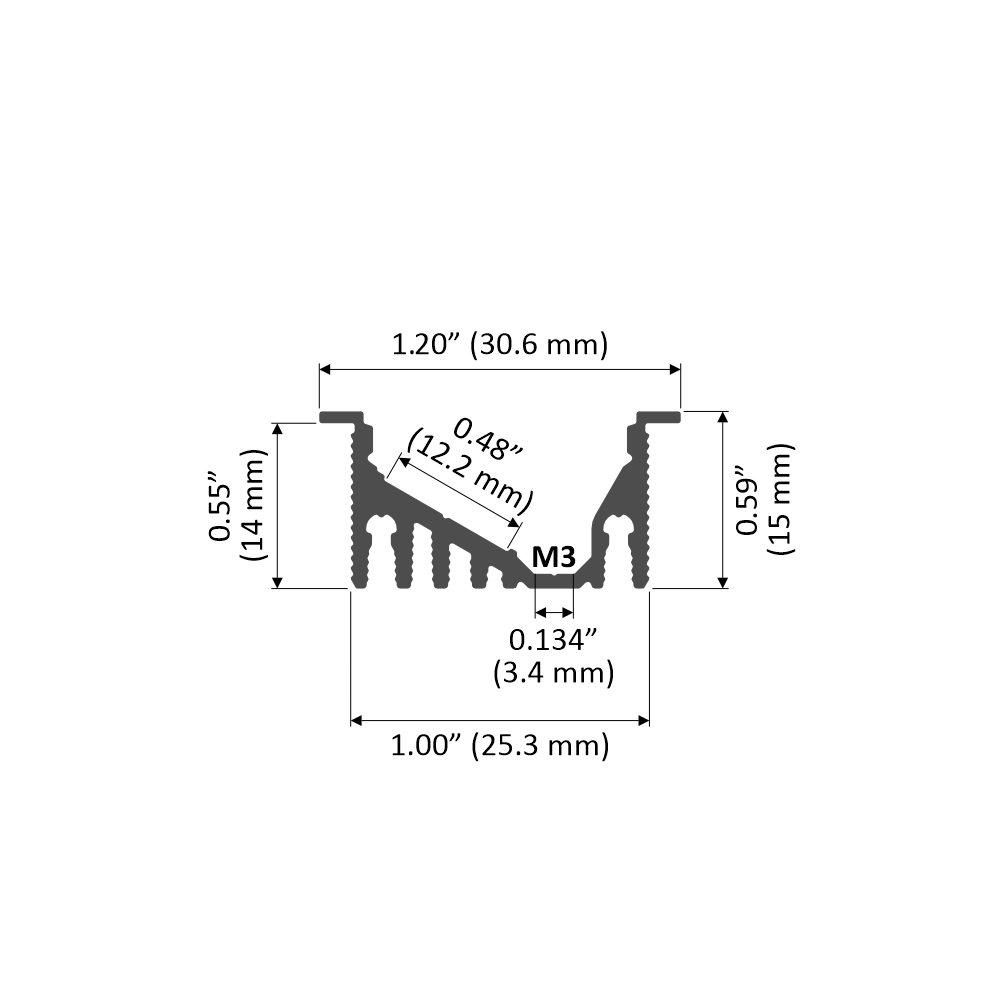

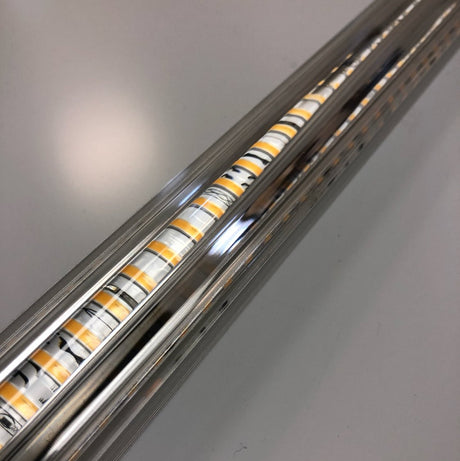

Moreover, the LED Strip Vaulted Ceiling Light Channel can accommodate standard LED strips with a width of a maximum of 12mm or 1/2 wide PCB.

How do I mount this?

Mount the channel by drilling a screw hole in the base and fastening it up against your substrate. The led strip mounts on the angle section and not on the lower part of the base, so there is place for the screw head.

Important Notes

• See product brochure here.
• We ship items in stock the same day from Knoxville, Tennessee, United States. Our team dedicates themselves to carefully packing and safely delivering all packages to their destination.
• Bulk pricing is available on request. For larger orders, we offer additional discounts and customized pricing to fit your project needs.
