Small LED Stair Nosing Channel ~ Model Alu-Stair Nano

Profile only ~ diffusers and all other accessories are sold separately

Description

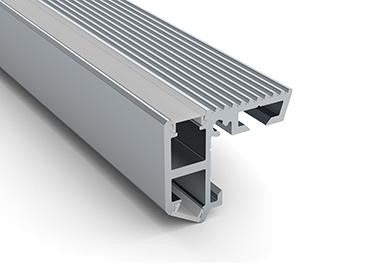

Alu-Stair Nano is the smallest walk over safe, aluminum, LED Stair Nosing profile that we have. The high-density aluminum-alloy body is suitable for handling the stress of everyday walk over traffic. The special hard aluminum alloy in connection with deep anodizing surface increases the durability of this product.

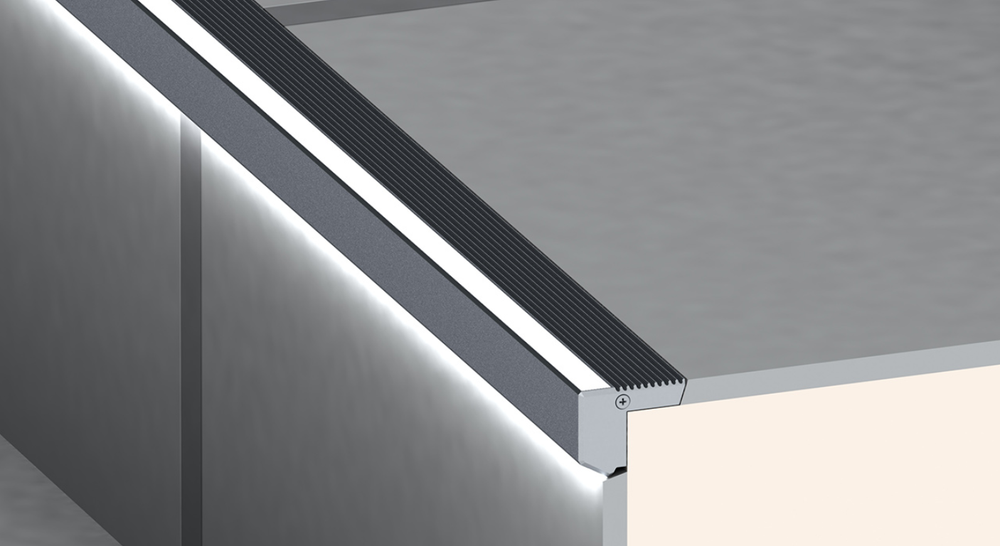

The light from this LED Stair Nosing channel is directed up and down. Although this channel has small dimensions, the design allows us to deliver homogeneous (dot-free) light when using our high-density Iris series LED strip.

This Small LED Stair Nosing Channel provides excellent heat dissipation for the LED strip.

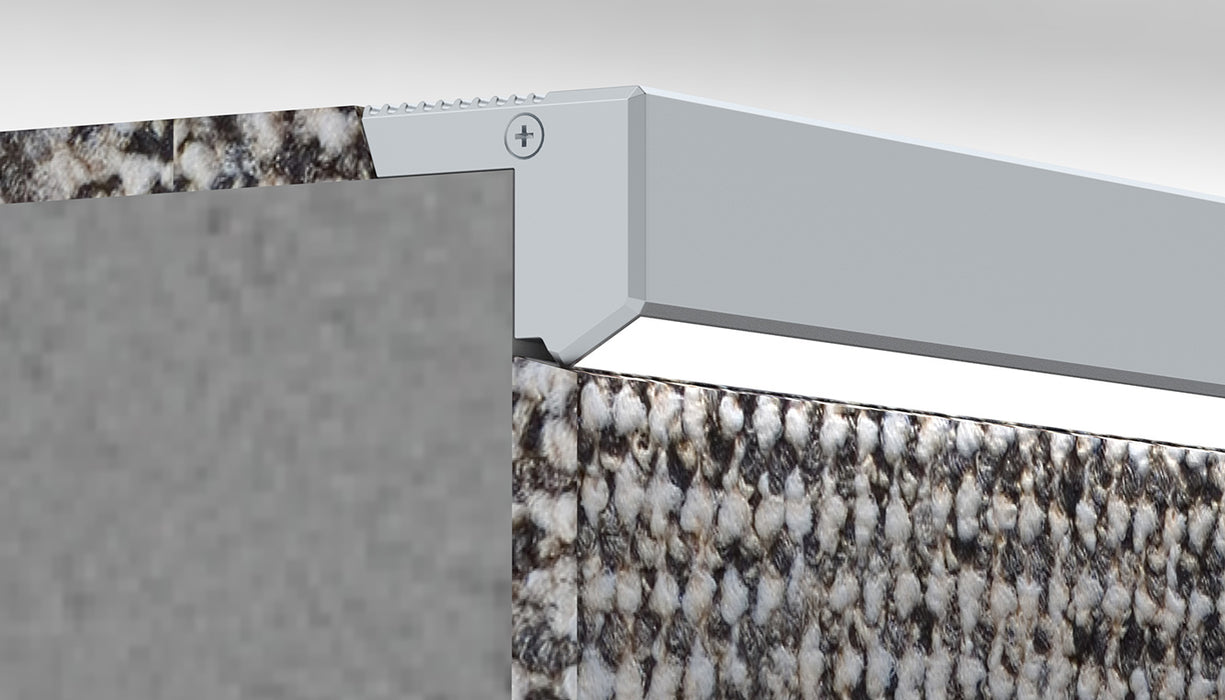

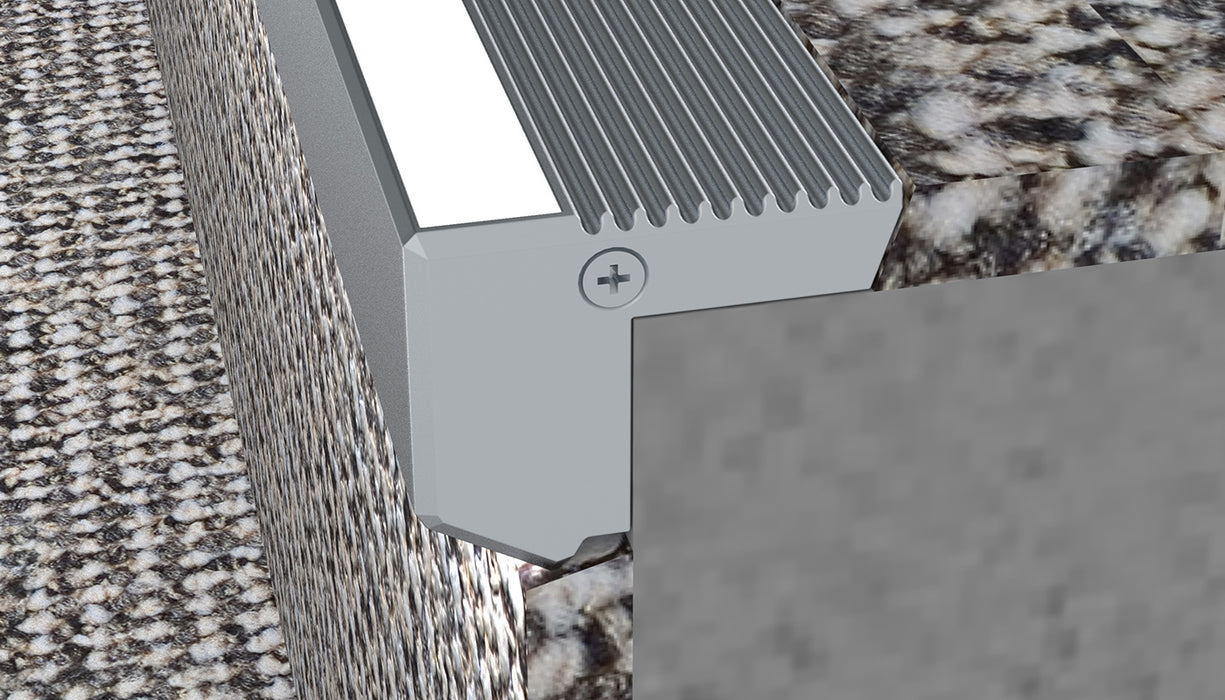

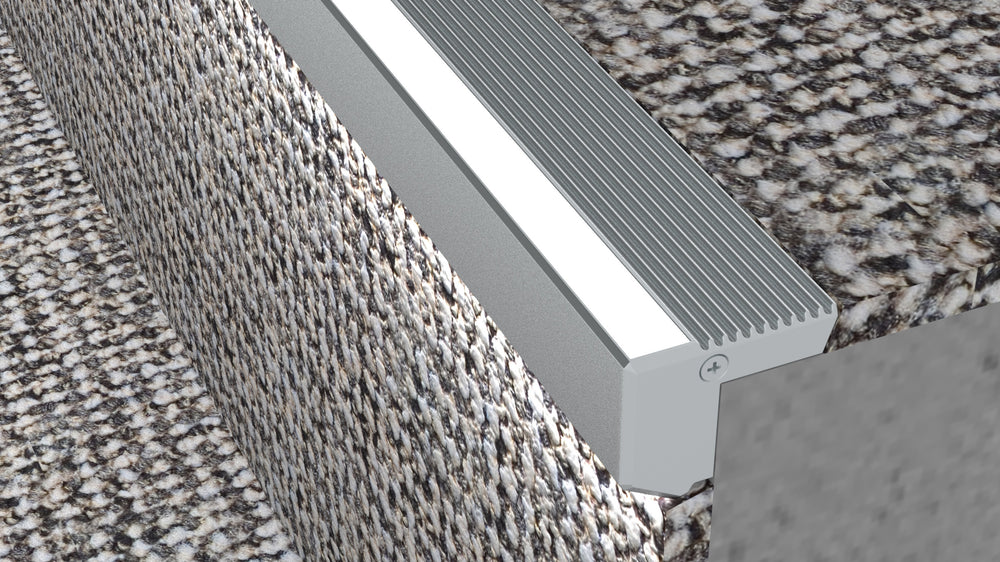

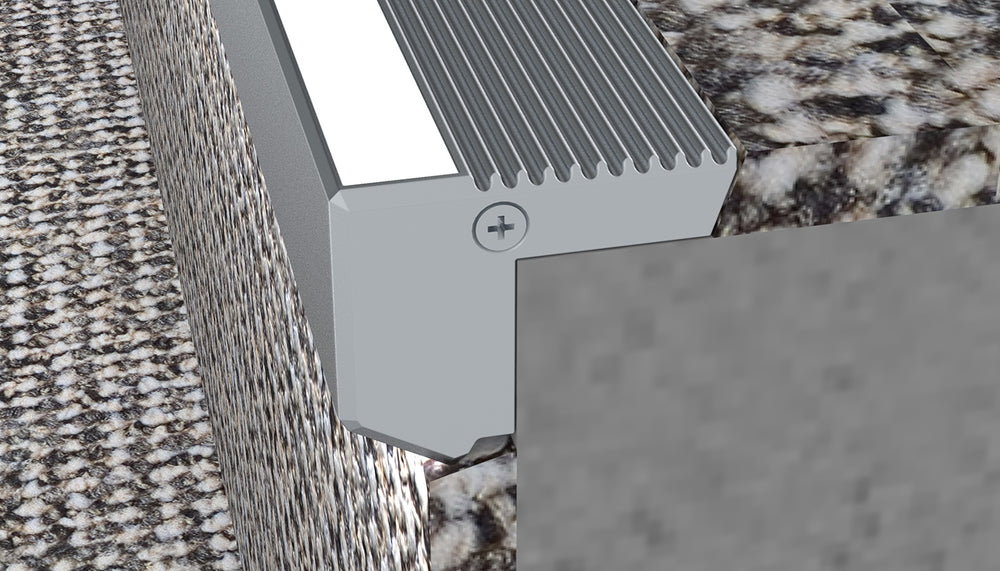

The installation of this LED lighted stair nosing is simple and can be used with carpet or tile finish floors. It can be installed after tiling.

This Small LED Stair Nosing Channel is fine for outdoor use as it is anodized. If installed outdoors you will need waterproof LEDs. We offer the service — if you give us measurements — of installing and encapsulating the LEDs with resin.

General specifications

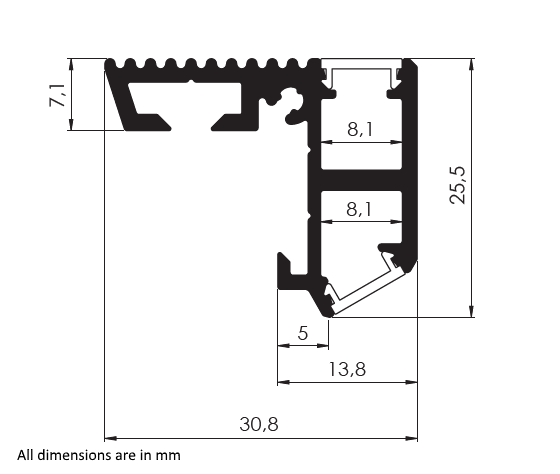

• Overall dimensions: 30mm x 25mm (1.18" x 0.98")
• Maximum LED strip width: 7mm

Downloads

• Alu-Stair Nano Cut sheet
• Alu-stair Nano Instructions

Important notes

• Please note that in outdoor applications, raw or natural profiles or channels will oxidize over time unless they are coated or painted, as they are not anodized.

• You can easily cut LED profiles by hand or by machine.

• For your convenience Wired4Signs USA can cut LED profiles according to your requirements. Please leave instructions in the order comment box.

• We recommend double-checking the measurements before cutting LED profiles and covers to avoid any unnecessary loss. Please note that if you cut LED profiles and covers, we cannot refund or replace them.

• We ship items in stock the same day from Knoxville, Tennessee, United States. Our team dedicates themselves to carefully packing and safely delivering all packages to their destination.

• Bulk pricing is available on request. For larger orders, we offer additional discounts and customized pricing to fit your project needs.
