Product details
Ultra-Compact Daylight Sensor for LED Lights only ~ all other components sold separately
Description

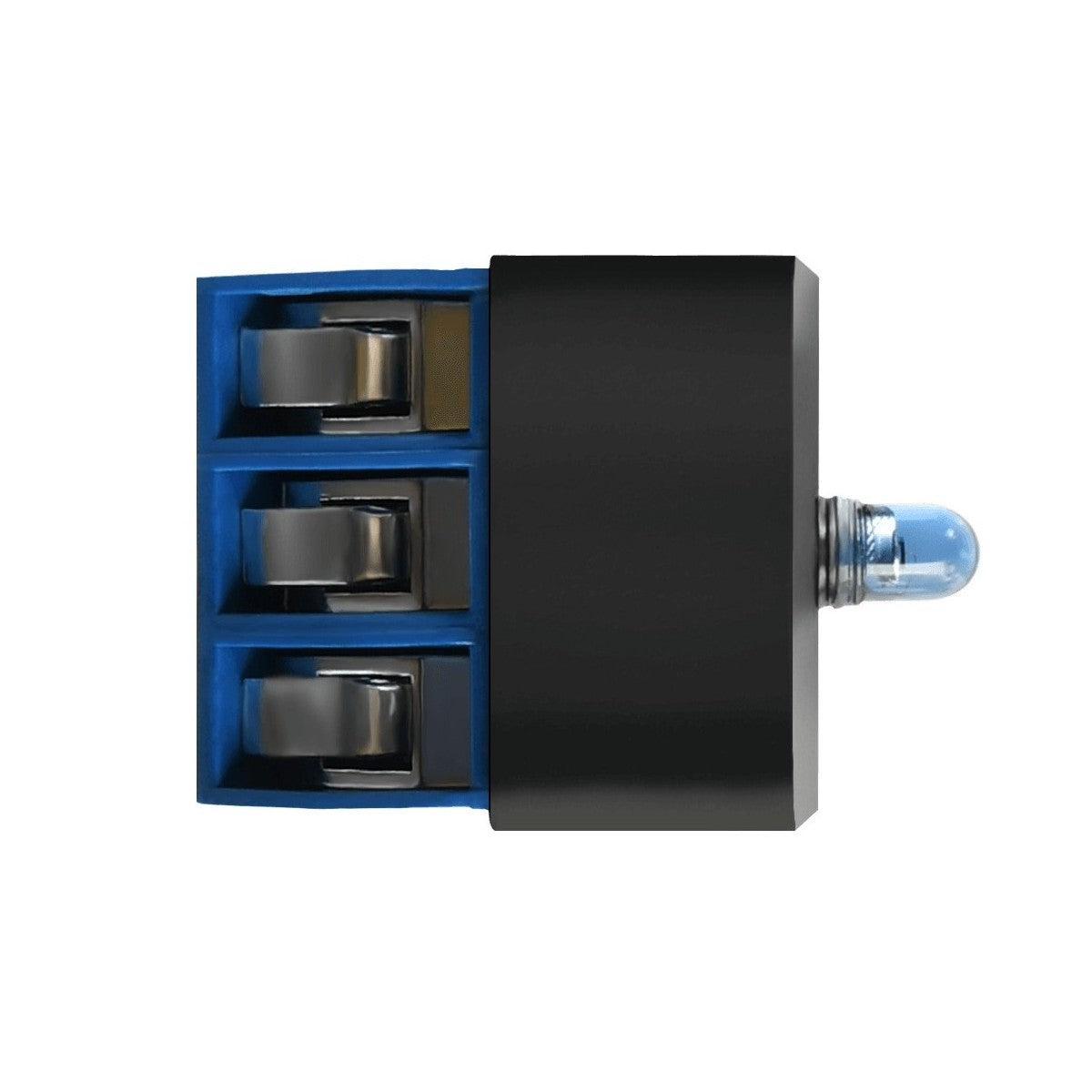

Ultra-Compact Daylight Sensor for LED Lights ~ twilightCompact by BleBox
This ultra-compact daylight sensor is ideal for directly controlling LED lights in a wide range of situations. It will switch on your LED lights at twilight and switch them off again at dawn.
This controller is perfect for switching feature lights in the home and garden. For example, you can use this tiny LED controller for night lighting of trees, gazebos, alleys, benches, doorways and parking areas. Besides aesthetics, switching lights off in the daytime saves energy and extends the life of your LED fixtures.
Despite its size, the twilightCompact is able to drive 120W of 24V LED strip, which is about 30ft of high-power strip or up to 250ft of low-power ambient LED strip. If you need to drive more LEDs from one controller, you can simply add an ampBox amplifier to drive another 480W of 24V strip – that is nearly 150ft of high-power strip or over 1200ft of ambient strip!
This miniature twilight dusk-to-dawn sensor is small enough to be installed inside electrical junction boxes or switch boxes. Just make sure that the light sensor itself is exposed!
Compact dusk-to-dawn sensor demonstration video
General specifications
- Supply voltage: 12-24V DC
- Maximum output current: 5A
- Maximum output power: 60W @ 12V / 120W @ 24V
- Energy consumption: < 0.1W
- Connection: Screw terminal
- Sensor: Optical, photodetector
- Calibration: Automatic
- Environmental protection: IP20 non-waterproof
- Operating temperature: -4°F to 122°F (-20°C to 50°C)
- Dimensions: 23 x 17 x 22mm (0.91 x 0.67 x 0.85")
- Warranty: 5 years (details)
