LED Strip Vaulted Ceiling Light Channel ~ Model Alu-Asymetric

Profile only ~ all other components are sold separately.

Description

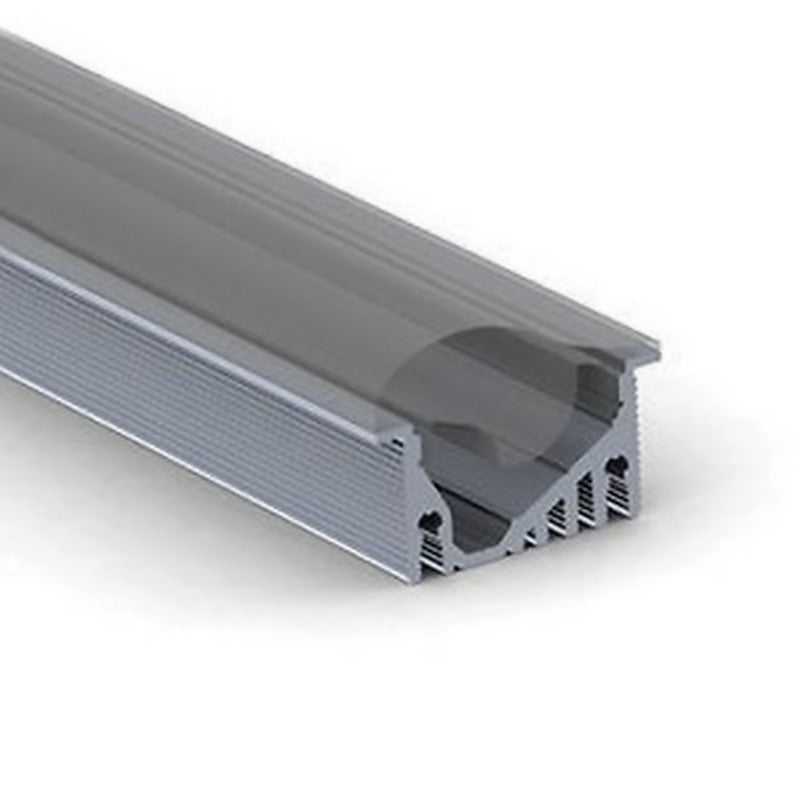

LED Strip Vaulted Ceiling Light Channel ~ Model Alu-Asymetric

Our Alu-Asymetric - 2 Meter (6.56ft) LED Strip Vaulted Ceiling Channel is designed to be built into any kind of surface and project light at an angle.

This unique channel with LED Optic Lens or Linear Lens, with its asymmetric lens, projects the light beam at the angle of 55/65°. This profile is ideal for applications like projecting light up ceilings or walls.

The aluminum of the Alu-Asymetric Linear Lens channel guarantees effective heat dissipation for LEDs up to a maximum power of 35 W/m. It can accommodate standard LED strips with a maximum width of 12mm.

We offer two types of Linear Lens for this LED profile: smooth clear Linear Lens and matte clear Linear Lens.

How do I mount this?

Mount the channel by drilling a screw hole in the base and fastening it up against your substrate. The led strip mounts on the angle section and not on the lower part of the base, so there is place for the screw head.

Important notes

• See product brochure here.
• Items in stock are shipped the same day from Knoxville, Tennessee, United States.
• Bulk pricing is available on request.
