Wall Dimmer with Built-in LED Driver ~ TRCDIM Series
Product details

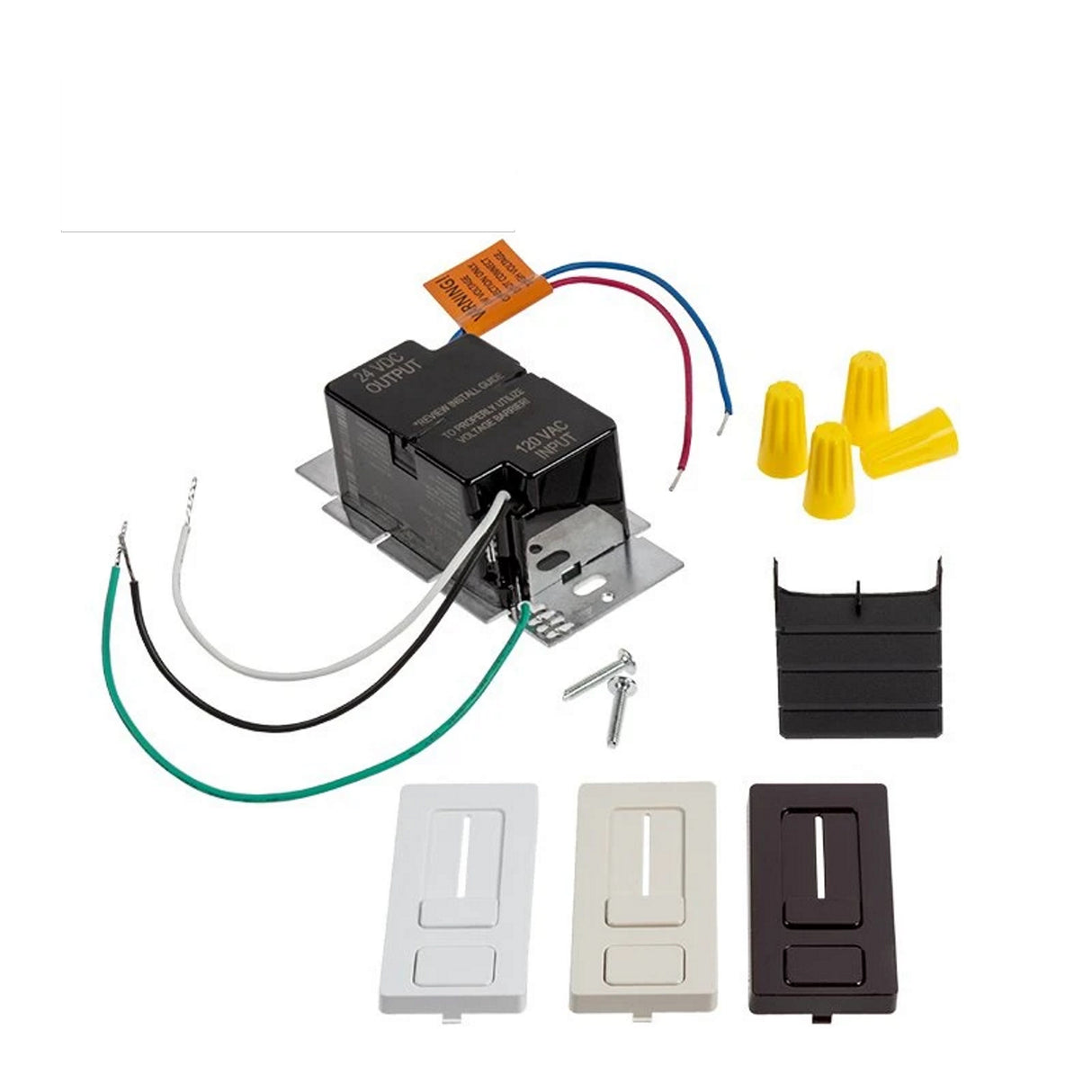

Controller only - LED strip and all other accessories are sold separately
Description

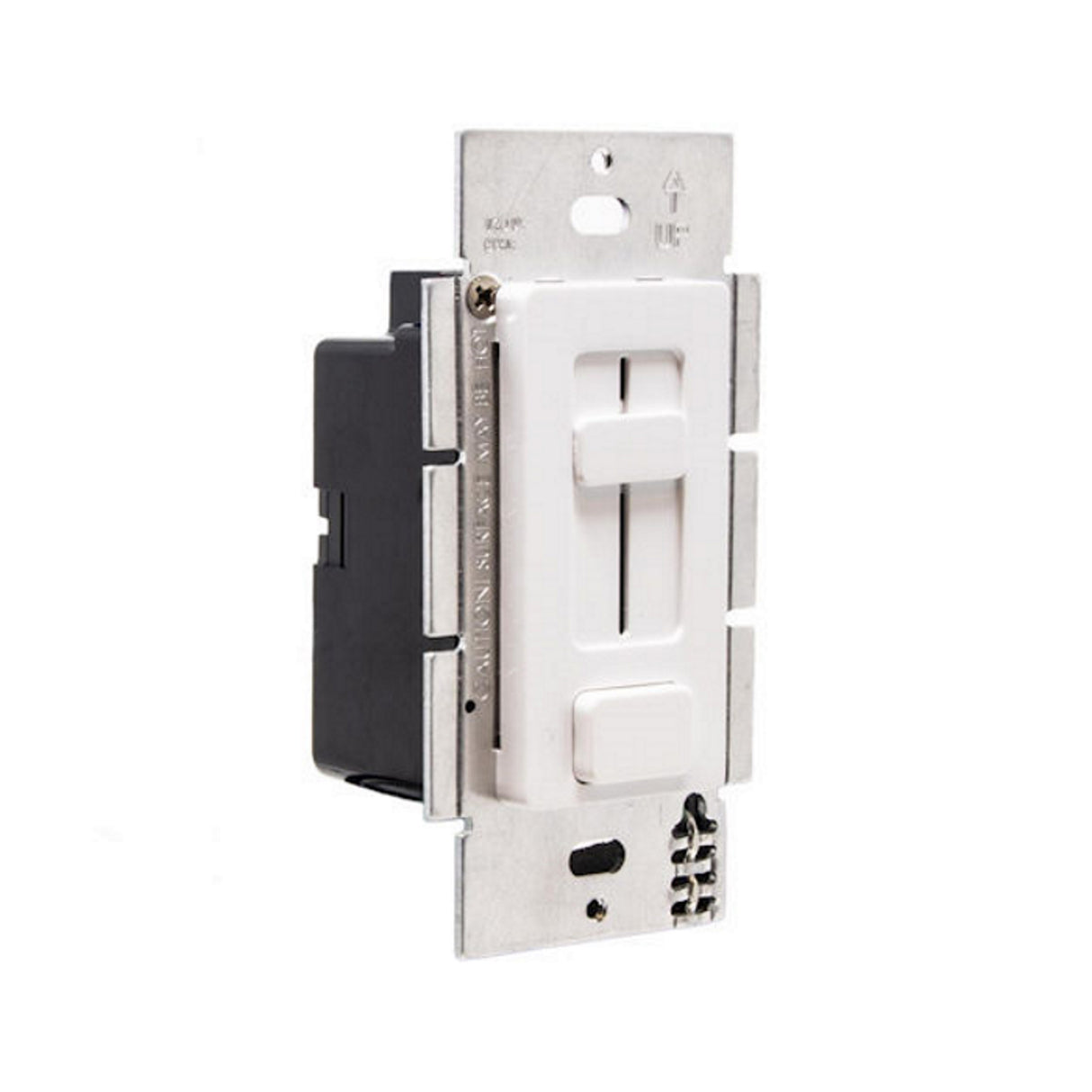

The built-in dimmable LED driver combines the functionality of an LED driver and a wall dimmer switch into a single unit, providing a convenient solution for LED installations. This dimmable LED power supply is available with a 12V (60W) output or a 24V (100W) output.
With features like UL listing, an NEC class 2 output, and a voltage barrier partition separating the high voltage and low voltage circuits, this dimming LED driver is a confident choice for a reliable and trouble-free installation. The combined LED dimmer and driver in one unit simplifies your LED installation by eliminating compatibility issues between the driver and dimmer. It fits seamlessly into a standard recessed electrical box, making it easy to integrate into existing electrical installations.
The dimming capability ranges smoothly from 100% down to 5%, allowing you to adjust the lighting to your preferred brightness. This single pole preset dimmer also has an on/off push switch for easy control. If voltage drops are a concern, this driver and dimmer also includes an adjustable voltage output setting to compensate by increasing the output voltage above the nominal rating.

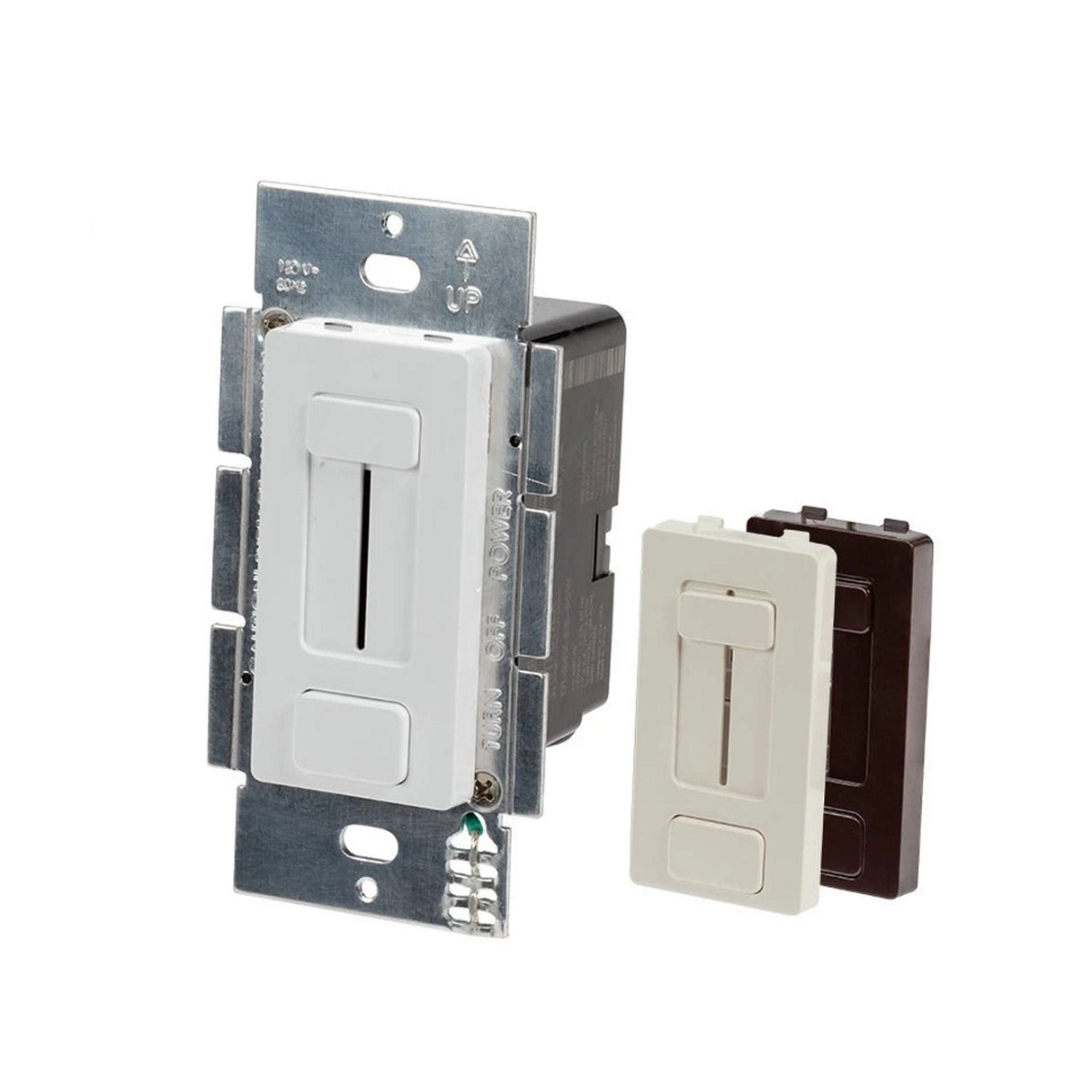

In the event of a power interruption, the dimmer has a power failure memory function that restores the previous settings once power is restored. It comes with face plates in glossy white, glossy light almond, and glossy dark brown (trim plates not included), providing options to suit a range of different aesthetics.
The built-in dimmable LED driver is compatible with solid color 12V DC and 24V DC tape lights and fixtures, offering versatility in most lighting applications. It is backed by a 5-year warranty, ensuring reliability and customer satisfaction.
General specifications
- Input Voltage: 108-132V AC
- Output Voltage: 12V DC / 24V DC
- Output Current: 5.00A (12V) / 4.16A (24V)
- Output Power: 60W (12V) / 100W (24V)
- Dimming range: 5% - 100% with on/off switch
- Adjustable output voltage to compensate for voltage drops
- Face plate color: Glossy white, Glossy light almond, Glossy dark brown (excludes standard trim plate)
- Certifications: UL listed
- Warranty: 5 year
