White Wall Grazing Continuous Waterproof LED System ~ Lumaera 19 H TIR Series

LED light only ~ connectors, mounting clips, and other accessories sold separately

Description

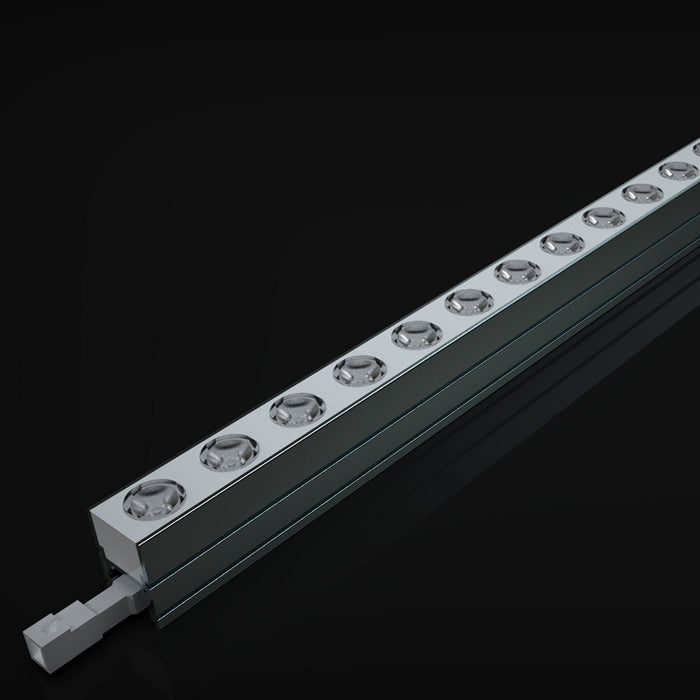

The Lumaera 19 H TIR is a fully waterproof LED lighting system for continuous wall grazing applications. These LED lights are also designed with optically focused lenses to provide effective and efficient wall grazing.

Because these resin-filled sealed LED lights do not have end caps, they can be installed end to end to provide a continuously and evenly lit grazing - Simply chain together a many lights as required for your application. Moreover, this versatile lighting solution features LED linear wall grazer that delivers a precise and continuous beam of light along the surface of your wall.

In addition, the "H" profile of this model uses a rear-exit cabling system with waterproof connectors. This LED wall grazer lighting design also provides completely concealed cabling for the finished installation.

Whether you're looking to illuminate an outdoor façade, highlight an architectural feature, or add a unique touch to your interior design, our LED wall grazer lights are the perfect solution.

With it's waterproof design, you can also rest assured that these lights will provide a long-lasting and reliable lighting solution, even in the harshest weather conditions. Upgrade your space with our White Wall Grazing Continuous Waterproof LED lighting today!

General specifications

• Certifications: UL Approved
• Voltage: 24V DC
• Power: 15W/m
• Color temperatures available:
  • Standard: 3000K (Warm White)
  • On request: 2700K (Ultra Warm White), 3500K (Warm White), 4000K (Natural White)
• Color rendering: CRI 80+
• Dimmable: Yes

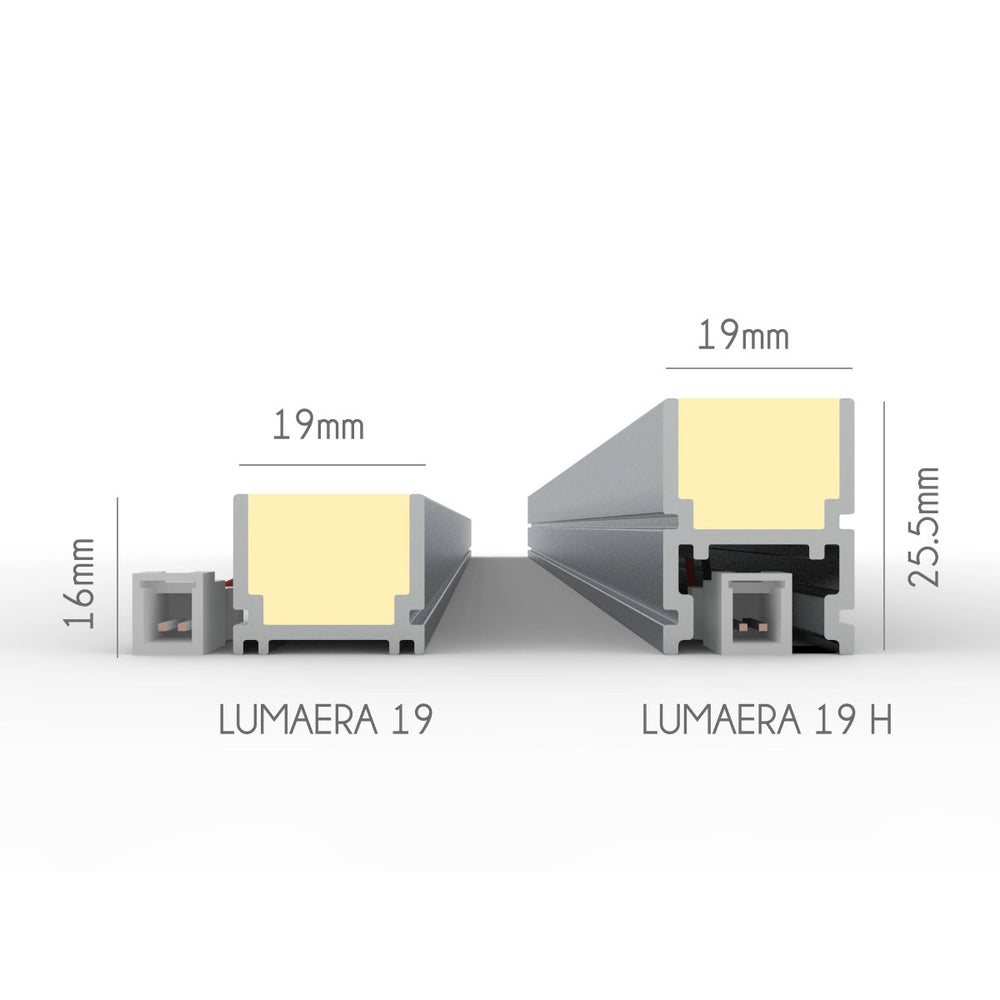

• Dimensions: 19 x 25.5mm (0.75 x 1.00")
• Standard lengths: 130mm (.43ft), 505mm (1.66ft) & 1005mm (3.30ft)
• Max chain length: 4800mm (15.75ft)
• Connection: JST JWPF IP67
• Finish: Anodized aluminum
• Protection: IP67 Waterproof
• Operating temperature: -10°C (14°F) to 50°C (122°F)

Downloads

• Lumaera 19 H TIR cut sheet
• Lumaera 19 H TIR installation instructions

Important notes

• Connectors, mounting clips and other accessories are sold separately to the LED luminaire. Therefore, please select the available components below.
• Please contact us for further information about custom manufacturing these products to your specifications.
• We ship items in stock the same day from Knoxville, Tennessee, United States. Additionally, our team dedicates themselves to carefully packing and safely delivering all packages to their destination.
• Bulk pricing is available on request. Moreover, for larger orders, we offer additional discounts and customized pricing to fit your project needs.
