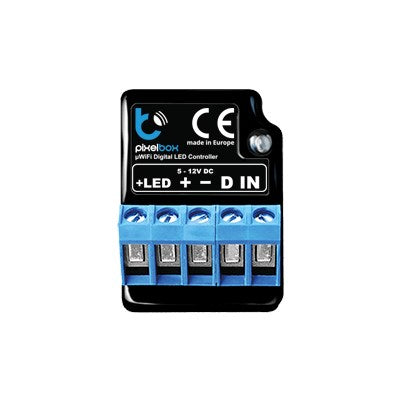

pixelBOX ~ Wi-fi RGB Pixel LED Controller

The Pixel LED Controller allows you to control your Digital RGB LED strip via WIFI. With this controller, you can decide on the number of colors passing through the LED strip and set the changing time for each color. This gives you the freedom to create different atmospheres in the same place. Plus, you can control your LED strip from anywhere in the world using your smartphone or other devices.

The controller offers 12 colors to choose from, giving you the option to create various effects that suit your preferences. Moreover, the RGB Pixel Wi-Fi LED Controller has a standby mode that saves money: when the LED strip is not used, the controller goes into standby mode.

Choose from six effects specially prepared for you or create your own using the 10 options available. You can also choose the colors you want in your home and the speed of the effects you want to use.

The pixelBox pixel LED controller is made in Poland.

This Pixel LED Controller works perfectly with our own Pixel Strip: Lantana Series.

• Maximum LEDs that can be controlled: 360
• Supply voltage: 5 - 12V
• Energy consumption: < 1W
• Maximum
• Outputs number: 2
• Output type: digital, control signal
• Maximum load: 20mA
• Outputs type: open drain, turn off LED power supply
• Maximum current: 5A
• Maximum voltage: 12 DC
• Maximum load: 60 W
• LED strip type: digital RGB, 12V (WS2811, WS2815, LC8088)
• Color mode: RGB
• Inputs number: 1
• Inputs type: low voltage, logical, push-button, short-circuited to GND
• Supported switches: monostable (push-button), not-illuminated
• Dimensions: 27 x 37 x 23 mm
• Protection Rating: IP20
• Housing: made of polyurethane composition not containing halogens, self-extinguishing for thermal class B (130 °C)
• Mounting type: in a flush-mounted box, on the lamp housing, directly connected to the LED strip, e.g. in furniture
• Protection: inverted polarization, ESD
• Communication standard: μWiFi, compatible with WiFi, 802.11g
• Radio frequency: 2.4 GHz
• Transmission type: bi-directional, encrypted
• API: open
• Mode: direct connection (as Access Point), Wi-Fi connection via a standard router, connection with access from any location in the world (requires only access to the Internet)
• Compatible devices and systems: Apple iPhone, Apple iPad, iPad Mini, Android, computers and mobile devices supporting HTML5

• PixelBox User manual

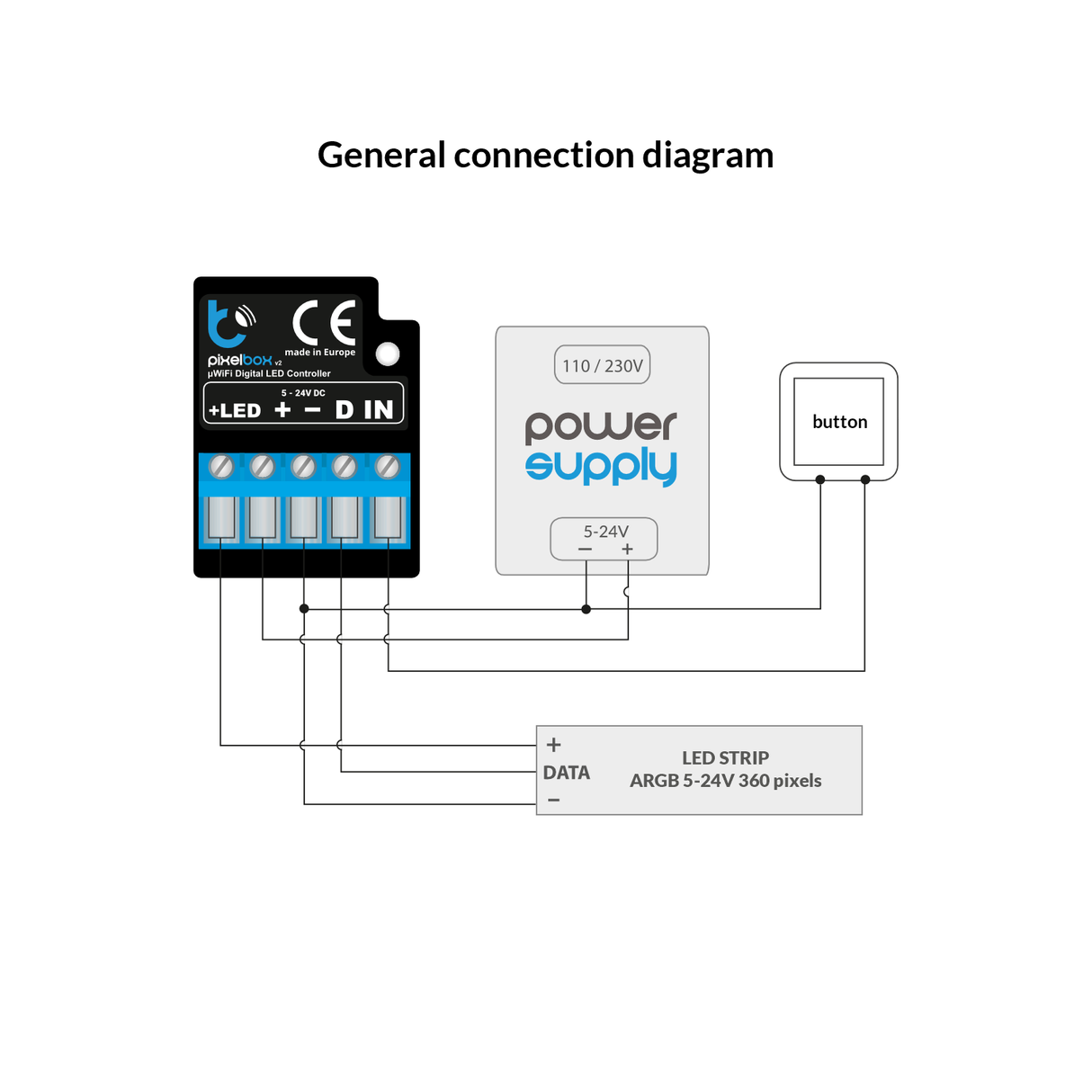

• Example of wiring diagram

• sk6812 LED strip controller
• Addressable LED Strip Controller WiFi
• dream color LED wifi controller
• Pixel LED Controller
• ws2811 wifi controller
• ws2812b wifi controller
• SPI wifi controller
• Replacement for Chinese-made controllers such as sp108e, sp501e LED controller,
