Colored Border Contour Tube Light ~ Hi-Lite 30 Straight Section

Colored Border Contour Tube Light ~ Hi-Lite 30 Straight Section

Sale Sale
Original price
Original price - Original price
Original price
Current price
-
Current price
SKU LED-HL3-AS-G9-240
In stock and ready to ship

🚚 - Free shipping on most orders over $350 - T&C Apply

Channel & Strip Combo Discount!

Buy any LED channel and get 10% off any LED strip.

Tube light only ~ we sells power supplies, controllers, drivers, and all accessories separately.

Description

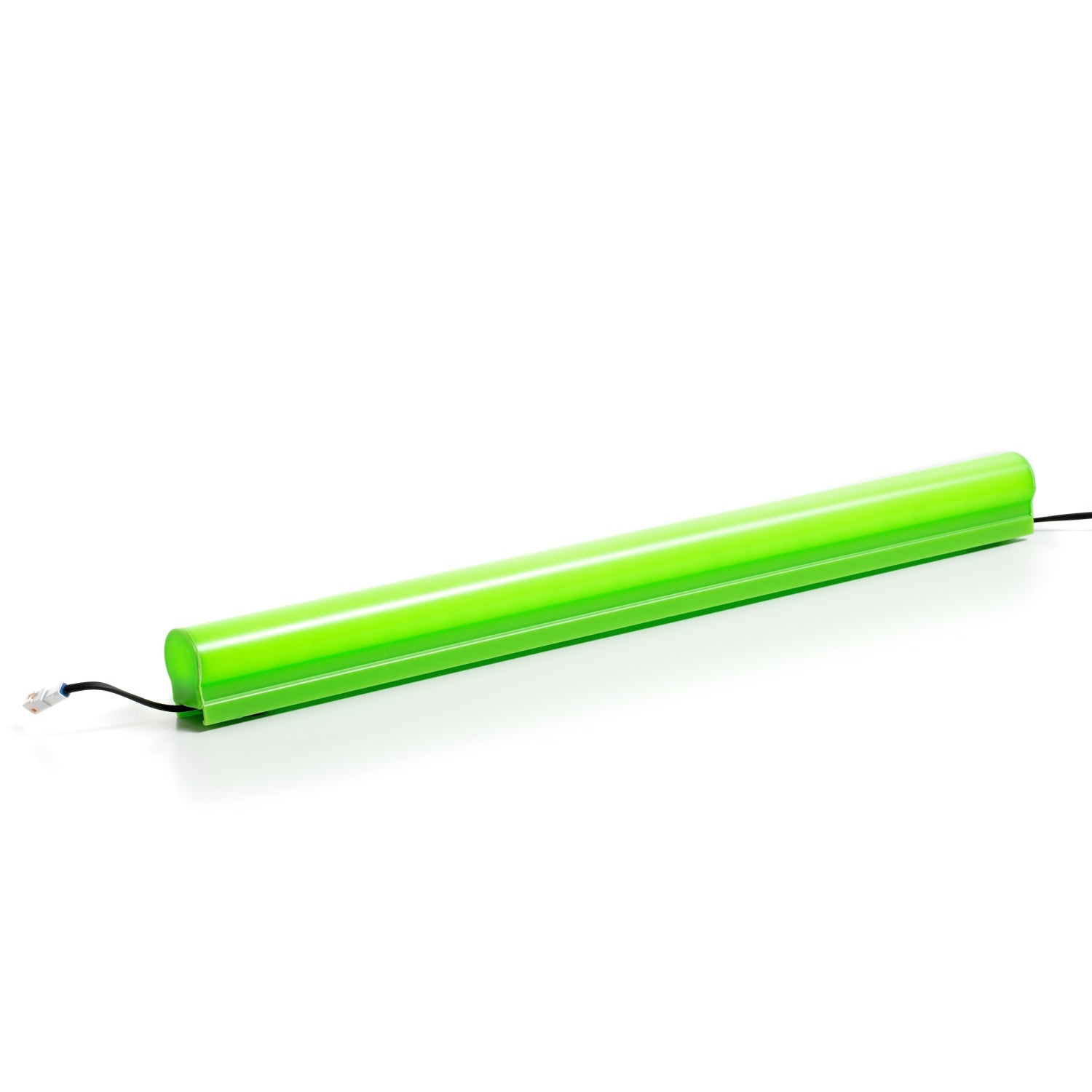

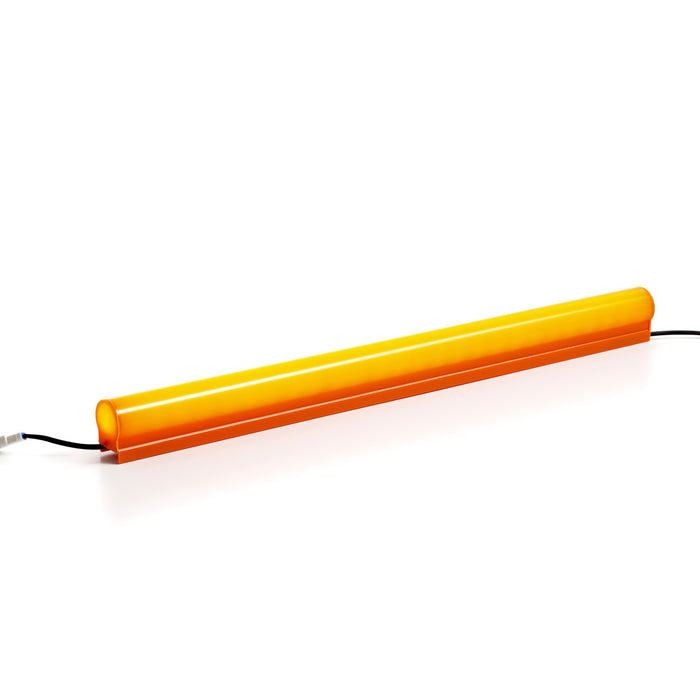

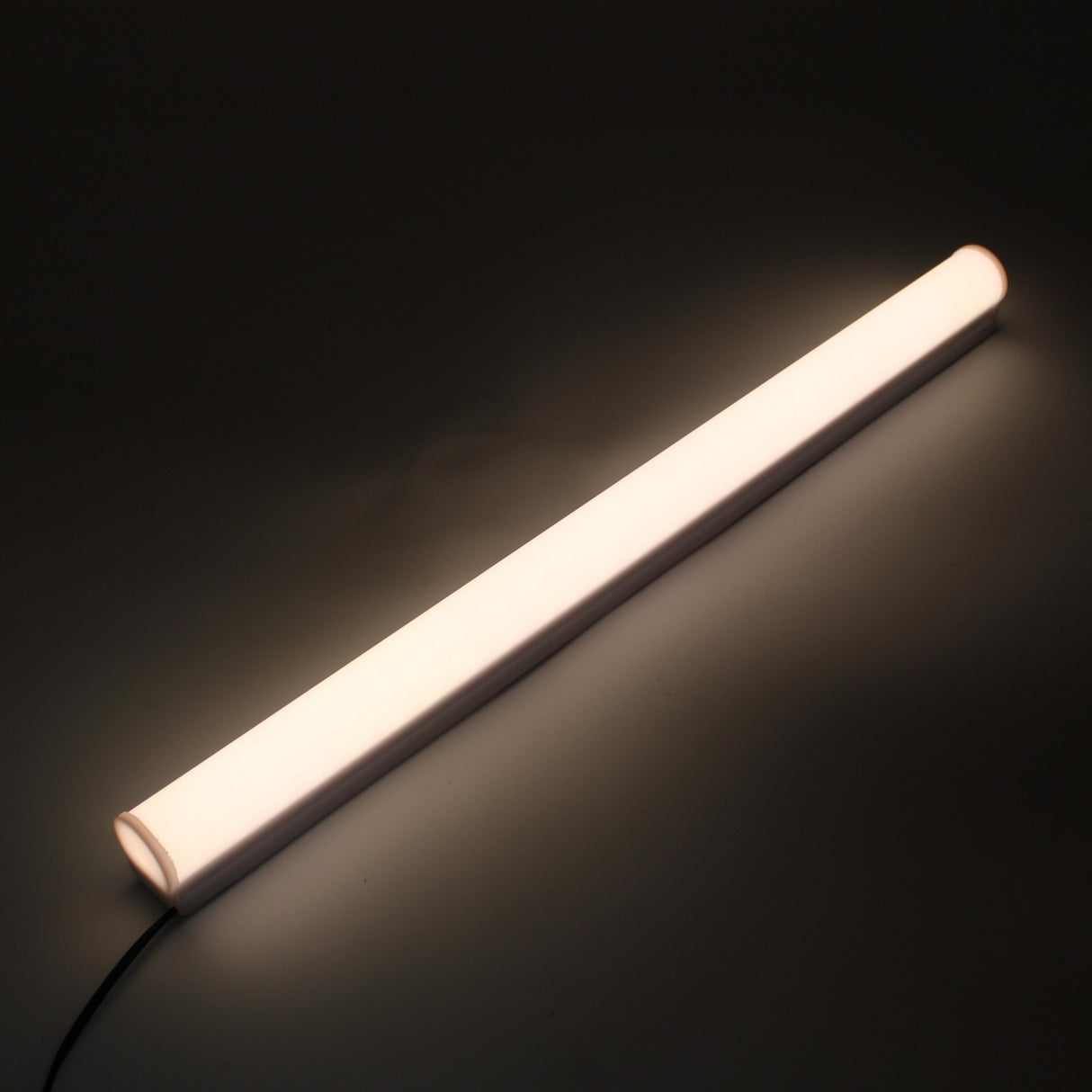

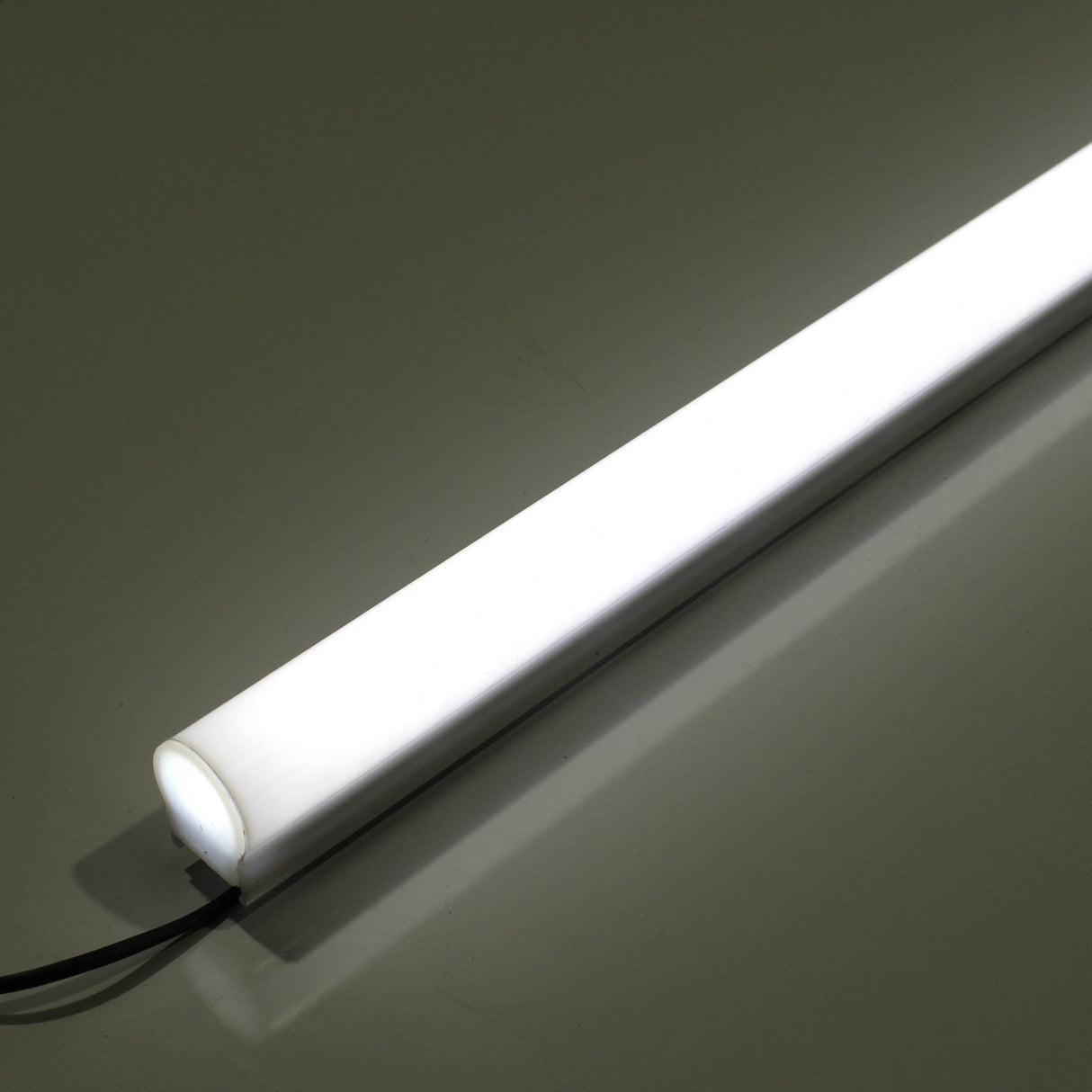

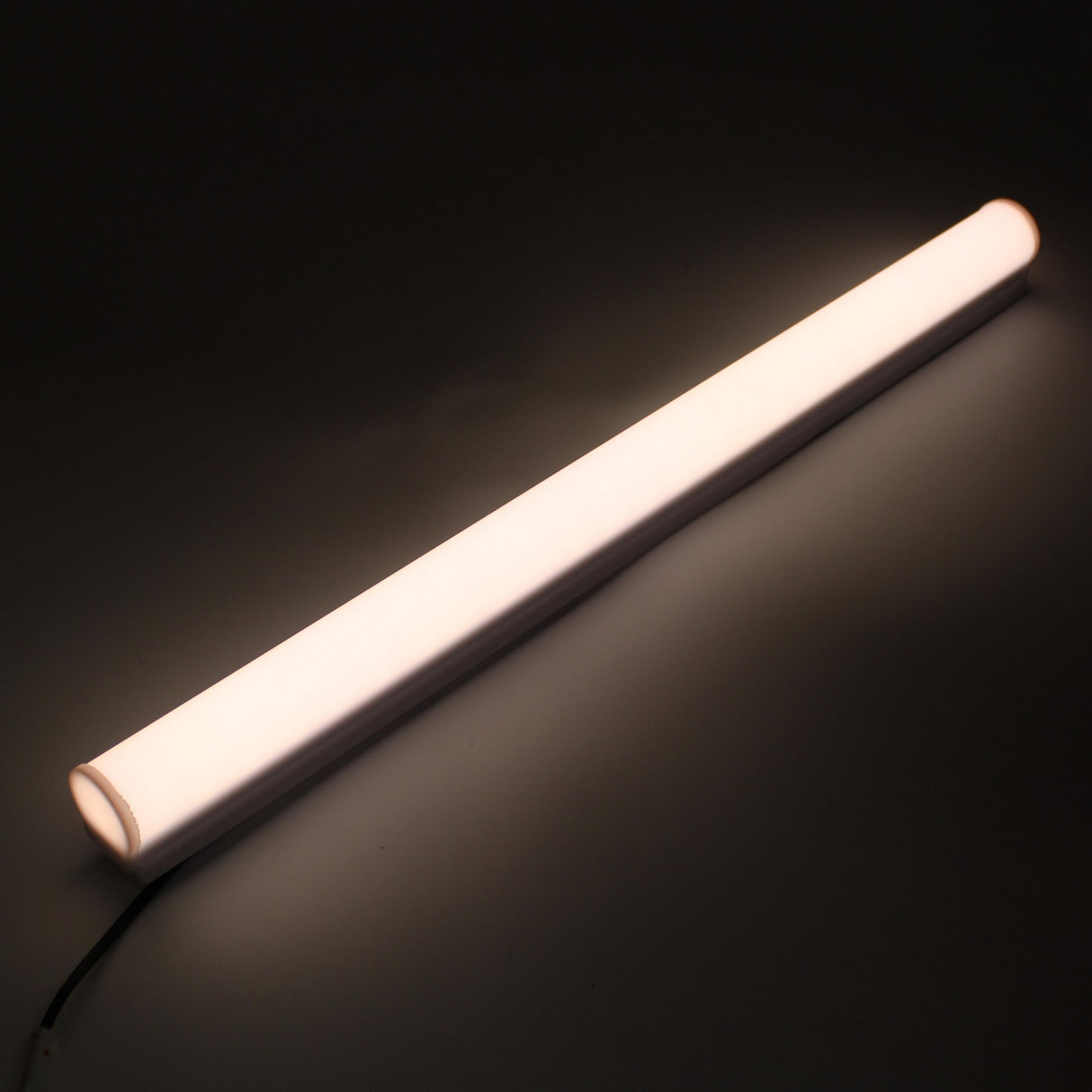

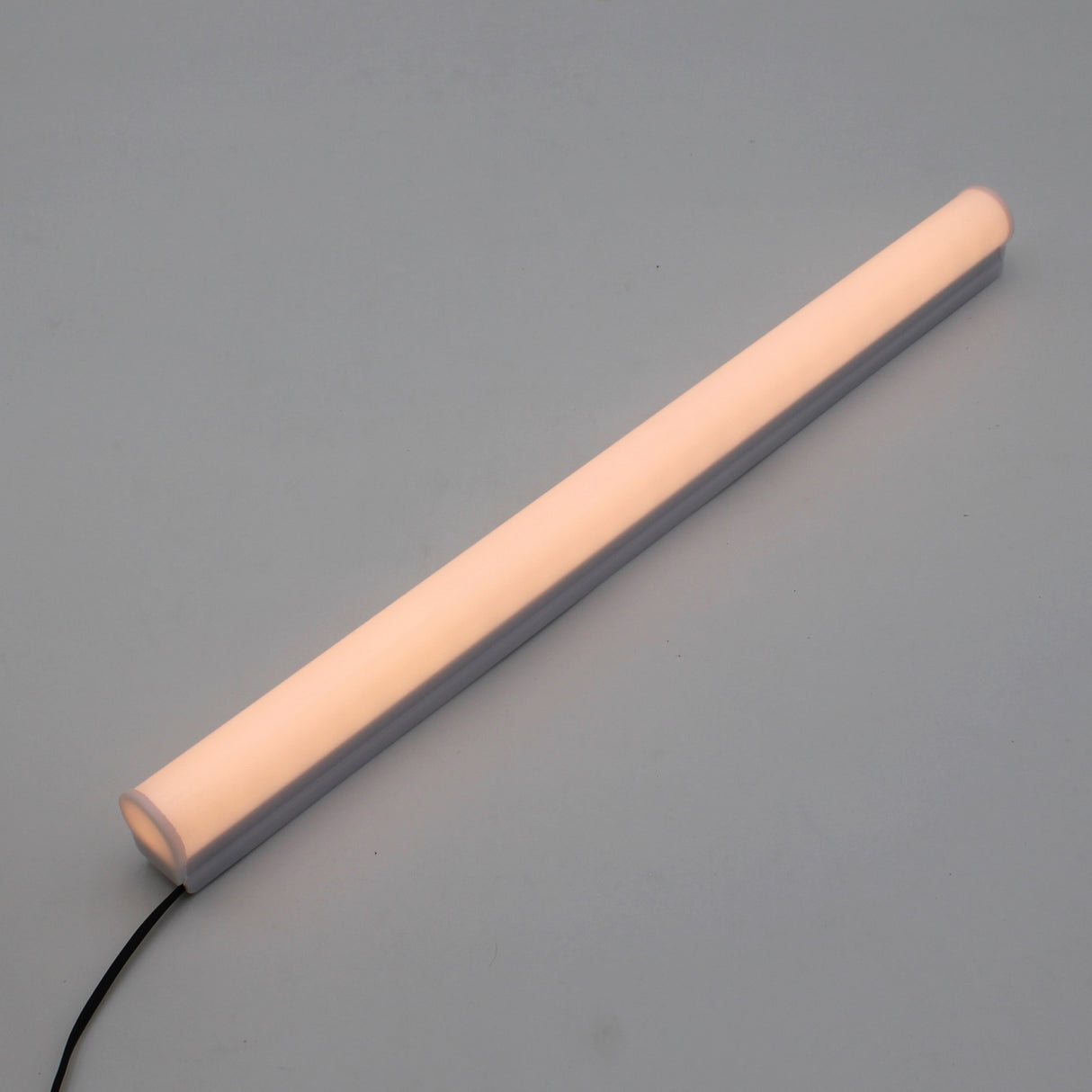

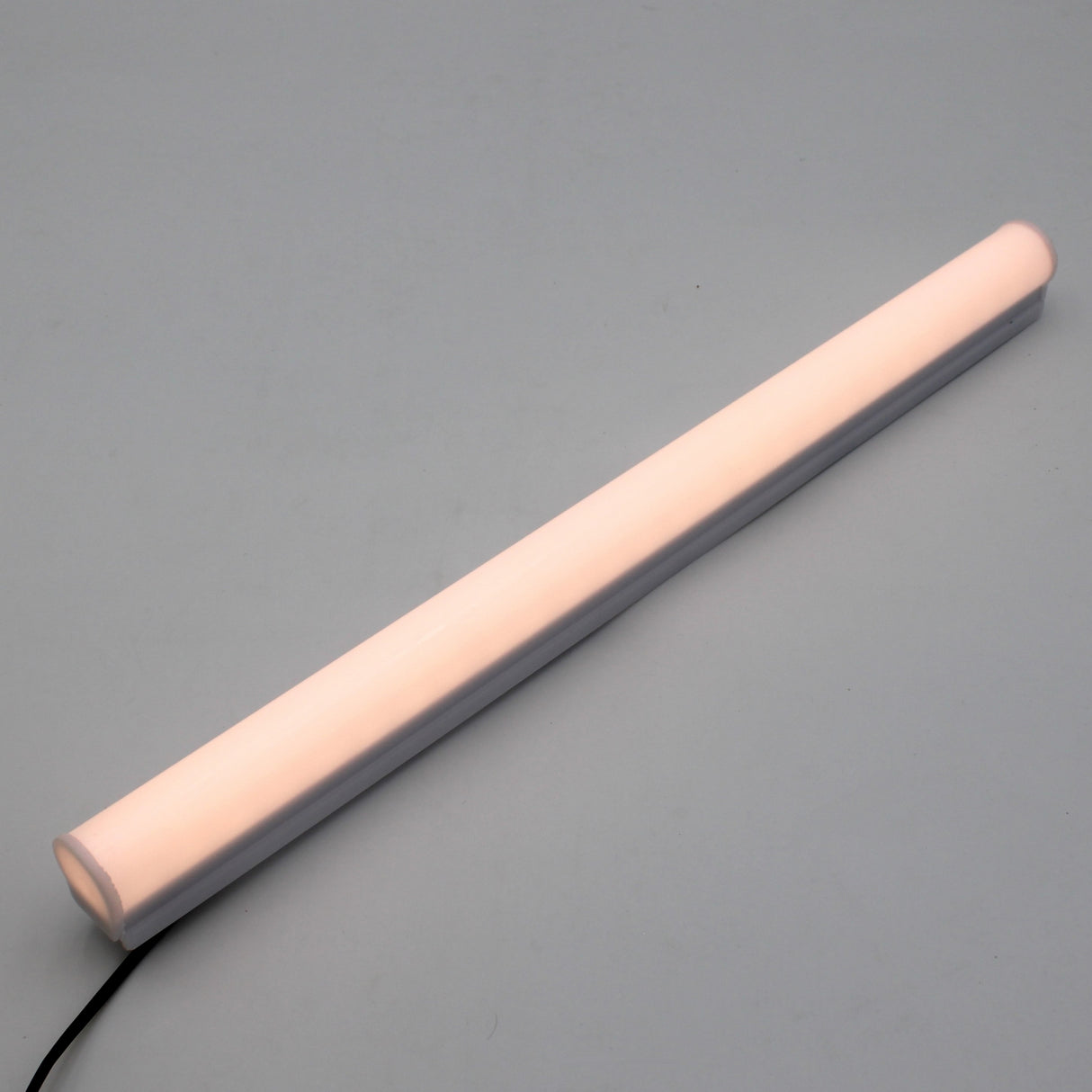

Colored Border Contour Tube Light ~ Hi-Lite 30 Straight Section

The Hi-Lite™ 30 Border Tube lights from Visive are purpose designed for illuminating building contours. We offer a Field Adjustable version that allows for cutting to length, but it is not possible to cut the fixed length tubes.

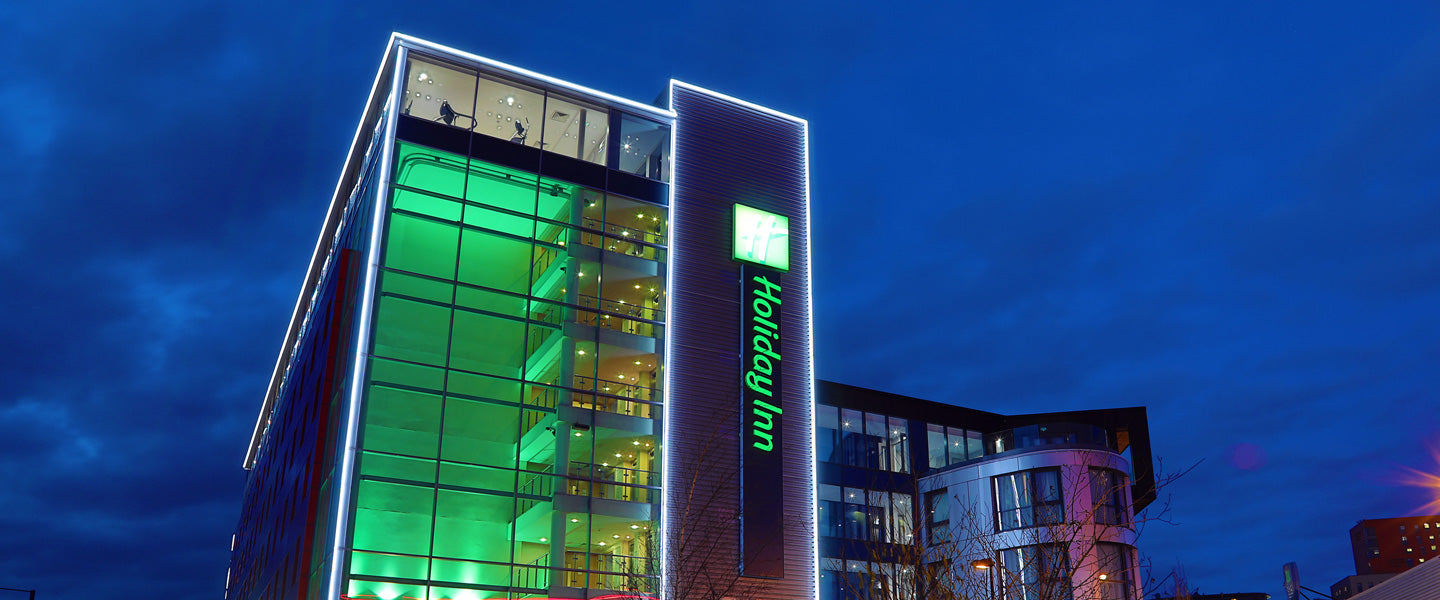

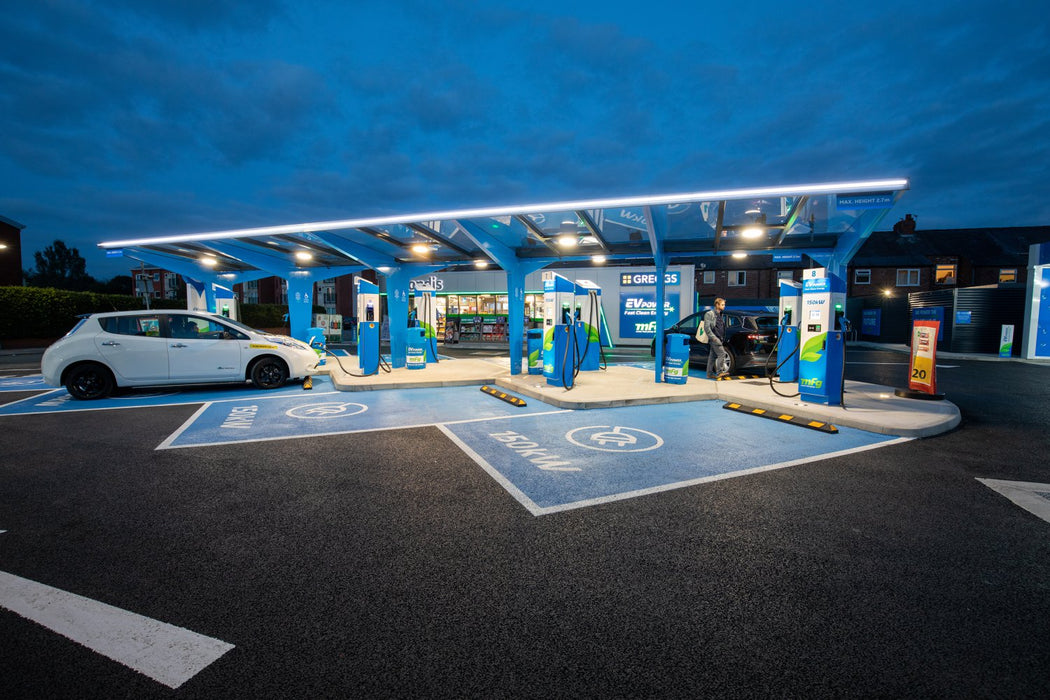

Additionally, countless blue-chip customers have been safely illuminating their buildings and structures using Hi-Lite™ LED contour tube lights for over 20 years.

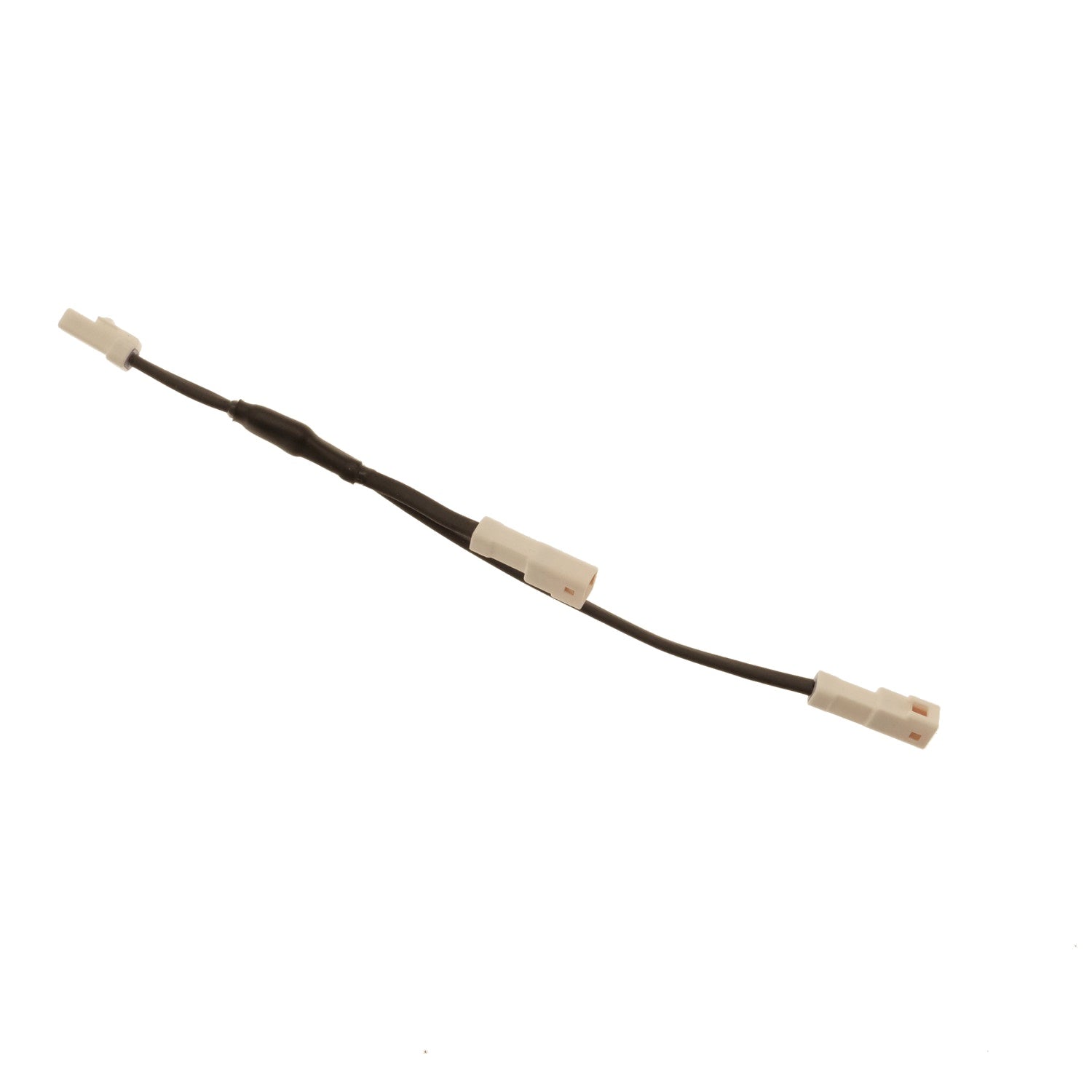

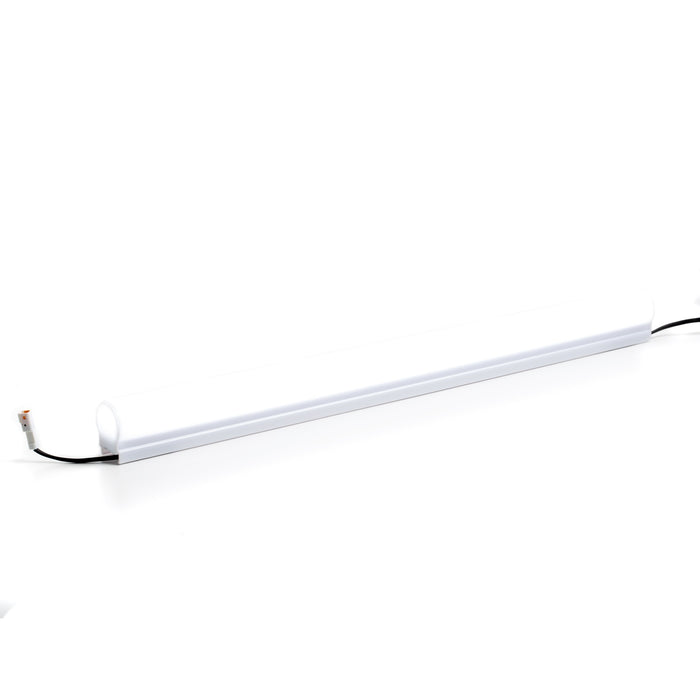

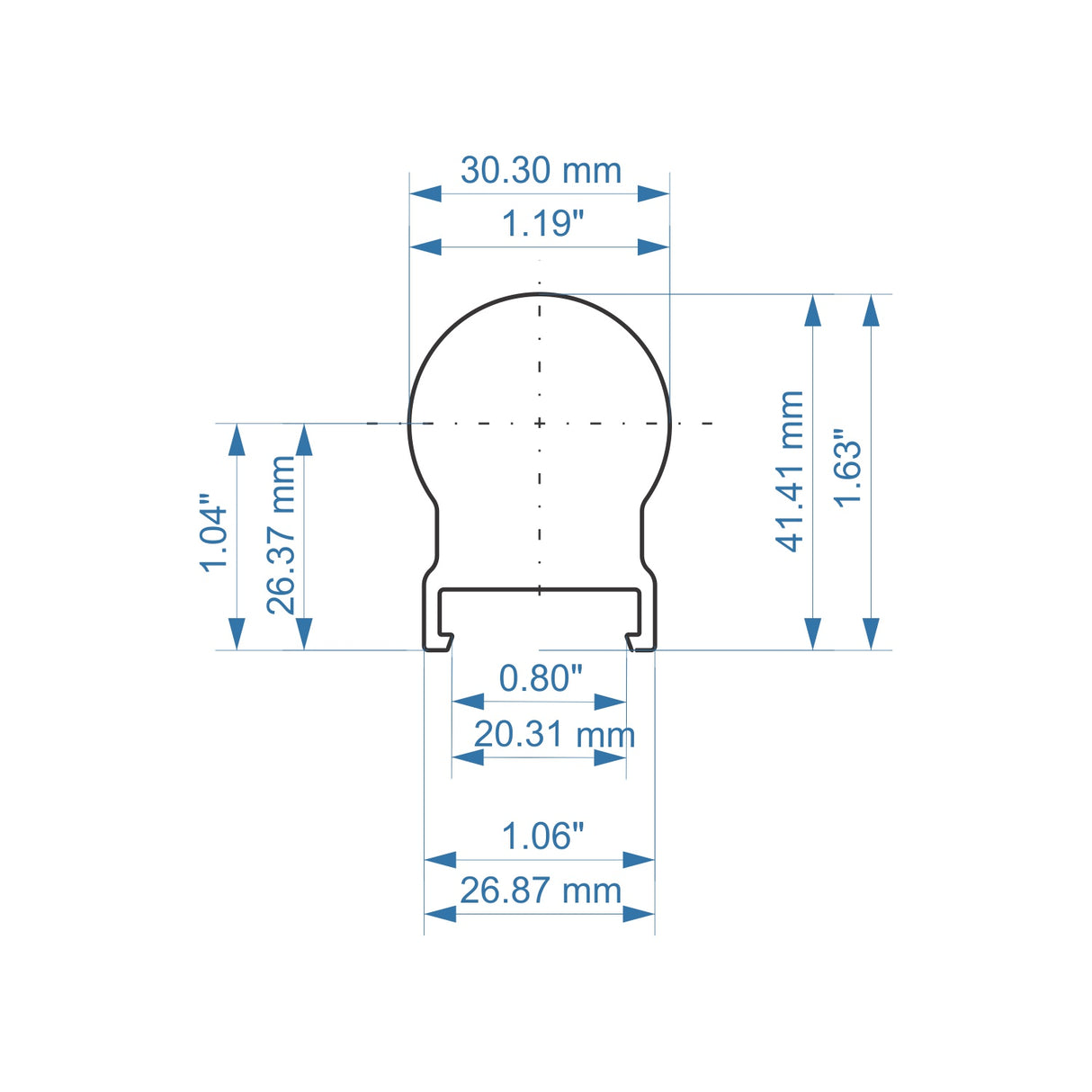

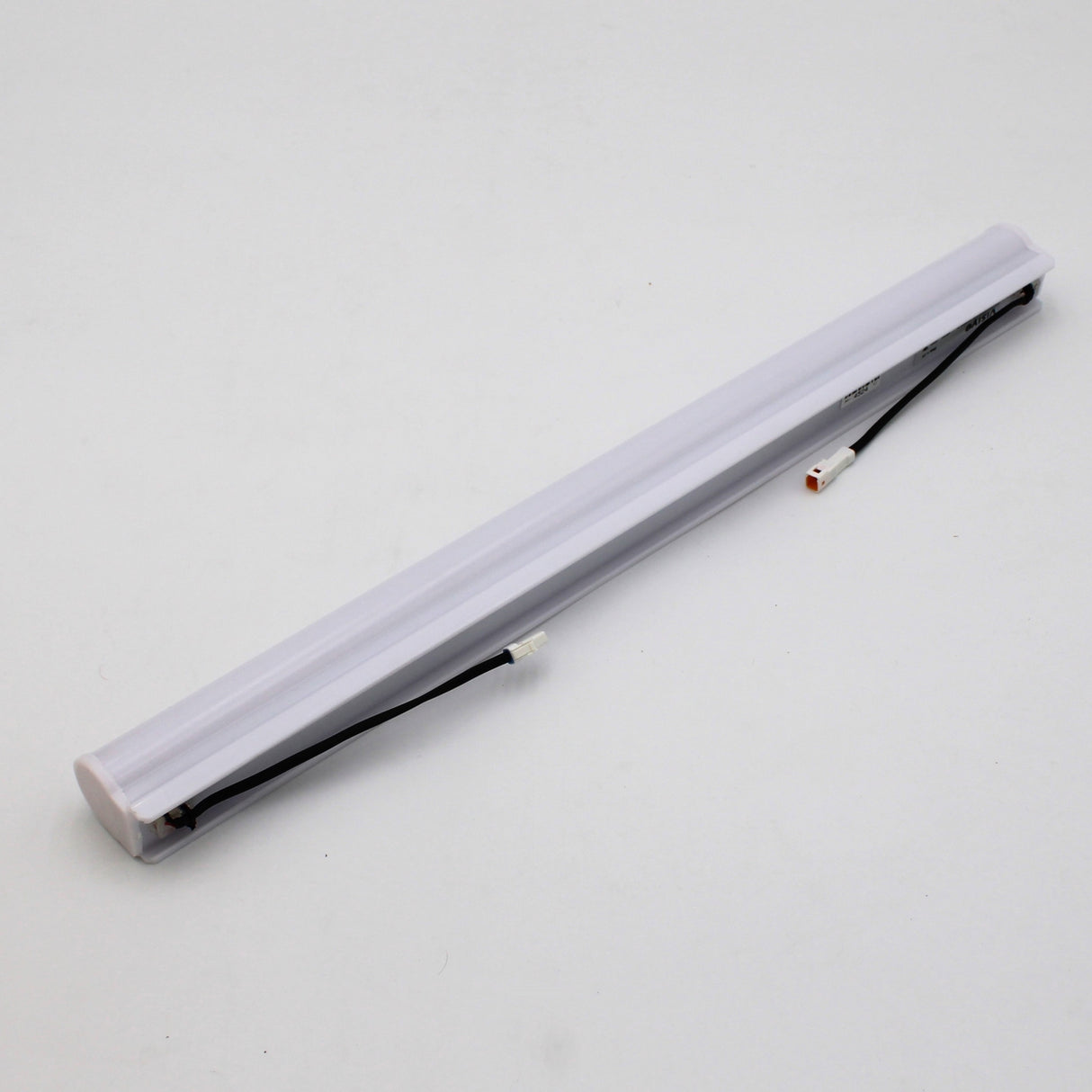

Made in standard 2.4m (7’10 ½”) long sections, Hi-Lite™ 30 Contour Tube Light ~ Hi-Lite 30 Straight Section is also an extruded 30mm diameter acrylic tube which is fixed to the base structure using polycarbonate clips. Furthermore, simply daisy-chaining sections together can make long runs with all cabling and connections completely hidden from view behind the tube sections.

Hi-Lite™ 30 colored border tube light also features a Field Adjustable Section which provides installers the flexibility of being able to cut to length on site.


Reliablity

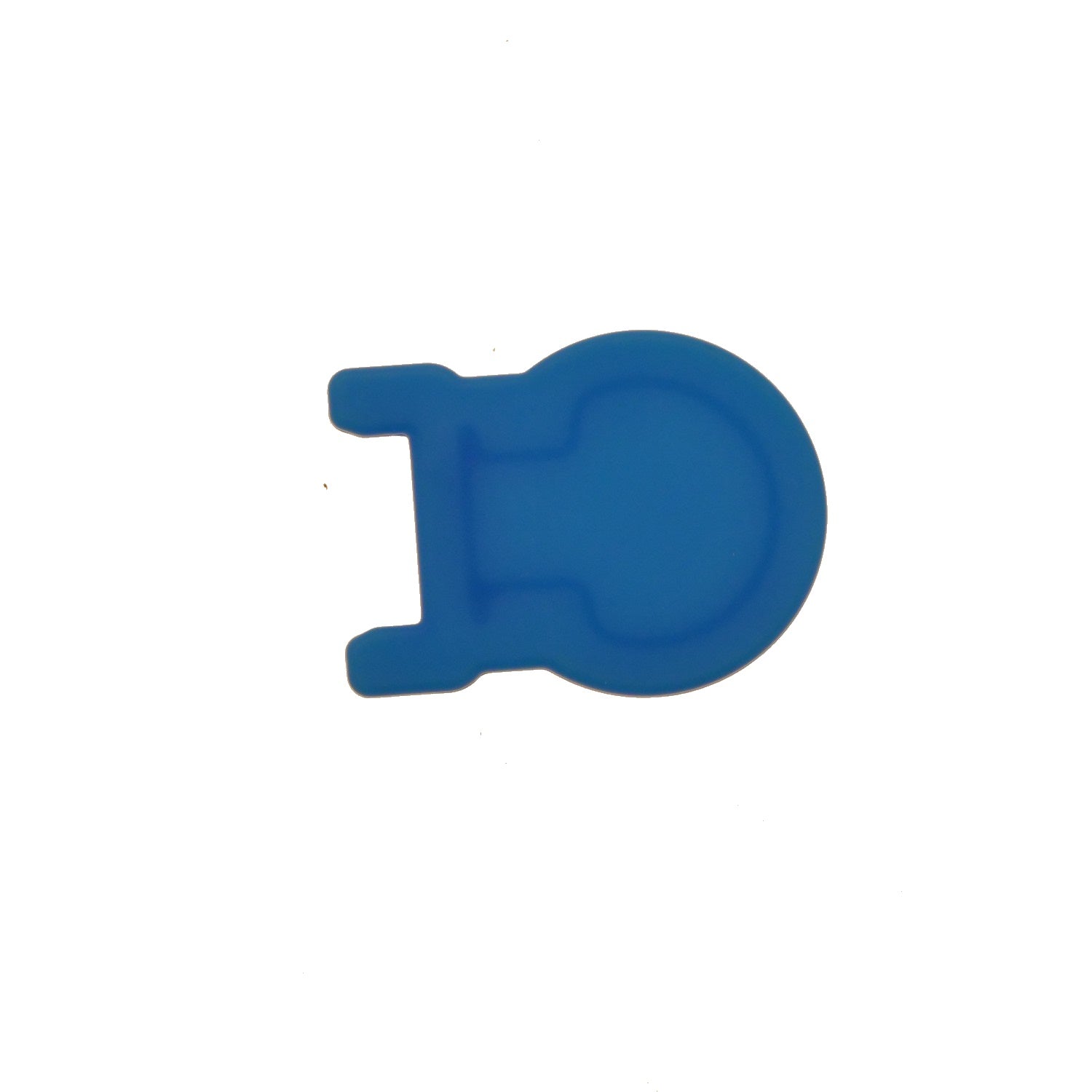

Hi-Lite™ 30 tubes are factory sealed with end caps fixed by an advanced ultrasonic welding process. It was also individually test to ensure they are fully weatherproof and ready to provide a long, maintenance-free life. We also cover all products with a 5-year warranty.


Perfect illumination

Hi-Lite™ 30 tubes are manufactured in the UK from recyclable materials. The impact modified PMMA (acrylic) used for the extruded profile features inherently superior UV performance when compared to polycarbonate or PVC alternatives. The color pigments used are also all rated at the maximum 8 on the blue wool scale, ensuring resistance to fading.

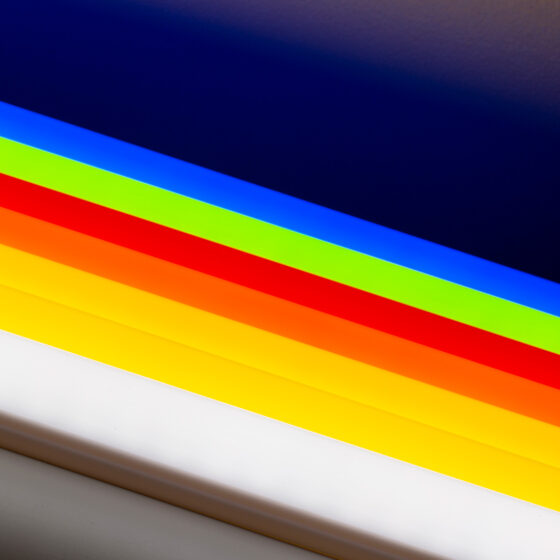

A standard range of vibrant colors is available, but it is also possible to match a customer’s specific corporate brand design. The coloured identity is maintained even un-illuminated during daylight, or lit at night.

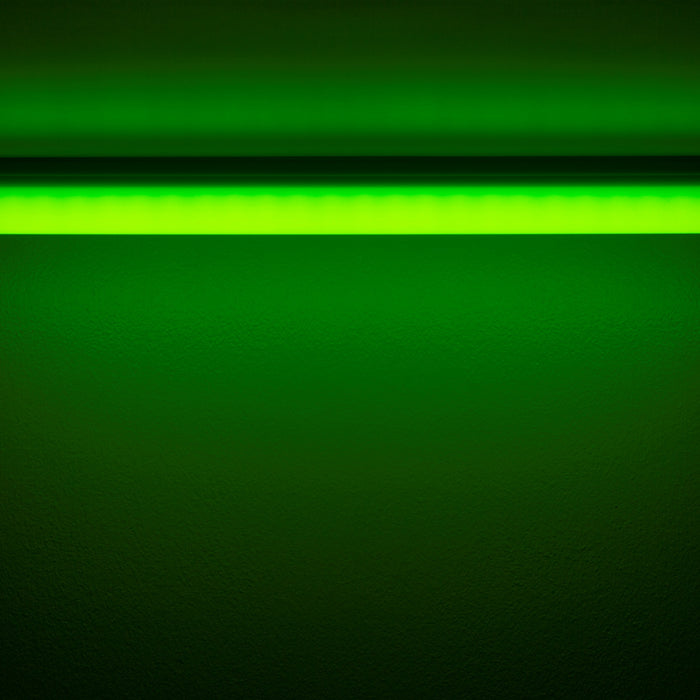

Moreover, the careful design and specification of the LED border tube light inside the tube, and the use of unique diffusing additives in the extrusion itself, achieve a consistent linear illumination effect without the localized hot spots seen on many inferior products.


General Specifications

  • Certifications: Underwriters Laboratory (UL) approved. Conforms to UL 48
  • Cutting pitch: DO NOT CUT
  • Power: 5W/m
  • Brightness:
    • Lime Green - 1,700cd/m2

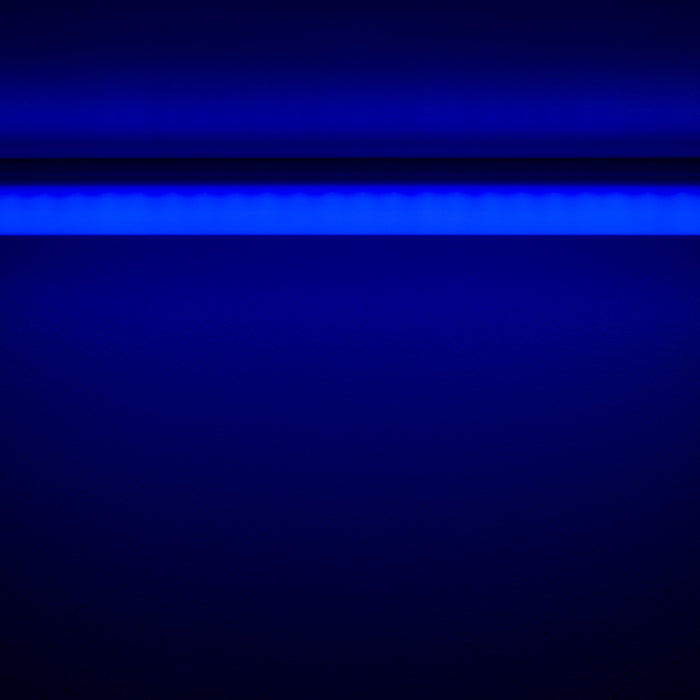

    • Cobalt Blue - 150cd/m2
    • Lemon Yellow - 2,000cd/m2
    • Tangerine Orange - 650cd/m2
    • Honey Yellow - 1,600cd/m2

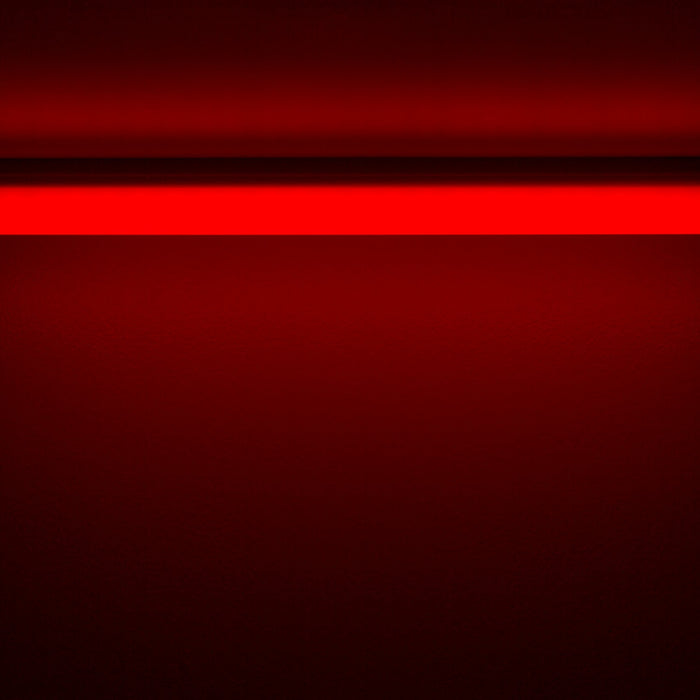

    • Candy Red - 300cd/m2

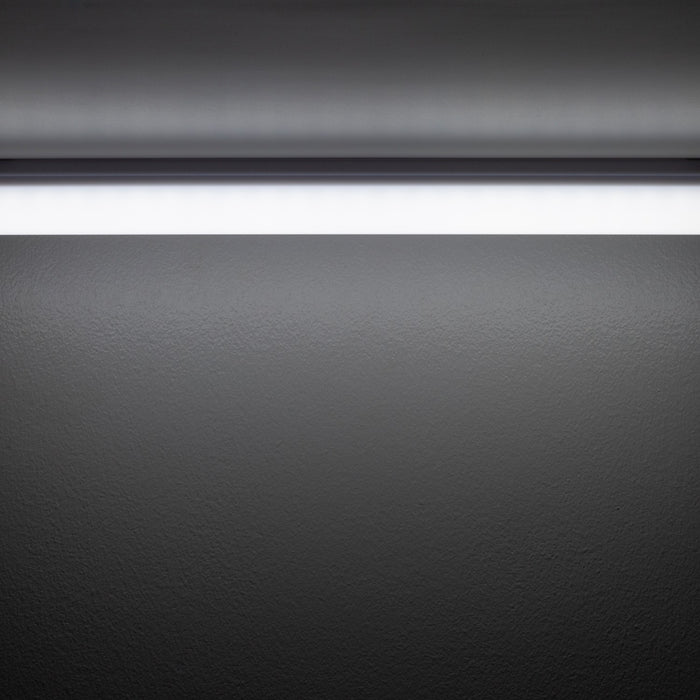

    • White - 2,250cd/m2
  • Housing material: Extruded PMMA composite
  • Standard tube length: 2.4m (7’9”) nominal

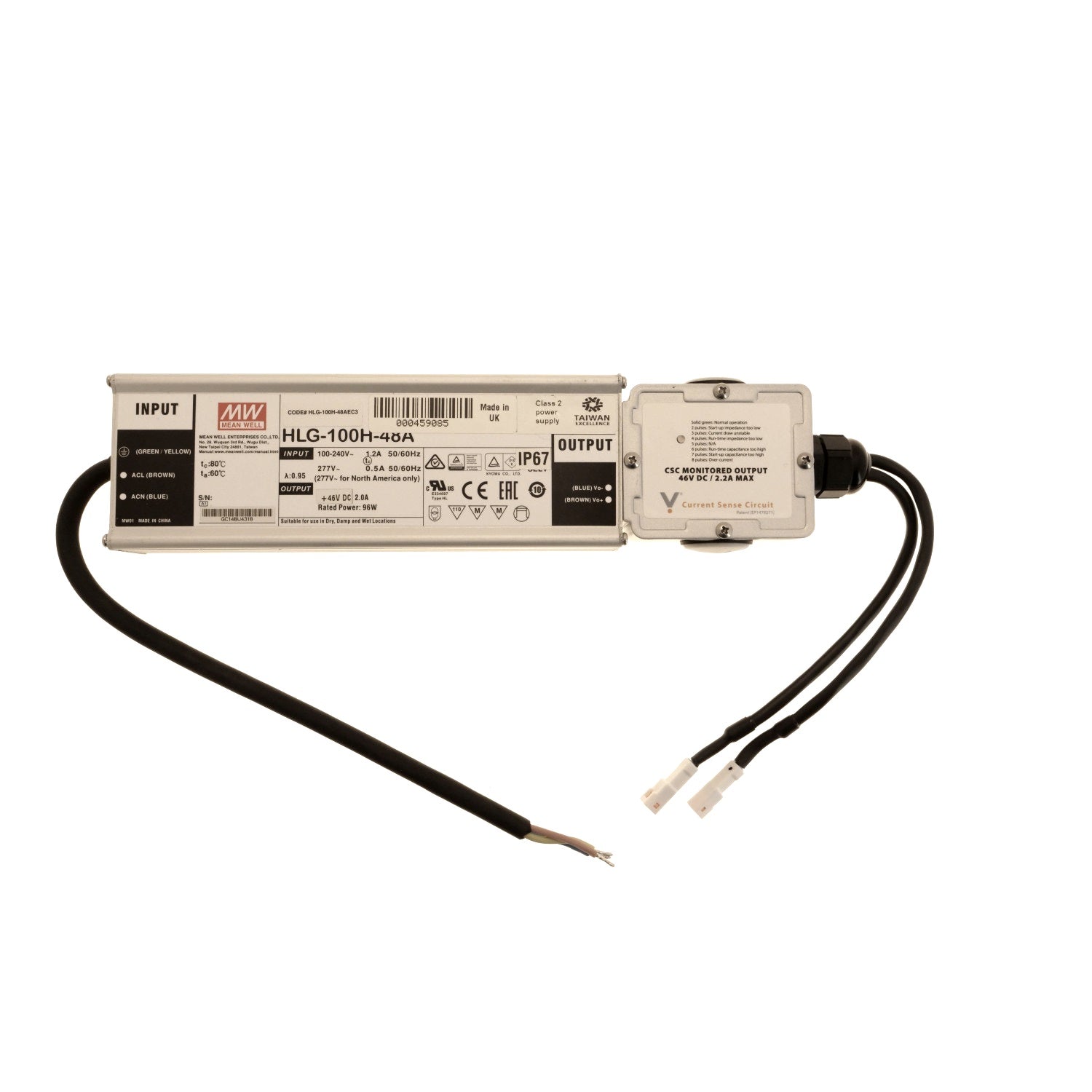

  • Input voltage: 40V – 46V DC
  • Protection: IP66 Waterproof (independently tested)
  • Operating temperature: -30°C to +60°C (-22°F to +140°F)

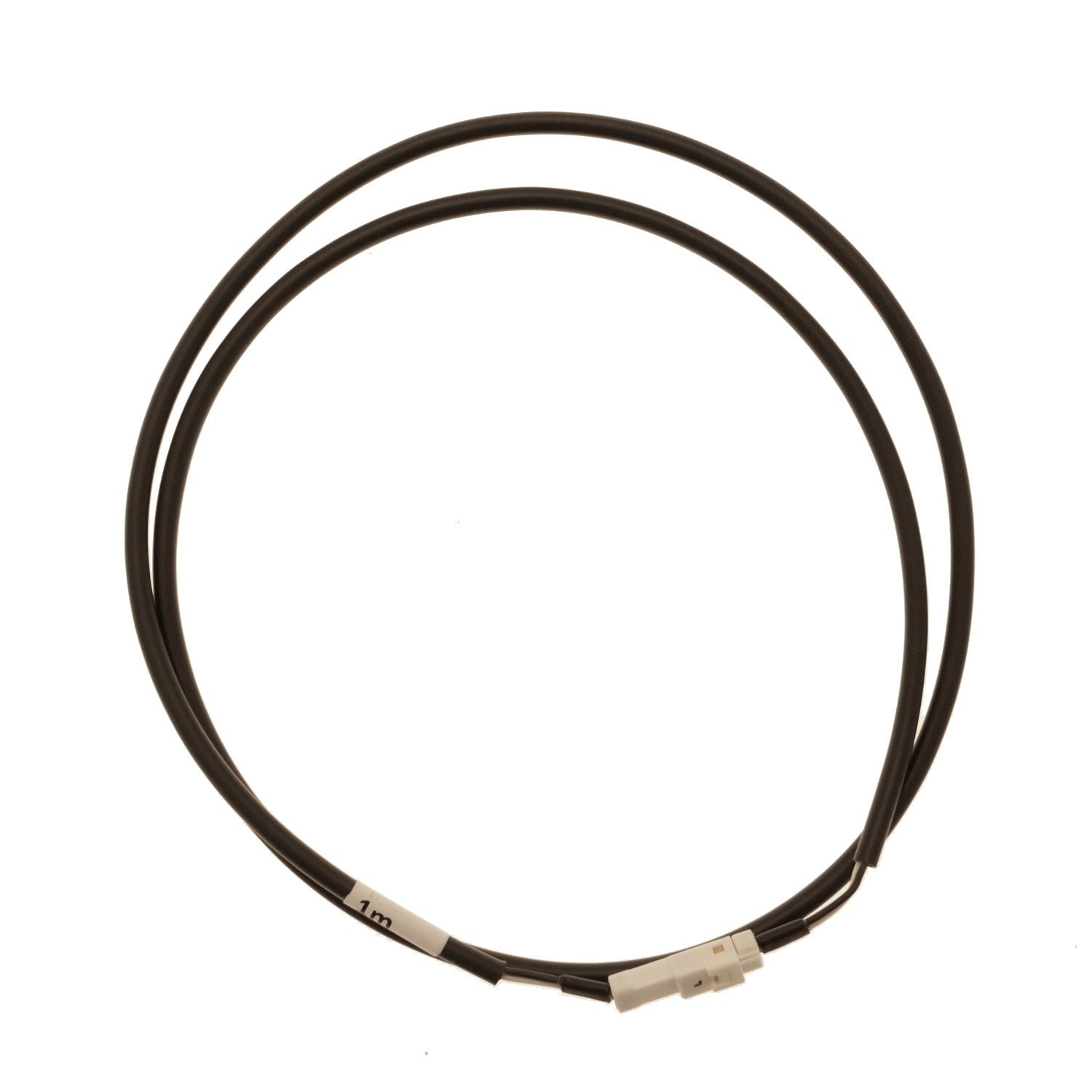

  • Connector: JST JWPF range

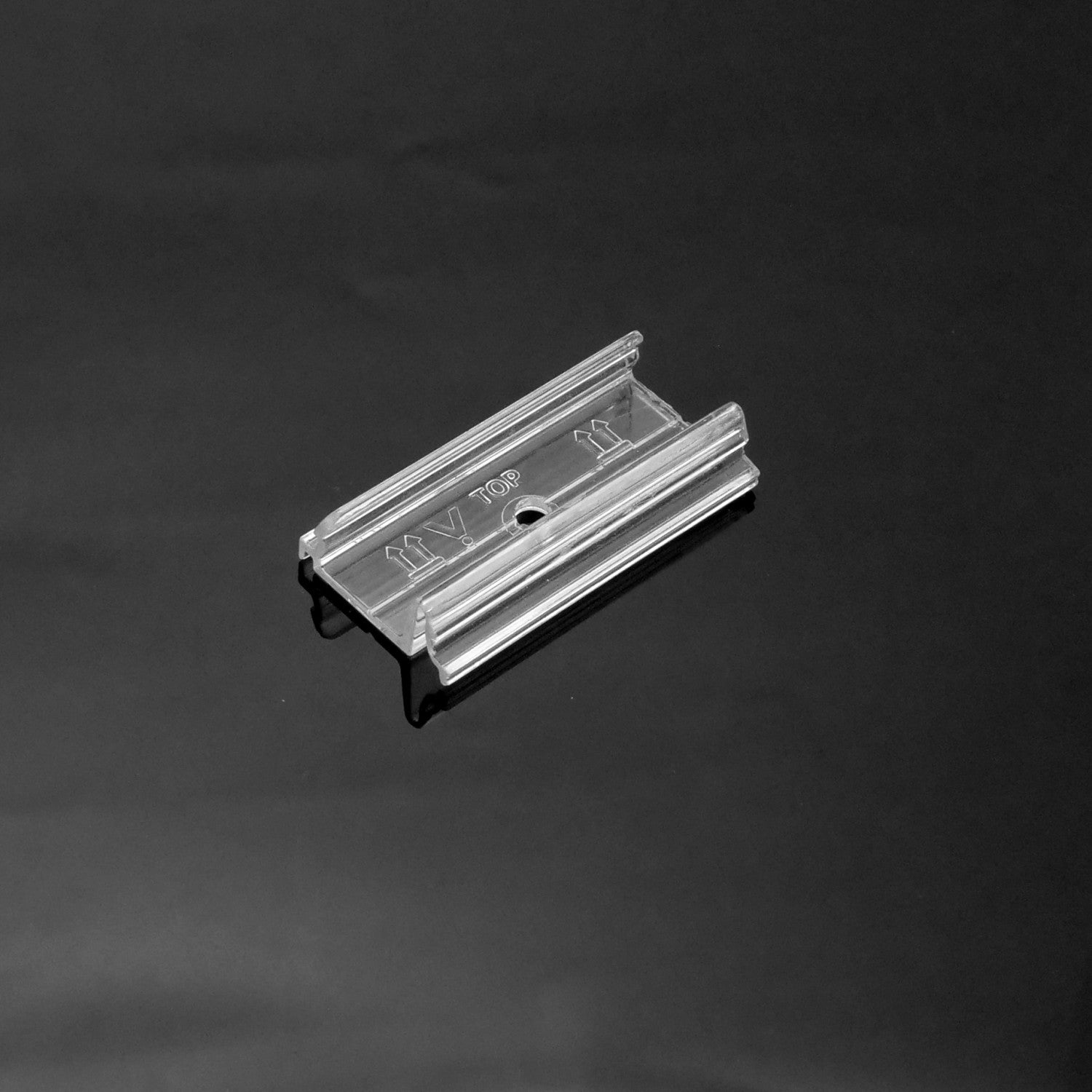

  • Clip material: Polycarbonate (clear)
  • Weight: 2.4m (7’9”) tube 0.67kg net

Downloads


Important notes

  • We sell LED strips, covers, mounting brackets, end caps, shelf/sign panels and other accessories separately from the aluminum profile. Therefore, please select the available components below.

  • For your convenience Wired4Signs USA can also assemble ready to use plug and play light fitting to your specification.

  • We recommend double-checking the measurements before cutting LED profiles and covers to avoid any unnecessary loss. Please note that if you cut LED profiles and covers, we cannot refund or replace them.

  • We ship items in stock the same day from Knoxville, Tennessee, United States. Additionally, our team dedicates themselves to carefully packing and safely delivering all packages to their destination.

  • Bulk pricing is available on request. Moreover, for larger orders, we offer additional discounts and customized pricing to fit your project needs.


Common Terms

LED Illuminated Acrylic Contour Tube, Adjustable Border Tube Light, Linear LED Border Tube, LED Border Tube, LED Border lighting, RGB Flexible Border Tube

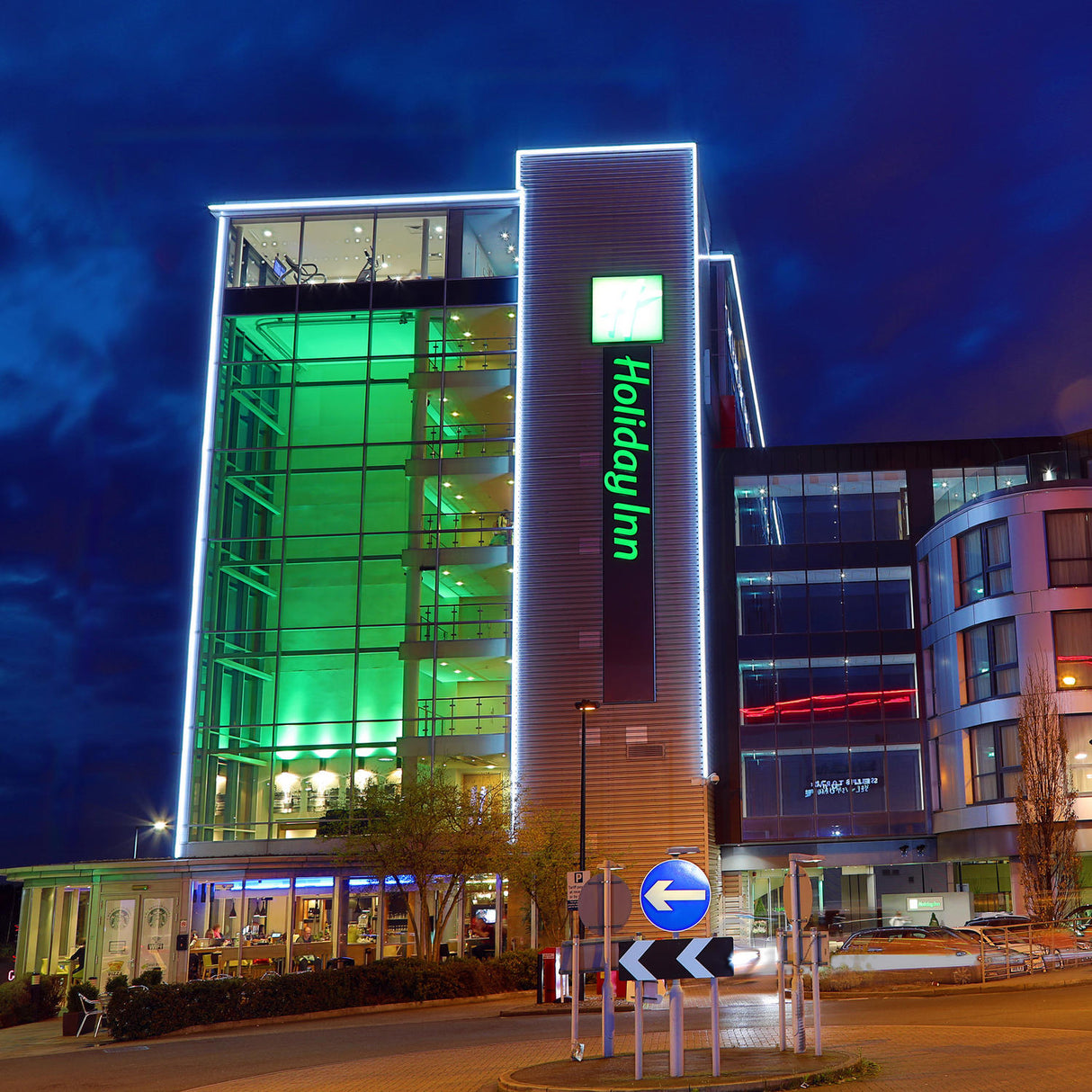

Inspiration gallery
Shipping restrictions

We cannot ship rigid items over 2.4m (8ft) in length due to freight restrictions. These products are offered for customer pickup only. Please refer to our Shipping Policy for further information.
