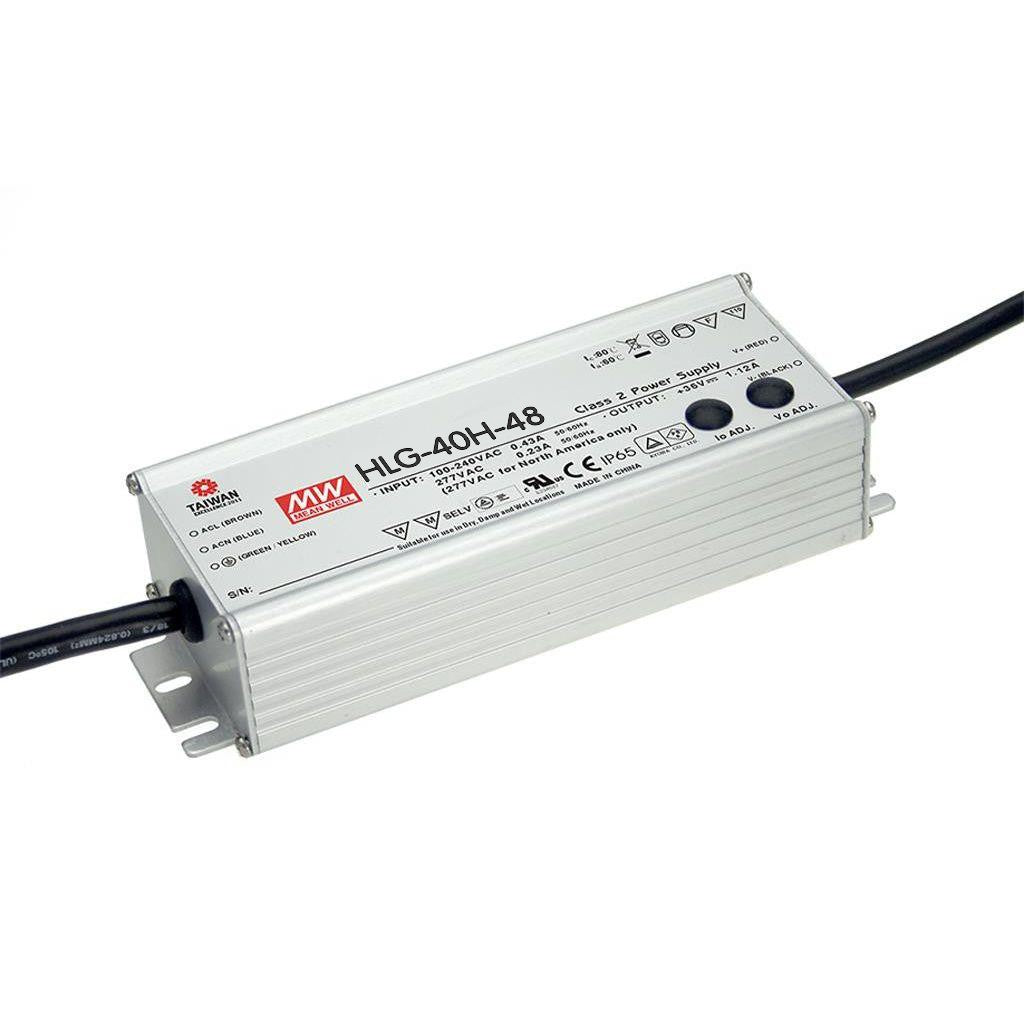

Meanwell HLG Series 48v DC Power Supply ~ 7 year warranty

SKU LED-HLG-40H-48A
Original price - Original price
Original price
-
Current price
Shipping restrictions

We cannot ship rigid items over 2.4m (8ft) in length due to freight restrictions. These products are offered for customer pickup only. Please refer to our Shipping Policy for further information.

Channel & Strip Combo Discount!

Buy any LED channel and get 10% off any LED strip.

Power supply only ~ all other accessories are sold separately

Description

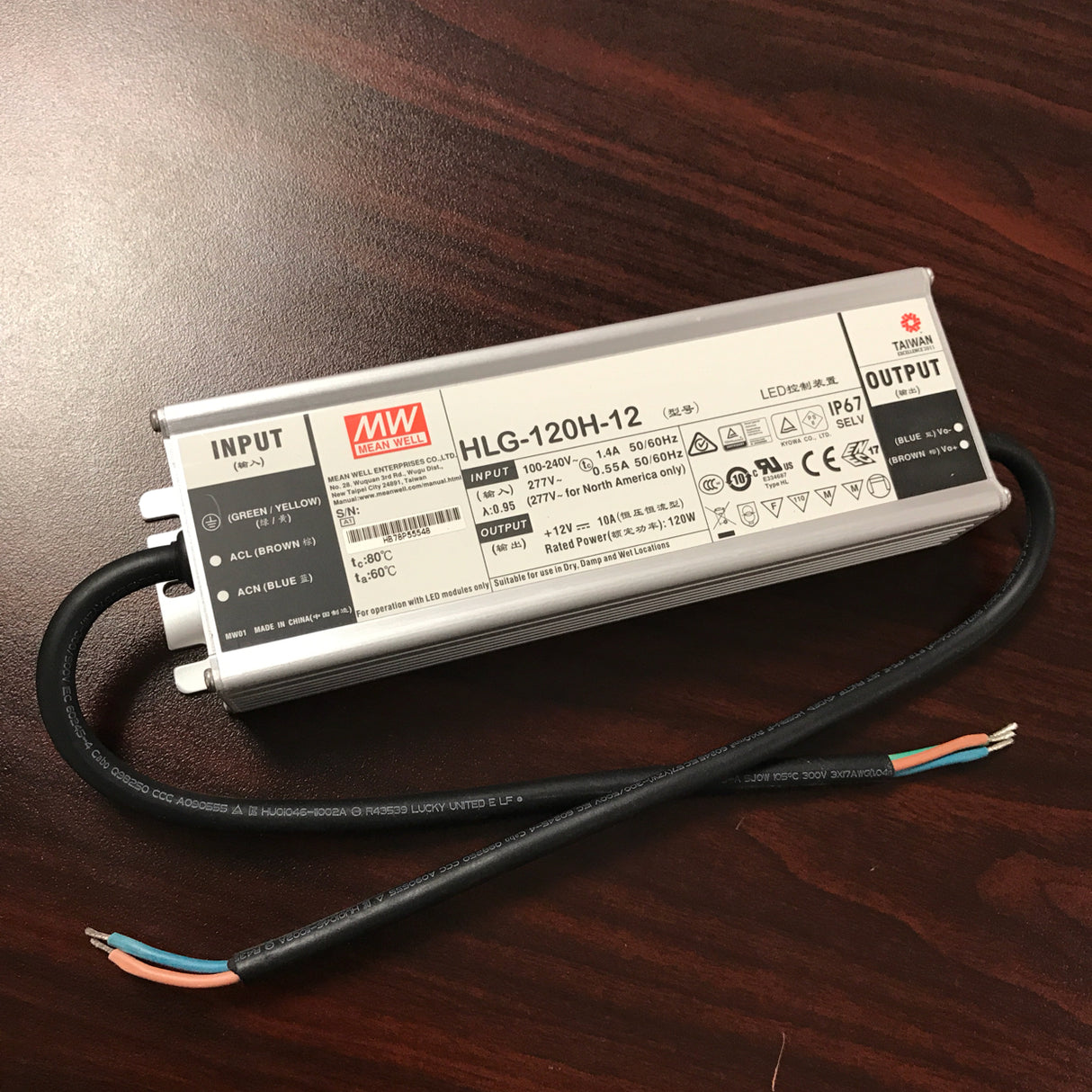

The Meanwell HLG series AC/DC LED driver featuring the dual mode constant voltage and constant current output. The Meanwell HLG series operates from 90- 305VAC and offers models with different rated voltage ranging between 12V and 54V. Thanks to the high efficiency up to 96%, with the fanless design, the entire series is able to operate for -40~ +90°C case temperature under free air convection. The design of metal housing and IP67/IP65 ingress protection level allows this series to fit both indoor and outdoor applications. Some models are equipped with various function options, such as dimming methodologies, so as to provide the optimal design flexibility for an LED lighting system.

General Specifications

  • Wattage: 40W, 120W, 150W
  • 90~305VAC input, built-in active PFC function
  • Metal case, IP67/IP65 design for indoor or outdoor installations
  • output adjustable via potentiometer; 3 in 1 dimming (1~10Vdc or 10V PWM signal or resistance); timer dimming
  • Type "HL" LED drivers for use in Class I, Division 2 hazardous (Classified) location luminaries
  • Suitable for LED street lighting, outdoor LED lighting and general outdoor applications with high IP requirement
  • IP68/-55 startup/10G vibration options available (Please contact MEAN WELL for details)
  • 7 years warranty

Downloads

  • HLG-40H cut sheet
  • HLG-120H cut sheet
  • HLG-150H cut sheet
