Colored Border Contour Tube Light ~ Hi-Lite 30 Field Adjustable

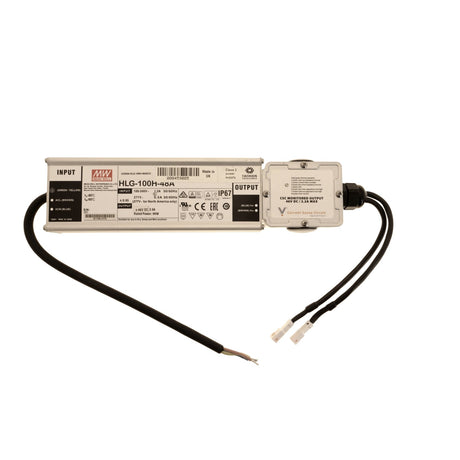

Tube light only ~ we sells power supplies, controllers, drivers, and all accessories separately.

Description

Colored Border Contour Tube Light ~ Hi-Lite 30 Field Adjustable

The Hi-Lite™ 30 LED Border Tube light from Visive are purpose designed for illuminating building contours. These field adjustable tubes are designed to be cut to length on site. We also offer complementary fixed length straight sections for use where cutting is not necessary.

Additionally, countless blue-chip customers have been safely illuminating their buildings and structures using Hi-Lite™ LED contour tube lights for over 20 years.

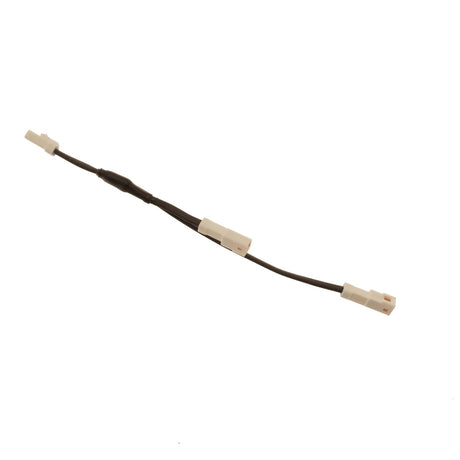

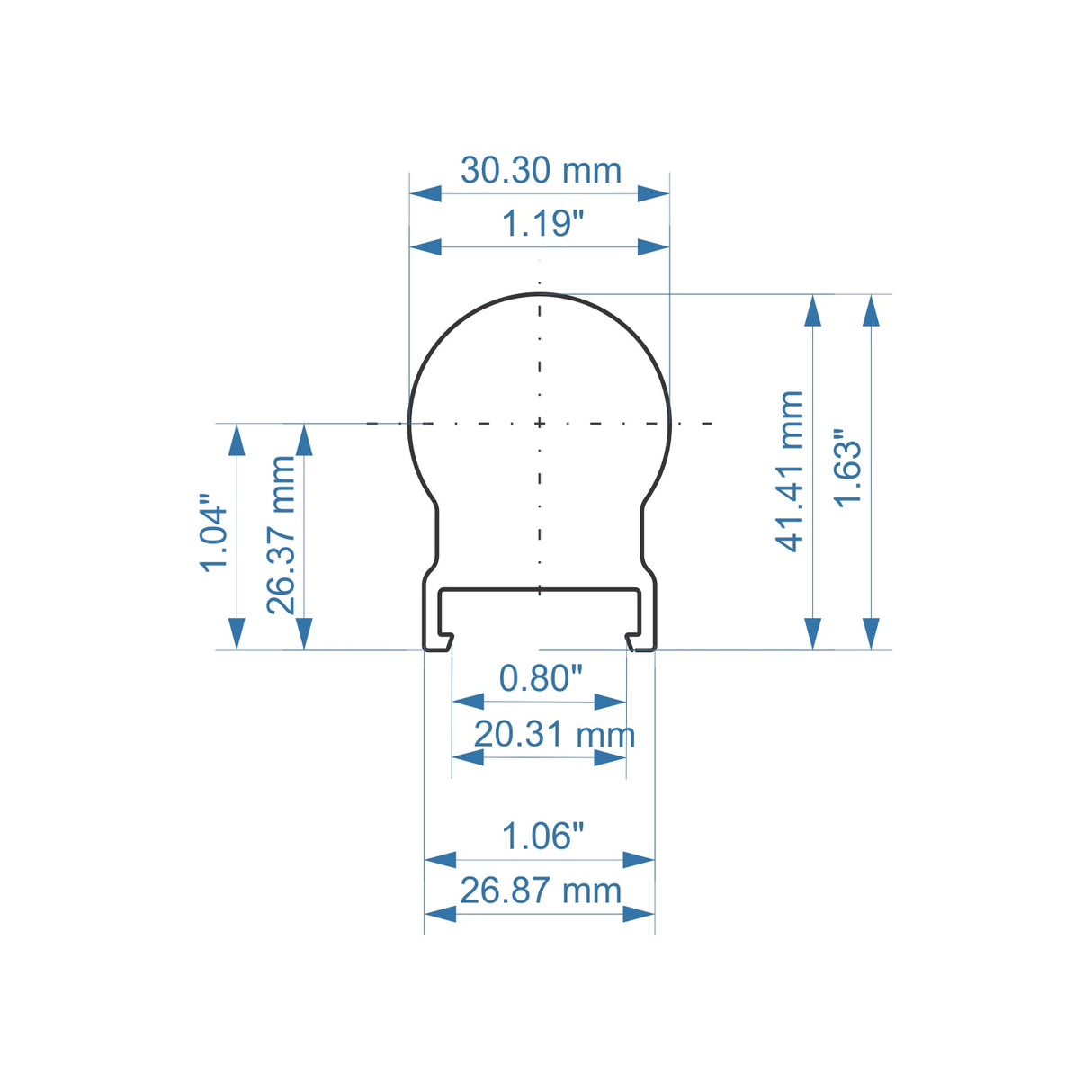

Made in standard 2.4m (7’10 ½”) long sections, Hi-Lite™ 30 is also an extruded 30mm diameter acrylic tube which is fixed to the base structure using polycarbonate clips. Furthermore, simply daisy-chaining sections together can make long runs with all cabling and connections completely hidden from view behind the tube sections.

Hi-Lite™ 30 Colored Border Contour Tube Light features fixed length straight sections as well as this Field Adjustable section, providing installers the flexibility of being able to cut sections on site.

Reliability

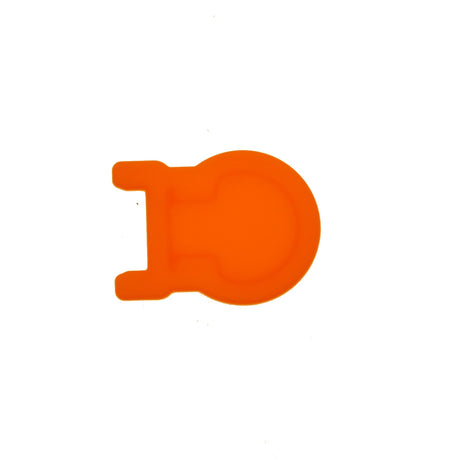

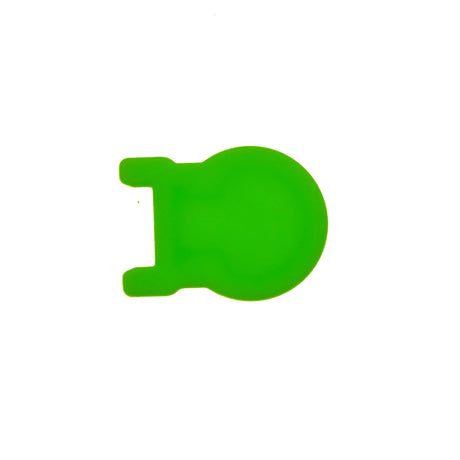

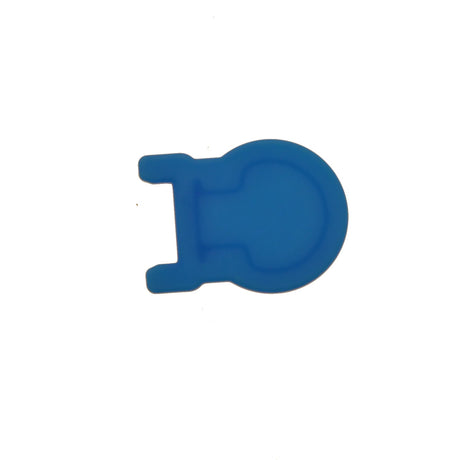

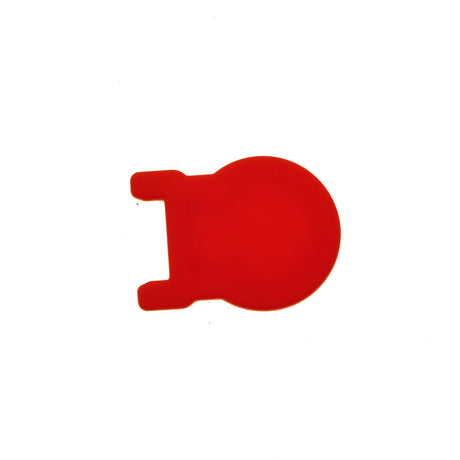

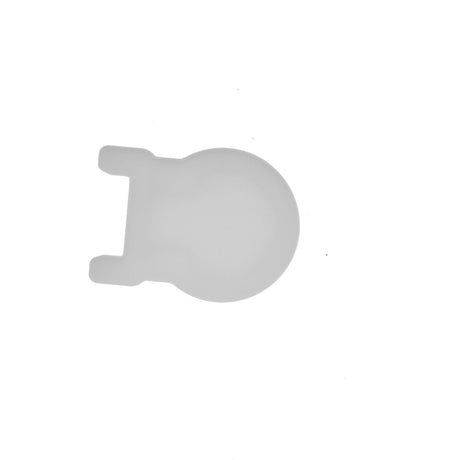

Hi-Lite™ 30 tubes are factory sealed with end caps fixed by an advanced ultrasonic welding process. It was also individually test to ensure they are fully weatherproof and ready to provide a long, maintenance-free life. We also cover all products with a 5-year warranty.

Perfect illumination

Hi-Lite™ 30 tubes are manufactured in the UK from recyclable materials. The impact modified PMMA (acrylic) used for the extruded profile features inherently superior UV performance when compared to polycarbonate or PVC alternatives. The color pigments used are also all rated at the maximum 8 on the blue wool scale, ensuring resistance to fading.

A standard range of vibrant colors is available, but it is also possible to match a customer’s specific corporate brand design. Whether un-illuminated during daylight, or lit at night, the coloured identity is maintained.

Moreover, the careful design and specification of the LED border tube light inside the tube, and the use of unique diffusing additives in the extrusion itself, achieve a consistent linear illumination effect without the localized hot spots seen on many inferior products.

General Specifications

• Certifications: Underwriters Laboratory (UL) approved. Conforms to UL 48
• Cutting pitch: 50mm (2”) intervals
• Power: 5W/m
• Brightness:

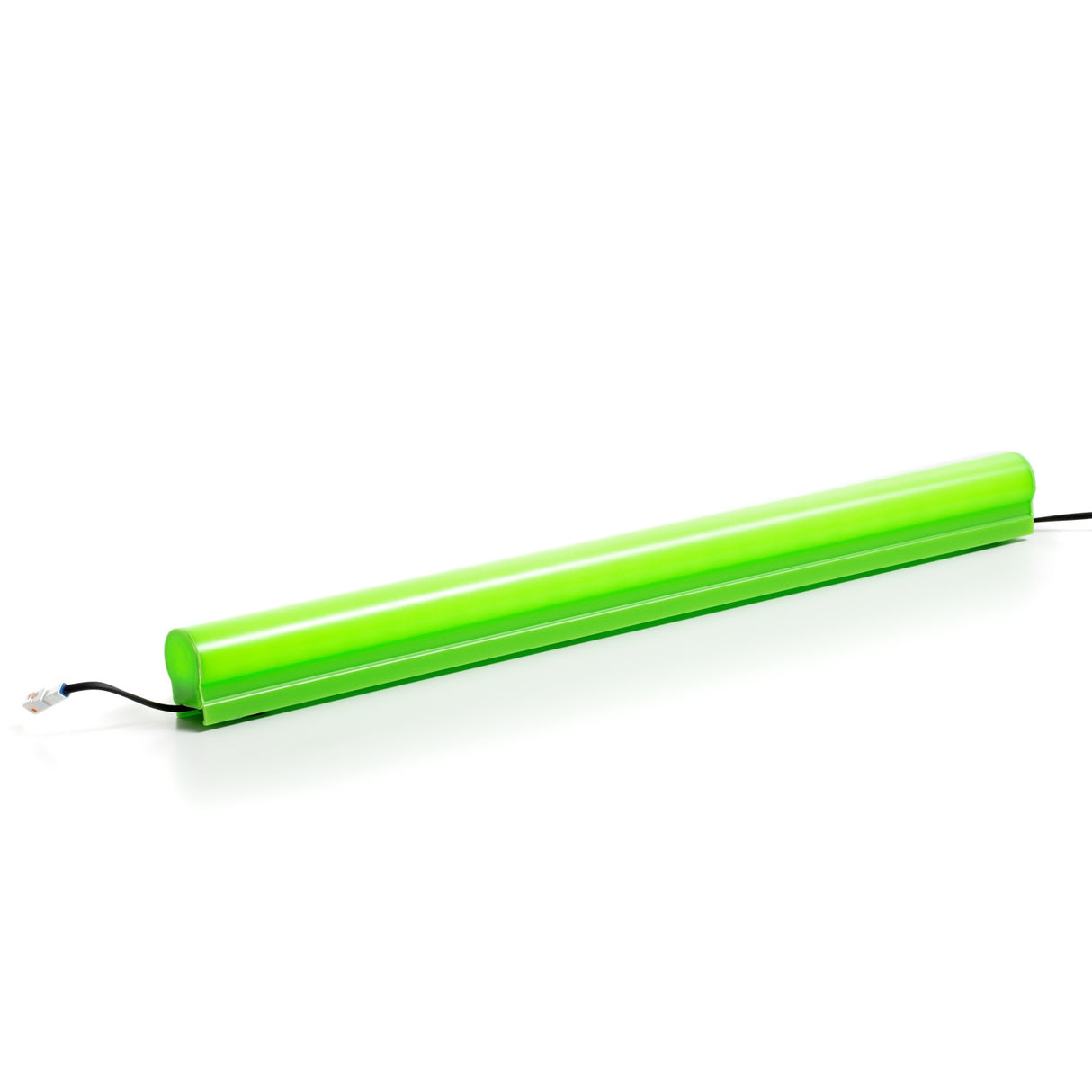

  • Lime Green - 1,700cd/m2

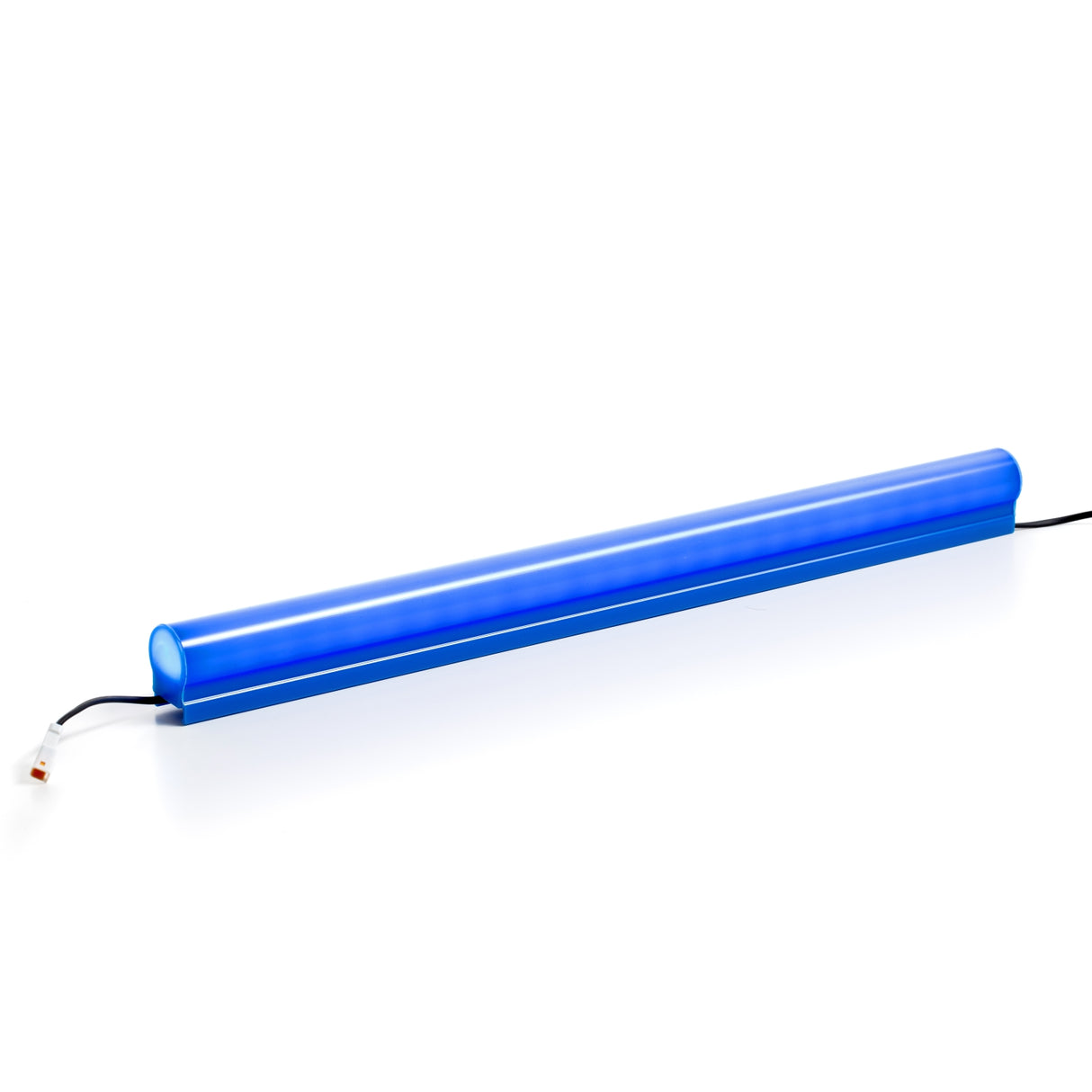

  • Cobalt Blue - 150cd/m2
  • Lemon Yellow - 2,000cd/m2
  • Tangerine Orange - 650cd/m2
  • Honey Yellow - 1,600cd/m2
  • Candy Red - 300cd/m2
  • White - 2,250cd/m2
• Housing material: Extruded PMMA composite
• Standard tube length: 2.4m (7’9”) nominal
• Input voltage: 40V – 46V DC
• Protection: IP66 Waterproof (independently tested)
• Operating temperature: -30°C to +60°C (-22°F to +140°F)

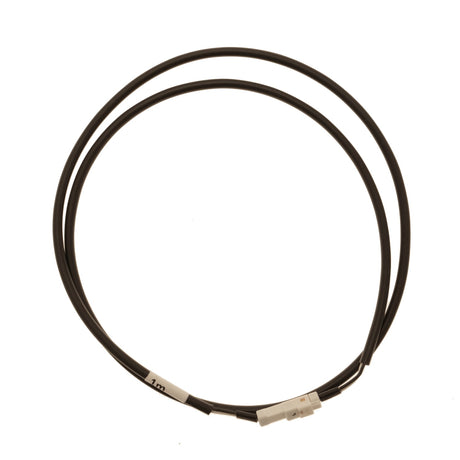

• Connector: JST JWPF range

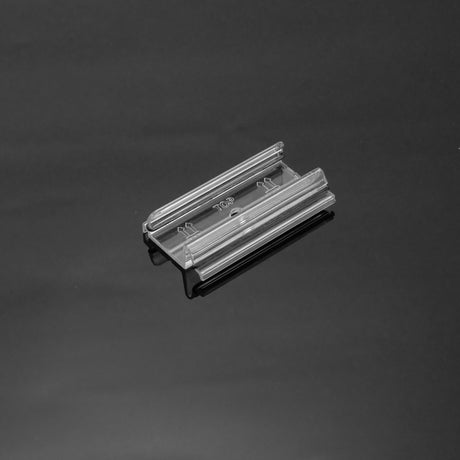

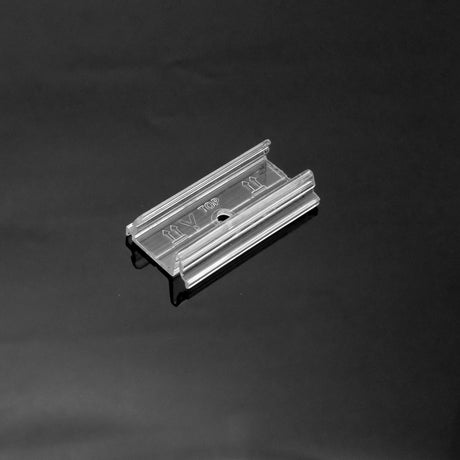

• Clip material: Polycarbonate (clear)
• Weight: 2.4m (7’9”) tube 0.67kg net

Downloads

• Visive Hi-Lite 30 Product Guide
• Visive Hi-Lite 30 Installation Guide

Important notes

• We sell LED strips, covers, mounting brackets, end caps, shelf/sign panels and other accessories separately from the aluminum profile. Therefore, please select the available components below.

• For your convenience Wired4Signs USA can also assemble ready to use plug and play light fitting to your specification.

• We recommend double-checking the measurements before cutting LED profiles and covers to avoid any unnecessary loss. Please note that if you cut LED profiles and covers, we cannot refund or replace them.

• We ship items in stock the same day from Knoxville, Tennessee, United States. Additionally, our team dedicates themselves to carefully packing and safely delivering all packages to their destination.

• Bulk pricing is available on request. Moreover, for larger orders, we offer additional discounts and customized pricing to fit your project needs.

Common Terms

LED Tube Lights, Flexible LED Border Tube, RGB tube lights, Colorful tube light, LED Strip Tube Lights, Fluorescent tube light
