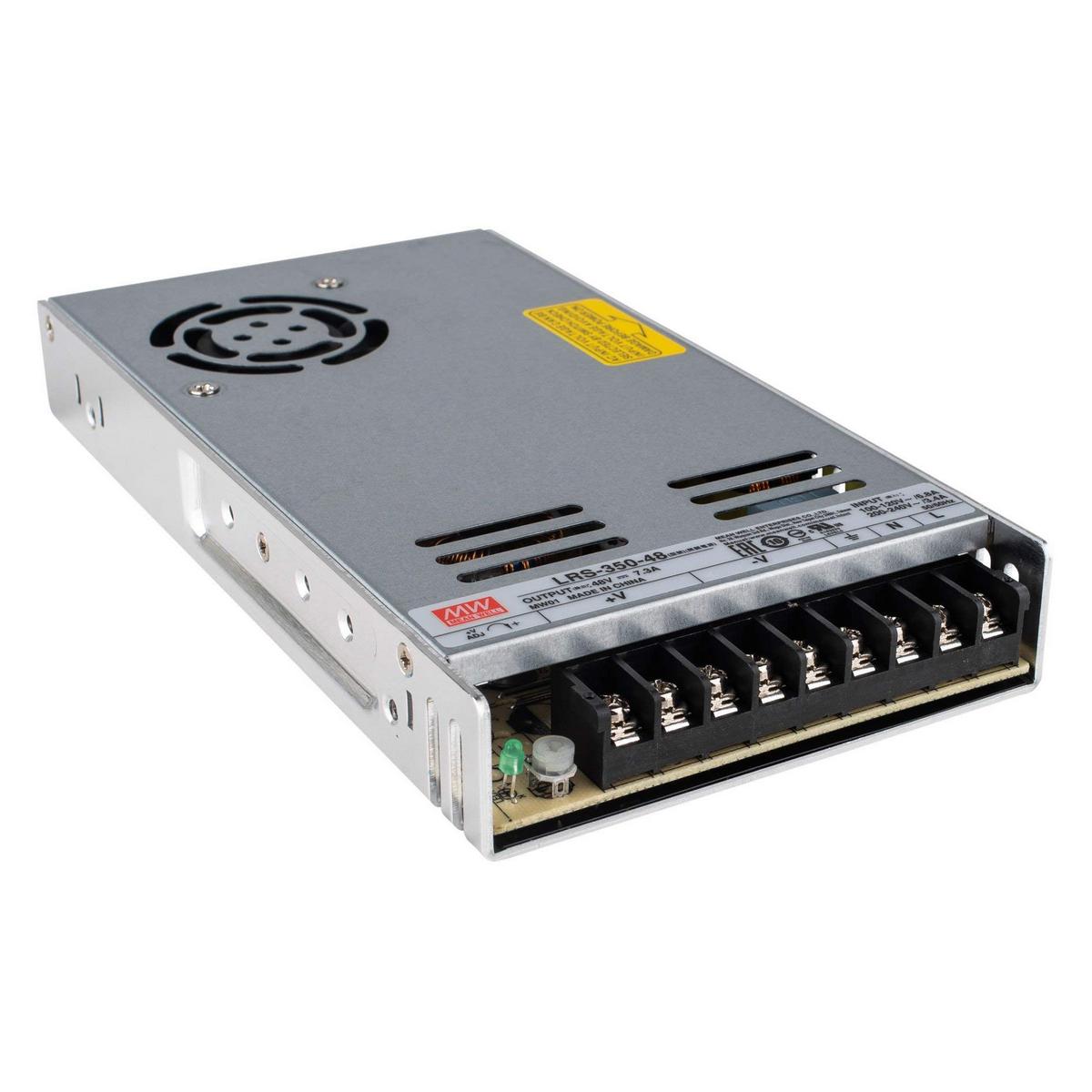

Indoor Enclosed LED Driver (48V) ~ Meanwell LRS Series

power supply only ~ all other accessories sold separately

Description

Enclosed AC/DC power supplies are ideal for indoor LED lighting application where the power supply will not be exposed to moisture. You can use these low-profile 48V LED drivers for a range of specialized LED lighting applications where you need to power 48V LED strip.

The LRS Series from Meanwell is a line of single output, switch mode power supplies. It is a compact, reliable, and cost-effective power supply with a high efficiency rating, which makes it suitable for a wide range of applications. This series of enclosed power supplies has a wide input voltage range, making it suitable for use in different regions around the world.

This economical power supply series has a variety of attractive features for LED lighting applications:

The included power-on LED indicator is helpful for fault finding and solving installation problems.

Electrical protection features include over-voltage, over-current, short-circuit protection making it a reliable choice.

As a bonus, the low no-load power consumption makes these 48V LED power supplies energy-efficient and environmentally friendly.

This low-profile LED power supply is a reliable and cost-effective solution for most architectural, residential and commercial LED lighting projects where 48V LED strip is being employed. The Meanwell LRS Series is a reliable and cost-effective compact 48V power supply that is suitable for a wide range of indoor applications.

If you need help selecting the right power supply for your project, read our blog posts on LED power supplies and common mistakes to avoid.

General specifications

• Input voltage: 85-264V AC / 47-63Hz (wide-range)
• Output voltage: 48V DC nominal (adjustable 43.2-52.8V DC)
• Overload protection: 110-140% overload
• Mounting: Enclosed frame, panel mounted
• Approvals: UL 62368-1, EN 2368-1, EN 60355-1, EN 61558-1
• Warranty: 3 years

• LRS-350-48
  • Power: 350.4W
  • Output current: 7.3A
  • Dimensions (LxWxH): 215 x 115 x 30mm (8.46" x 4.53" x 1.18")
  • Weight: 0.76kg (1.67lb)
  • Cut sheet for LRS 350W

Important notes

• Stock items are shipped the same day from Knoxville, Tennessee, United States.
• Bulk pricing is available on request for wholesale orders
