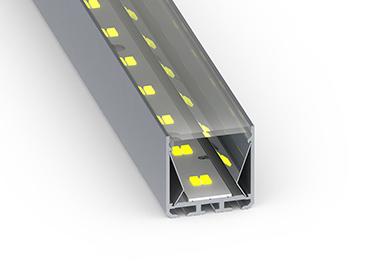

Surface Mount LED Aluminum Channel ~ Model SPL35-FL [Profile Only]

Profile only ~ diffusers and all other accessories are sold separately

Description

SPL35-FL LED Aluminum Channel is a new and improved version of the famous and proven profile SPL35 LED Aluminum Channel. The SPL35-FL profile, despite its classic appearance, has gained new functionality. The optional reflectors, available below in the accessories, increase the light output from the luminaire by approximately 10-18% depending on the LED strip used. The profile has three options for light diffusers to choose from: prismatic with high light transmission ratio, opal, and smooth. There is also a new option for mounting high power LEDs with lenses.

The SPL35-FL LED Aluminum Channel, like its predecessor, has three installation options: Trimless recessed, Surface, and Suspended. The heat transfer of the SPL35-FL profile is 36W/m @ Ta = 25°C, which enables the LED profile to maintain a stable temperature of 55°C.

The LED profile can be ordered with accessories such as straight and corner connectors, cable ties, Trimless mounting magnets, and aluminum end caps.

SPL35-FL LED flush-mounted channel is recommended for use with double-row LED strip or high-performance LEDs up to 36 W/m.

What to consider before starting your plaster-in LED channel project

General specifications

• Material: Aluminum
• Overall dimensions: 35mm x 35mm (1.37" x 1.37")

Downloads

• SPL35-FL cut sheet

Important notes

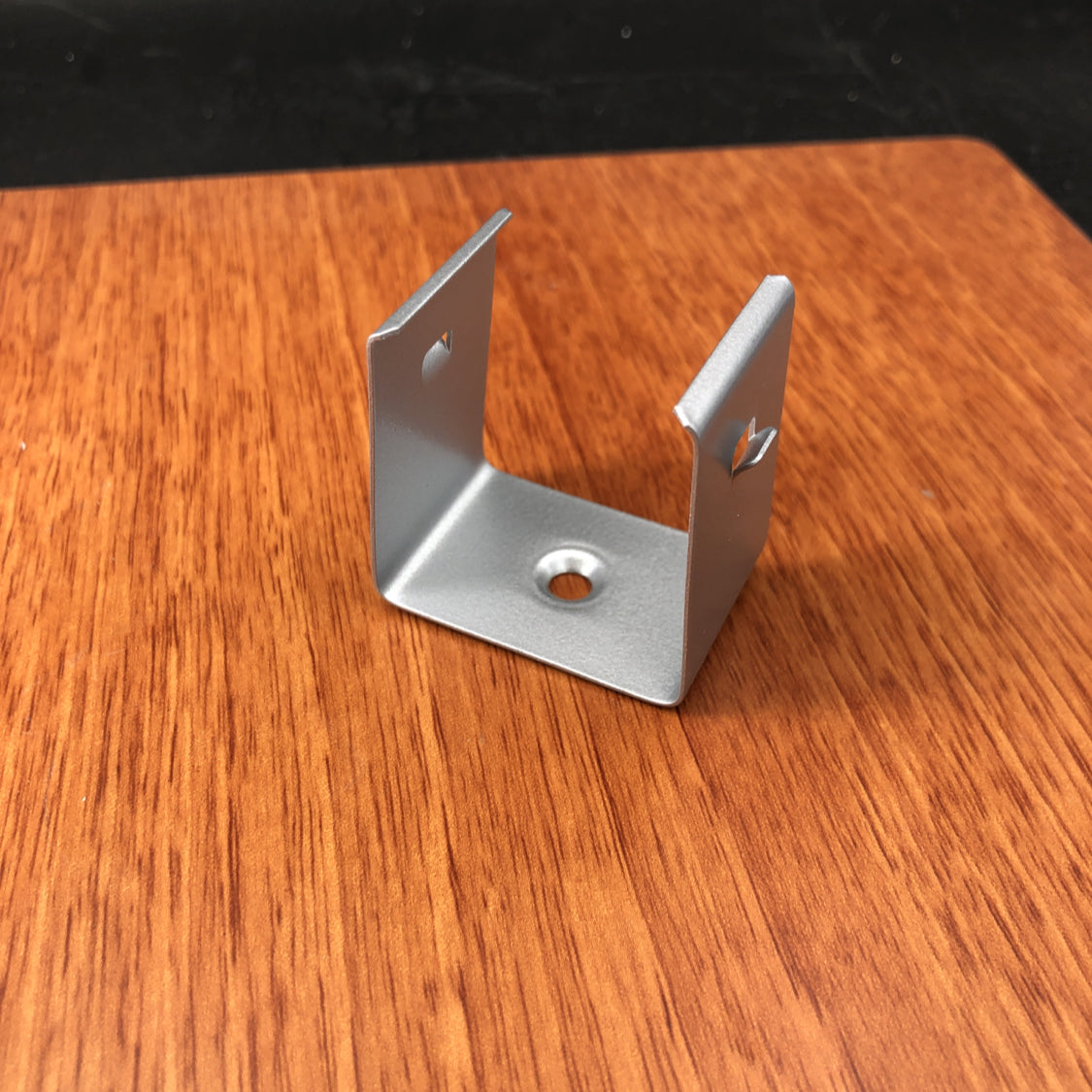

• LED strip, covers, mounting brackets, end caps, shelf/sign panels and other accessories are sold separately from the aluminum profile. Select the available components below.
• Please note that raw or natural profiles or channels are not anodized and need to be coated or painted, or they will oxidize over time in outdoor applications.
• LED profiles can easily be cut by hand or by machine.
• For your convenience Wired4Signs USA can cut LED profiles according to your requirements. Please leave instructions in the order comment box.
• Please note that we cannot refund or replace LED profiles and covers that have been cut.
• Items in stock are shipped the same day from Knoxville, Tennessee, United States.
• Bulk pricing is available on request
