2.56" Round Silicone Rubber LED Lighting Tube ~ Model Sierra65 Flex
Product details
Diffuser tube only - end caps, LED strip and all other accessories are sold separately
Description

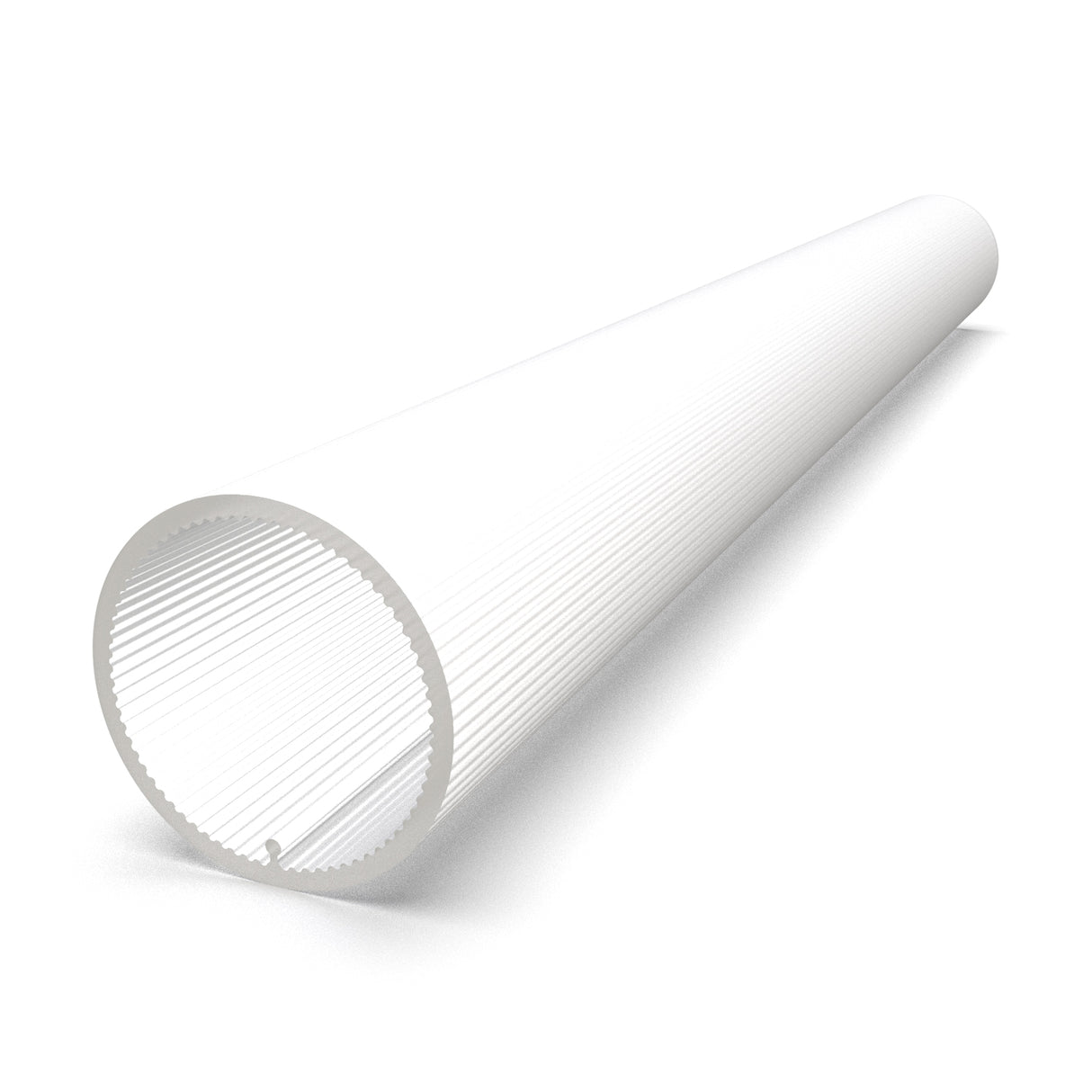

The Sierra65 Flex series is a round silicone rubber LED lighting tube with a 2.56" diameter manufactured in the USA. It features a mounting rail that holds our Yukon aluminum LED mounting plate (not included), which functions as a physical carrier and heatsink for the LED strip.
The tubes appear solid white when unlit, and take on the LED color when illuminated. This is particularly striking when combined with RGB or pixel LED strips.
These tubes are flexible and so can be used for making curved light fixtures. However, the necessary accessories for this are still in development. Straight fixtures are already possible using the Yukon.
The large diameter of these tubes makes them especially effective for architectural and feature lighting in spacious environments such as theater halls, event venues, and outdoor installations.
Made with commercial-grade silicone rubber, the Sierra65 Flex series is UV stable and offers durability and flexibility for a wide range of lighting applications. They're also RoHS and REACH compliant.
The Sierra65 Flex is available in extra long lengths on request.
General specifications
- Maximum LED strip width: 12mm
- Maximum LED power: 20 W/m

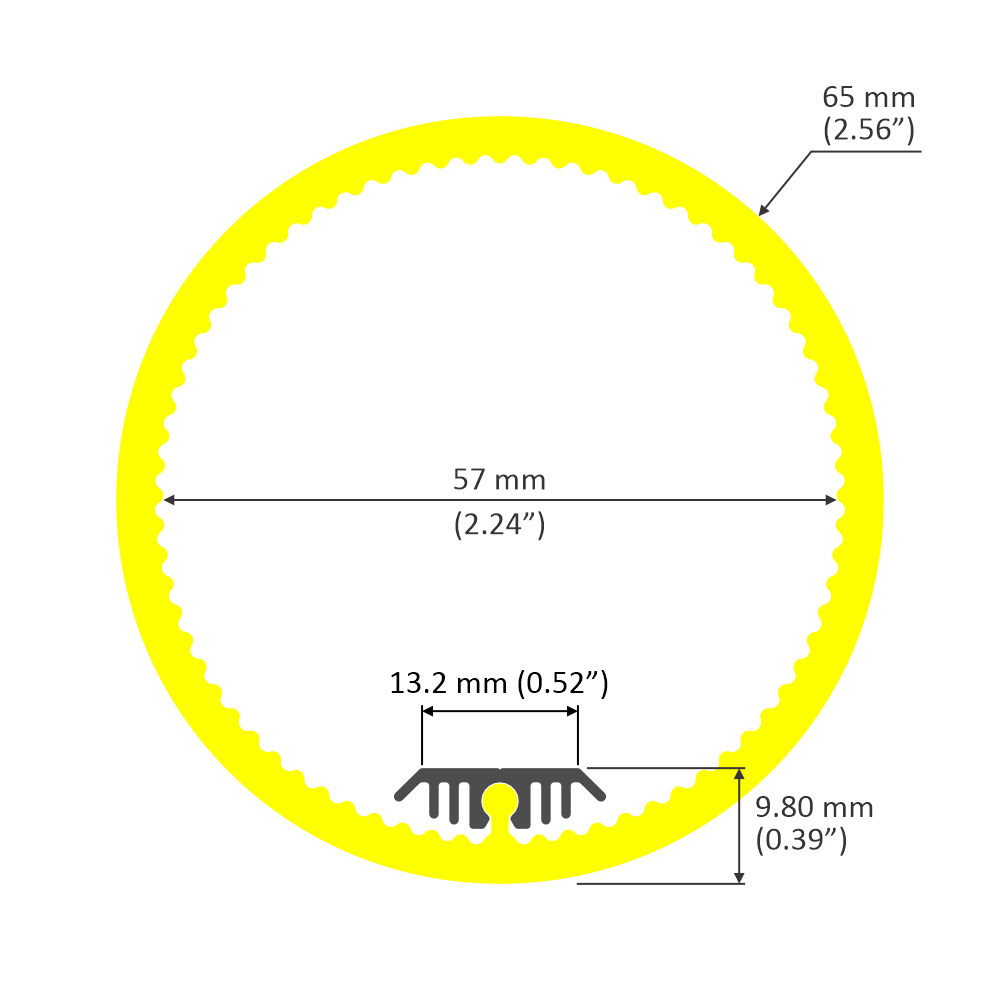

- Outside diameter: 65mm (2.56")
- Colors: White (Opal)
- Materials:
- Diffuser tube: Silicone rubber (commercial grade)
- Heat dissipation plate: Aluminum (Yukon; not included)
- RoHS & REACH compliant
- Available in extra long lengths on request.
- Made in the USA.
Downloads
Important notes
- Please note that raw or natural profiles channels are not anodized and need to be coated or painted, or they will oxidize over time in outdoor applications.
- LED profiles can easily be cut by hand or by machine.
- For your convenience Wired4Signs USA can cut LED profiles according to your requirements. Please leave instructions in the order comment box.
- We can also assemble a plug and play light fitting with this profile according to your specifications.
- Please note that we cannot refund or replace LED profiles and covers that have been cut.
- Items in stock are shipped the same day from Knoxville, Tennessee, United States.
- Bulk pricing is available on request.
