20A 4-Channel LED Amplifier/Repeater ~ ampBox by BleBox

20A 4-Channel LED Amplifier/Repeater only ~ all other accessories are sold separately

Description

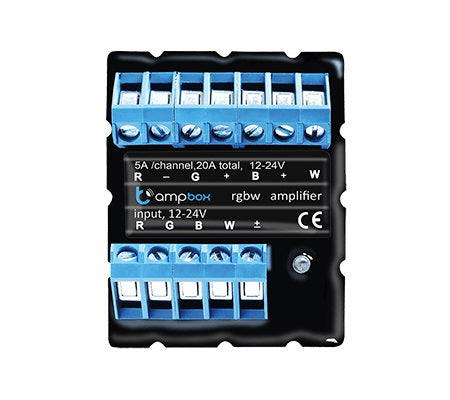

4-Channel LED ampBox Amplifier

ampBox is a powerful and professional four-channel LED amplifier (4x5 amp), designed to be used with both traditional and smart low-voltage LED systems.

With four channels of 5 amp capacity each, it enables users to attach large lighting loads to other controllers such as the wLightBox. This tiny amplifier serves two purposes: to boost the signal from a master controller and to add more power into the installation to prevent voltage drop.

4-Channel LED ampBox Amplifier is commonly used as a LED strip, RGB, or RGBW amplifier and is also compatible with Philips Hue light strip AMP, enabling longer lengths of Hue Strip. It works seamlessly with virtually every type of low voltage LED strip or LED modules.

Benefits

• Digital signal enhancement
• Optical isolation for safety
• Ready for RGBW lighting
• AmpBox allows users to attach significant LED lighting loads while still providing a safe lighting system, both indoors and outdoors.

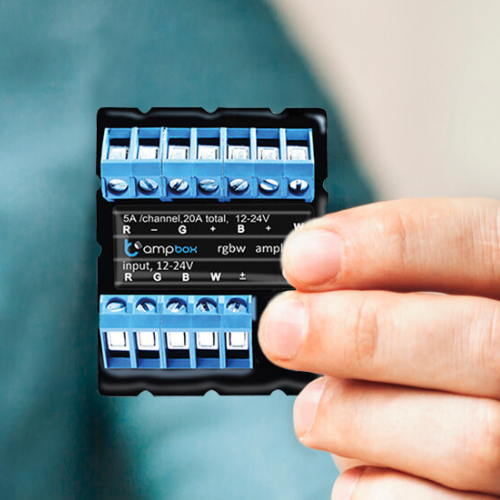

• Do you know that amplifiers heat as a result of the current flow? And the warmer they are, the worse they work? The ampBox dissipates heat over the entire surface of the housing; thanks to this, it heats much slower in comparison with other LED amplifiers.

General specifications

• Voltage: 12-24V DC
• Maximum current: 20A
• Maximum current/channel: 5A
• Channels: 4
• Maximum power: 480W
• Input signal: PWM, common VCC or GND
• Dimensions: 48x40x19mm
• Made in Poland

Warranty details

Downloads

• User manual and cut-sheet

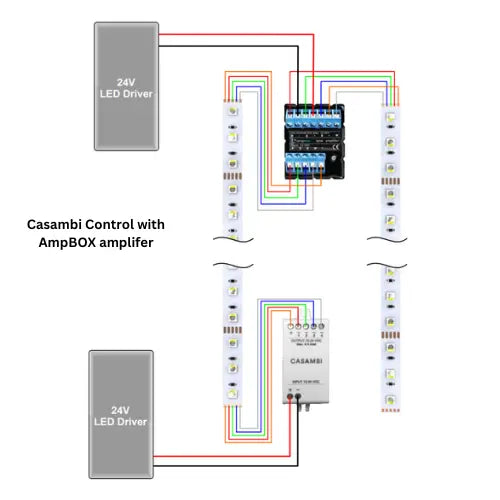

• An example diagram of how ampBox can be used

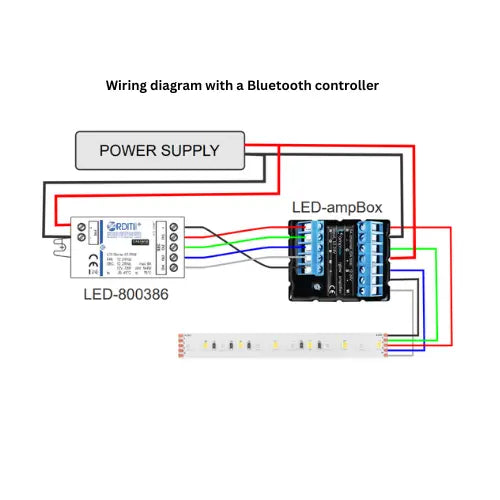

• Wiring diagram with a Bluetooth controller
