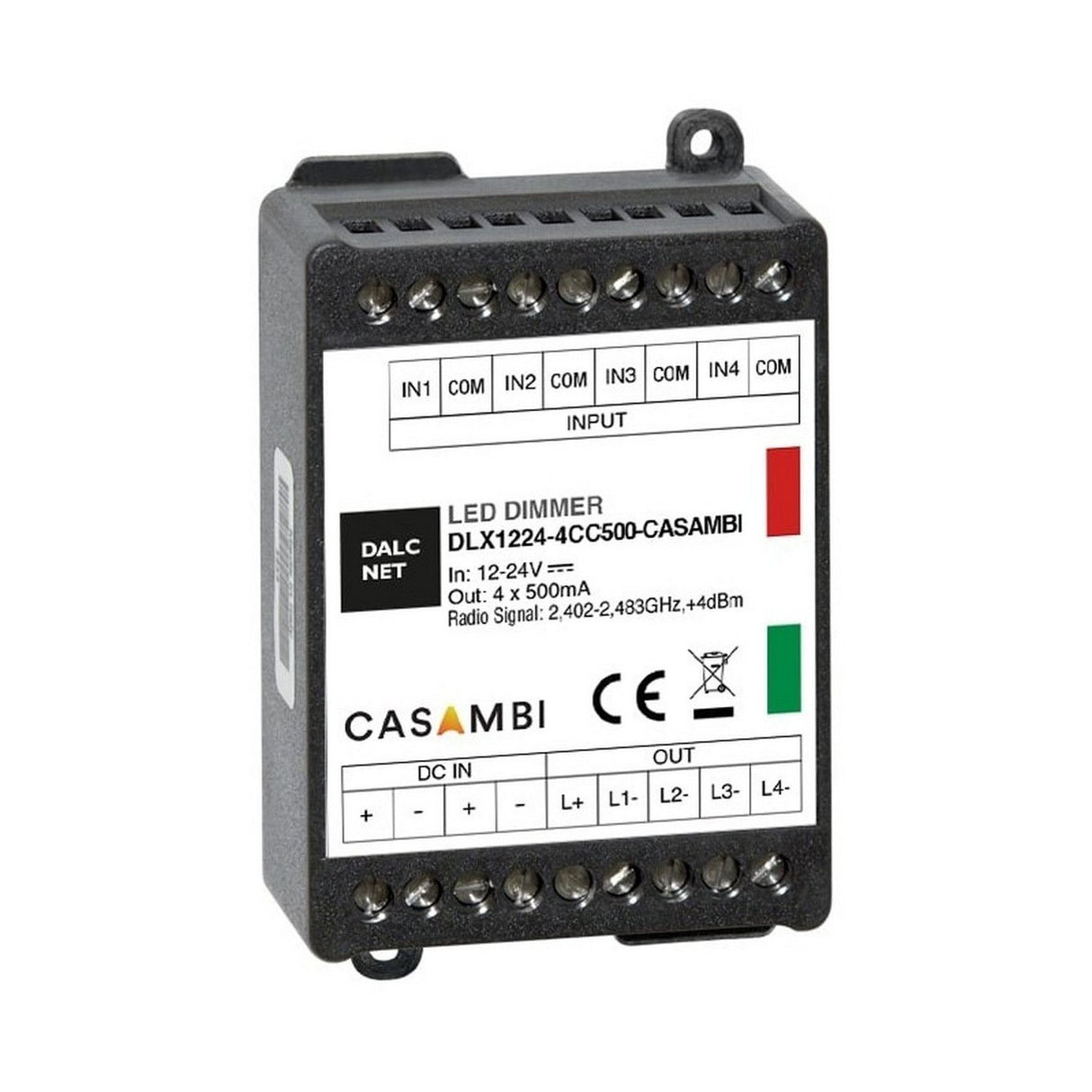

The DLX1224-4CC500-CASAMBI is a wireless control solution for constant current LED light sources. The Casambi module for wireless control allows you to remotely control the four constant current channels for almost any lighting setup: White, Tunable White, RGB, or RGBW.

This model can drive up to 500mA per channel (total 48W at 24V) for a powerful constant current control solution. It is ideal for high powered constant current light sources such as full color LED spot lights.

With the Casambi wireless module integrated into this Dalcnet device, users can effortlessly adjust luminous brightness or create captivating color scenes using the intuitive Casambi smartphone app.

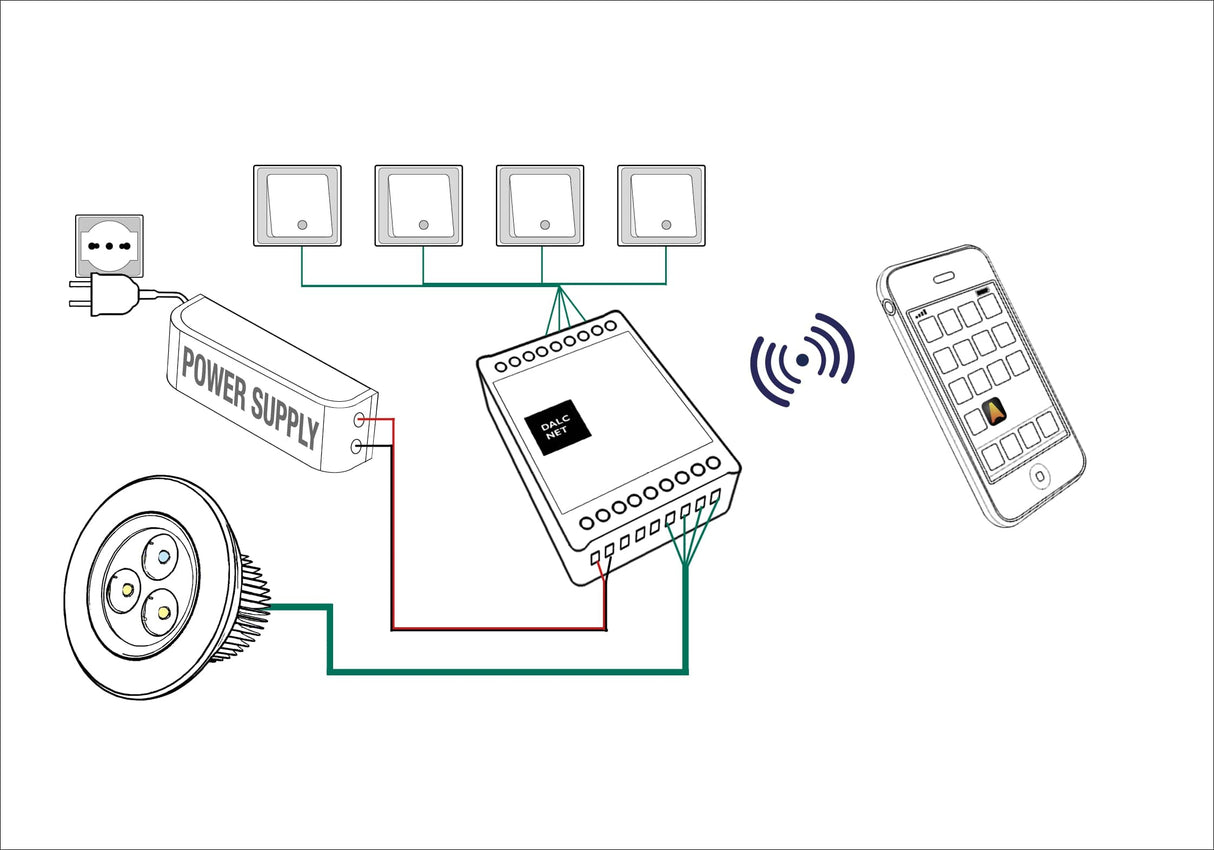

This high-power constant-current dimmer offers seamless control through the app, but it also has four push buttons inputs which provide a convenient local command option.

The DLX1224-4CC500-CASAMBI from Dalcnet is designed with efficiency in mind, with a typical efficiency exceeding 95%. Furthermore, its extended temperature range ensures reliable performance even in challenging environments.

• Model: DLX1224-4CC500-CASAMBI
• Input Range: 12-24V DC
• Max Output Power: 4x 500mA
• Channels Output: 4-Channel
• Wireless Command: Casambi
• Local Command: 4x Push Buttons, Normally Open (N.O.)
• LED driver type: Constant current
• Working Temperature Range: -10/+40°C
• Dimensions: 106 x 59 x 36mm (4.17" x 2.32" x 1.41")

• DLX1224-4CC500-CASAMBI cut sheet

• Items in stock are shipped the same day from Knoxville, Tennessee, United States
• Bulk pricing is available on request
