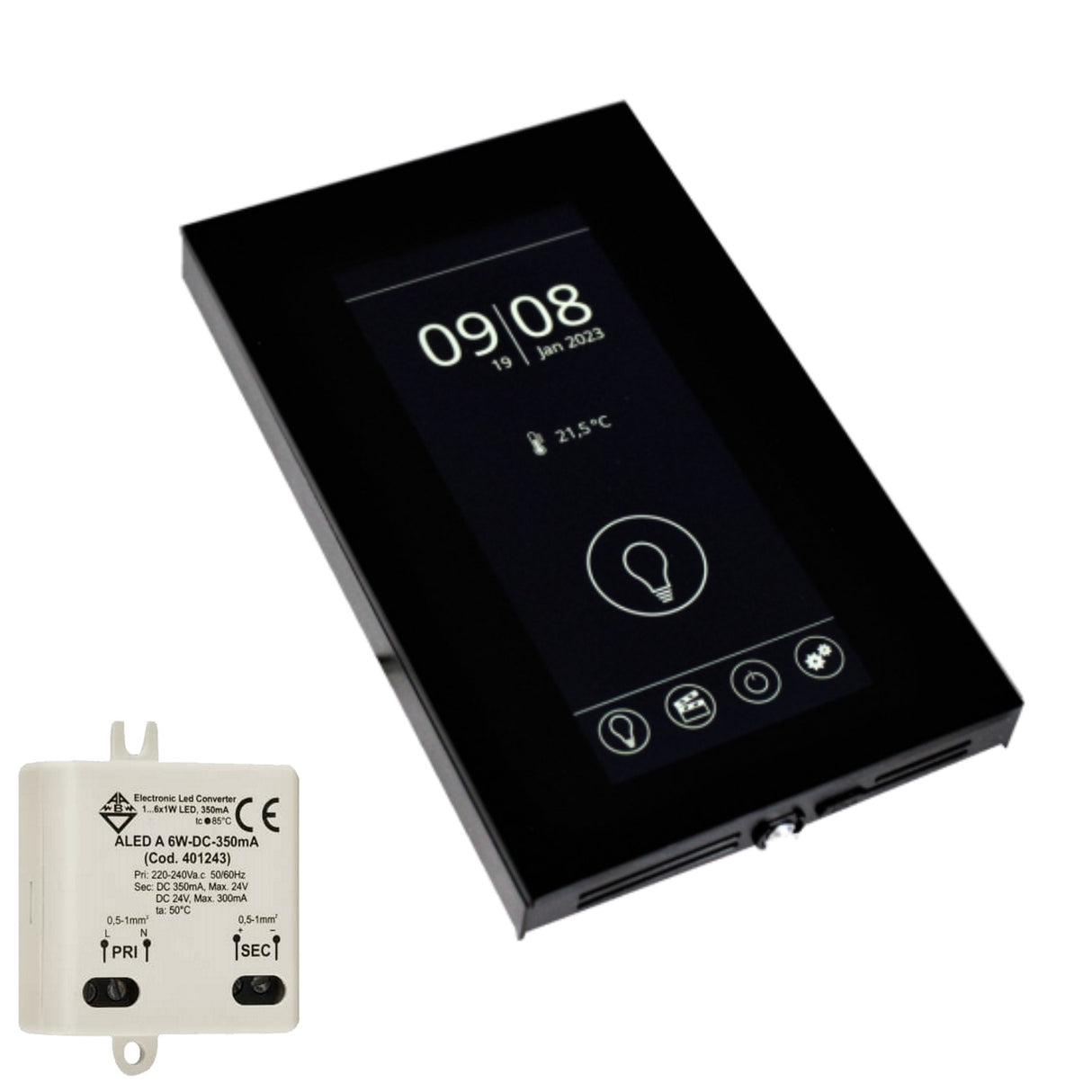

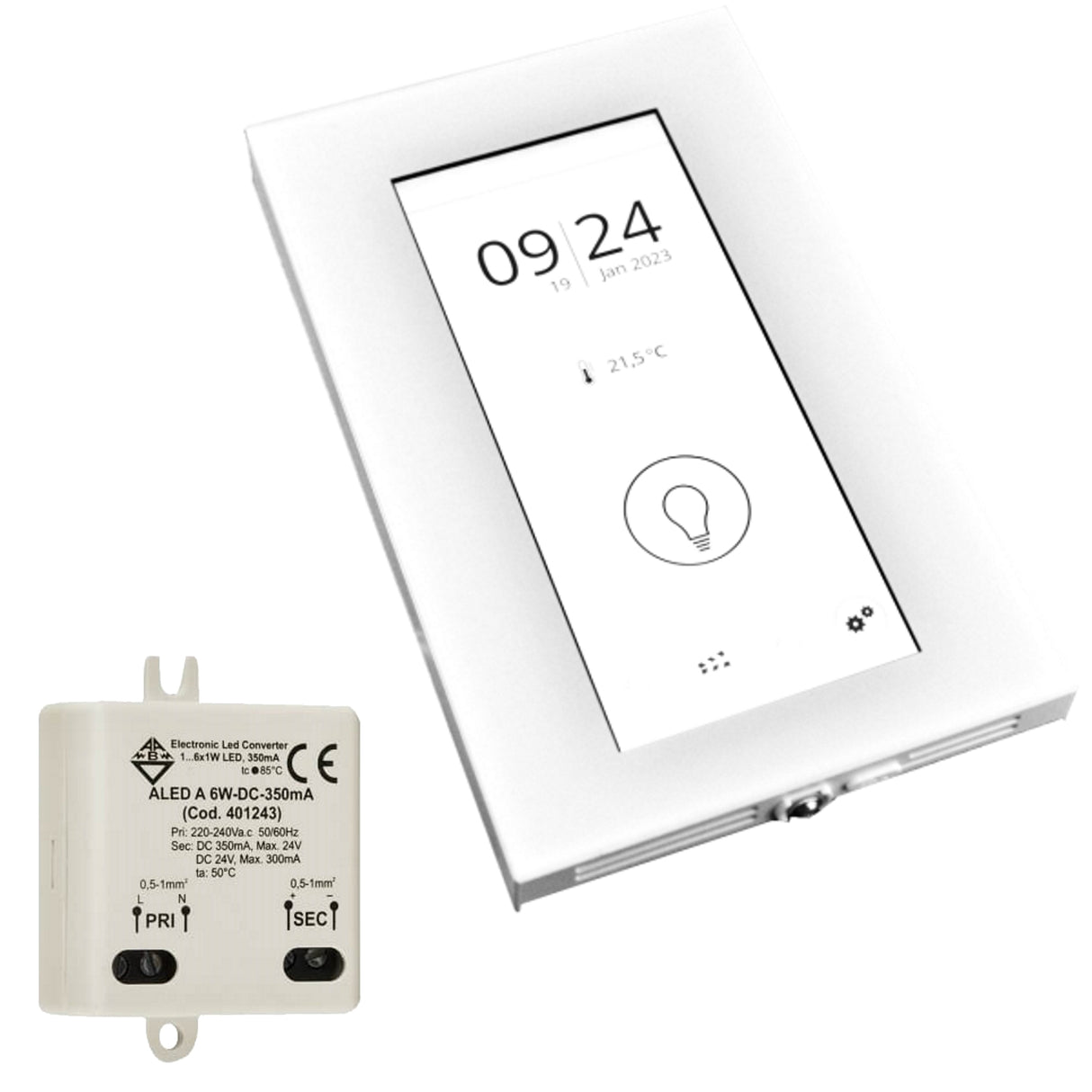

Casambi Touchpanel Switch ~ Model Arca Pro

Casambi Touchpanel Switch ~ Model Arca Pro

Original price - Original price
Original price
-
Current price
SKU LED-ARCA-PRO-W-STD

🚚 - Free shipping on most orders over $350 - T&C Apply

Channel & Strip Combo Discount!

Buy any LED channel and get 10% off any LED strip.

Touchpanel and power supply only ~ all other components sold separately

Description

The Casambi Touchpanel Arca Pro by Arditi is a versatile and reliable lighting touch screen lighting controller that's the perfect solution for your next project. It is an ideal choice for homeowners, lighting designers, and professional installers who are looking for advanced features with intuitive and familiar controls.

One of the great things about the Casambi Touchpanel Arca Pro by Arditi is that it doesn't require a gateway to operate. While a gateway is needed if you want to operate the system remotely, the Arca Pro can be used on its own for local lighting control within the Casambi mesh network. This makes it a great option for those who don't need remote access or who want to keep things simple.

The Arca Pro's wireless connectivity allows for seamless integration with a wide range of Casambi-enabled devices, making it easy to control multiple devices at once. Plus, with its support for dimmer switches and ability to switch between white and color ambiance, you can create and control the perfect mood lighting for any occasion.

This Casambi Touchpanel Arca Pro by Arditi is an excellent choice for anyone looking for a reliable and versatile lighting control solution. It doesn't require a gateway for local lighting control and is compatible with a wide range of devices. With its advanced features, intuitive controls, and sleek design, the Arca Pro is sure to meet your needs.


Features

  • Compatible with a wide range of Casambi-enabled devices, including smart light bulbs and CBU-PWM4 controllers.
  • Wireless connectivity that allows you to control multiple devices at once
  • Support for dimmer switches, making it easy to control brightness levels
  • Works with both wall and ceiling lighting installations
  • Sleek and stylish design with a black or white finish that complements any setting
  • Compact dimensions
  • Sleek look with durable glass touch screen

General specifications

  • Model numbers:
    • Black, standard - ARCA-PRO-BT24B (808565)
    • White, standard - ARCA-PRO-BT24W (808566)
  • Supply voltage: 15-35V DC (power supply included)
  • Supply current: 80mA
  • Radio transceiver operating frequencies: 2.4-2.483 GHz 4dBm
  • Wireless range: Up to 30m (100ft)
  • Scene control: Up to 8 scenes or groups
  • Display: 4.8" glass panel
  • Dimensions: 90 x 146 x 24mm (3.54" x 5.75" x 0.95")
  • Operating temperature: 32-122°F (0-50°C)

Instructions


Downloads


Frequently asked questions

Here are some frequently asked questions about the Casambi Touchpanel Arca Pro by Arditi:

Q: Is the Arca Pro easy to install?
A: Yes, the Arca Pro is designed for easy installation and we include a suitable power supply with the controller.

Q: Can I control multiple devices at once with the Arca Pro?
A: Yes, the Arca Pro's wireless connectivity allows you to control multiple devices at once using the Casambi network.

Q: Is the Arca Pro compatible with smart bulbs?
A: Yes, the Arca Pro is compatible with a wide range of Casambi-enabled smart bulbs and LED lights.

Q: Can I switch between white and color ambiance with the Arca Pro?
A: Yes, the Arca Pro supports white and color ambiance, so you can create the perfect mood lighting.
