Large 45 Degree Corner LED Channel ~ ALU45-Wide

SKU LED-AL-45W-3
Original price - Original price
Original price
-
Current price
Shipping notes

Items over 2.4m (8ft) in length require LTL freight shipping which is more expensive than regular parcel service. Please refer to our Shipping Policy for further information.

Profile only ~ covers, endcaps and all other accessories are sold separately
Please contact us to assemble a custom plug and play light fitting using this channel

Description

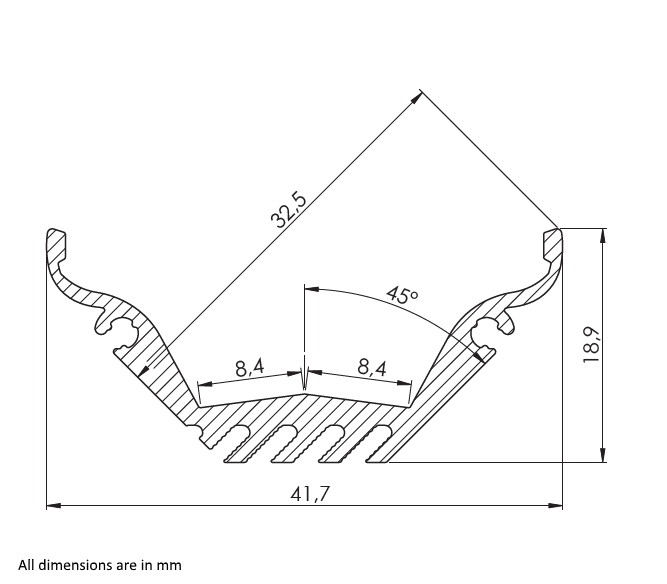

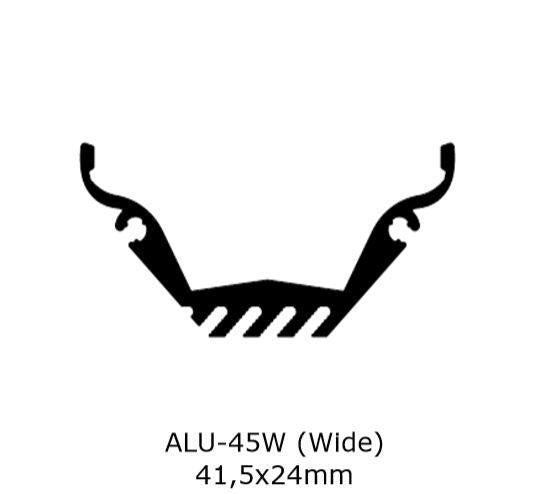

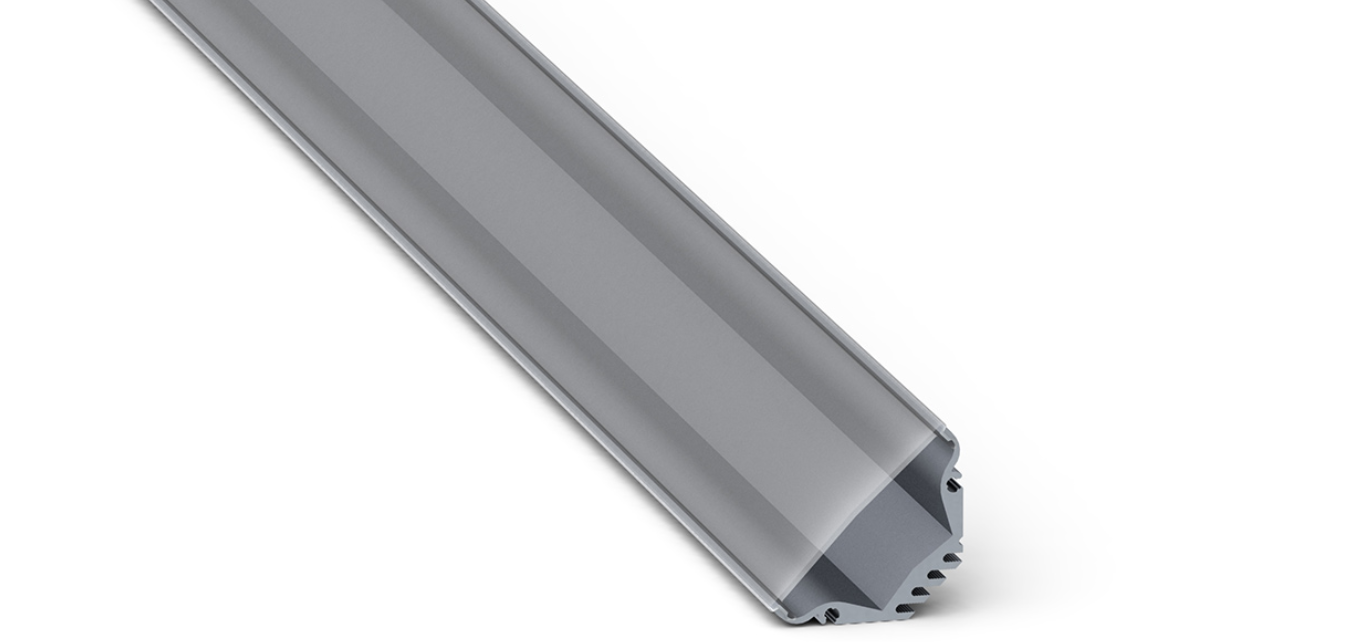

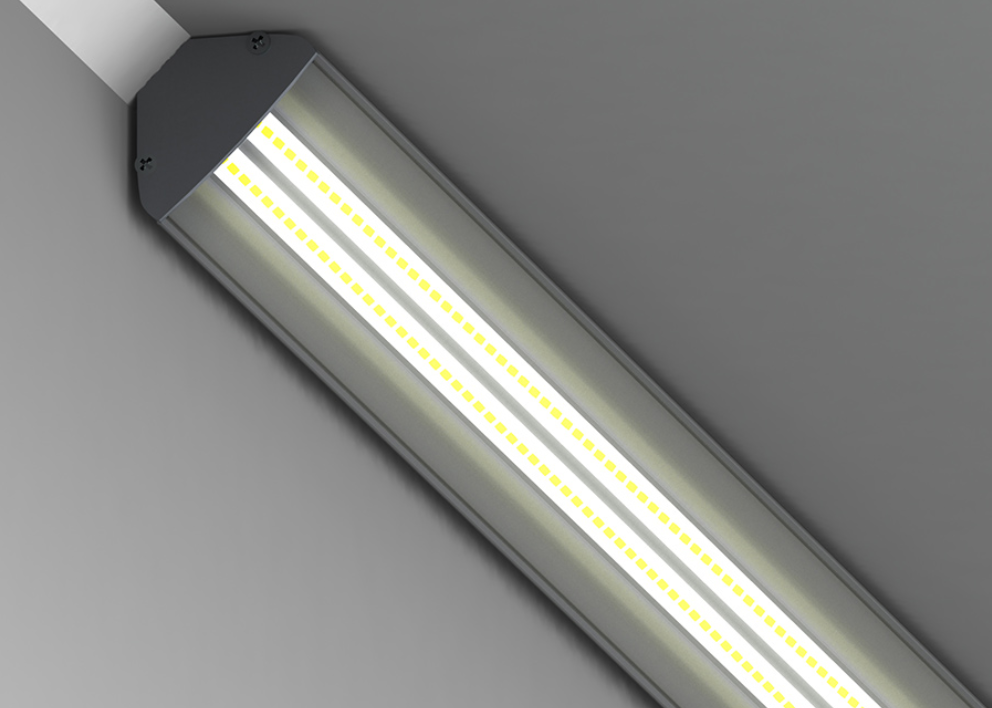

Large 45 Degree Corner LED Channel ~ ALU45-Wide

The ALU45-Wide profile is a high-quality 45 degree led channel.

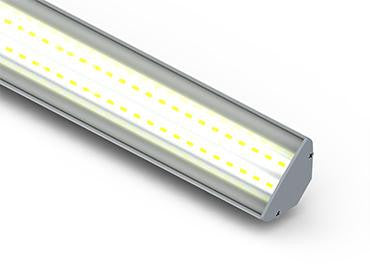

Optimized interior design allows for even illumination of the lens over the entire width. To achieve this effect it is necessary to use 2 rows of LED strips with a maximum width of 8mm each. The specially designed shape allows for a wide angle of illumination of the luminary which allows it to be used in high and deep recesses to illuminate as large a surface as possible.

A large mass of the led corner channel (0.38kg/m) and a large heat transfer surface (built-in heat sink) allow the LEDs to run at a total power of 25W/m.

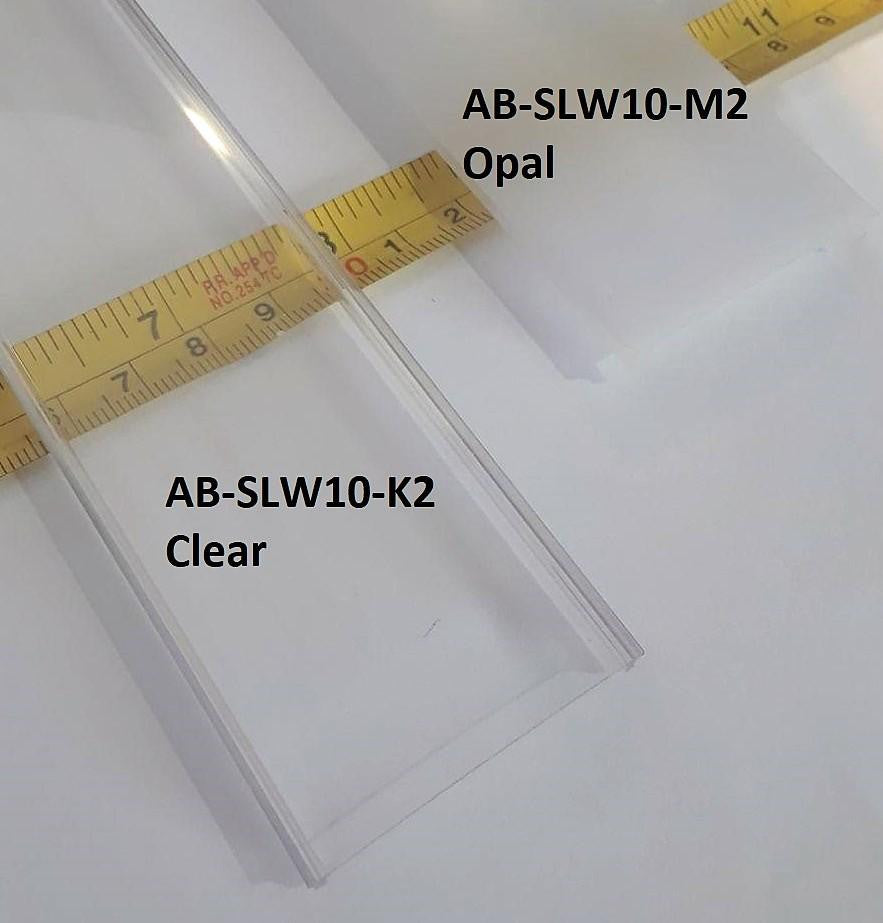

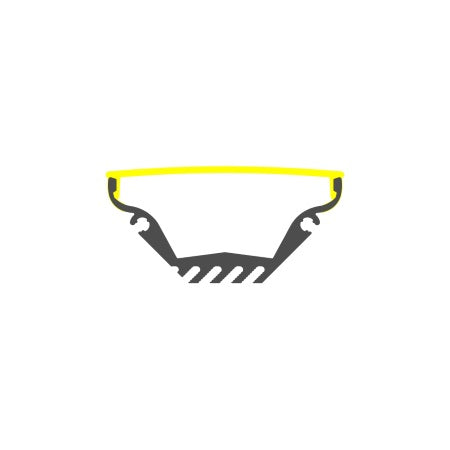

The optional milky opal frosted cover limits the glare and it diffuses the light evenly.

The simple assembly allows quick installation of this Corner LED Channel.

General specifications

  • The Corner LED Channel and fittings are anodized.
  • Max LED strip power: 25W/m
  • Max LED strip width: 0.33Inch (8mm)
  • 2 runs of LED strip can fit into Alu45-wide.





Downloads

Important notes

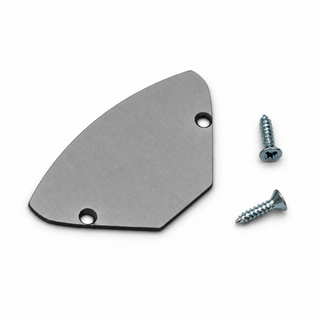

  • LED strip, covers, mounting brackets, endcaps, shelf/sign panels and other accessories are sold separately from the aluminum profile. Select the available components below.
  • Please note that raw or natural profiles or channels are not anodized and need to be coated or painted, or they will oxidize over time in outdoor applications.
  • LED profiles can easily be cut by hand or by machine.
  • For your convenience Wired4Signs USA can cut LED profiles according to your requirements. Please leave instructions in the order comment box.
  • We can also assemble a plug and play light fitting with this profile according to your specifications.
  • Please note that we cannot refund or replace LED profiles and covers that have been cut.
  • Items in stock are shipped the same day from Knoxville, Tennessee, United States.
  • Bulk pricing is available on request

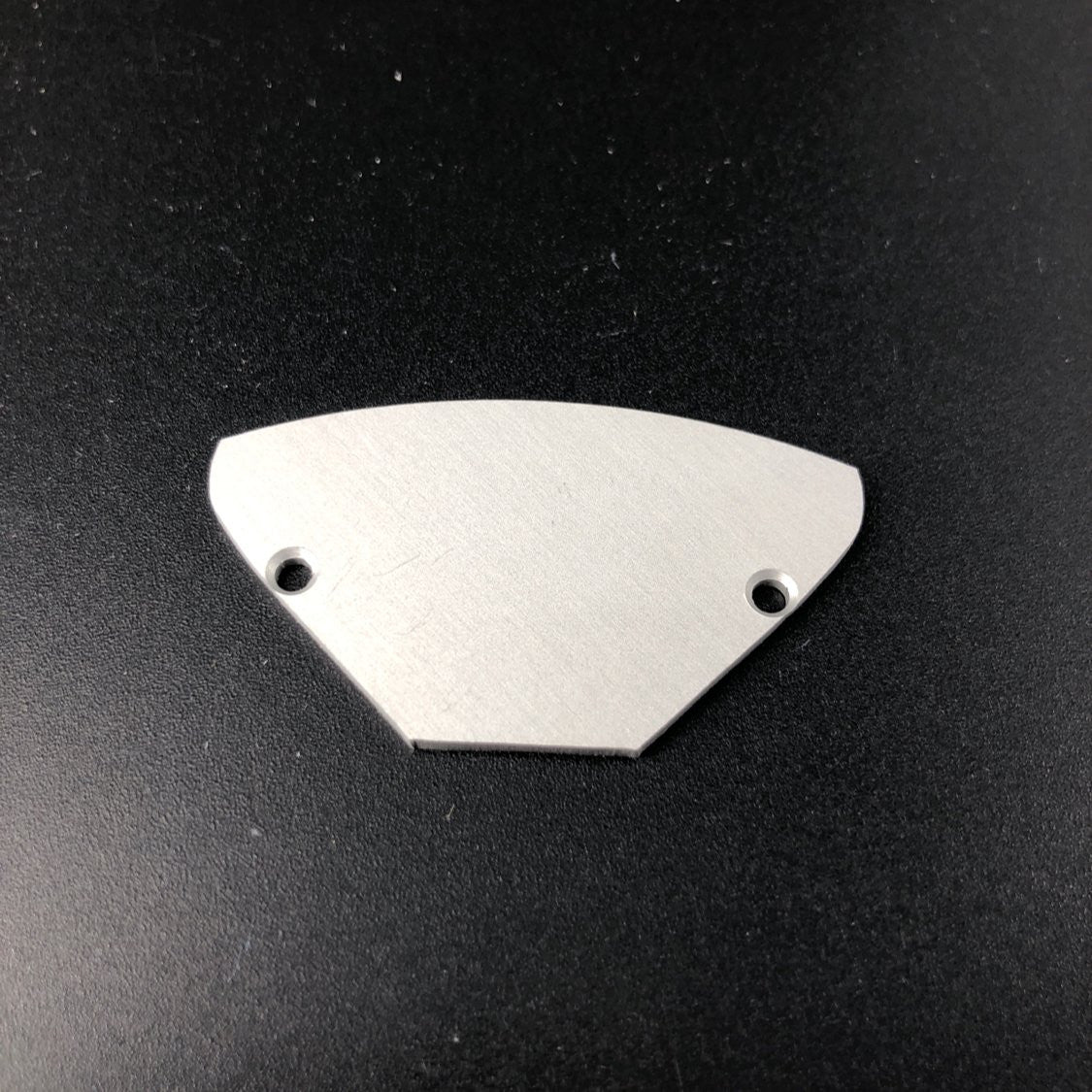

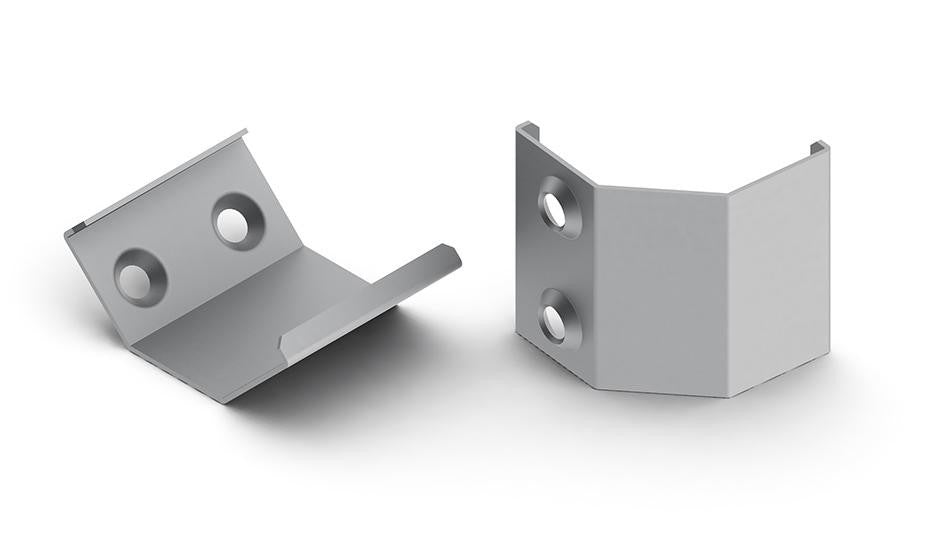

ALU45-Wide Accessories

See other Corner Profiles
