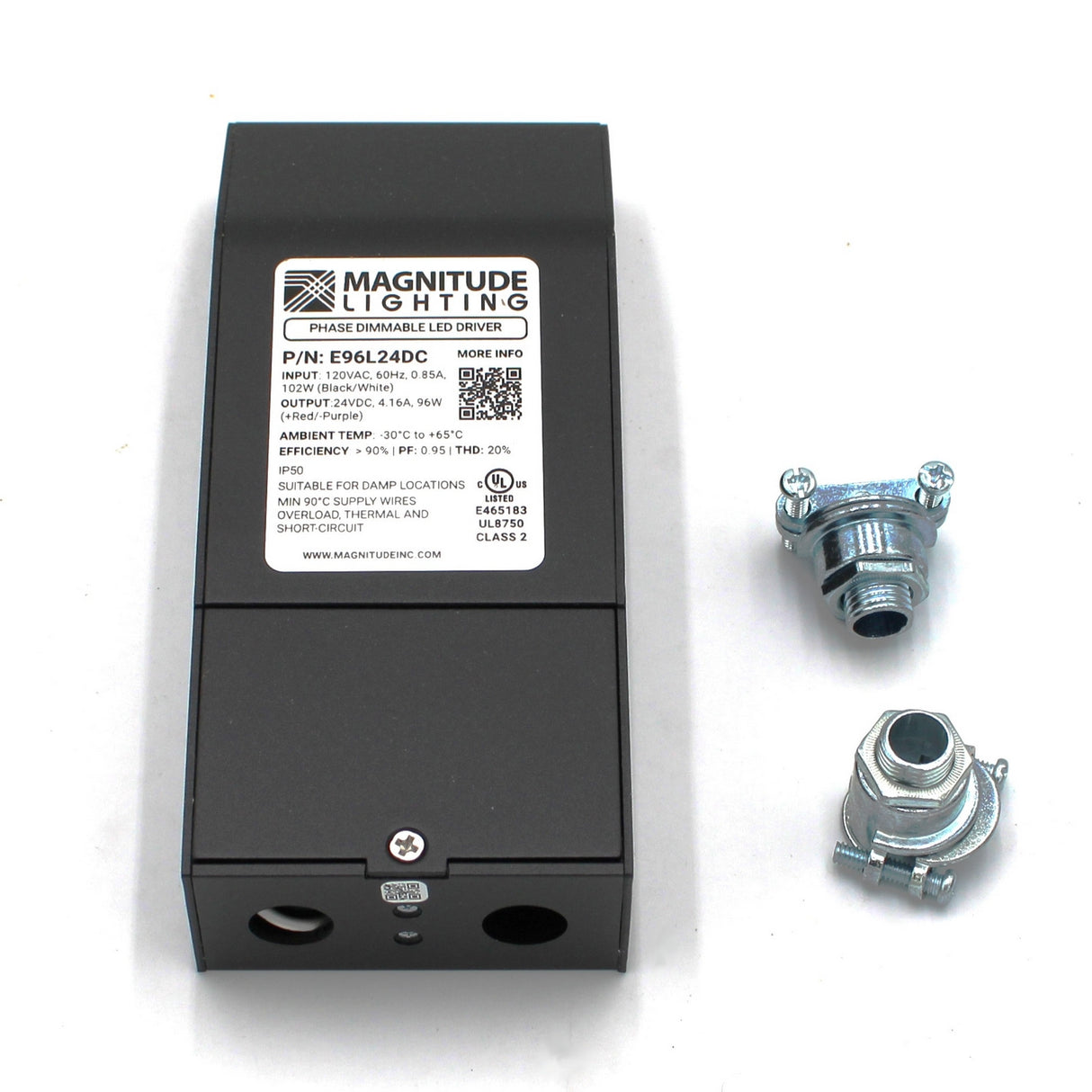

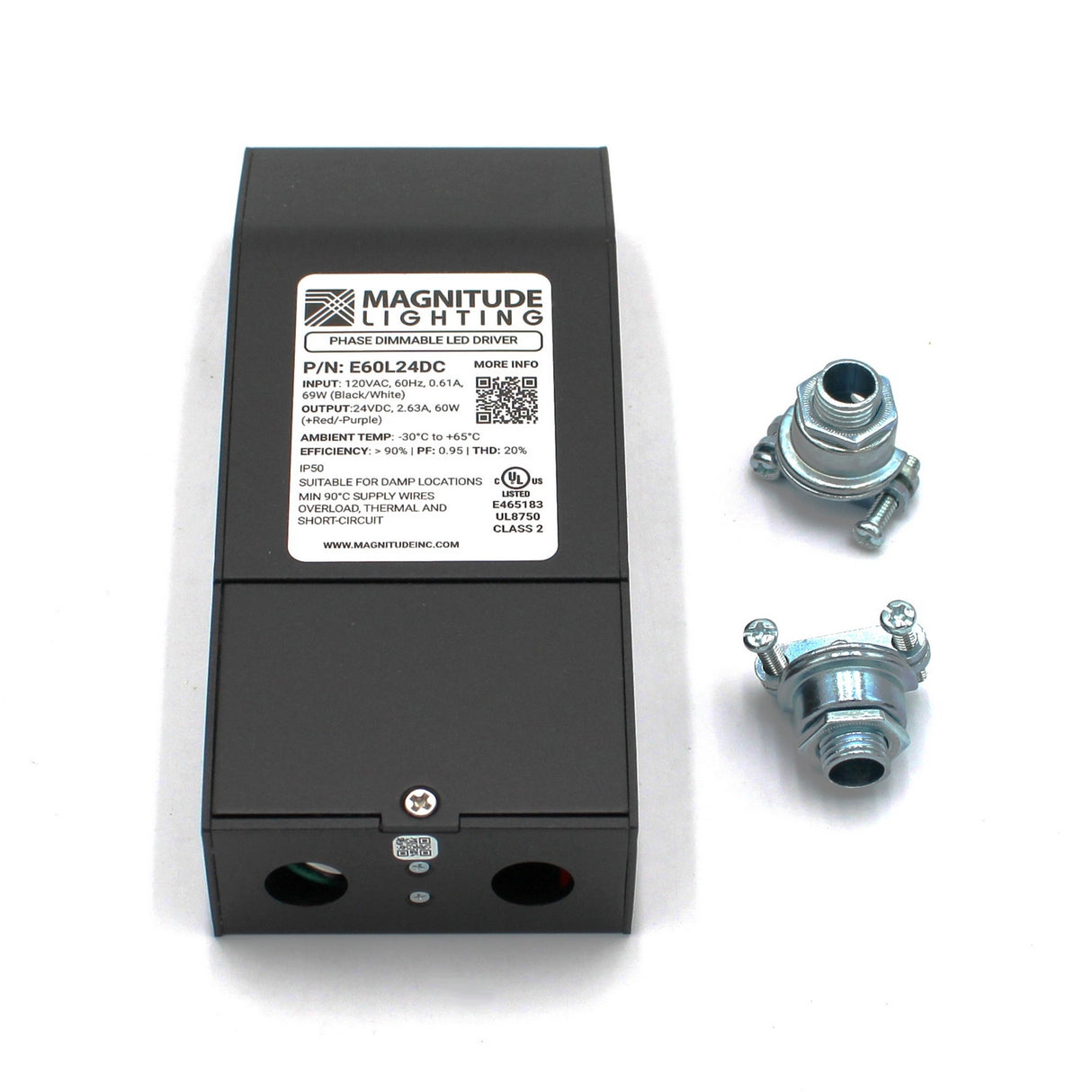

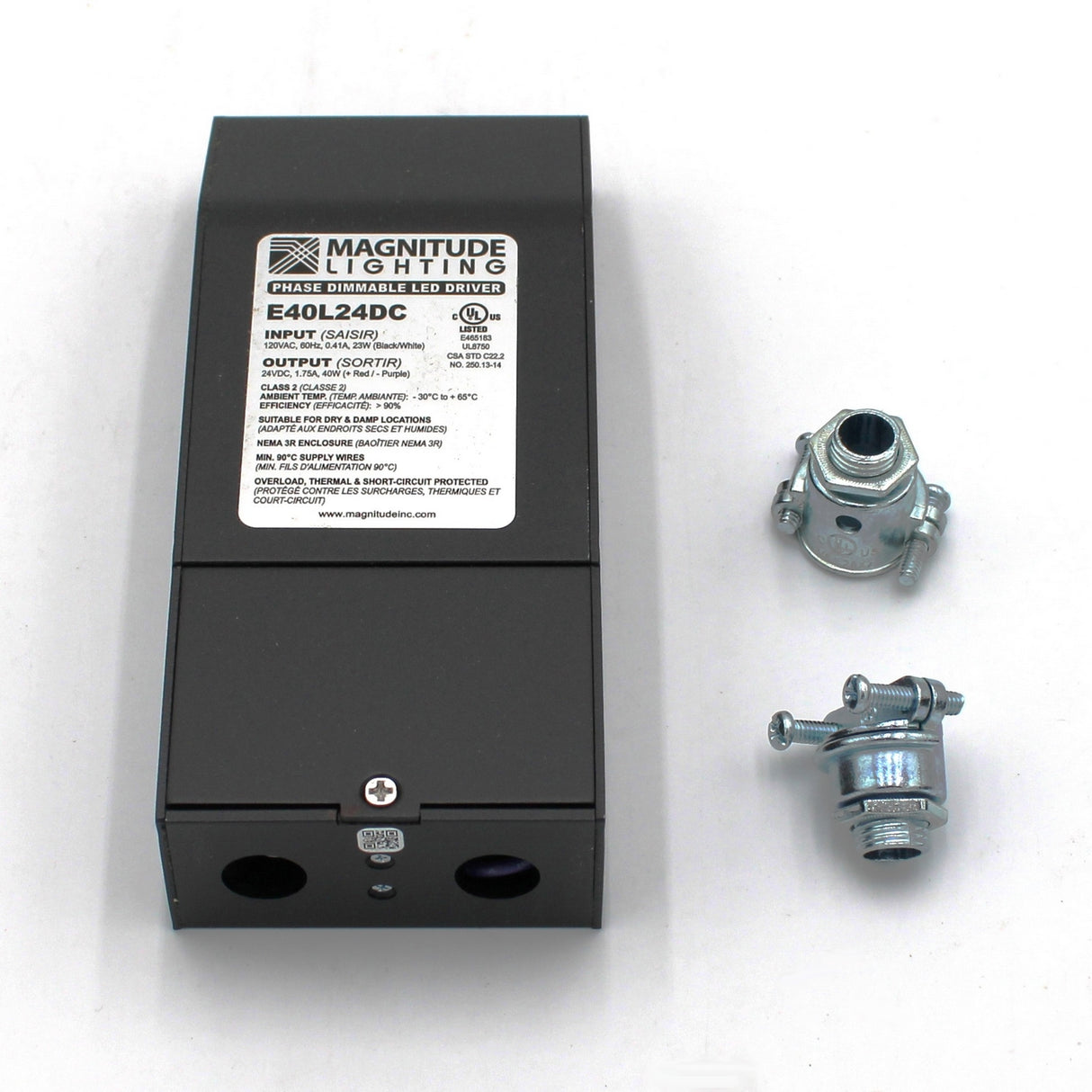

Dimmable Class 2 Electronic LED Driver (24V) ~ Magnitude E Series

power supply only ~ all other accessories are sold separately

Description

The Magnitude E-SERIES dimmable Class 2 LED driver offers an extremely compact, electronic phase-dimmable LED driver which is ideal for installations requiring a low profile solution. These phase dimmable LED power supplies are compatible with MLV and TRIAC dimming. The low profile case of these dimmable LED power supplies make them the perfect choice for under cabinet lights, tape lights and various LED fixtures applications.

General specifications

• Output channels: Single channel
• Dimming: AC phase dimmable with leading edge (forward) TRIAC dimmers only
• Input: 120VAC, 50/60Hz
• Output: 12VDC or 24VDC options
• Max Load:
  • 24VDC: 20W, 40W, 60W, 75W, 96W
• Super Compact Aluminum Case
• Size 6.77" L x 2.67" W x 1.30"H

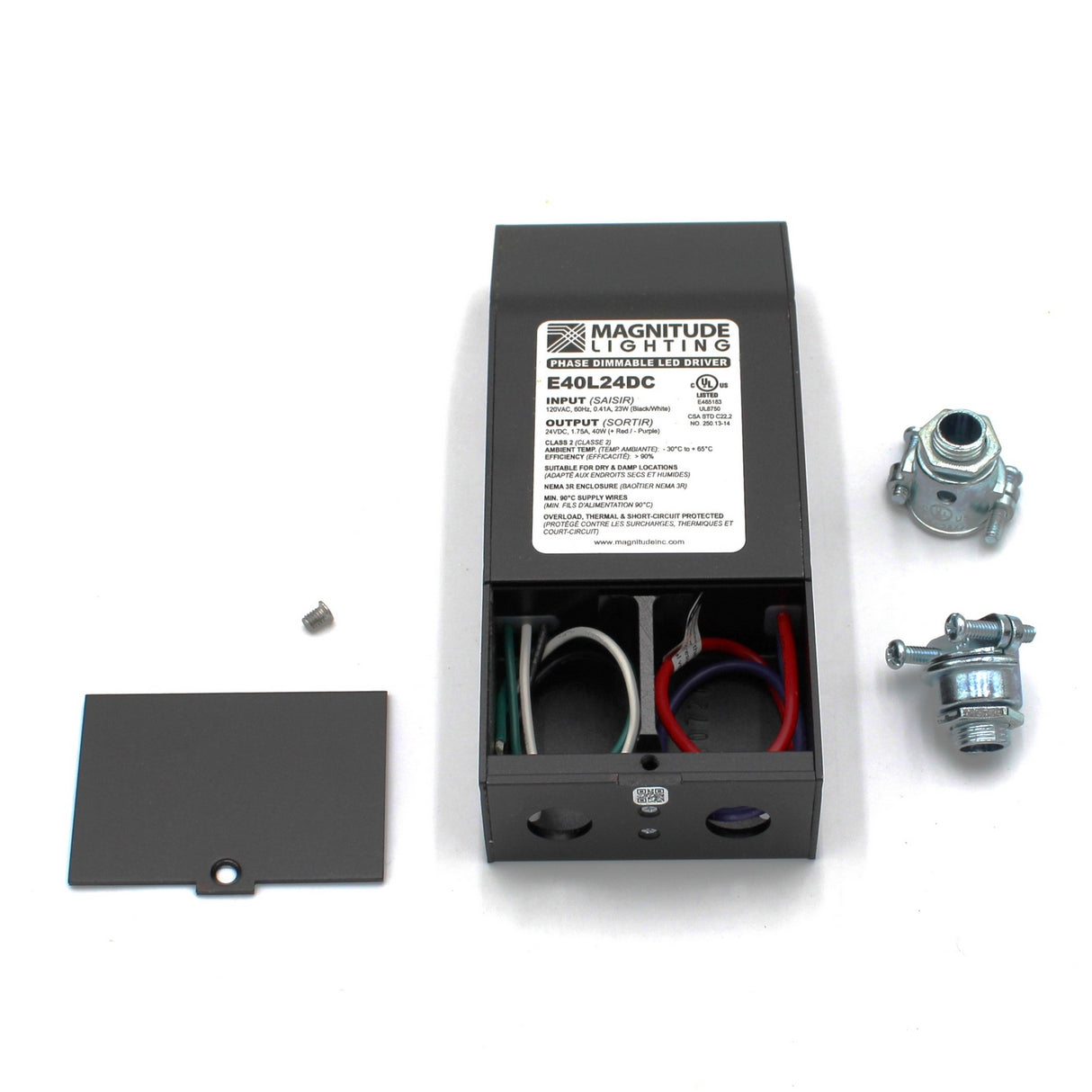

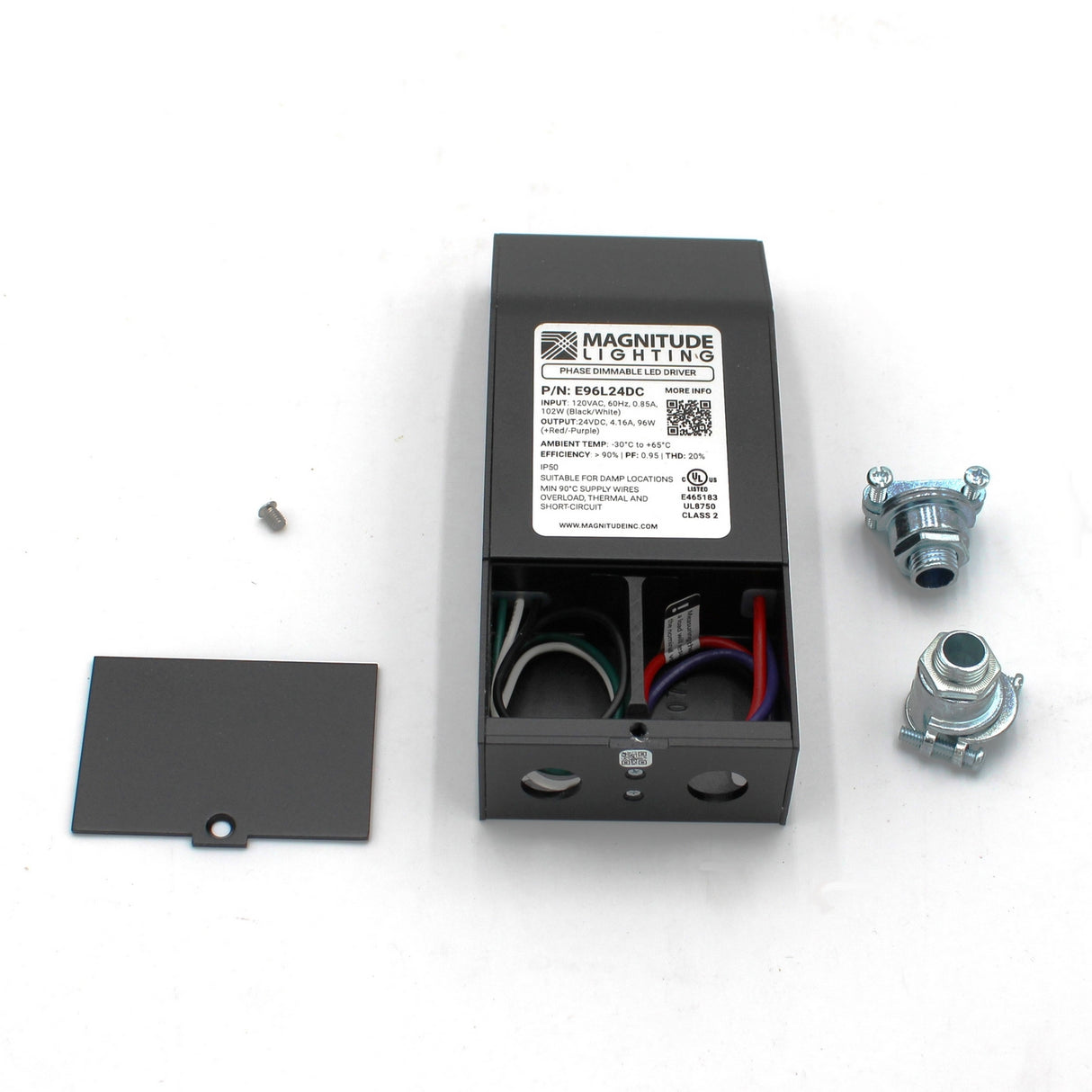

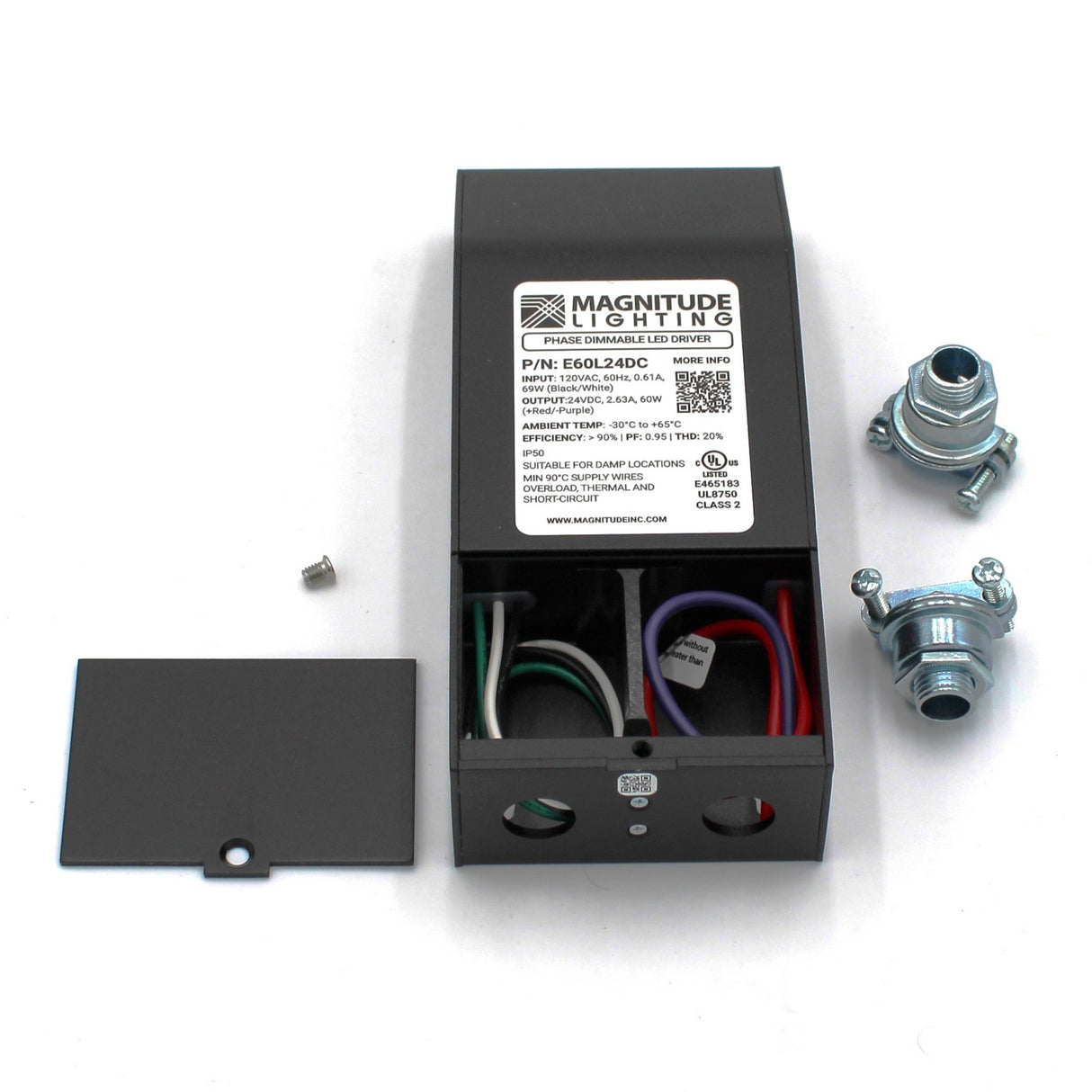

• Wiring compartments with knock-outs for clean and easy installation
• Auto-reset protection for short circuits & over-voltage
• Flicker-Free Dimming down to 1% with any standard MLV TRIAC dimmer
• NEMA 3R Rated enclosure for dry and damp
• Certification: UL 8750, Class 2
• Warranty: 5-Year Warranty

Downloads

• Magnitude E Series cut sheet

Important notes

• Items in stock are shipped the same day from Knoxville, Tennessee, United States.
• Bulk pricing is available on request
