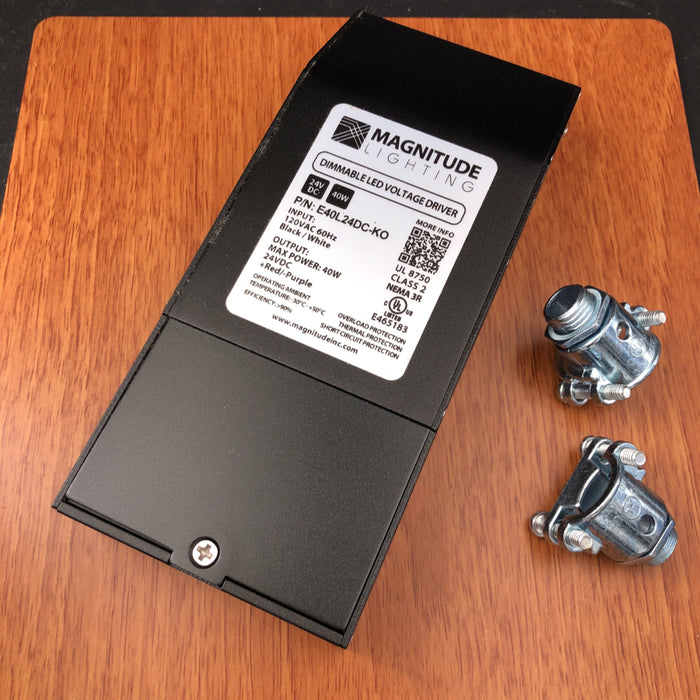

Dimmable Class 2 Electronic LED Driver (24V) ~ Magnitude E Series

Power supply only ~ all other components are sold separately

Description

The Magnitude E series dimmable Class 2 LED driver offers an extremely compact, electronic phase-dimmable LED driver which is ideal for installations requiring a low profile solution.

These phase dimmable LED power supplies are compatible with leading edge Triac dimming (includes MLV dimmers), with flicker-free dimming down to 1%.

The low profile case of these dimmable LED power supplies make them the perfect choice for under cabinet lights, tape lights and various LED fixture applications. The integrated wiring compartments with knock-outs enable a clean and easy installation, eliminating the need for a separate junction box.

General specifications

• Output channels: Single channel
• Output voltage: 24V DC
• Max output power: 20W, 40W, 60W, 75W, 96W

• Input voltage: 120V AC, 50/60Hz
• Dimming: AC phase dimmable with leading edge (forward) Triac dimmers only (includes MLV)

• Max environmental temperature: -30°C – 65°C (-22°F – 122°F)
• Dimensions: 6.77" L x 2.67" W x 1.30" H (171.9 mm x 67.8 mm x 33 mm)

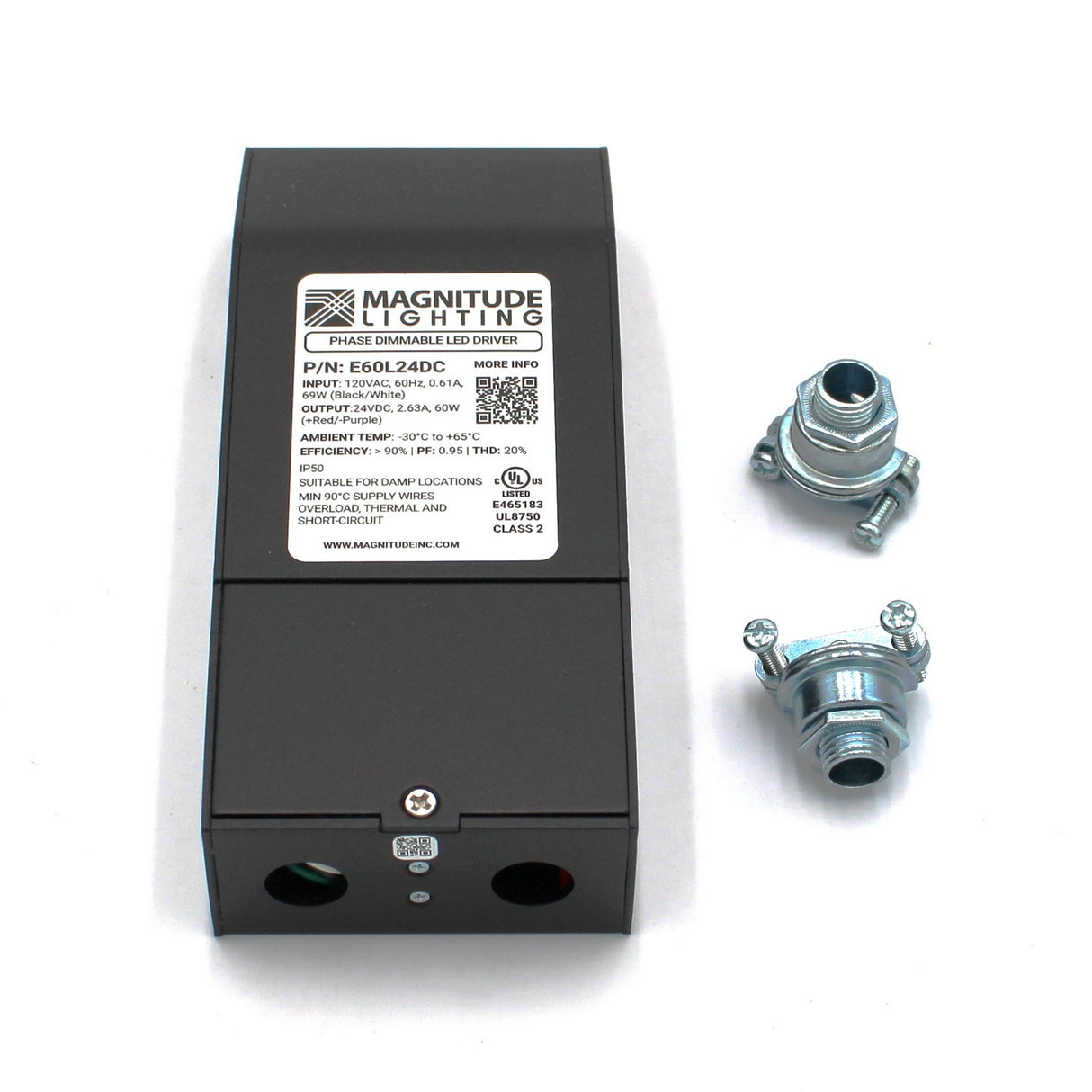

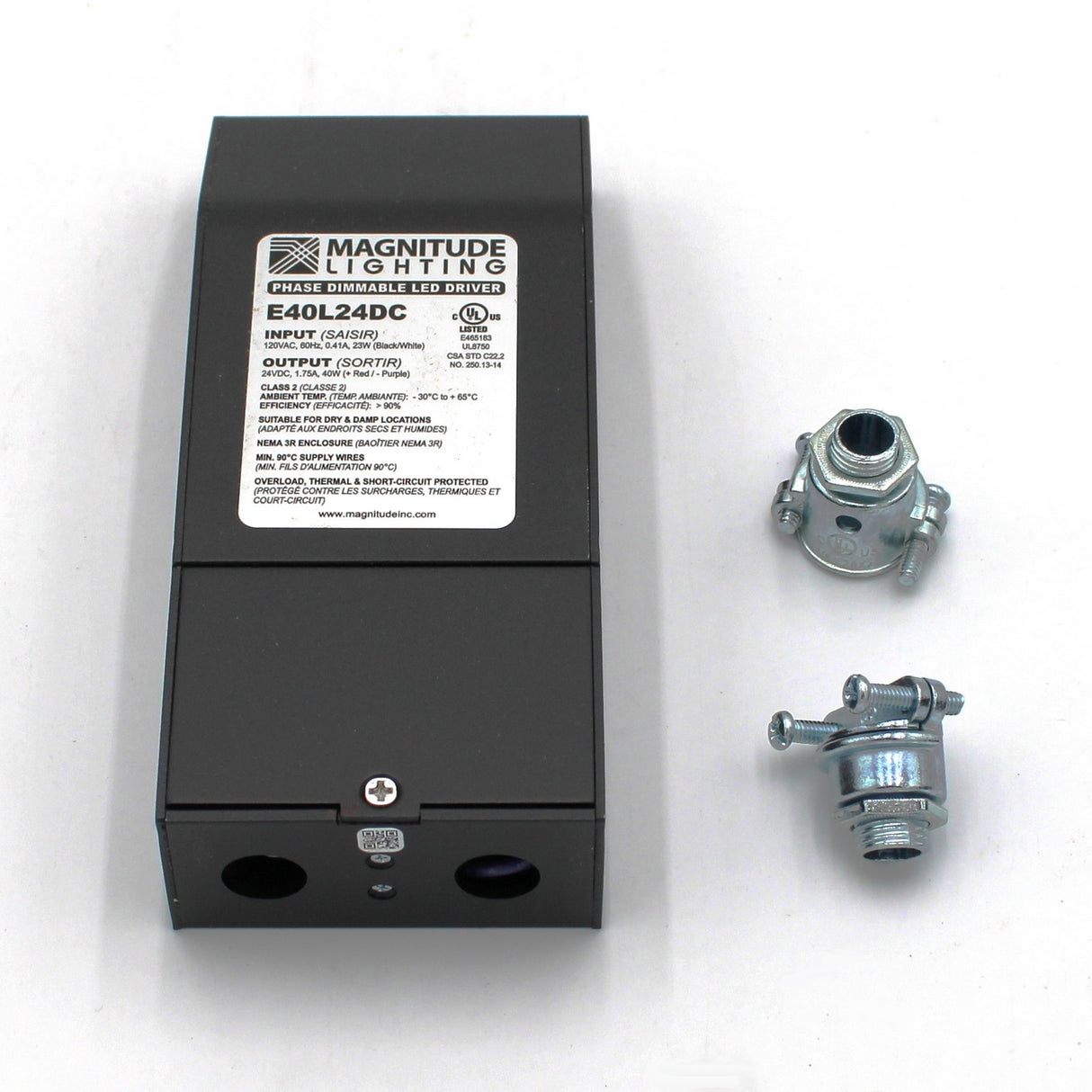

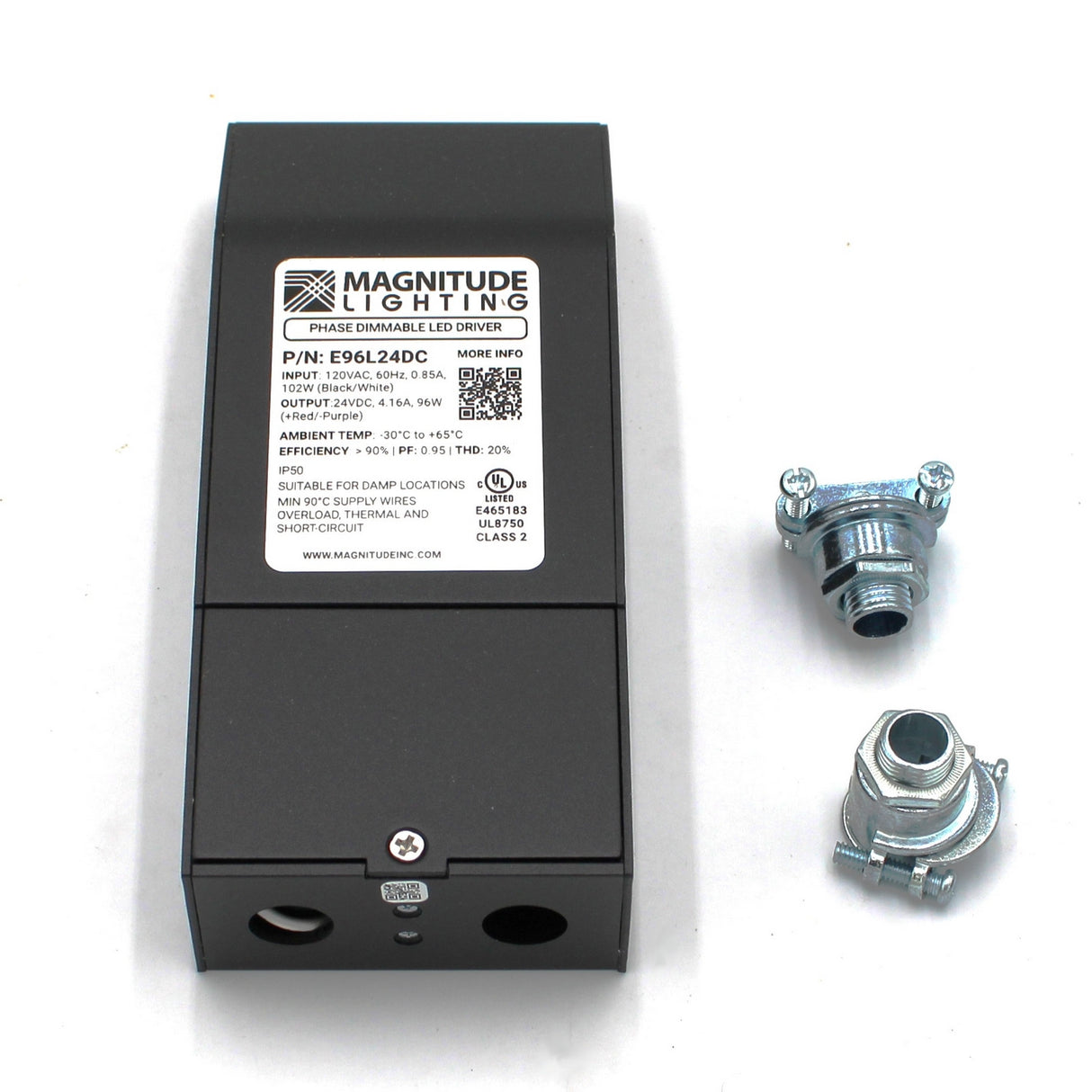

• Super compact aluminum case

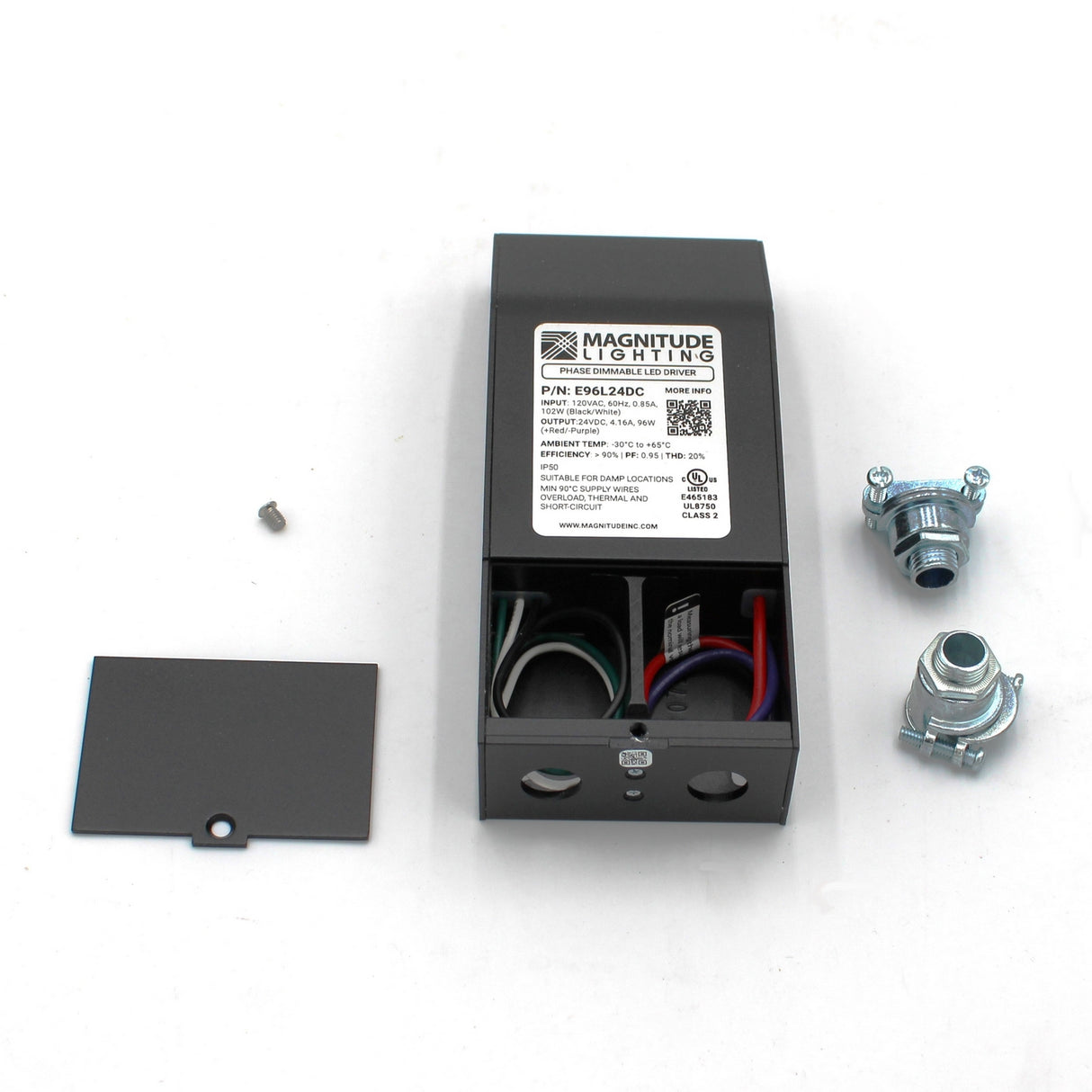

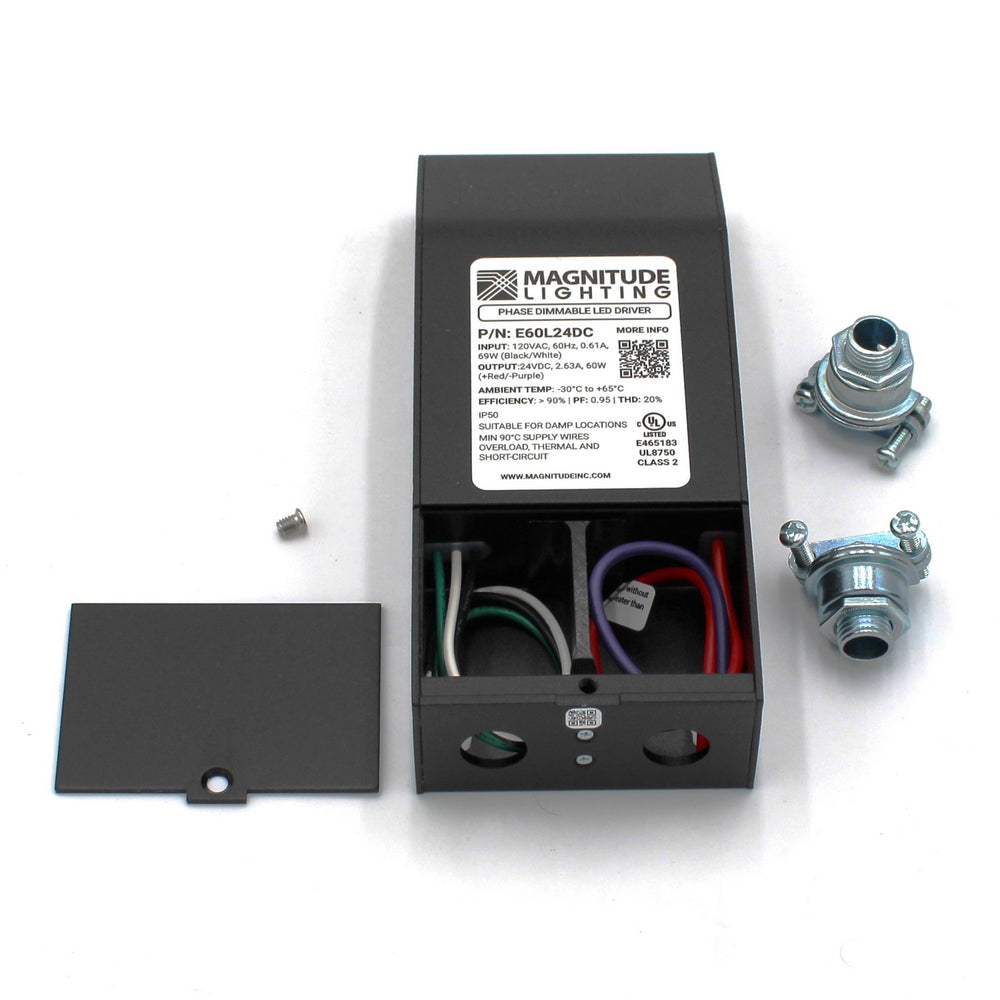

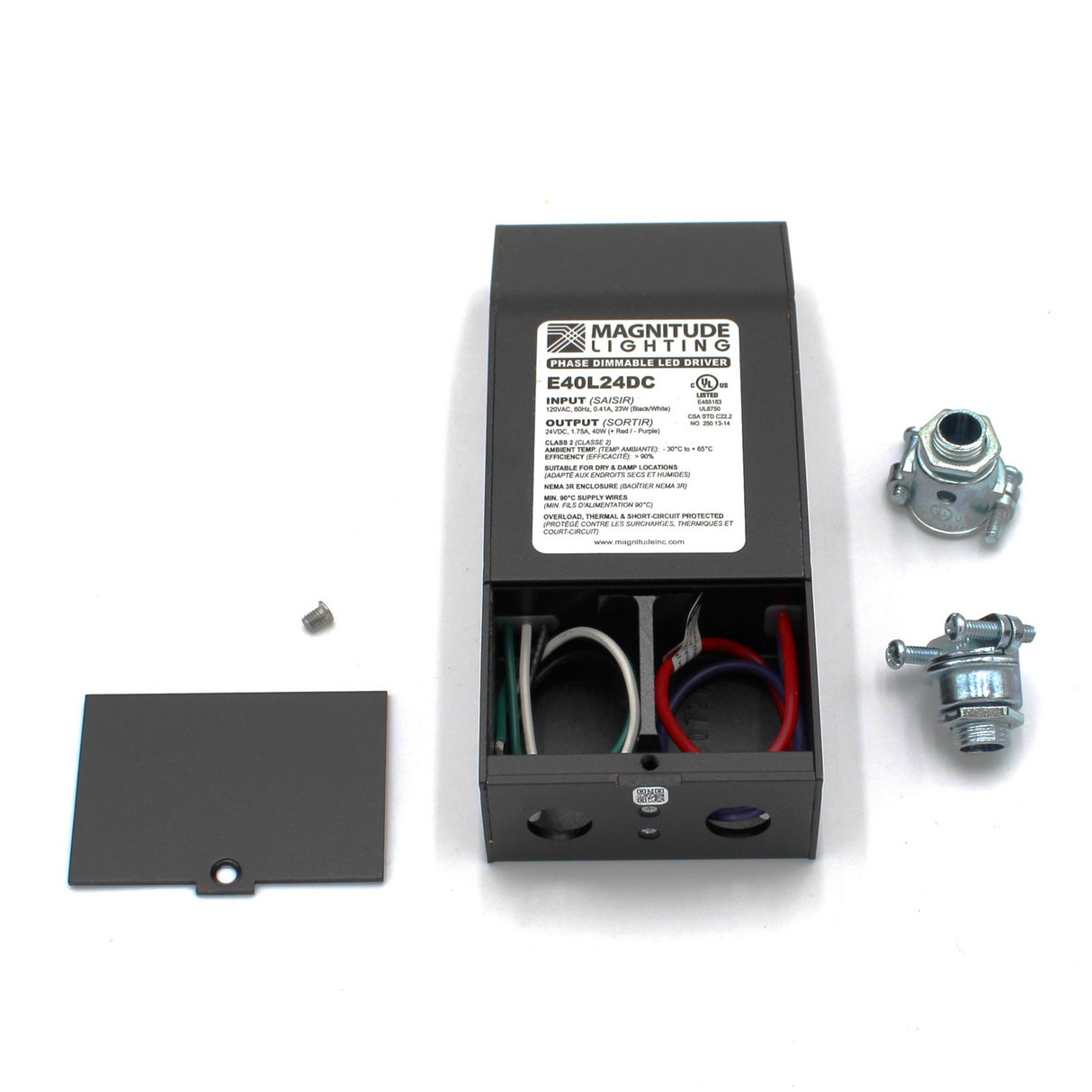

• Wiring compartments with knock-outs for clean and easy installation
• Electrical protection: Auto-reset protection for short circuits & over-voltage
• Flicker-free dimming down to 1% with any standard Triac dimmer
• Environmental protection: NEMA 3R Rated enclosure for dry and damp
• Certification: UL 8750, Class 2
• Warranty: 5-year warranty

Downloads

• Magnitude E Series cut sheet

Important notes

• Items in stock are shipped the same day from Knoxville, Tennessee, United States.
• Bulk pricing is available on request.
