1.38" Plaster-in Trimless Drywall LED Channel ~ Model RPL35 US

Profile only ~ diffuser, end caps, LED strip and all other accessories are sold separately

Description

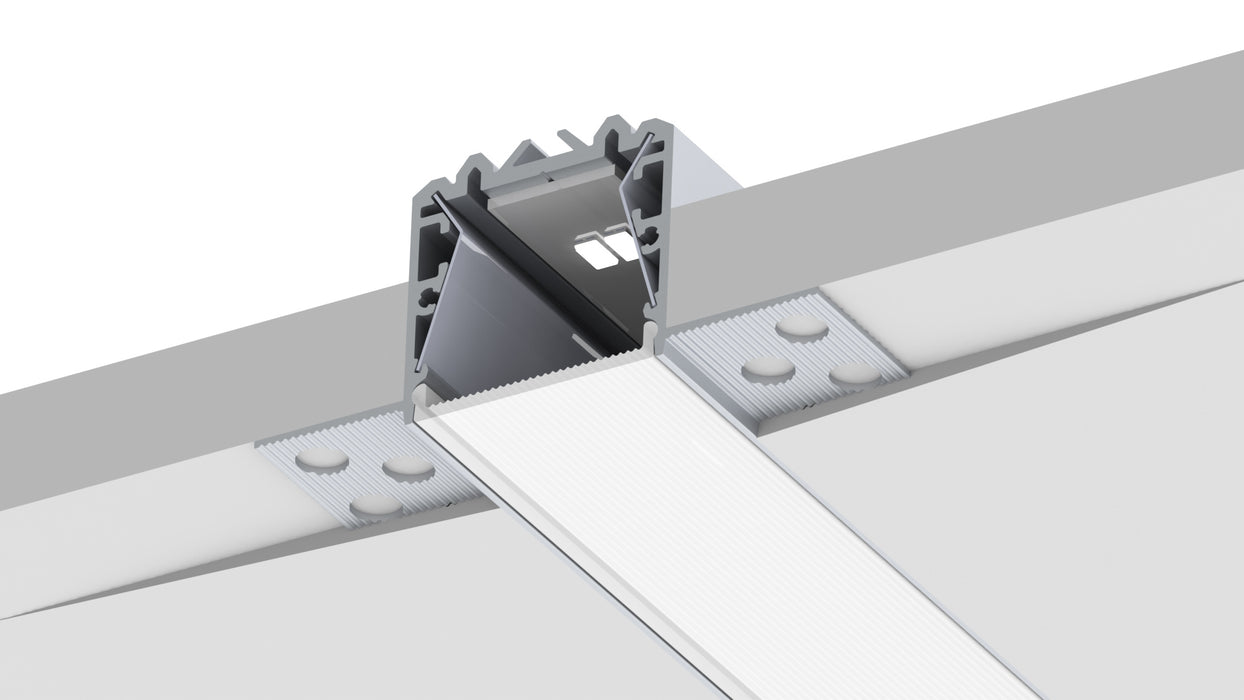

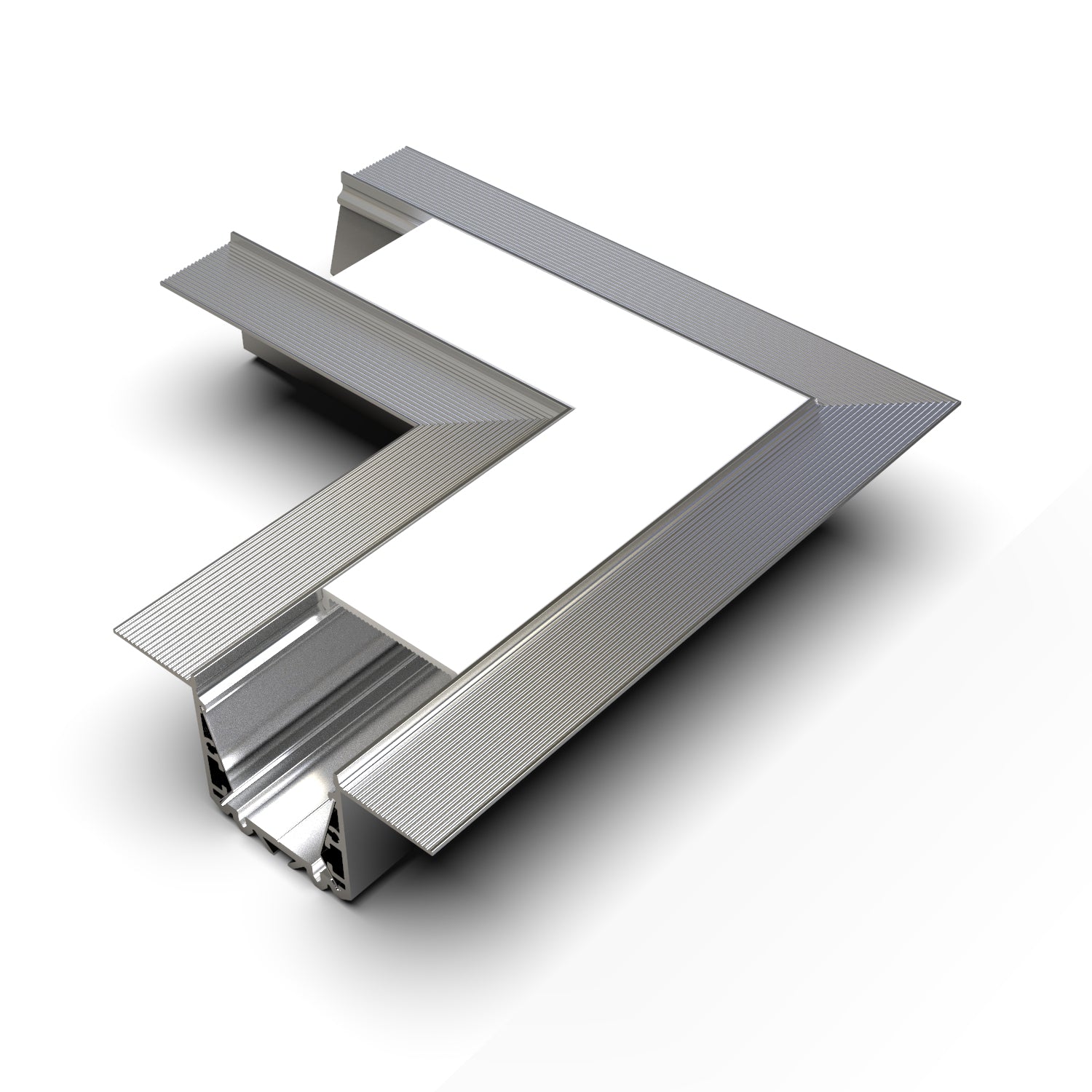

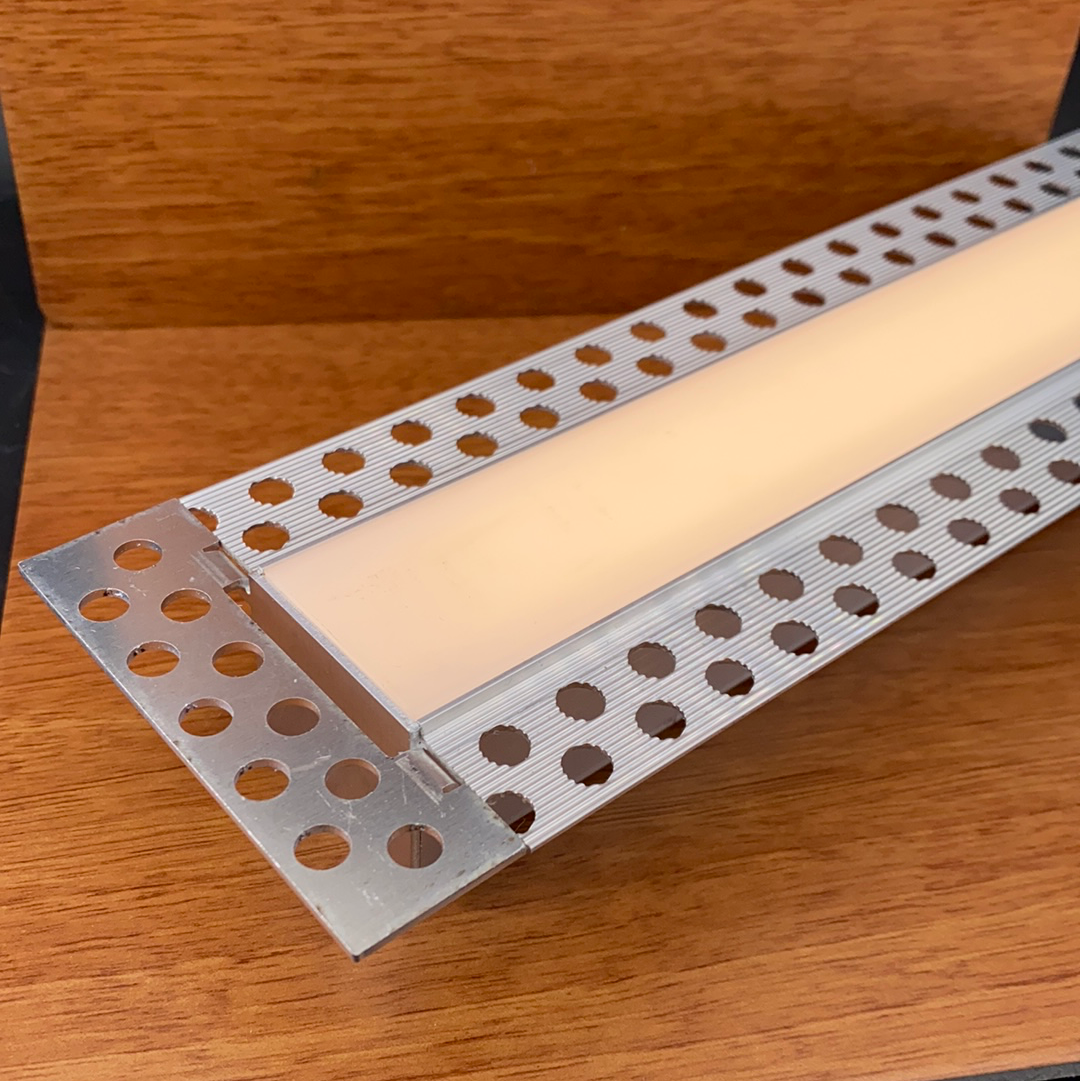

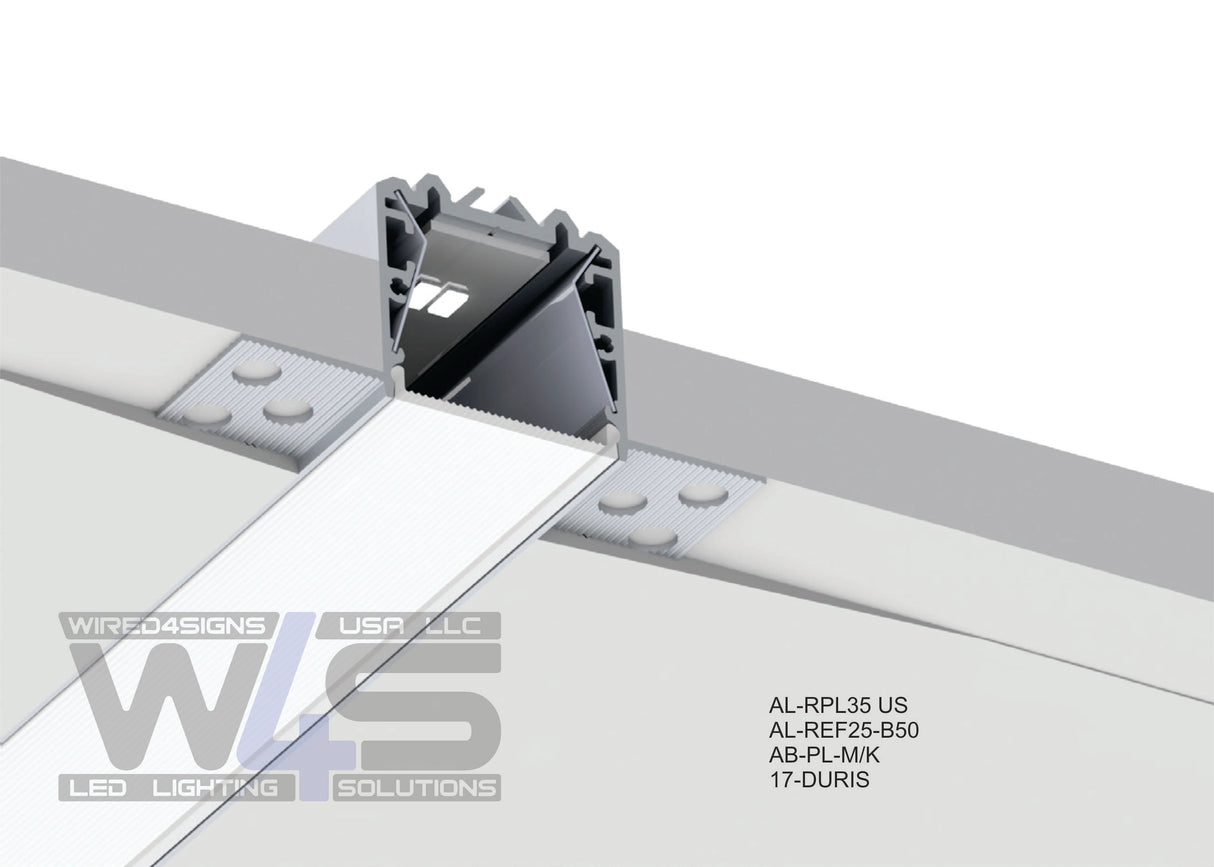

The RPL35 US 1.38" plaster-in trimless LED channel is a narrow (1.38"), high-quality raw aluminum profile for plasterboard ceilings and walls. It's the smallest of our Flow Series Plaster-in Trimless Drywall LED Channels, boasting an innovative design that provides unique features such as pre-made angle modules, mounting rail for the junction box, and dedicated openings for easy installation.

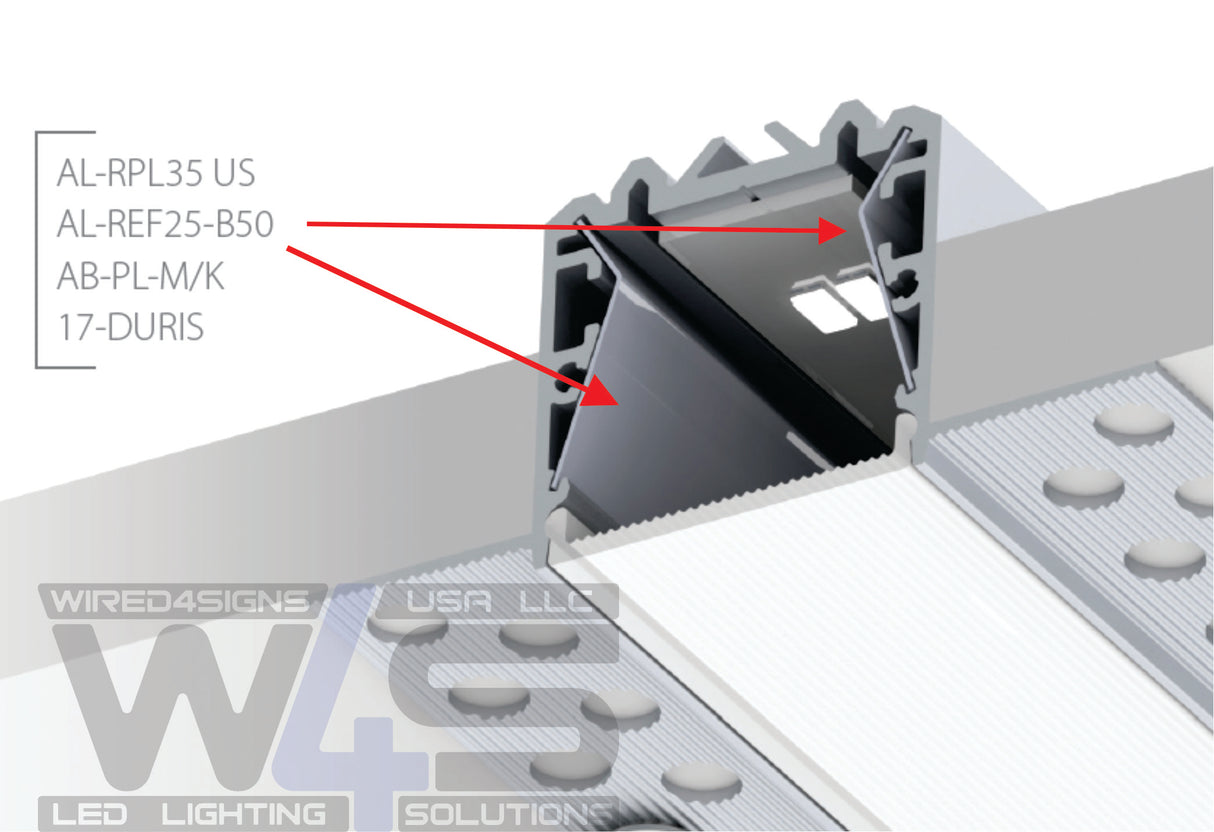

Optional Vega95 Light reflectors – made of highly polished aluminum and designed for better light distribution (improvement of luminaire efficiency by 18–20%) – can be ordered additionally.

The RPL35 US 1.38" plaster-in trimless LED channel is available with UV and impact-resistant, snap-in diffusers: transparent, matt, prismatic transparent, and prismatic matt.

See the non-flanged version of this product here.

What to consider before starting your plaster-in LED channel project.

General specifications

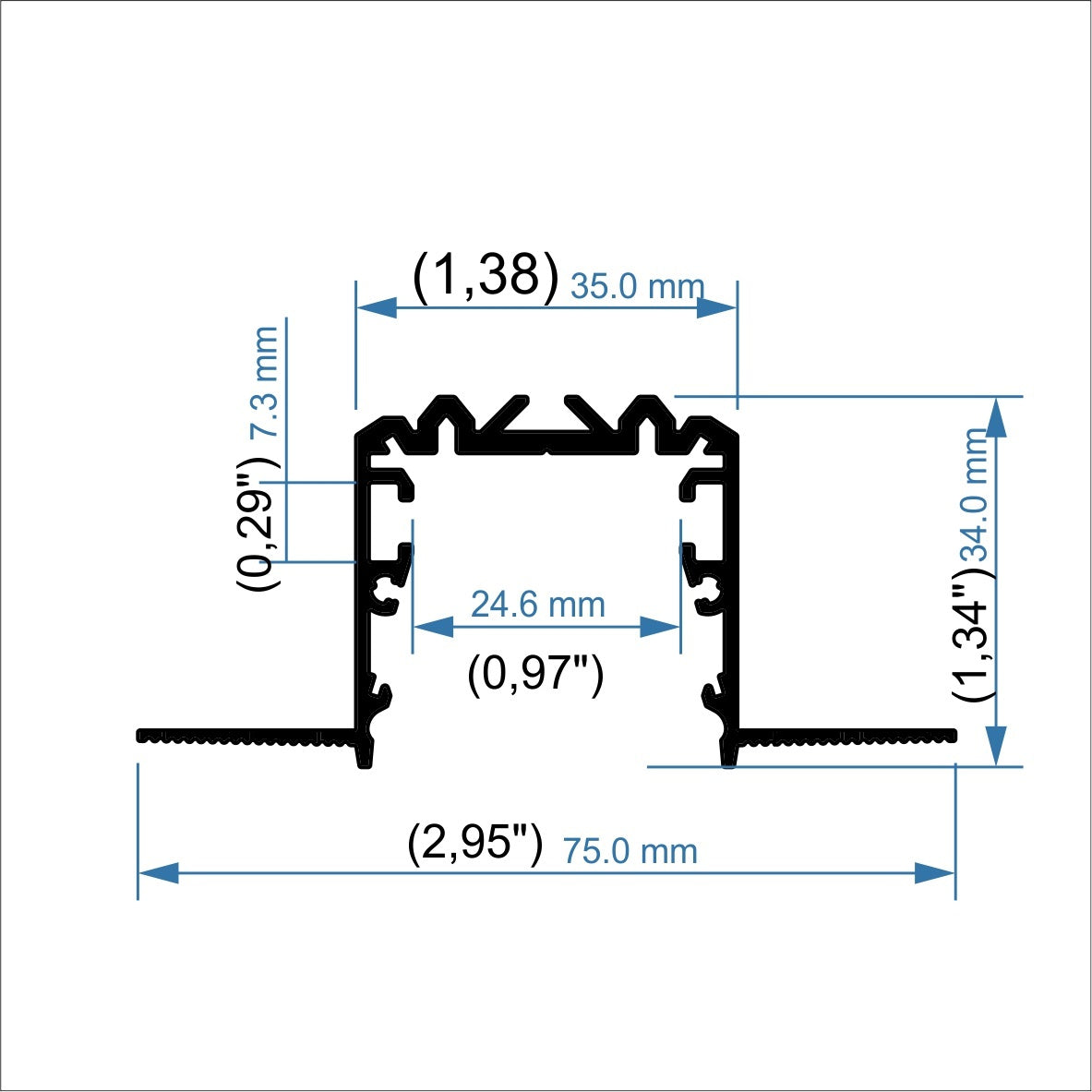

• Dimensions: 75 x34mm (2.95 x 1.34") overall
• Illuminated width: 35mm (1.38")
• Maximum LED strip width: 24mm
• Maximum LED power: 40W/m
• Finish: Raw aluminum

Downloads

• RPL35 US cut sheet
• RPL35 US detailed dimensions

Important notes

• You can easily cut LED profiles by hand or by machine.
• For your convenience, Wired4Signs USA can cut LED profiles according to your requirements.
• We recommend double-checking the measurements before cutting LED profiles and covers to avoid any unnecessary loss. Please note that if you cut LED profiles and covers, we cannot refund or replace them.

• Items in stock are shipped the same day from Knoxville, Tennessee, United States.
• Bulk pricing is available on request.
