Surface Mount LED Aluminum Channel ~ Model SPL35-FL [Profile Only]

SKU LED-AL-SPL-FL-2
Original price - Original price
Original price
-
Current price
Shipping notes

Items over 2.4m (8ft) in length require LTL freight shipping which is more expensive than regular parcel service. Please refer to our Shipping Policy for further information.

Profile only ~ diffusers and all other accessories are sold separately

Description

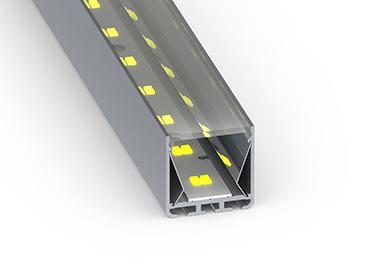

SPL35-FL LED Aluminum Channel is a new and improved version of the famous and proven profile SPL35 LED Aluminum Channel. The SPL35-FL profile, despite its classic appearance, has gained new functionality. The optional reflectors, available below in the accessories, increase the light output from the luminaire by approximately 10-18% depending on the LED strip used. The profile has three options for light diffusers to choose from: prismatic with high light transmission ratio, opal, and smooth. There is also a new option for mounting high power LEDs with lenses.

The SPL35-FL LED Aluminum Channel, like its predecessor, has three installation options: Trimless recessed, Surface, and Suspended. The heat transfer of the SPL35-FL profile is 36W/m @ Ta = 25°C, which enables the LED profile to maintain a stable temperature of 55°C.

The LED profile can be ordered with accessories such as straight and corner connectors, cable ties, Trimless mounting magnets, and aluminum end caps.

SPL35-FL LED flush-mounted channel is recommended for use with double-row LED strip or high-performance LEDs up to 36 W/m.

What to consider before starting your plaster-in LED channel project

General specifications

  • Material: Aluminum
  • Overall dimensions: 35mm x 35mm (1.37" x 1.37")

Downloads

Important notes

  • LED strip, covers, mounting brackets, end caps, shelf/sign panels and other accessories are sold separately from the aluminum profile. Select the available components below.
  • Please note that raw or natural profiles or channels are not anodized and need to be coated or painted, or they will oxidize over time in outdoor applications.
  • LED profiles can easily be cut by hand or by machine.
  • For your convenience Wired4Signs USA can cut LED profiles according to your requirements. Please leave instructions in the order comment box.
  • Please note that we cannot refund or replace LED profiles and covers that have been cut.
  • Items in stock are shipped the same day from Knoxville, Tennessee, United States.
  • Bulk pricing is available on request
