Waterproof LED Channel ~ Model Versalles

SKU LED-VERSALLES-02.018-2
Original price - Original price
Original price
-
Current price
Shipping restrictions

We cannot ship rigid items over 2.4m (8ft) in length due to freight restrictions. These products are offered for customer pickup only. Please refer to our Shipping Policy for further information.

Channel & Strip Combo Discount!

Buy any LED channel and get 10% off any LED strip.

Profile only ~ diffusers and all other accessories are sold separately

Description

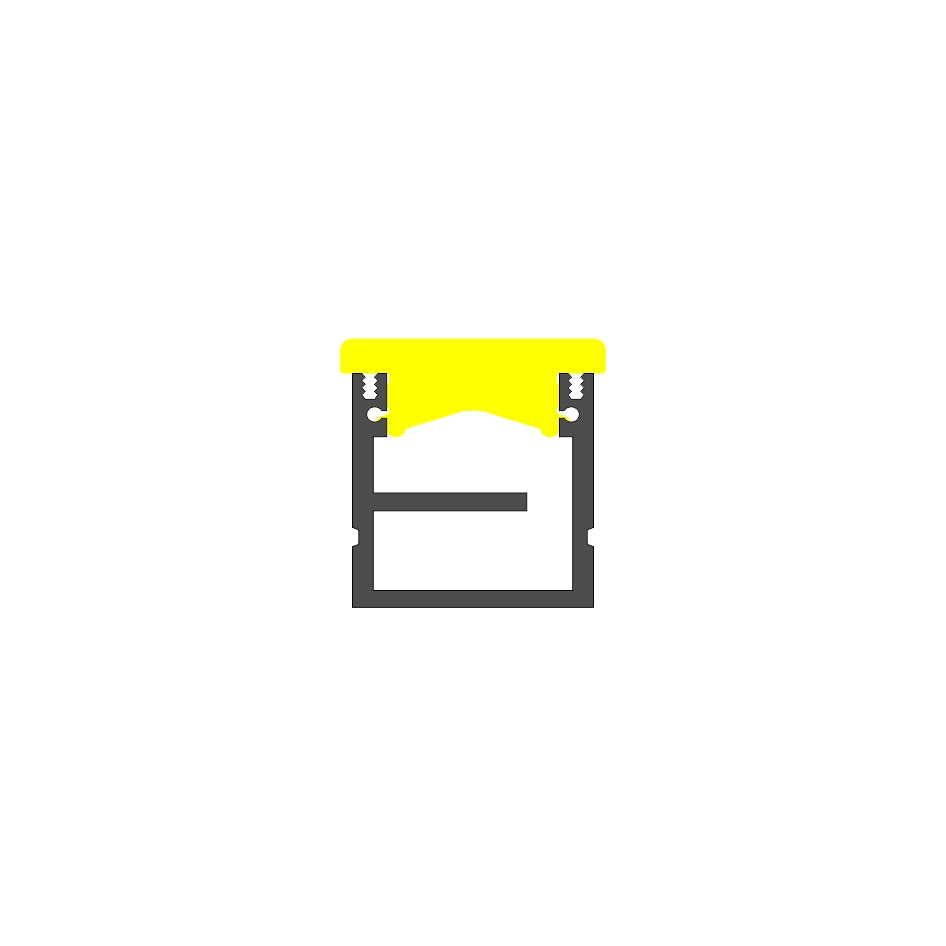

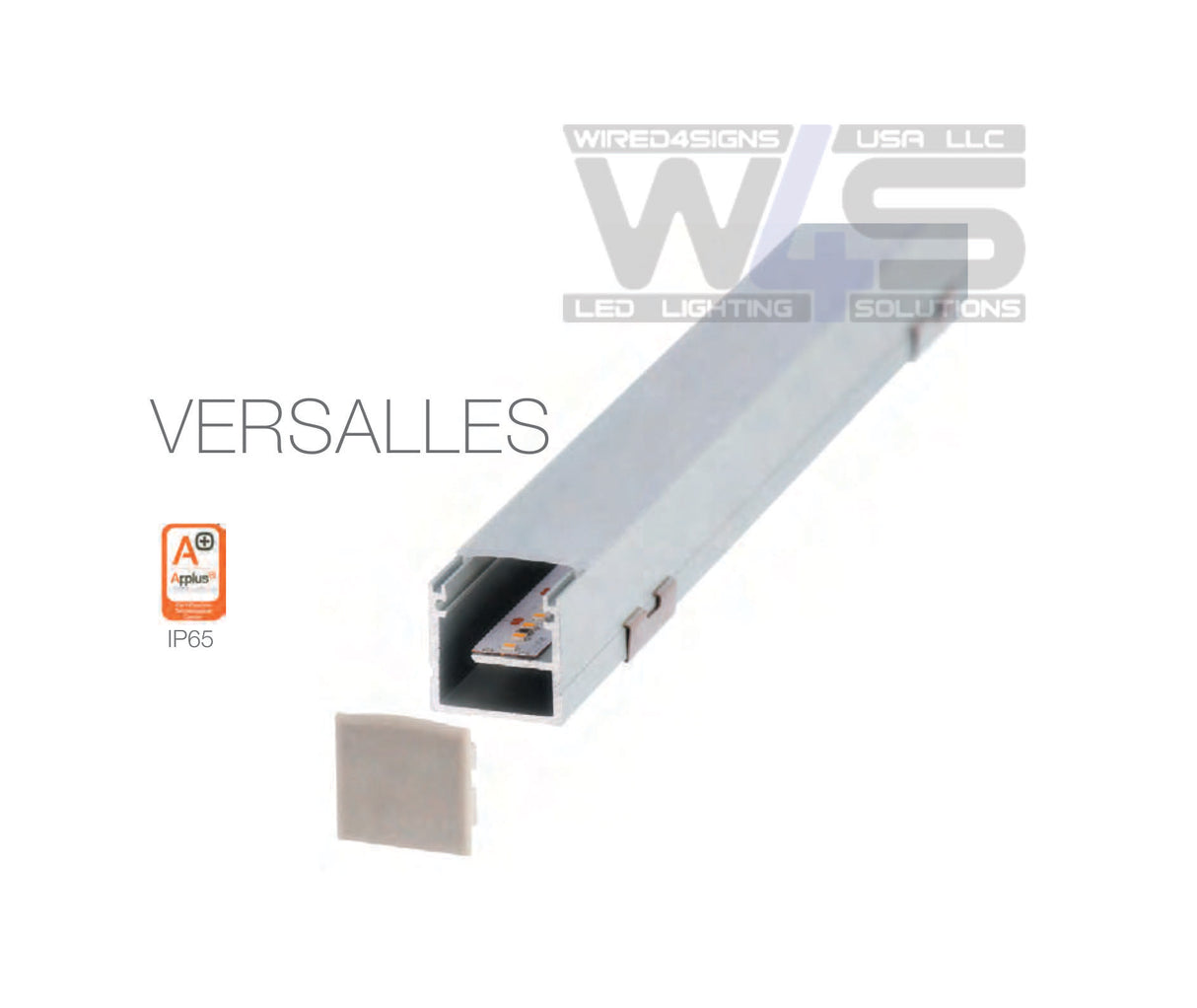

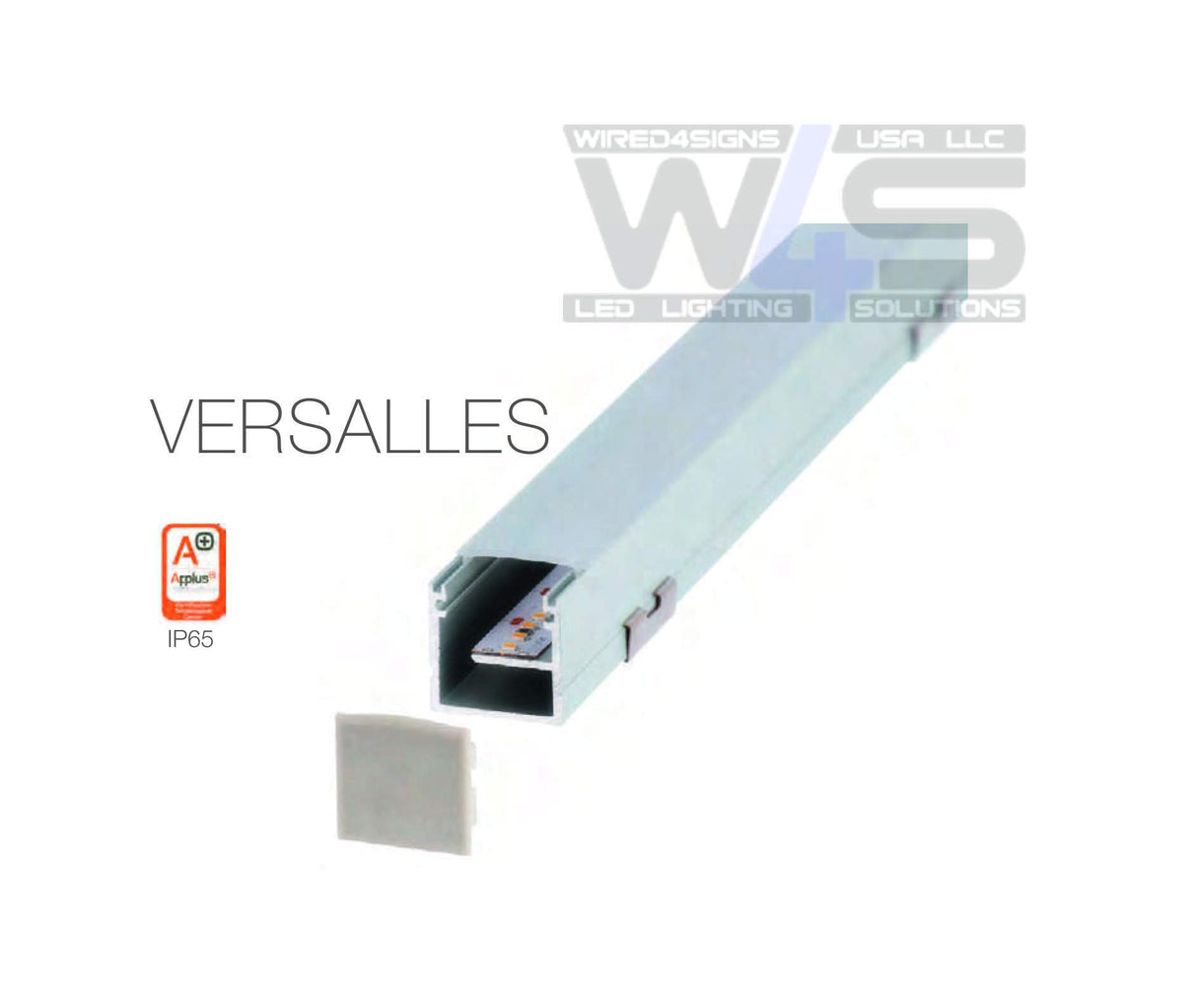

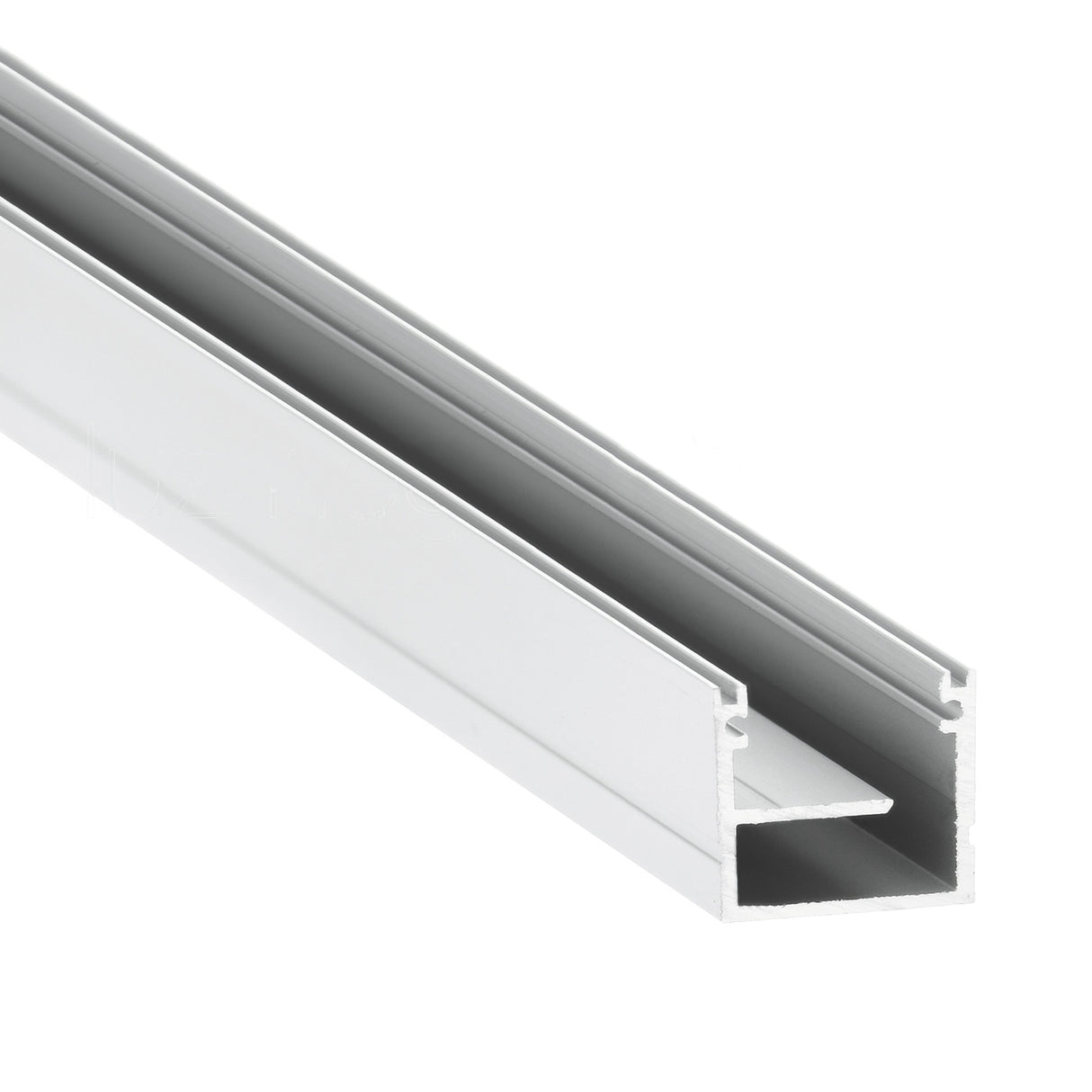

This unique surface-mount Waterproof LED Channel comes with an extra space that serves as a wire conduit when running long lengths.

This profile is ideal for use on wall surfaces, furniture, shelves, and similar areas, where a width greater than the standard is required. This allows us to use wider led strips for increased heat dissipation and a wider angle of light emission.

By providing a lower channel for the return path of the cable, the Waterproof LED Channel allows us to close the circuit therefore steep voltage drops are prevented.

The diffuser for this LED Channel, available in 3 different finishings, once combined with this LED U channel provides an IP65 waterproof rating. It can be used in places with high levels of humidity, for example, bathrooms, kitchens, gyms, spas, cold storage chambers, fridges, etc.

The profile and its diffusers are available in lengths of 2 and 6 meters, thus allowing the realization of large projects where all the profiles don’t require joints or similar surface  discontinuities.

General specifications

  • Material: Aluminum

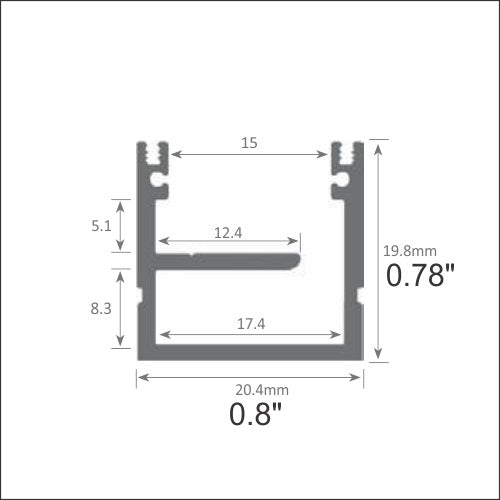

  • Overall dimensions: 20.4mm x 19.8mm (0.80" x 0.77")
  • Maximum LED strip width: 15mm

Downloads

Important notes

  • LED strip, covers, mounting brackets, end caps, shelf/sign panels and other accessories are sold separately from the aluminum profile. Select the available components below.
  • Please note that raw or natural profiles or channels are not anodized and need to be coated or painted, or they will oxidize over time in outdoor applications.
  • LED profiles can easily be cut by hand or by machine.
  • For your convenience Wired4Signs USA can cut LED profiles according to your requirements. Please leave instructions in the order comment box.
  • Please note that we cannot refund or replace LED profiles and covers that have been cut.
  • Items in stock are shipped the same day from Knoxville, Tennessee, United States.
  • Bulk pricing is available on request
