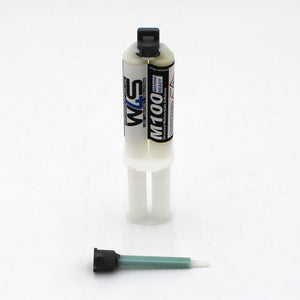

Marine 2-part Methacrylate Adhesive ~ W4S M100 (25ml 1:1 Mix / B-System)

Adhesive cartridge and nozzle only ~ applicator gun sold separately

Description

Wired4Signs USA M100 is a two-component structural methacrylate adhesive, designed for high strength bonding of metal, thermoplastics and composite applications. The M100 adhesive is formulated using innovative technology, including a revolutionary adhesion system. It is Marine tested and suitable for boat repairs. This unique system offers an excellent balance of mechanical strength and high impact resistance to M100. The adhesive is simple and quick to use, making it suitable for various applications requiring durable, long-lasting bonds.

M100 adhesive should be stored unopened in suitable hazardous storage conditions for flammable adhesives that are cool, dry location and out of direct sunlight. Stored correctly, this grade can offer a 12 month shelf life from manufacture.

Key features

• Marine grade
• Very high strength

When to use

Use M100 when you need extreme strength with a wide variety of materials.

Typical applications

M100 is a very versatile adhesive, and can bond a wide variety of substrates to plastic without the need for surface primers or conditioners.  Typical examples shown below:

• Bonding metal fasteners to molded composite parts
• Bonding aluminum and stainless steel lettering in the sign manufacturing industry
• Bonding automotive carbon fiber body panels
• Bonding and laminating composite panels
• Bonding composite and metal components for seating construction
• Boating repairs

General specifications

• Color: Cream
• Package size: 25 ml
• Mix ratio: 1:1
• Mixer system: B-System
• Suitable materials:
  • Aluminum
  • Steel / Stainless Steel
  • Plastics, including UPVC, ABS, Acrylic, Urethanes, Thermoset Plastics, Polyesters, Vinyl Esters, Epoxy Laminates, and Gelcoats
  • Composite materials, including FRP and GRP (fiberglass)

  • Wood
  • Granite
  • Marble
  • Galv/Zinc Coated

• Working time: 5-7 minutes (@ 20°C / 68°F)
• Handling strength: 7-10 minutes (@ 20°C / 68°F)
• Gap fill: ~1/8" (4 mm)

• UV stable: Unknown
• Viscosity (Brookfield T Bar): 400,000 – 600,000 cP (Very thick, stiff gel/putty — like window glazing compound)
• Tensile strength (ASTM D638): Up to 30 MPa / 4,350 psi
• Lap shear strength (ASTM D1002):
  • Aluminum: 20.4 MPa / 2,960 psi
  • Stainless steel: 38.4 MPa / 5,570 psi
  • Mild steel: 32.8 MPa / 4,760 psi
  • GRP (fiberglass): Substrate failure
  • ABS: Substrate failure
  • Acrylic: Substrate failure
• Chemical resistance: Excellent, details unknown
• Shelf life: 12 months

Downloads

• M100 data sheet
• M100 MSDS - A component
• M100 MSDS - B component

Important notes

• M100 adhesive should be stored unopened in suitable hazardous storage conditions for flammable adhesives that are cool, dry location and out of direct sunlight. Stored correctly, this grade can offer a 12 month shelf life from manufacture.
• Manufactured to specification in the UK for Wired4Signs USA.
• Items in stock are shipped the same day from Knoxville, Tennessee, United States.
• Bulk pricing is available on request.
