Edge-lit Acrylic Sign Base Channel ~ Model Hannover

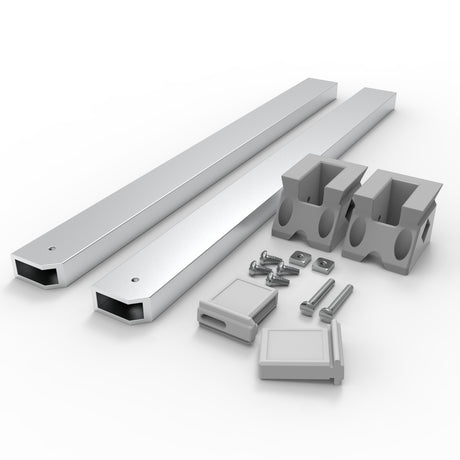

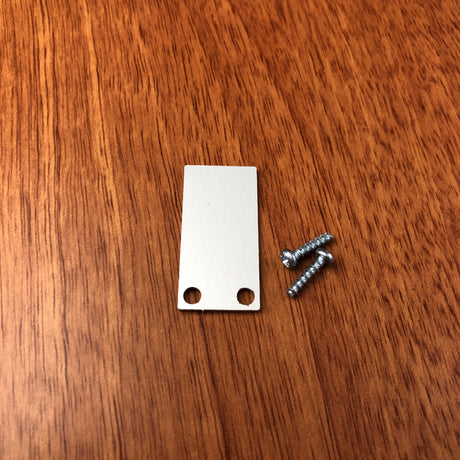

Profile only ~ all accessories sold separately

Excludes acrylic sign panel

Description

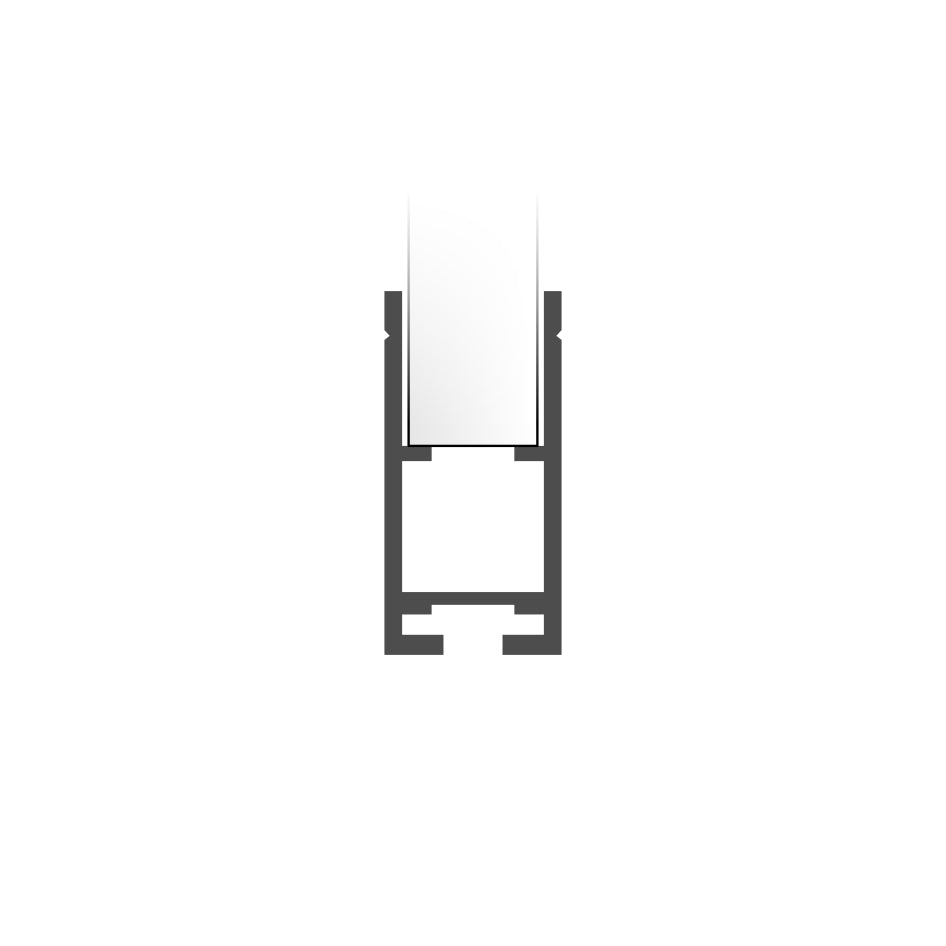

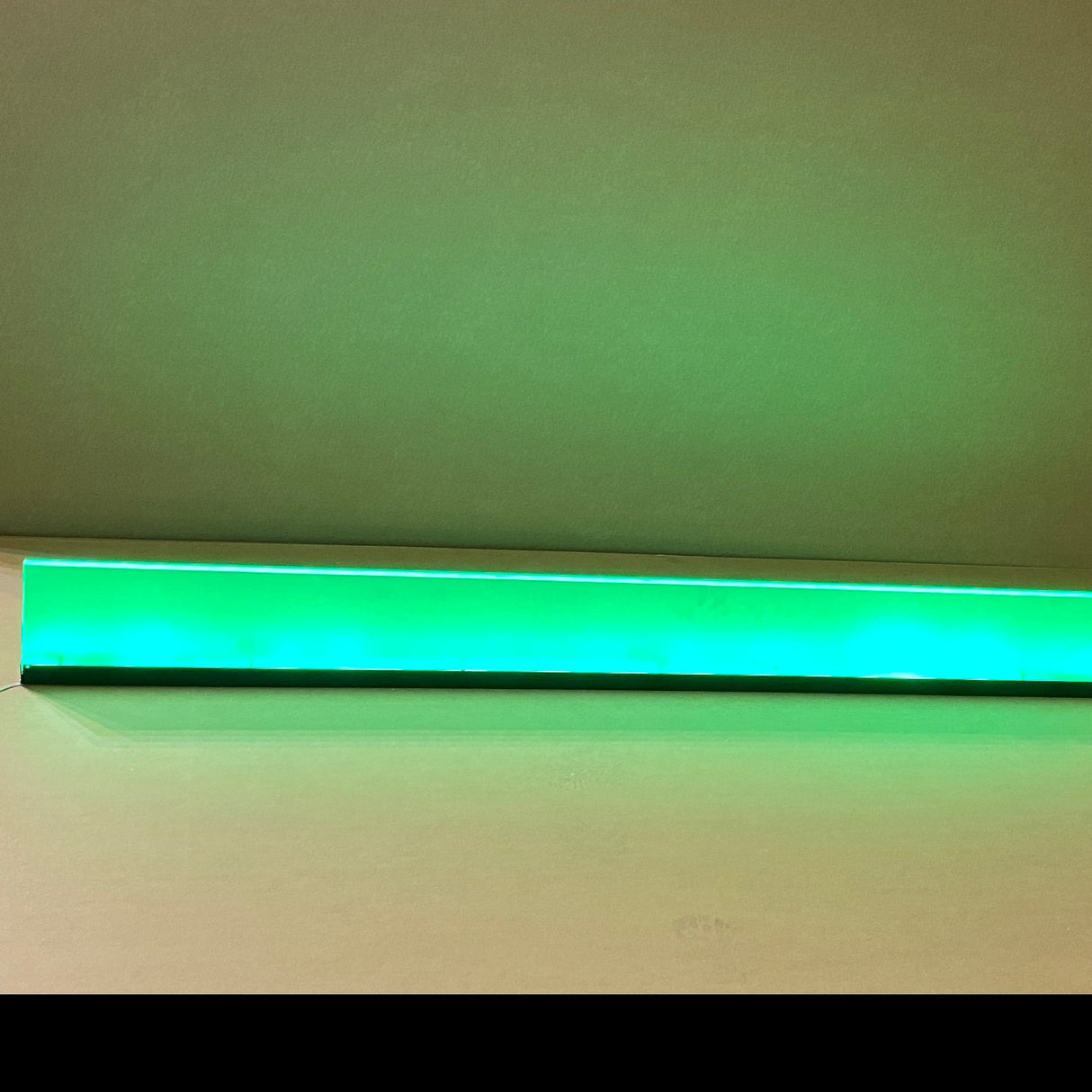

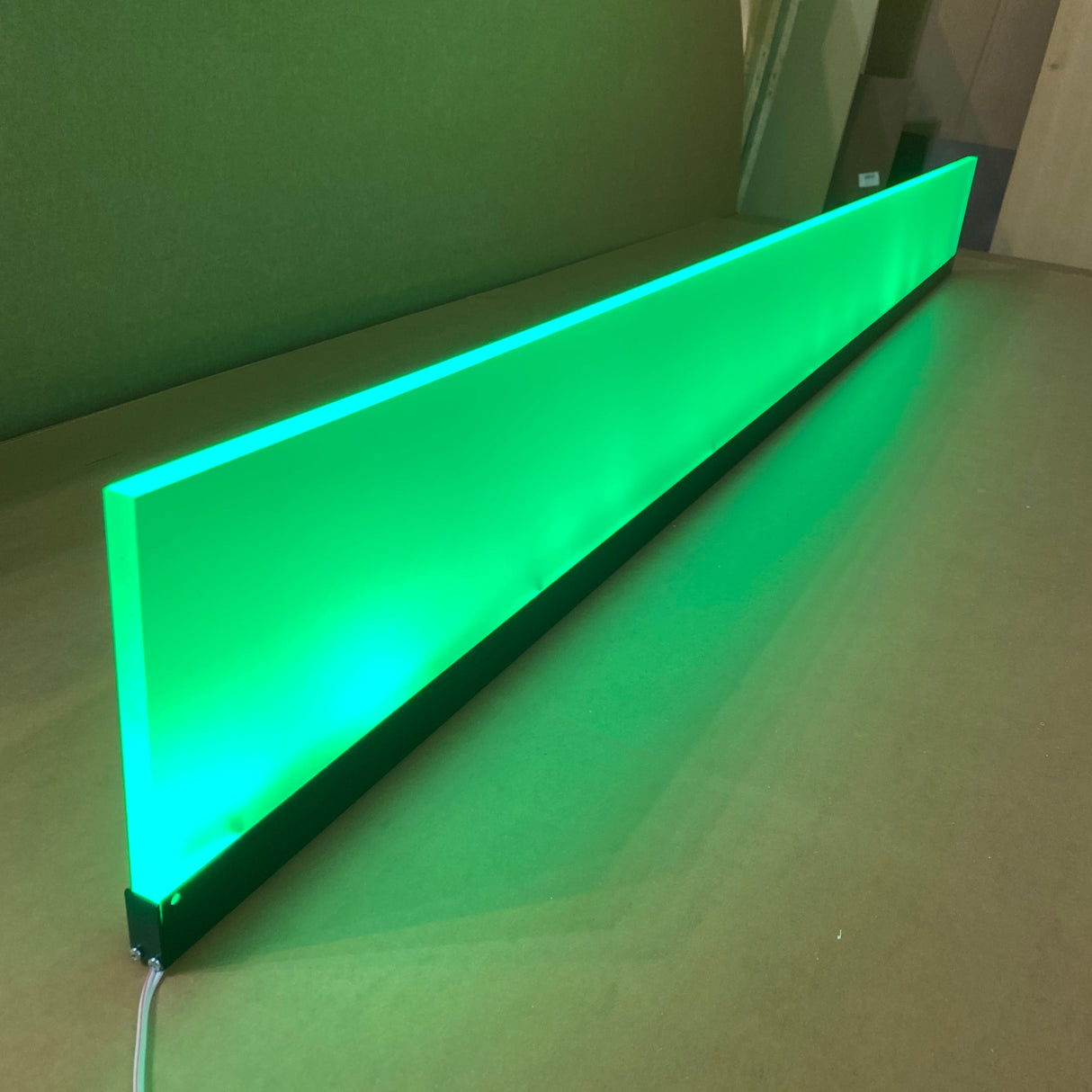

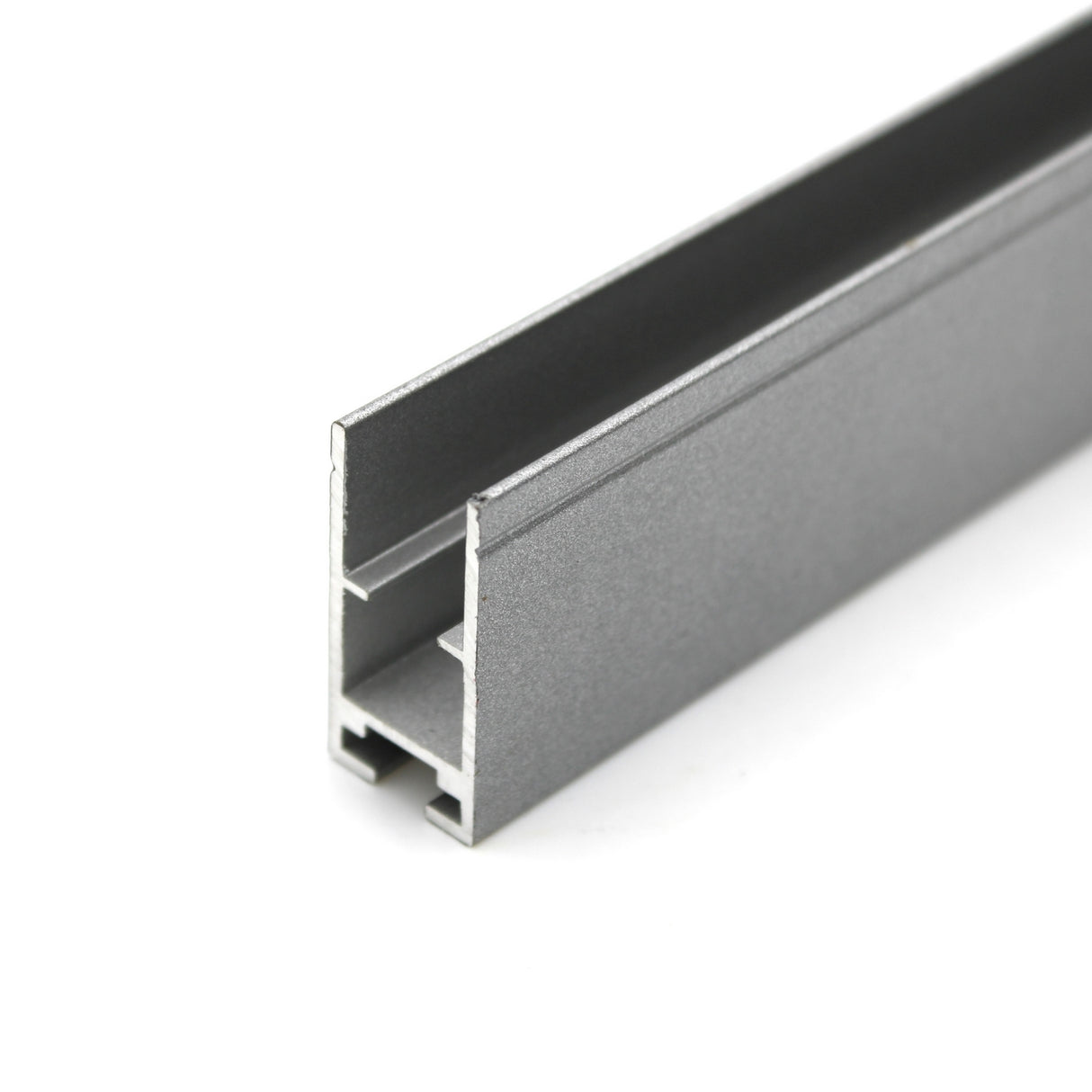

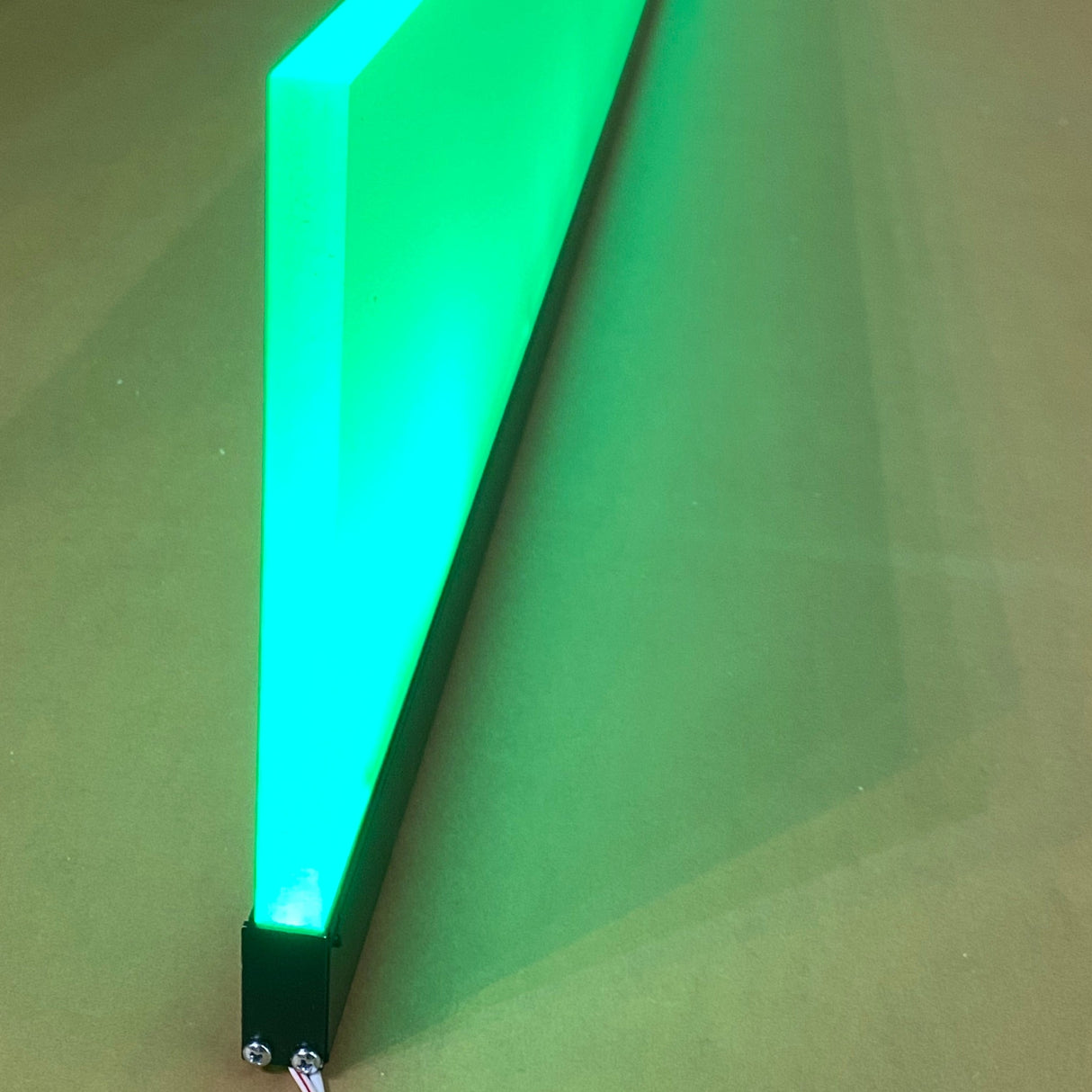

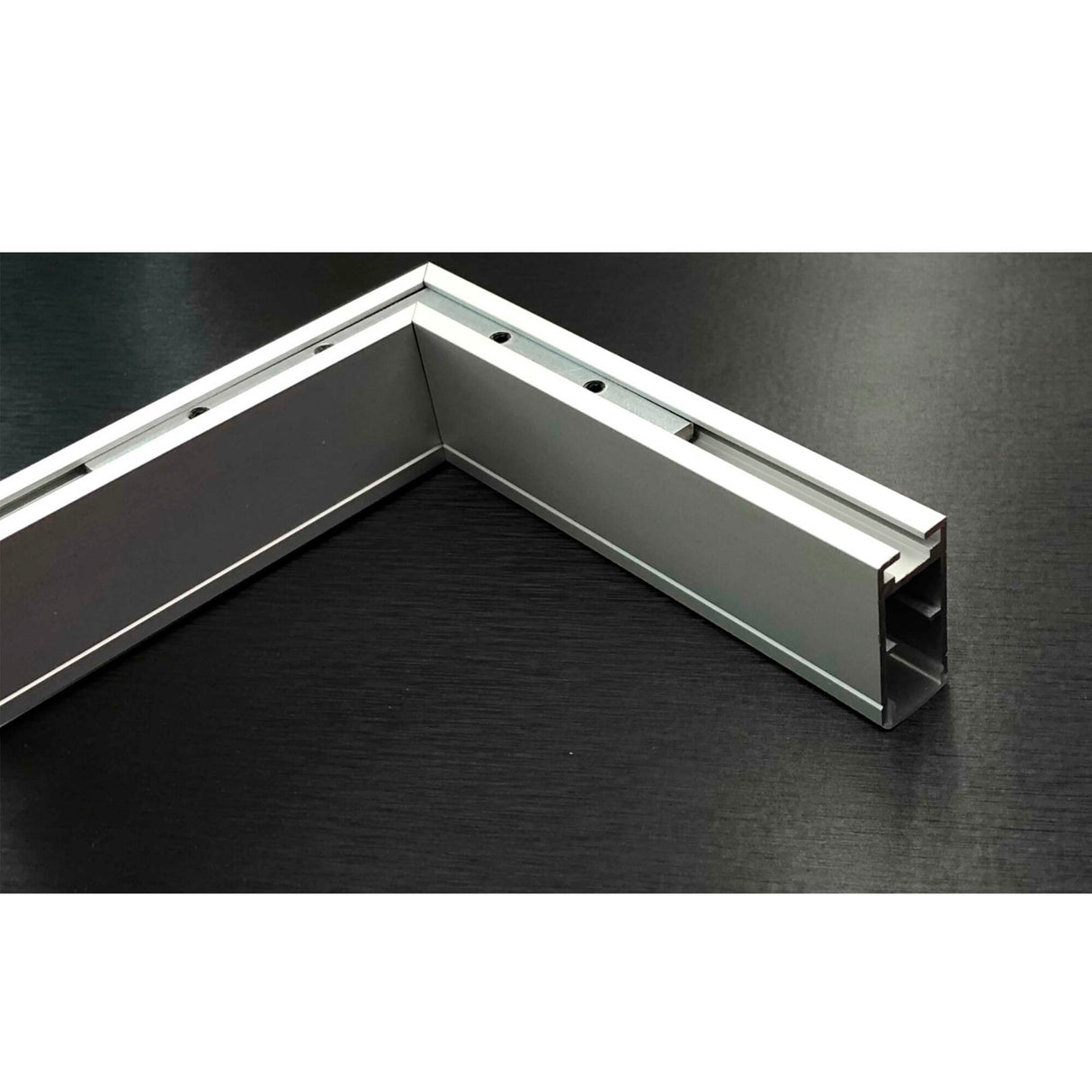

Hannover is an aluminum base channel for LED edge-lit acrylic signs.

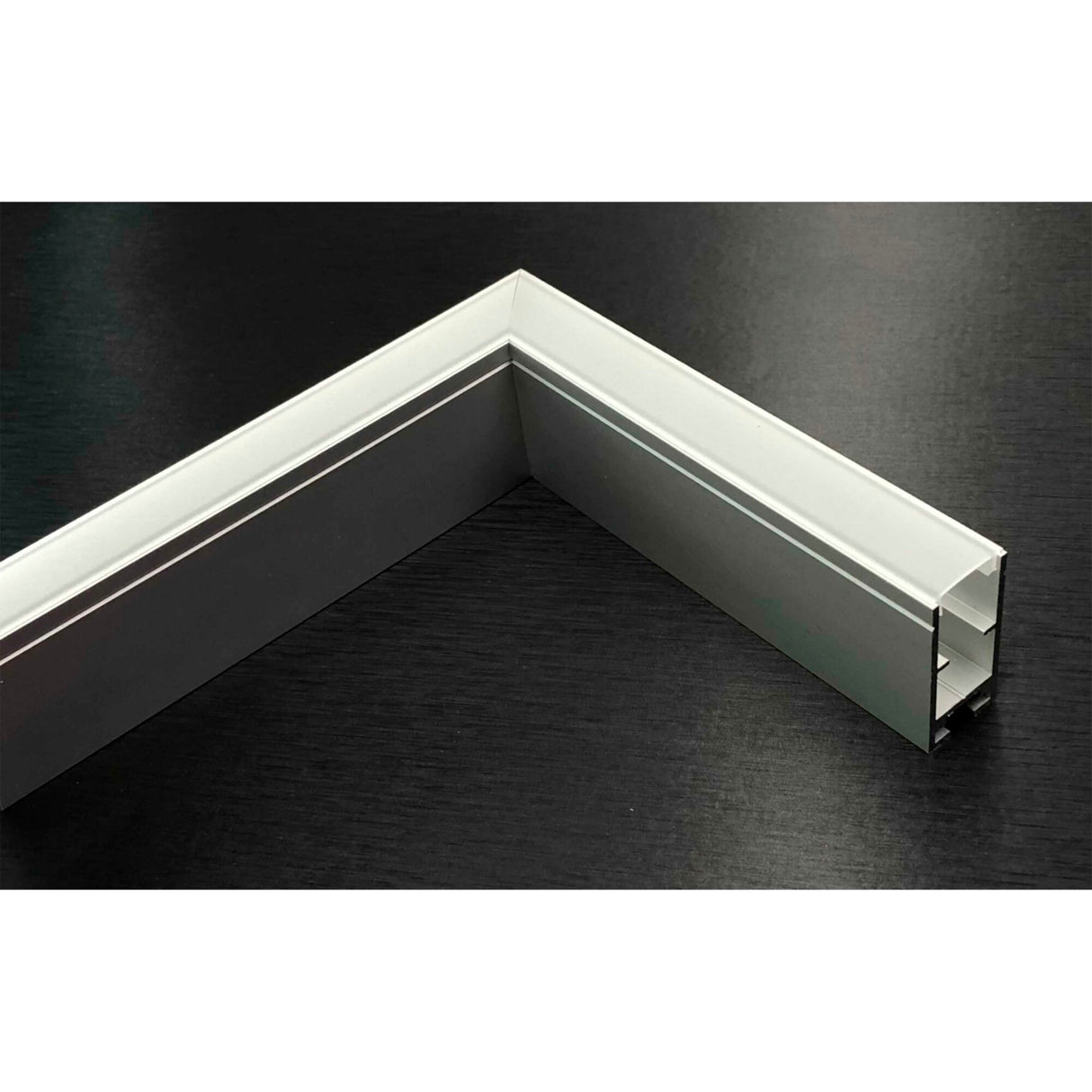

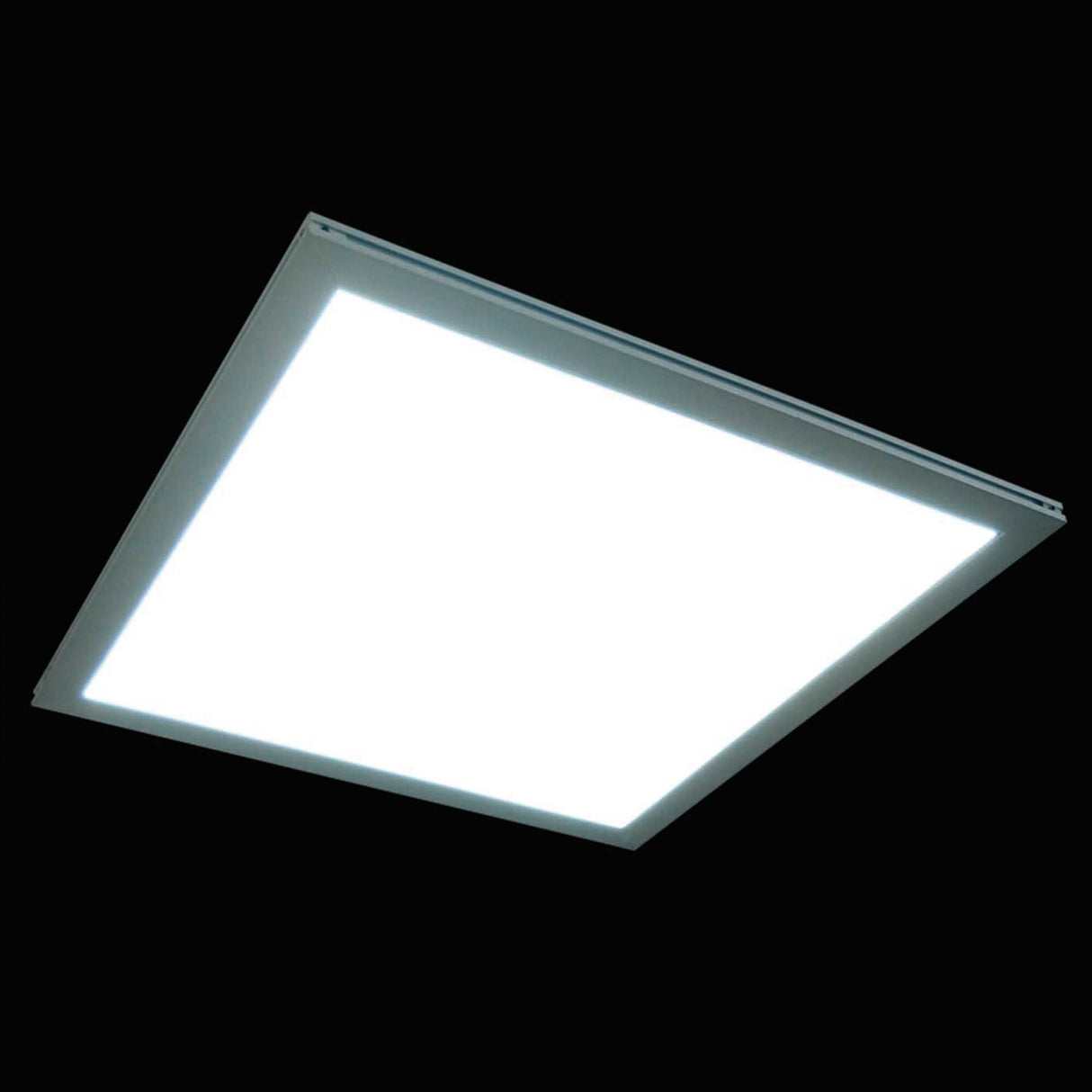

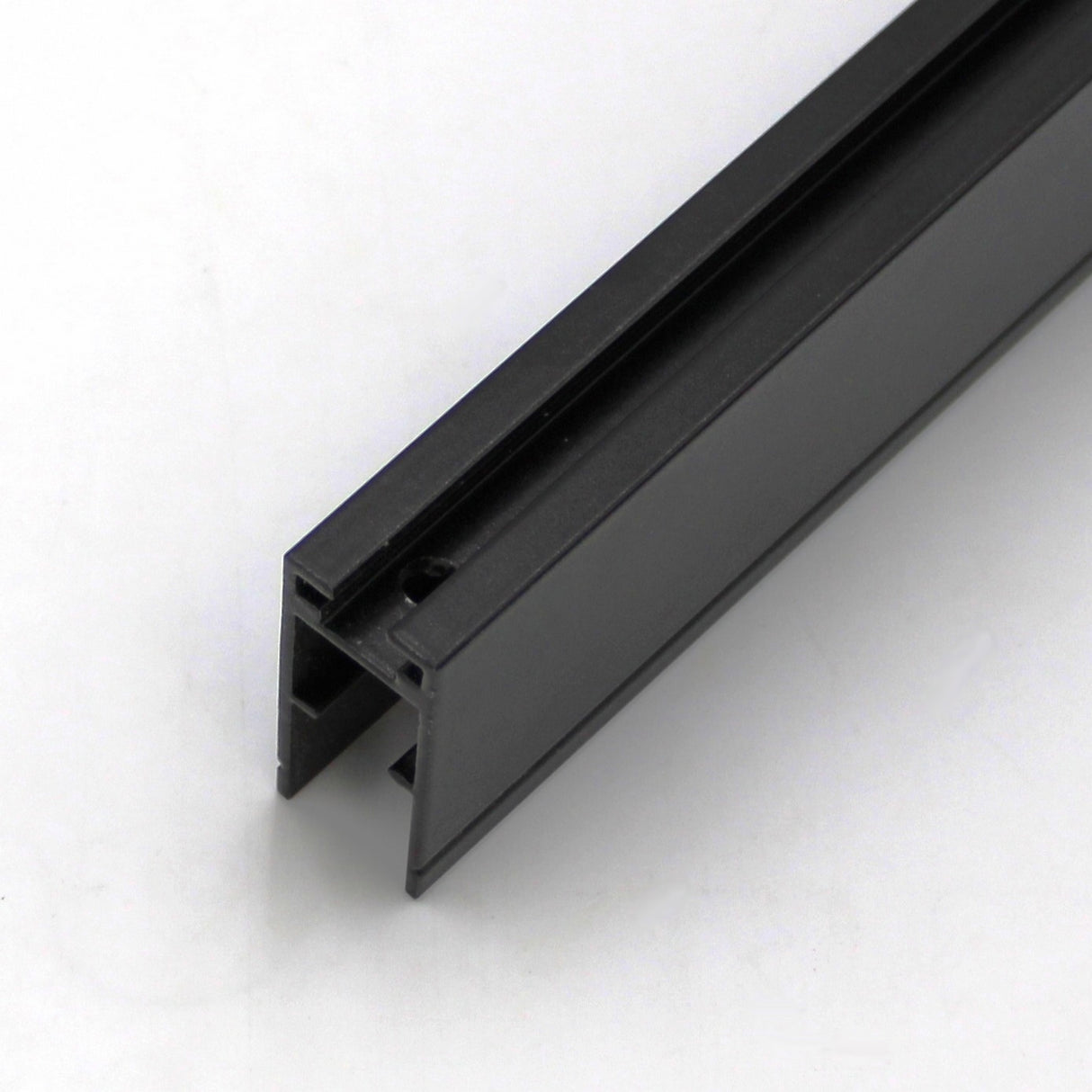

This channel is manufactured in high-quality aluminum and silver anodized, with an option for black powder coated finish. It can be used for many different purposes, such as edge-lit projected or ceiling signs, and it works very well for framed edge-lit signage applications.

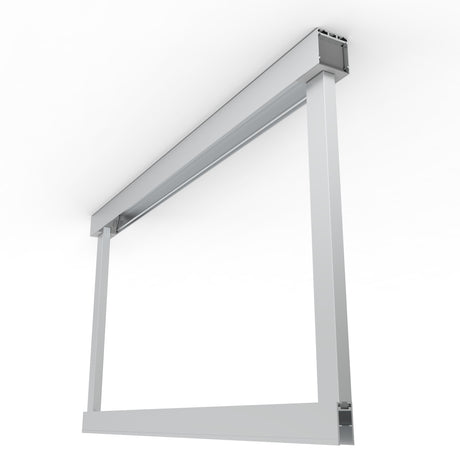

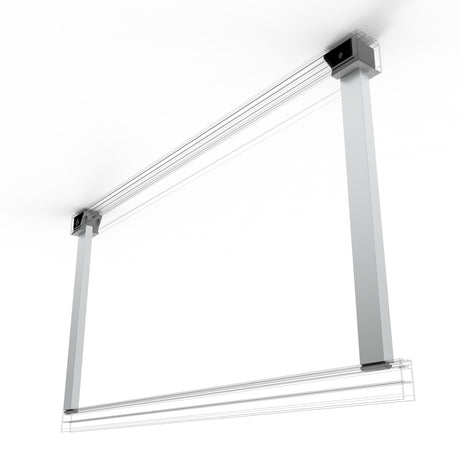

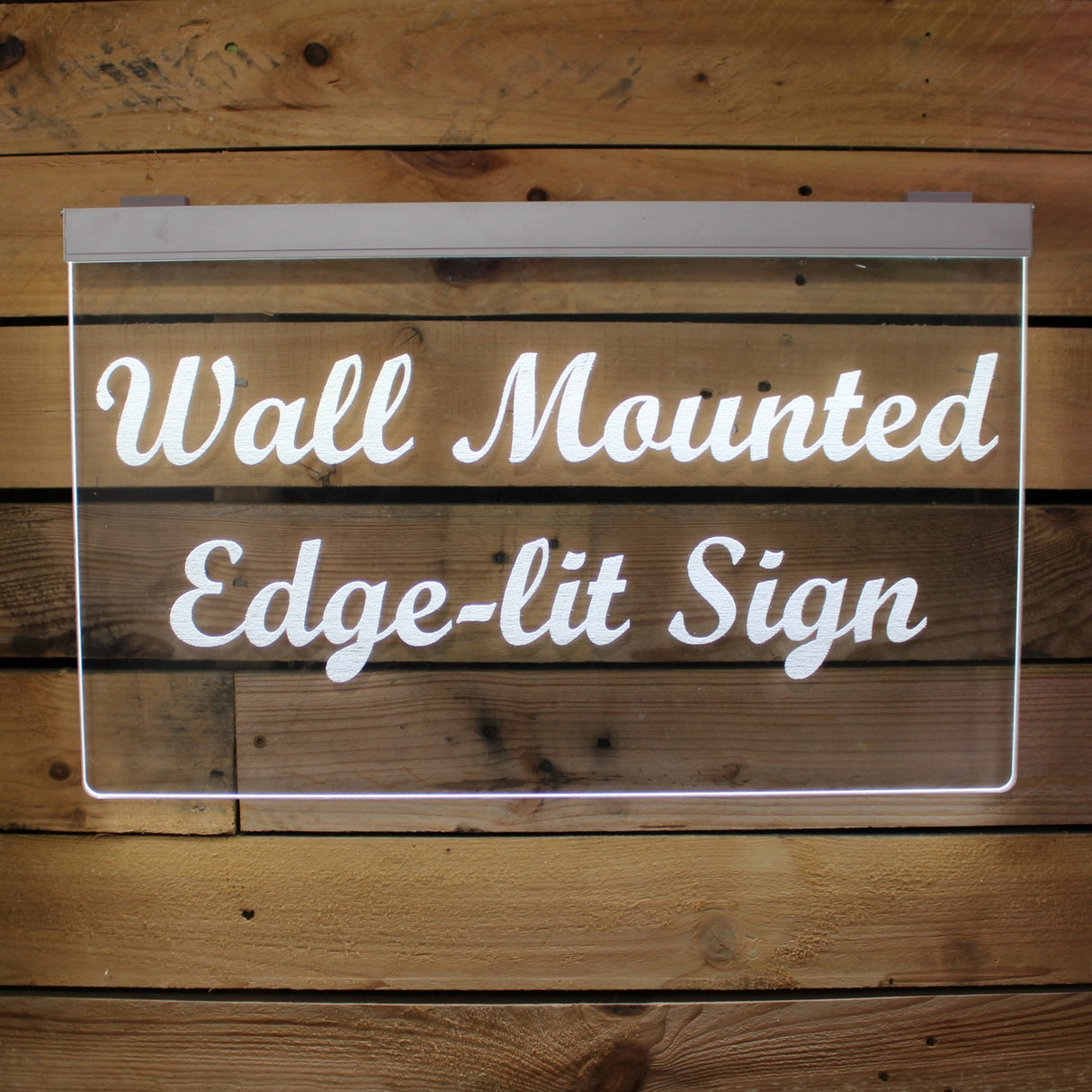

We can also manufacture hanging or wall-based luminaires, both with up & down or side lighting. This profile can also be used with glass or acrylic to make edge-lit illuminated shelves.

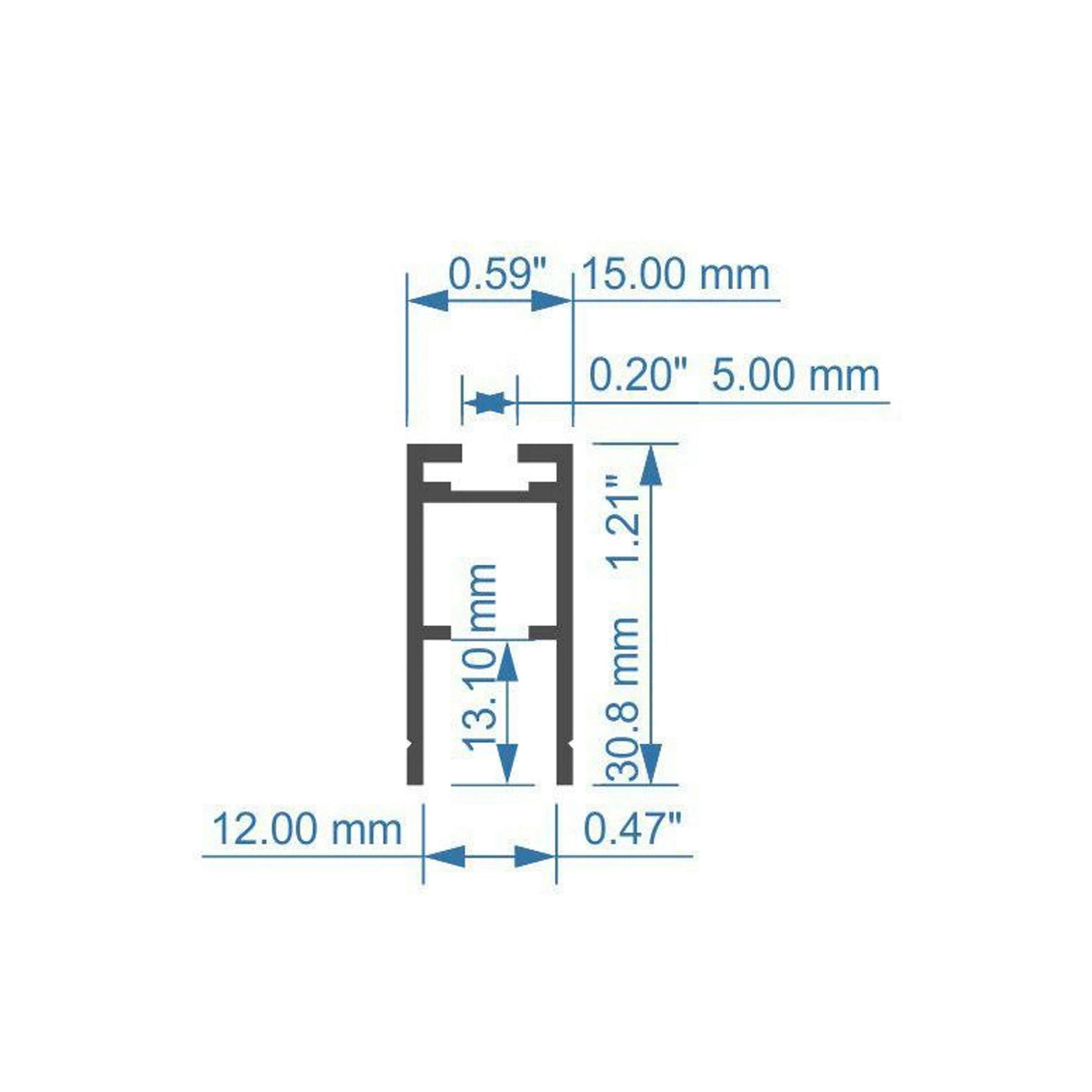

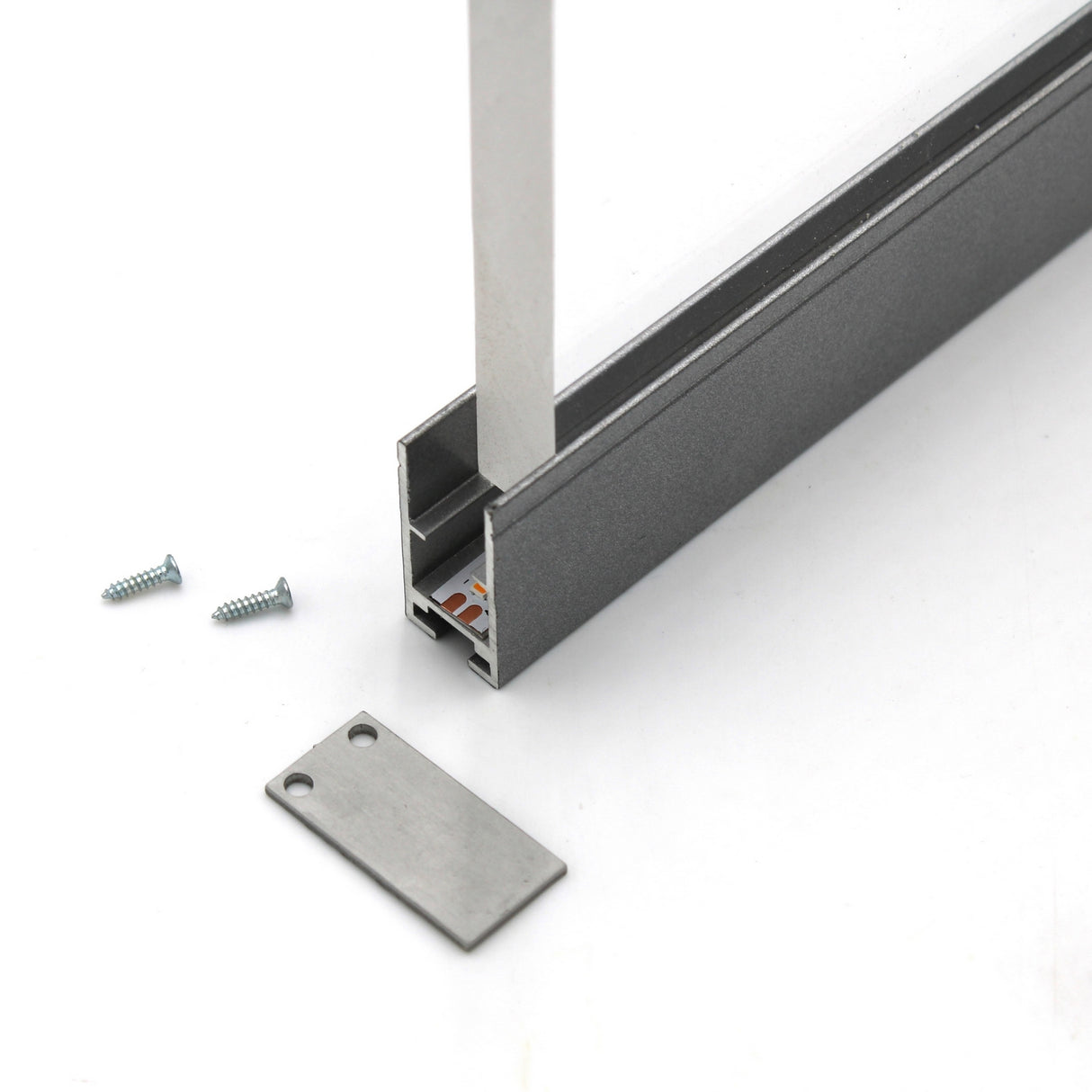

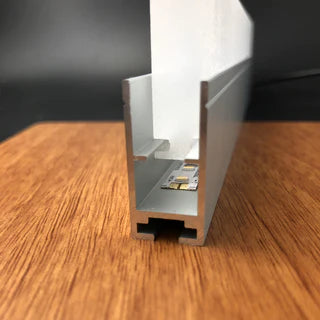

This edge-lit acrylic sign base is designed to accommodate approximately 1/2" (12mm / 0.472") acrylic but can also be used for thinner acrylic sheet by inserting spacers.

The Hannover profile is suitable for LED strips with a maximum width of 11mm and power not greater than 30W/m.

General specifications

• Maximum length: 3m (9.84ft)

• Maximum LED strip width: 11mm
• Maximum LED power: 30W/m

Downloads

• Hannover cut-sheet

Important notes

• In-house cutting service available.
• Shipping on 3-meter lengths may differ from checkout calculation.
• Products in stock are shipped the same day from Knoxville, Tennessee, USA.
• LED profiles can easily be cut by hand or by machine.
• For your convenience Wired4Signs USA can cut LED profiles according to your requirements.
• Please note that we cannot refund or replace LED profiles and covers that have been cut.
• Bulk pricing is available on request.
