1/4" LED Edge lit Acrylic Sign Base Channel ~ Model Mikro10

Profile only - LED and all accessories are sold separately

Please contact us for a custom complete LED fixture using this channel

Description

Mikro10 - 1/4" Edge-lit Acrylic LED Sign Base Channel

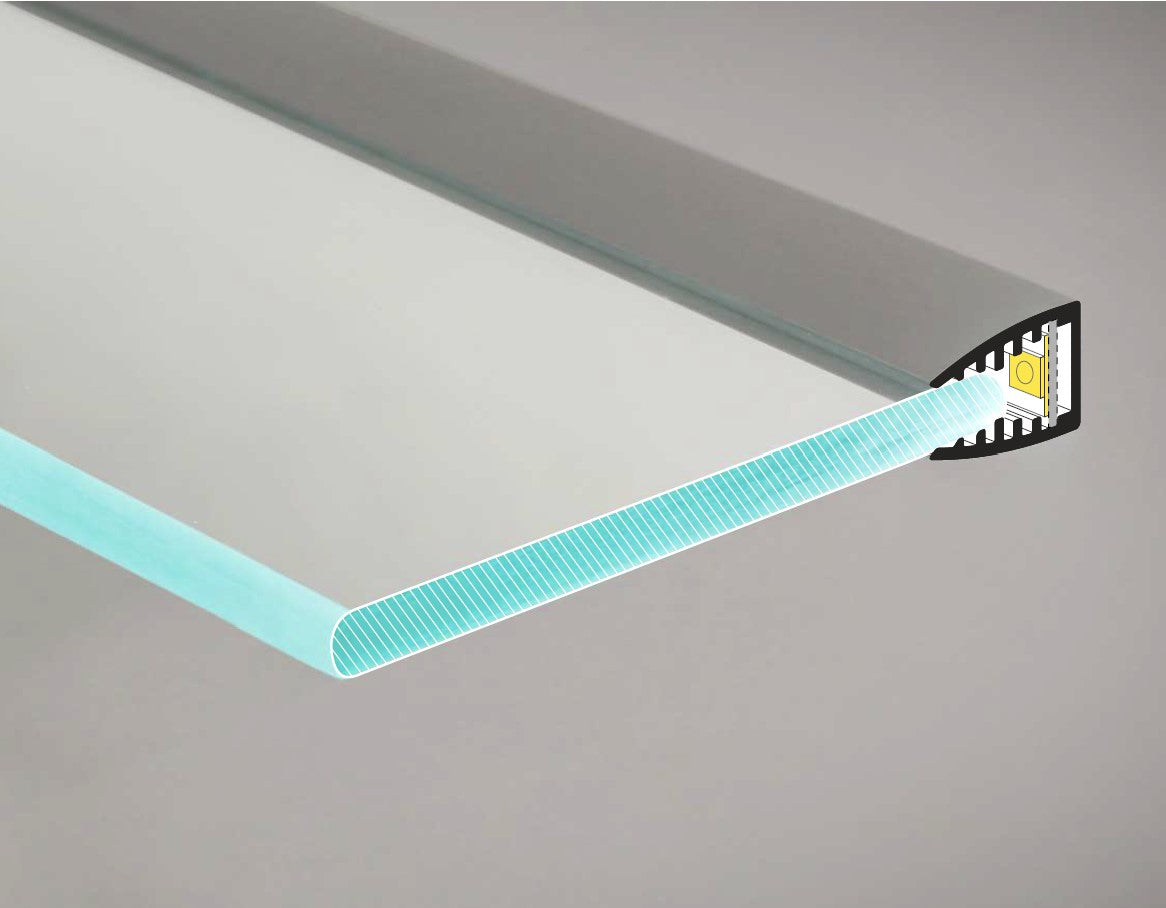

The Mikro10 - 1/4" Edge-lit Acrylic LED Sign Base Channel finds common use in LED edge-lit shelves, furniture applications like display cases, and advertising boards.

A projection-mounted edge-lit sign can be built with this profile in conjunction with the 1/2" variant of the Blade Sign Hardware Kit

Wired4Signs USA stocks a full range of LED Strips to offer as well as a micro-factory with CNC lasers and routers to produce complete edge-lit signs or features.

 General specifications

• Discreet form

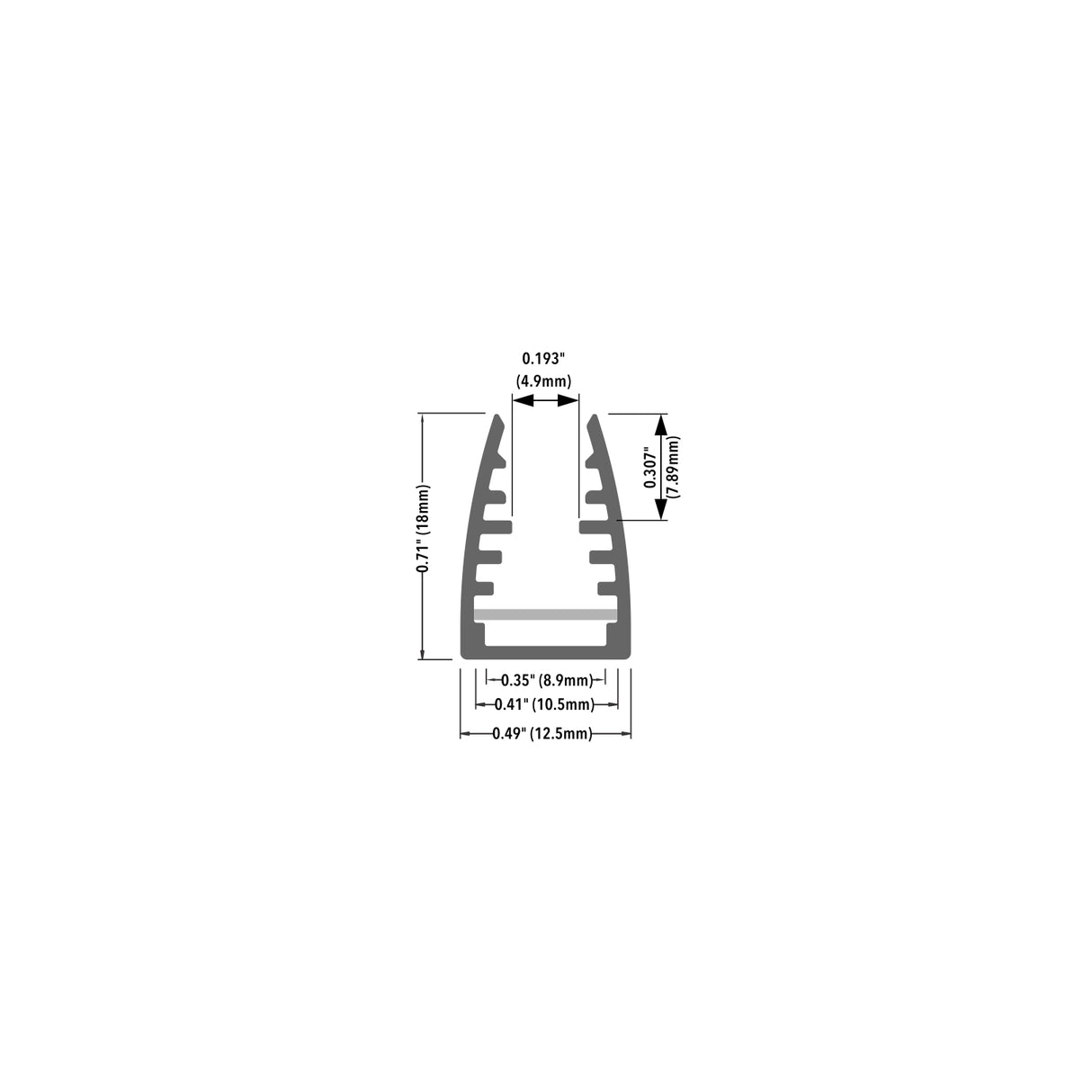

• Fits 6mm (1/4") thick glass or acrylic panel
• Maximum LED strip width: 10 mm
• Please note that the Edge-lit Acrylic LED Sign Base is not a construction element and glass shelves will need a primary support element
• This Edge-Lit LED Extrusion is sold in 609mm, 1 meter, and 2 meters (6.56ft) lengths

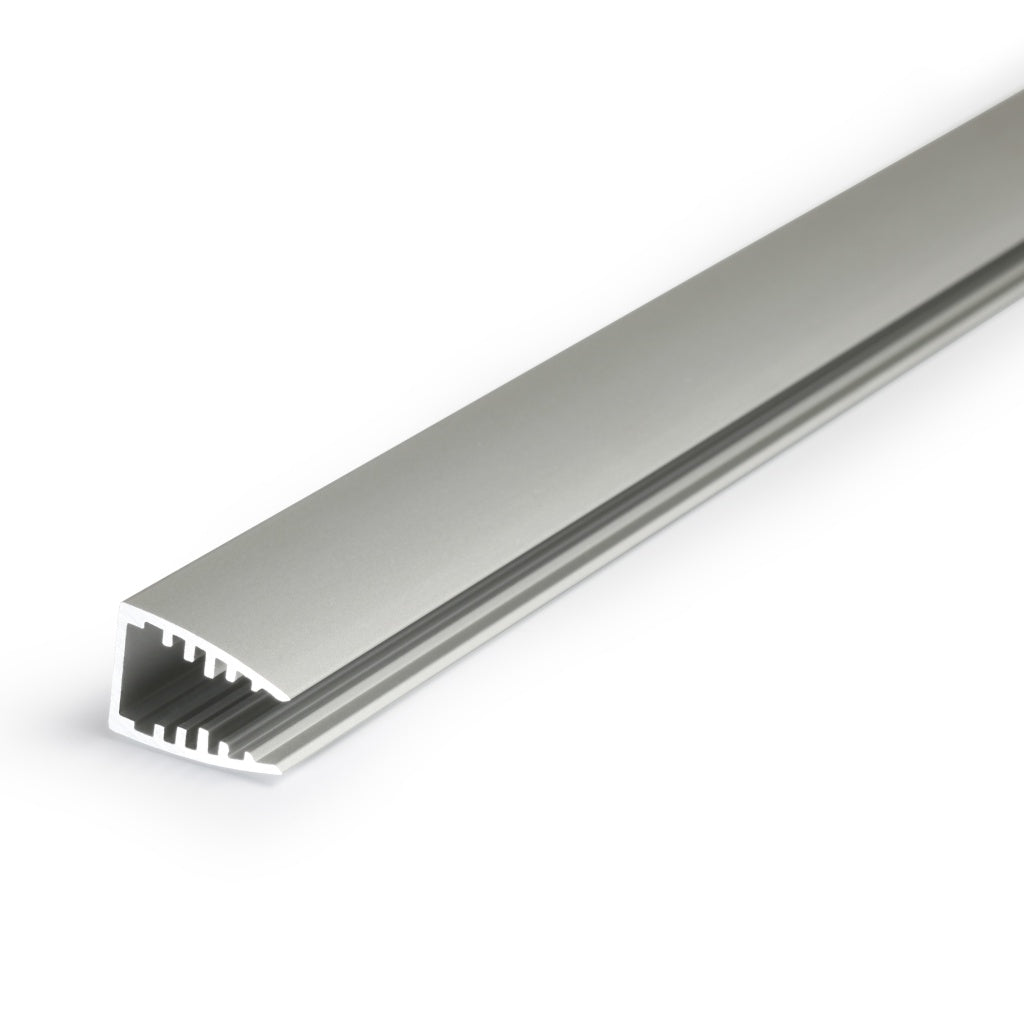

• Edge-Lit LED Extrusion comes in a silver anodized finish
• Supplied with plastic LED tape insertion strip
• See accessories such as endcaps below.

Downloads

• Cut sheet Mikro10 Edge-lit Acrylic Sign Base

Important notes

• Please be aware that raw or natural profiles or channels need to be coated or painted as they are not anodized, and they will oxidize over time in outdoor applications.
• You can easily cut LED profiles by hand or by machine.
• For your convenience Wired4Signs USA can cut LED profiles according to your requirements. Please leave instructions in the order comment box.
• We can customize a plug and play light fitting using this profile according to your specifications. Our team can provide expert advice and support to help you create the perfect lighting solution for your project.
• We recommend double-checking the measurements before cutting LED profiles and covers to avoid any unnecessary loss. Please note that if you cut LED profiles and covers, we cannot refund or replace them.
• Items in stock are shipped the same day from Knoxville, Tennessee, United States. Our team dedicates themselves to carefully packing and safely delivering all packages to their destination.
• We guarantee competitive bulk pricing. For larger orders, we offer additional discounts and customized pricing to fit your project needs. Please contact us to learn more about our bulk pricing options.
