0.9" Suspended/Surface Mount Ceiling LED Strip Channel ~ Model Linea20

SKU LED-C1050000-3
Original price - Original price
Original price
Current price
Shipping restrictions

We cannot ship rigid items over 2.4m (8ft) in length due to freight restrictions. These products are offered for customer pickup only. Please refer to our Shipping Policy for further information.

Channel & Strip Combo Discount!

Buy any LED channel and get 10% off any LED strip.

profile only - accessories sold separately

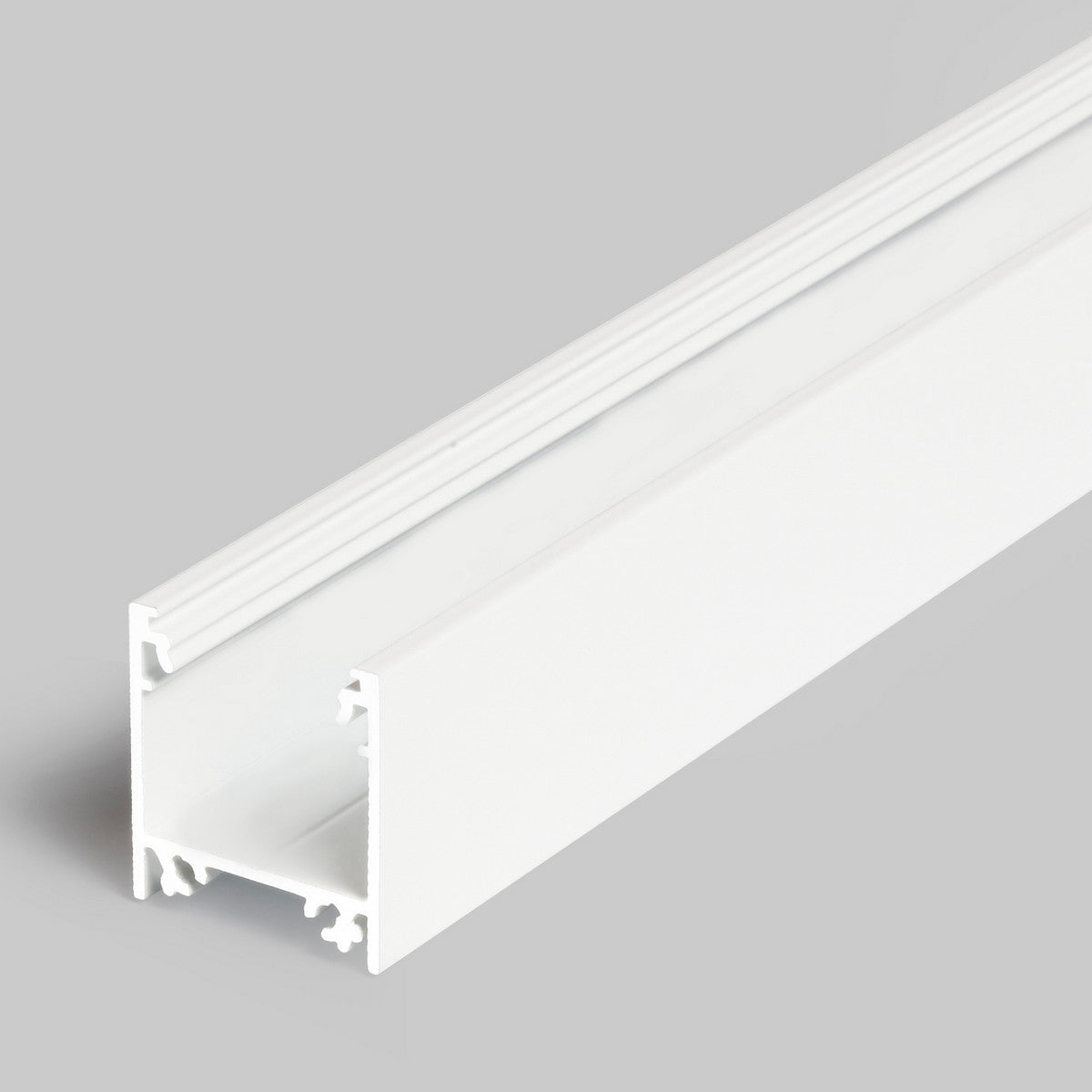

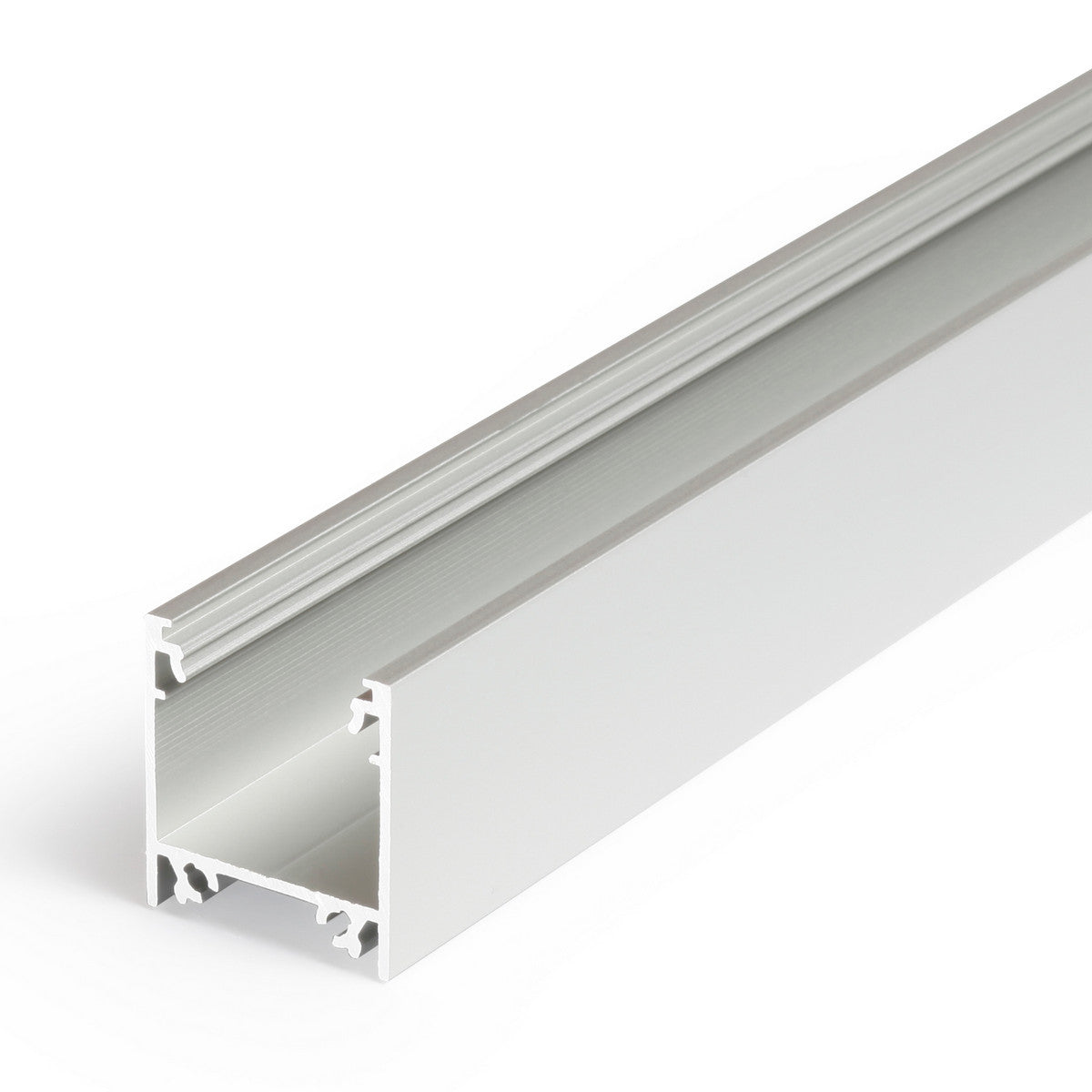

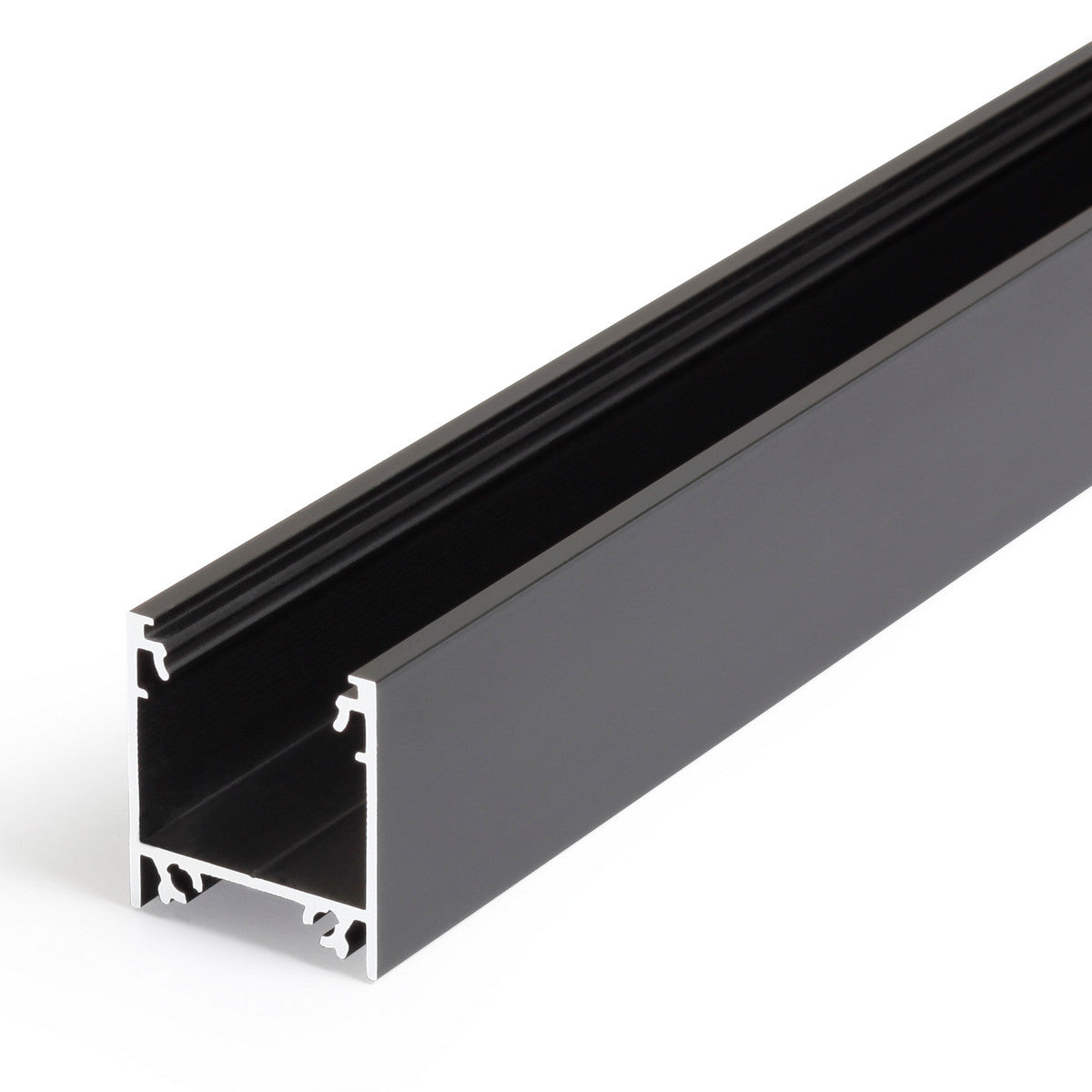

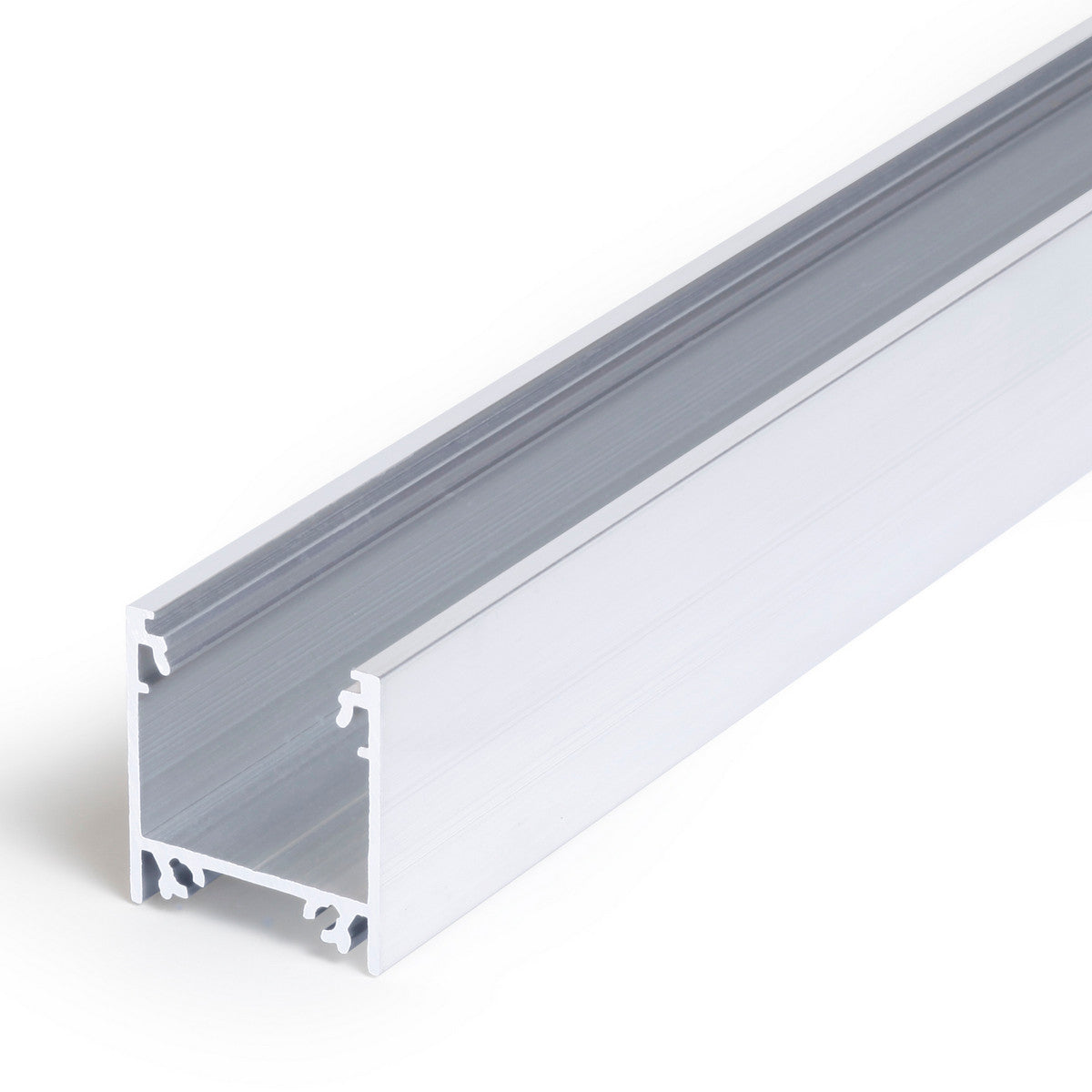

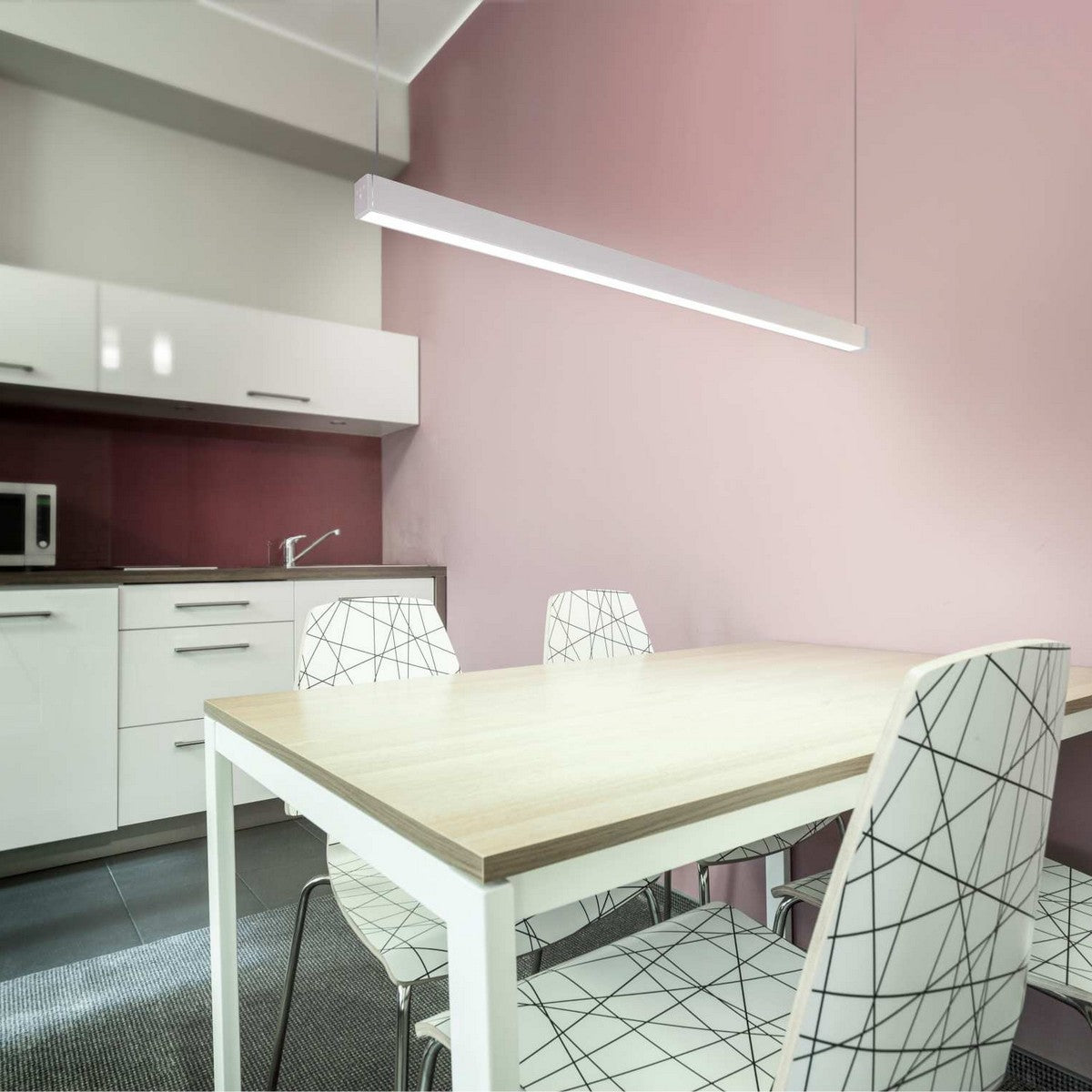

The Linea20 channel is a multi-functional ceiling LED strip channel that can be used as a pendant LED ceiling channel or to create surface mounted ceiling LED strip features.

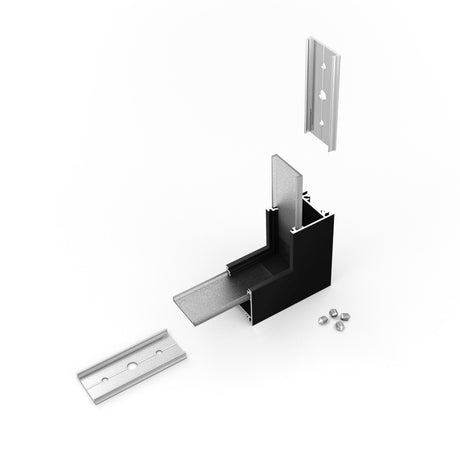

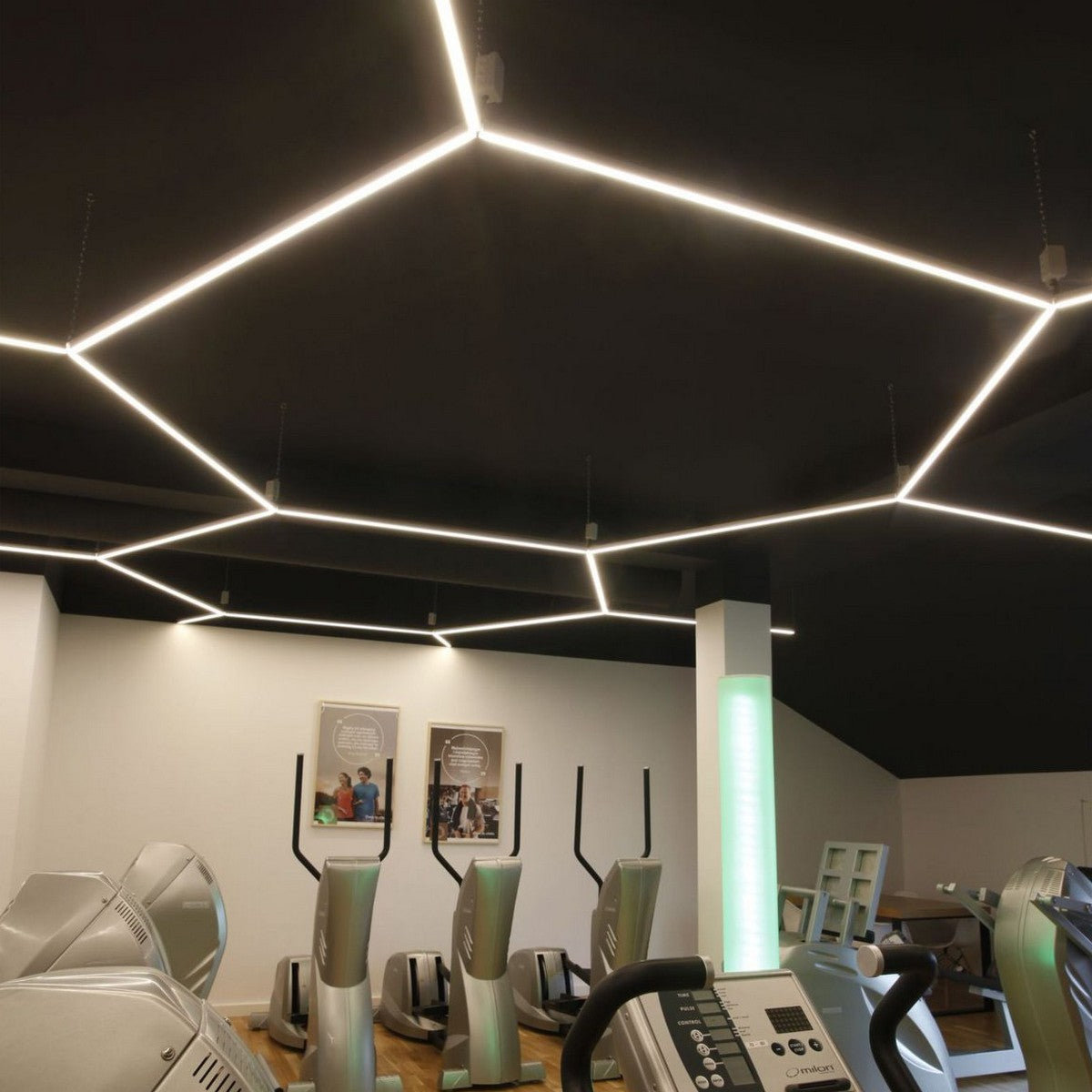

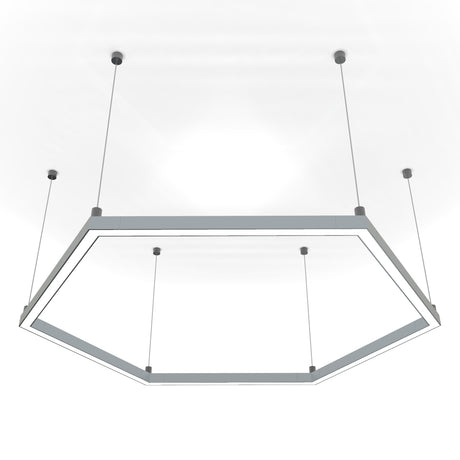

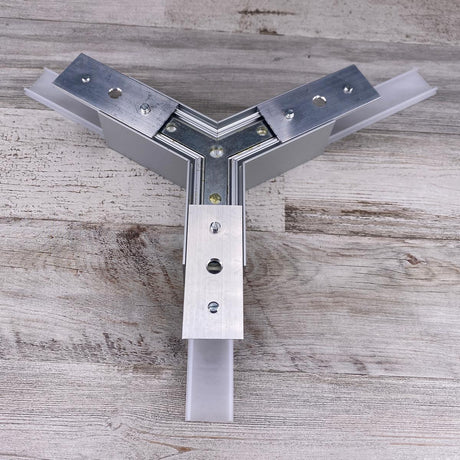

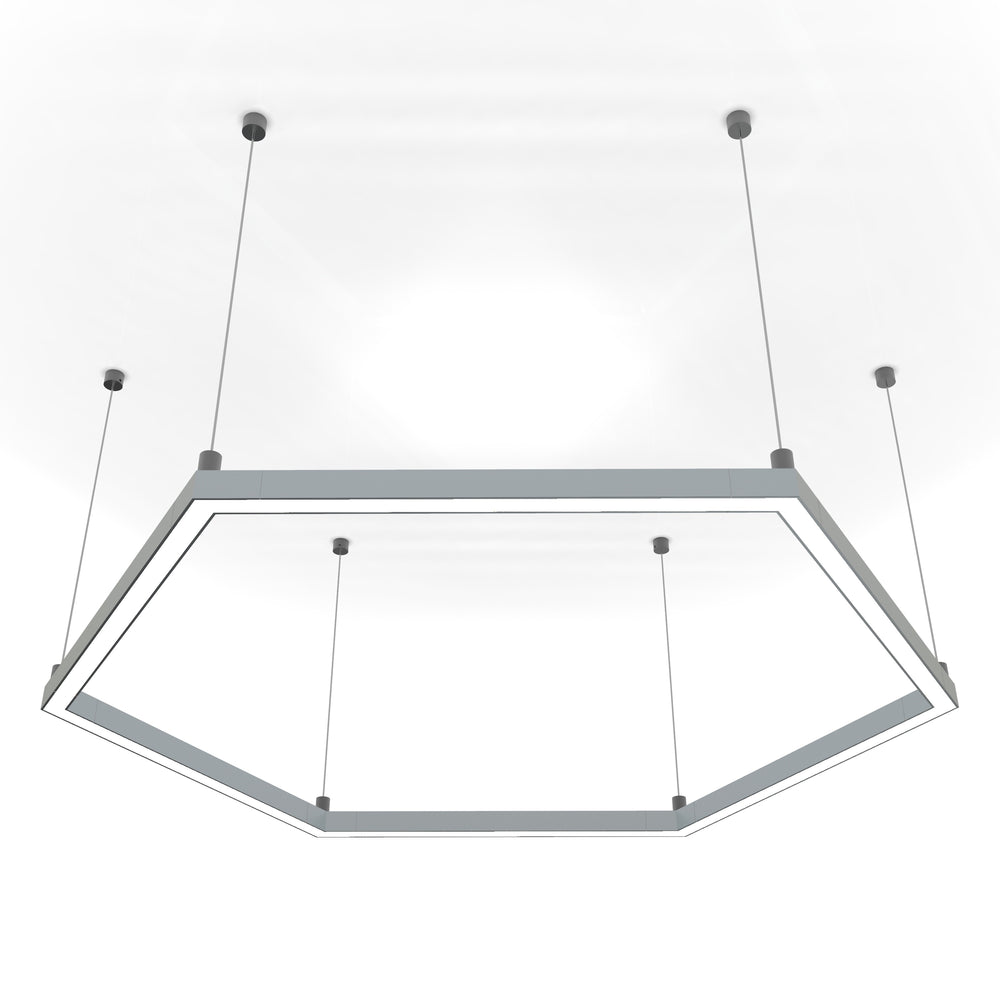

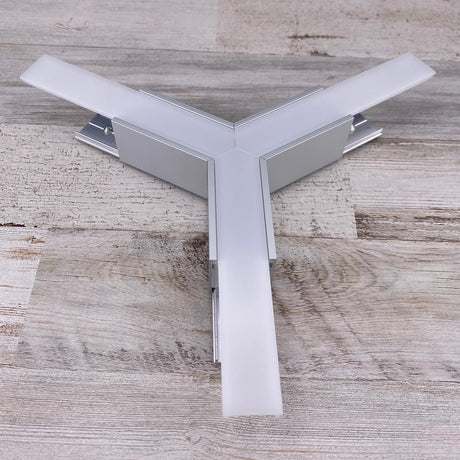

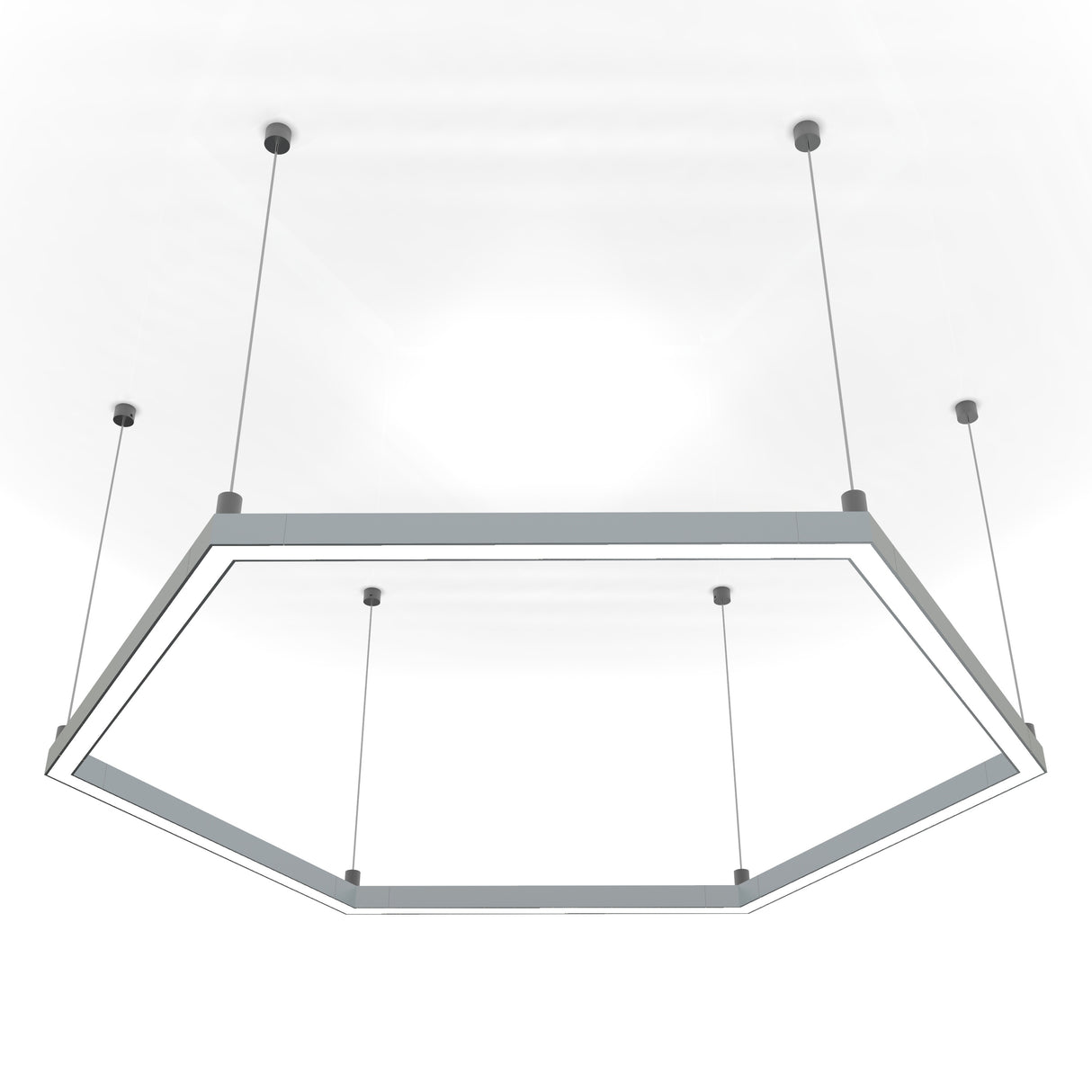

This versatile profile offers a selection of five different ready-made corner connection pieces in various angles which allows you to assemble a lighting feature in just about any linear shape or pattern such a z-shapes, triangles, squares or hexagons for example. The flexible assembly options for this profile make it an excellent choice for creating modern low-profile or suspended architectural LED lighting features.

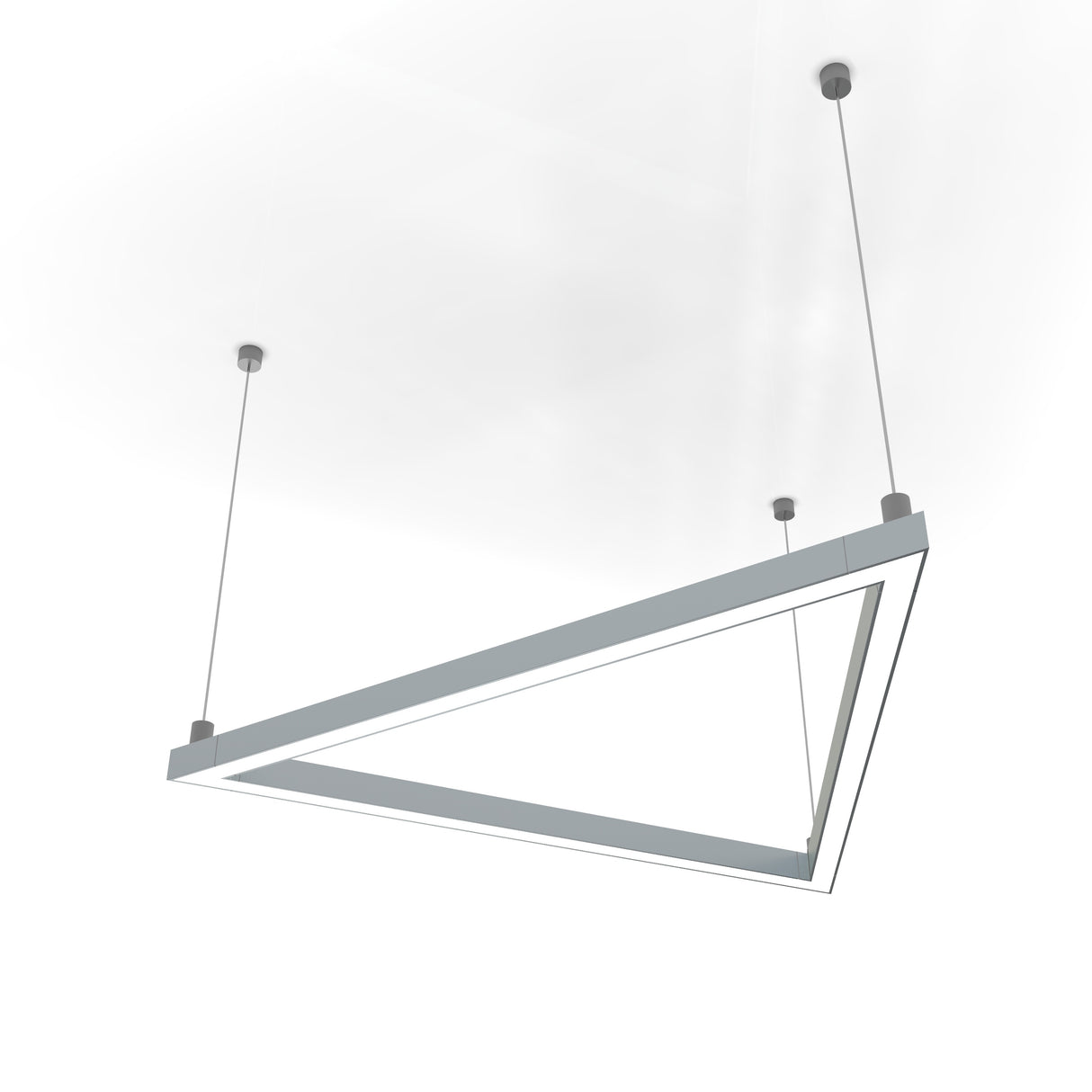

The option of a combined suspension kit (SELV) with power delivery means that you can create hanging luminaires with no visible wires for an exceptionally clean modern look.

General specifications

  • Material: Aluminum
  • Colors: Raw aluminum, Silver anodized, Black anodized or White painted

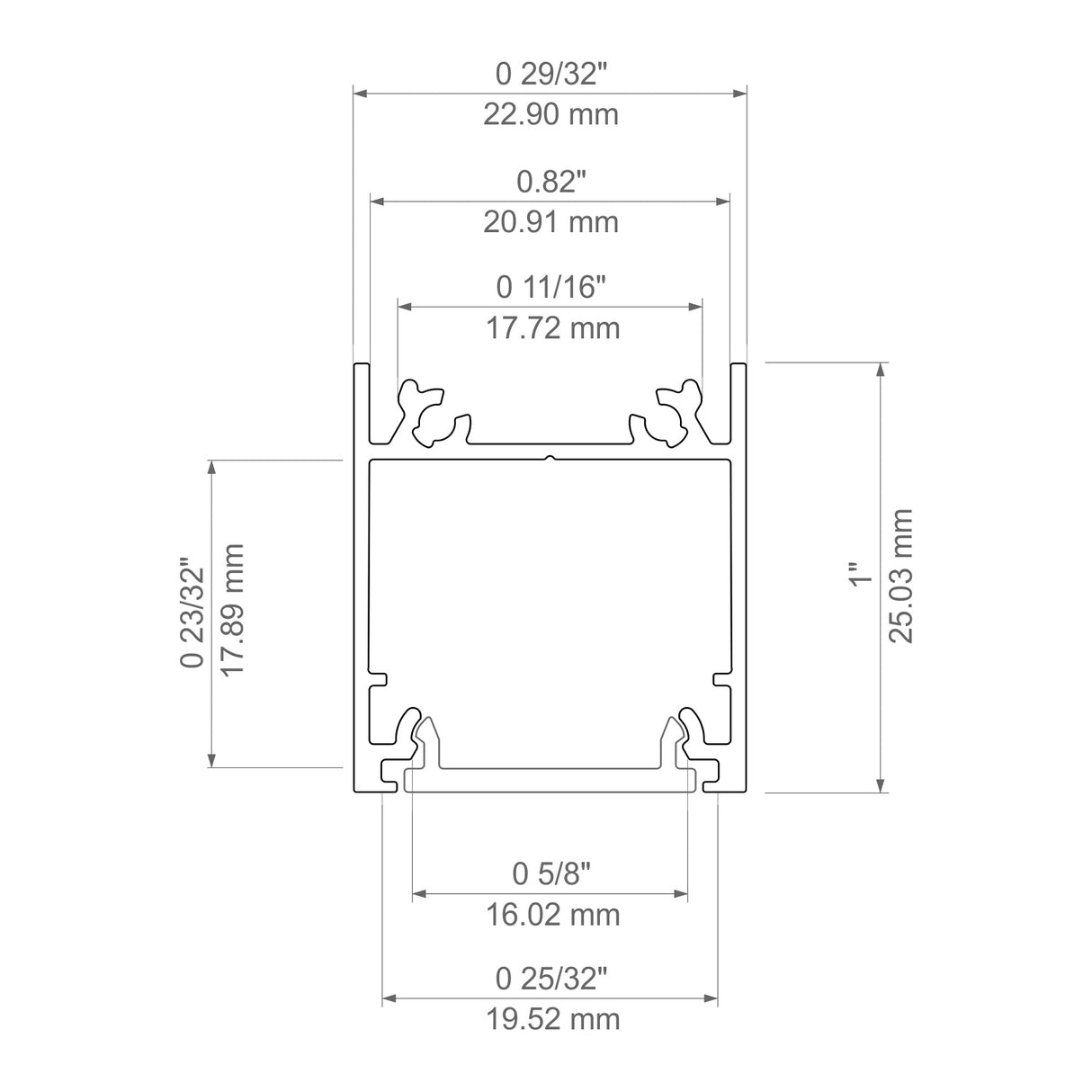

  • Dimensions:

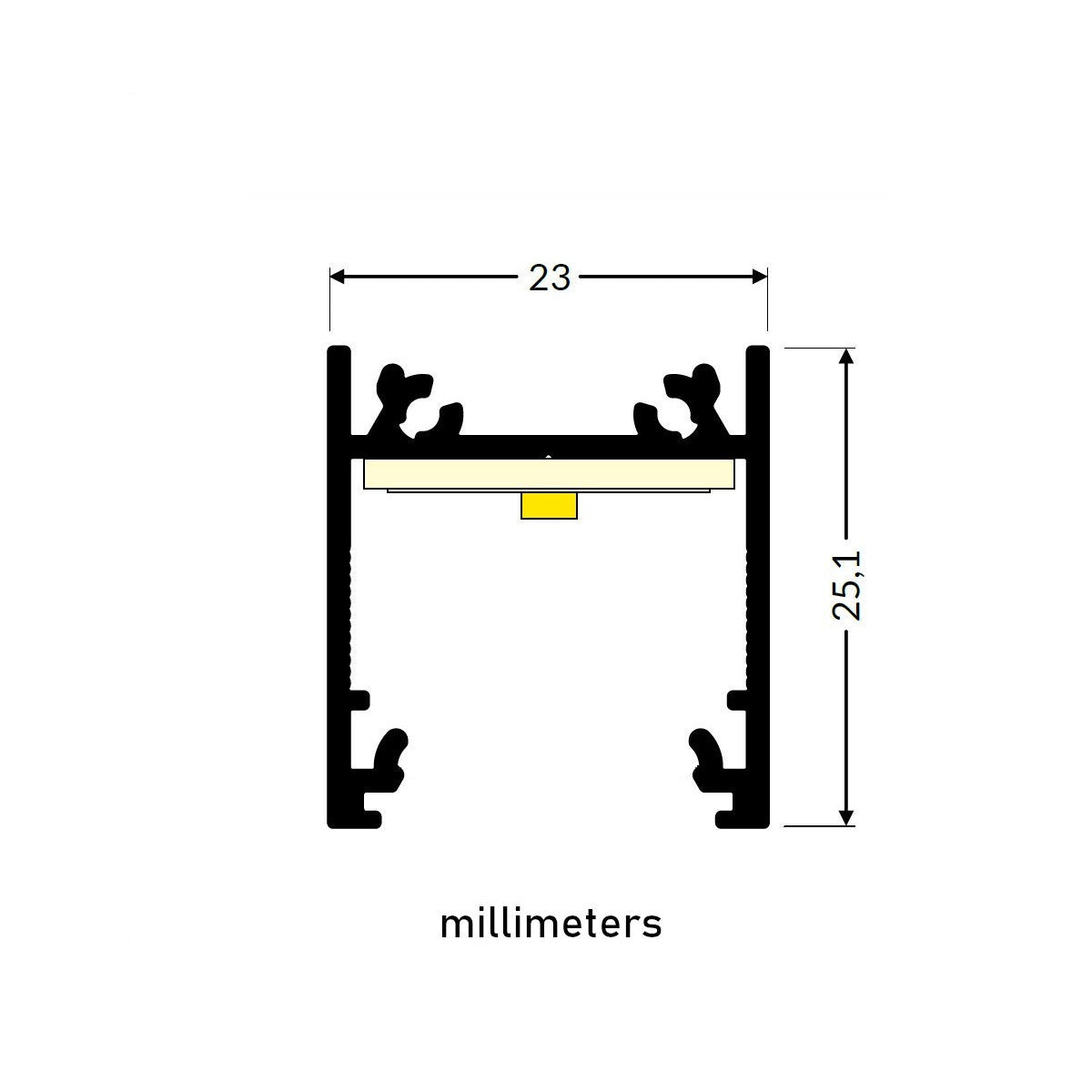

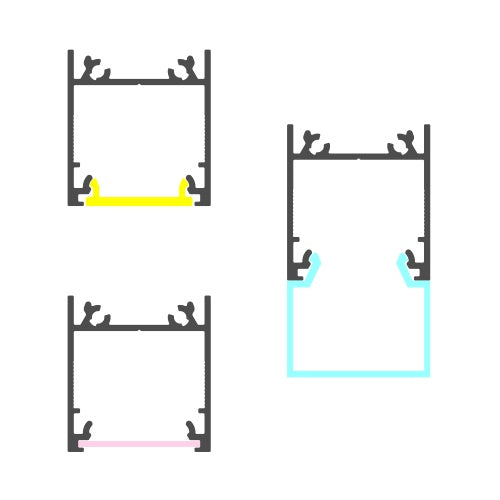

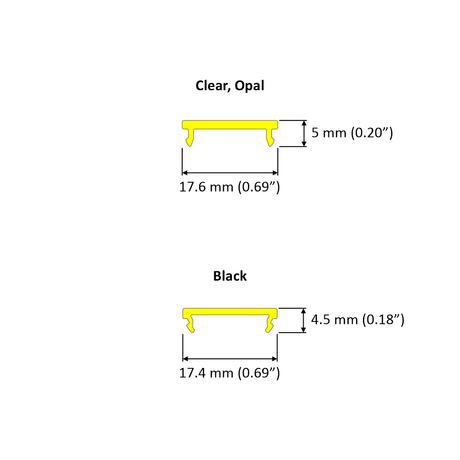

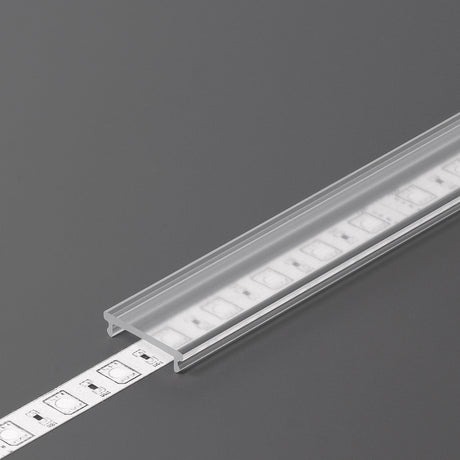

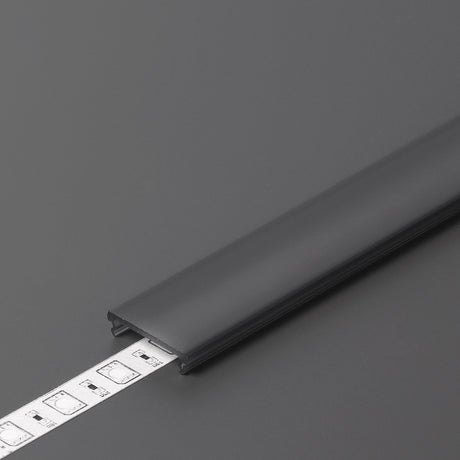

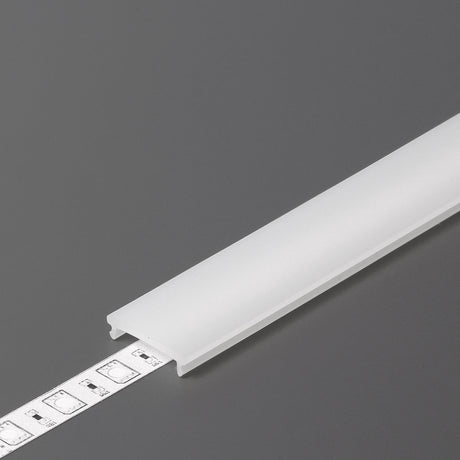

    • Profile, with E Slide or F Click diffuser: 23mm wide x 25.1mm high (approx. 0.9" wide x 1" high)

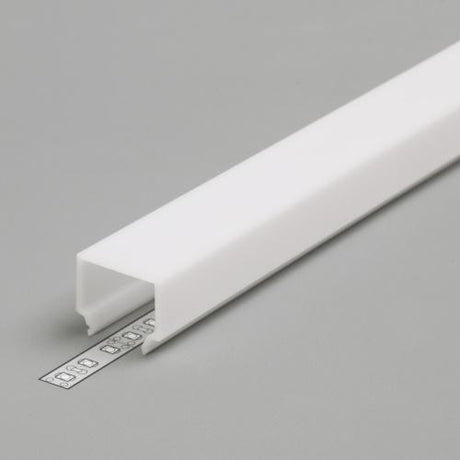

    • Profile with E7 Click square diffuser: 23mm wide x 42.5mm high (approx. 0.9" wide x 1.67" high)
  • Maximum LED strip width: 20mm

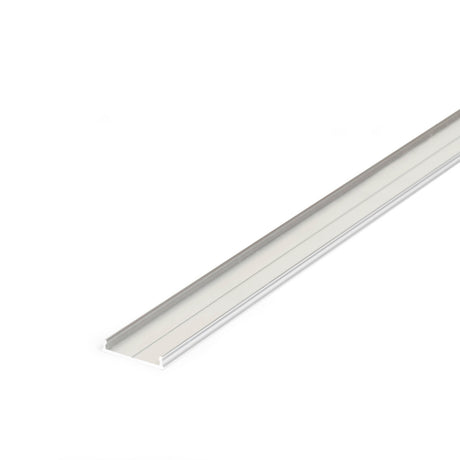

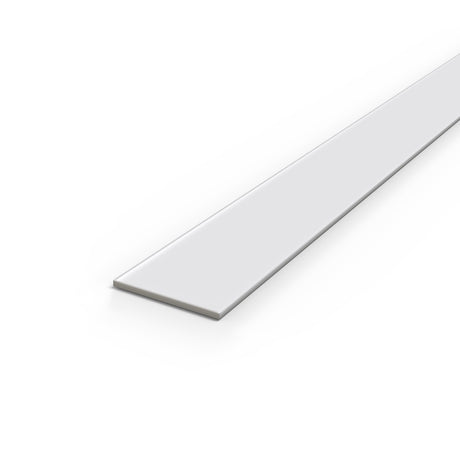

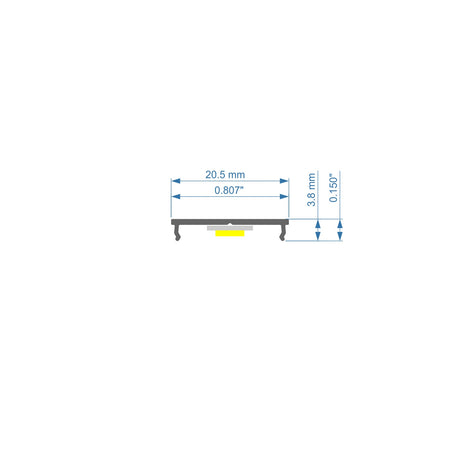

  • Choose from a variety of click in or slide in diffusers

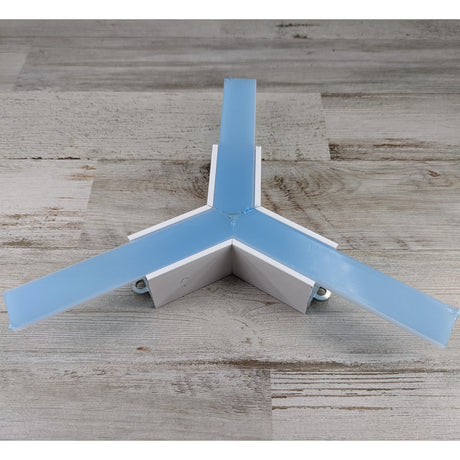

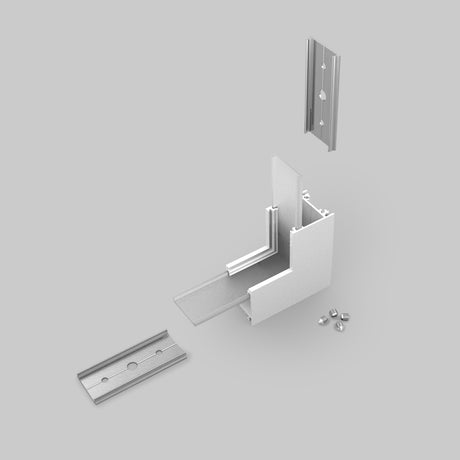

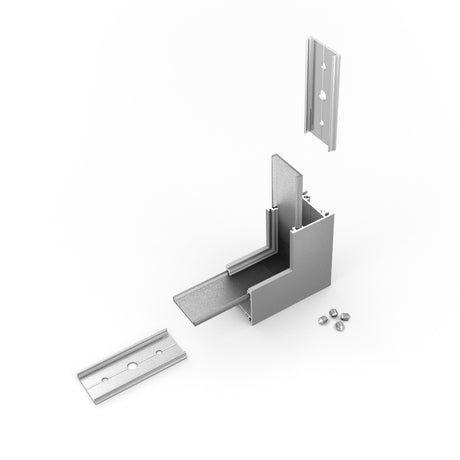

  • Optional ready-made corner pieces

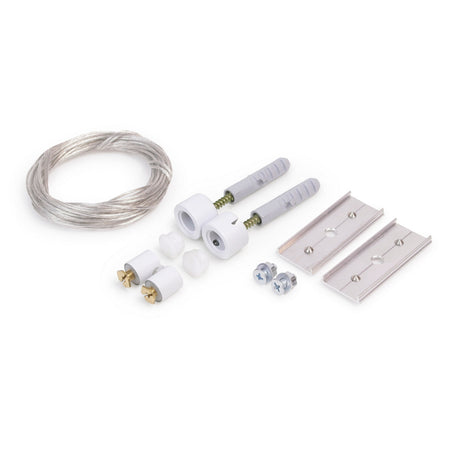

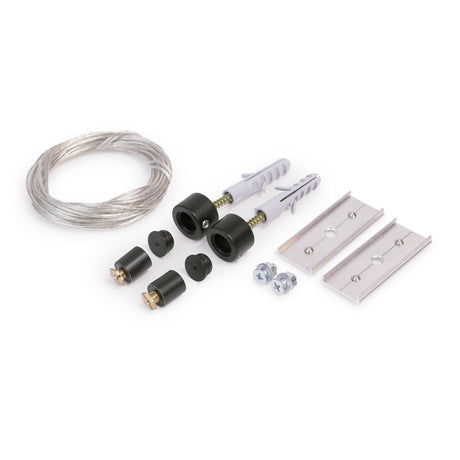

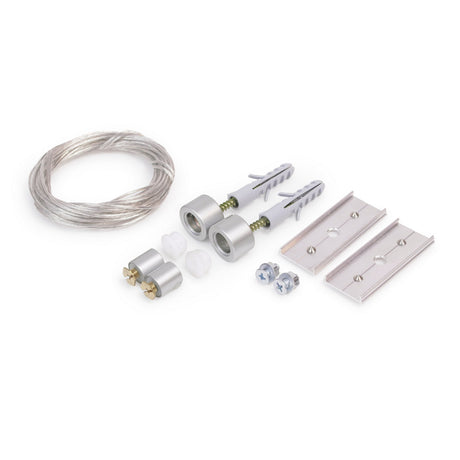

  • Optional SELV (Maximum 50V) suspension kit


Important notes

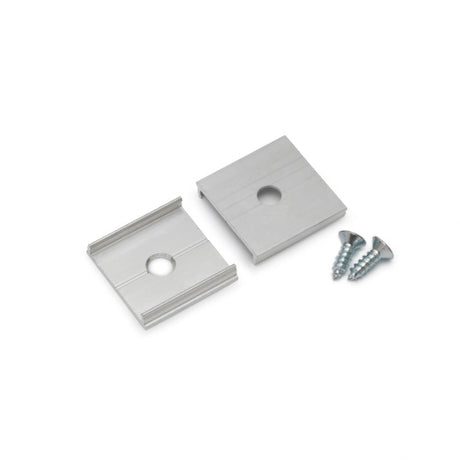

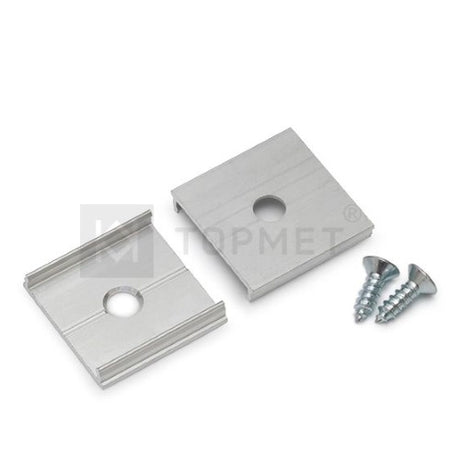

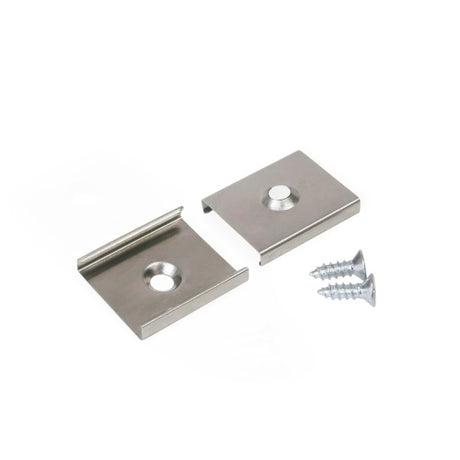

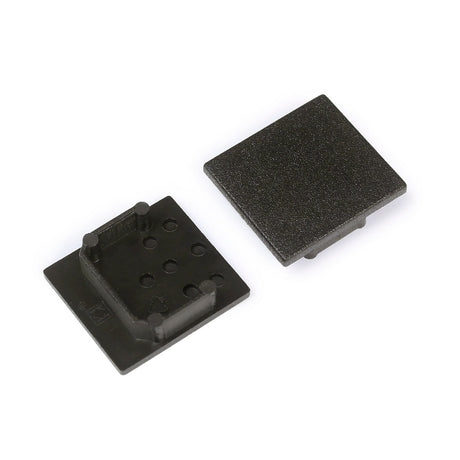

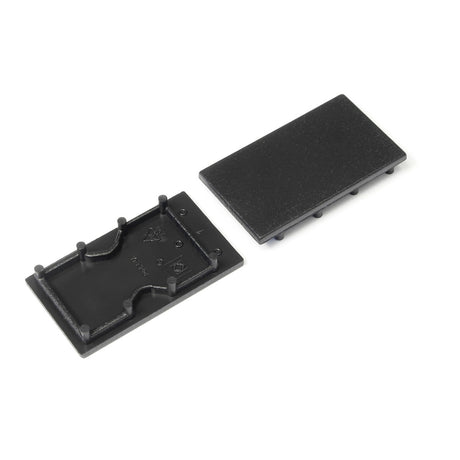

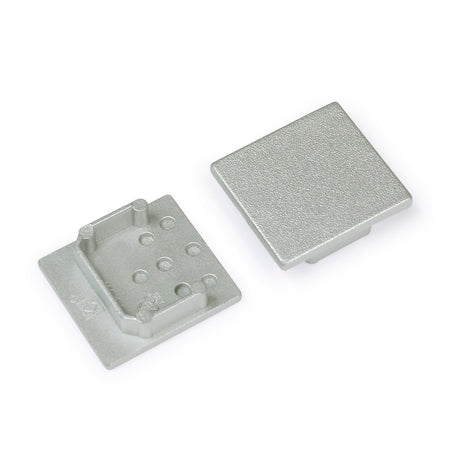

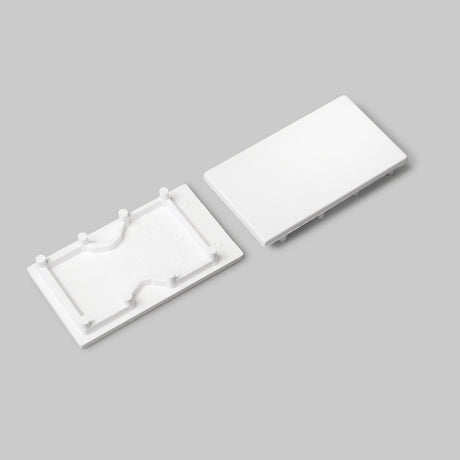

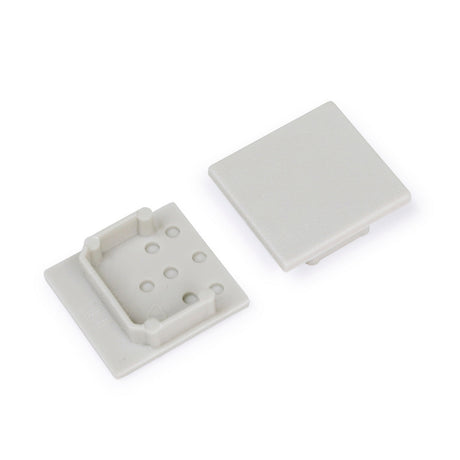

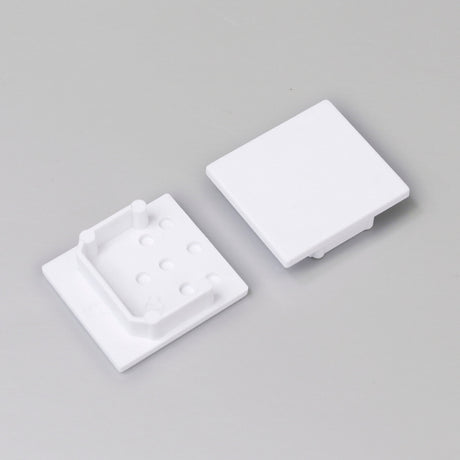

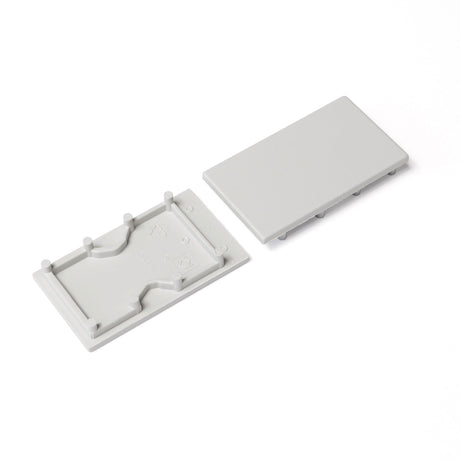

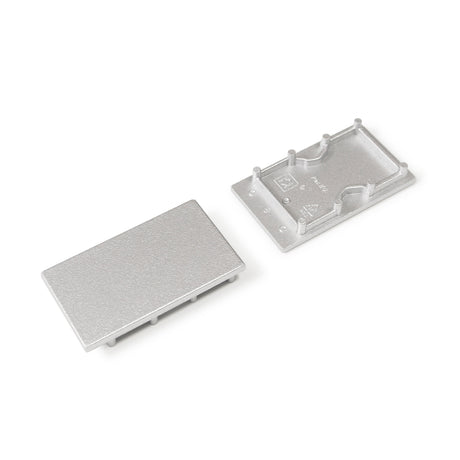

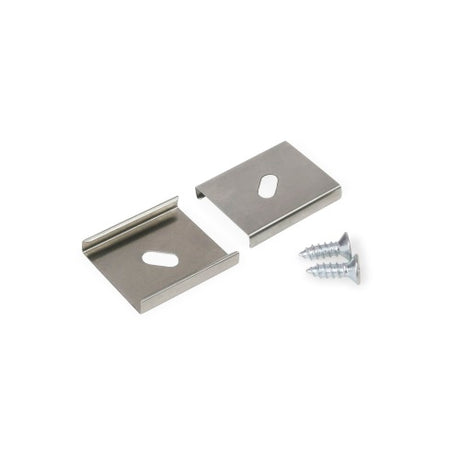

  • LED strip, covers, mounting brackets, end caps, shelf/sign panels and other accessories are sold separately from the aluminum profile. Select the available components below.
  • LED profiles can easily be cut by hand or by machine.
  • For your convenience Wired4Signs USA can cut LED profiles according to your requirements. Please leave instructions in the order comment box.
  • Please note that we cannot refund or replace LED profiles and covers that have been cut.
  • Items in stock are shipped the same day from Knoxville, Tennessee, United States.
  • Bulk pricing is available on request
