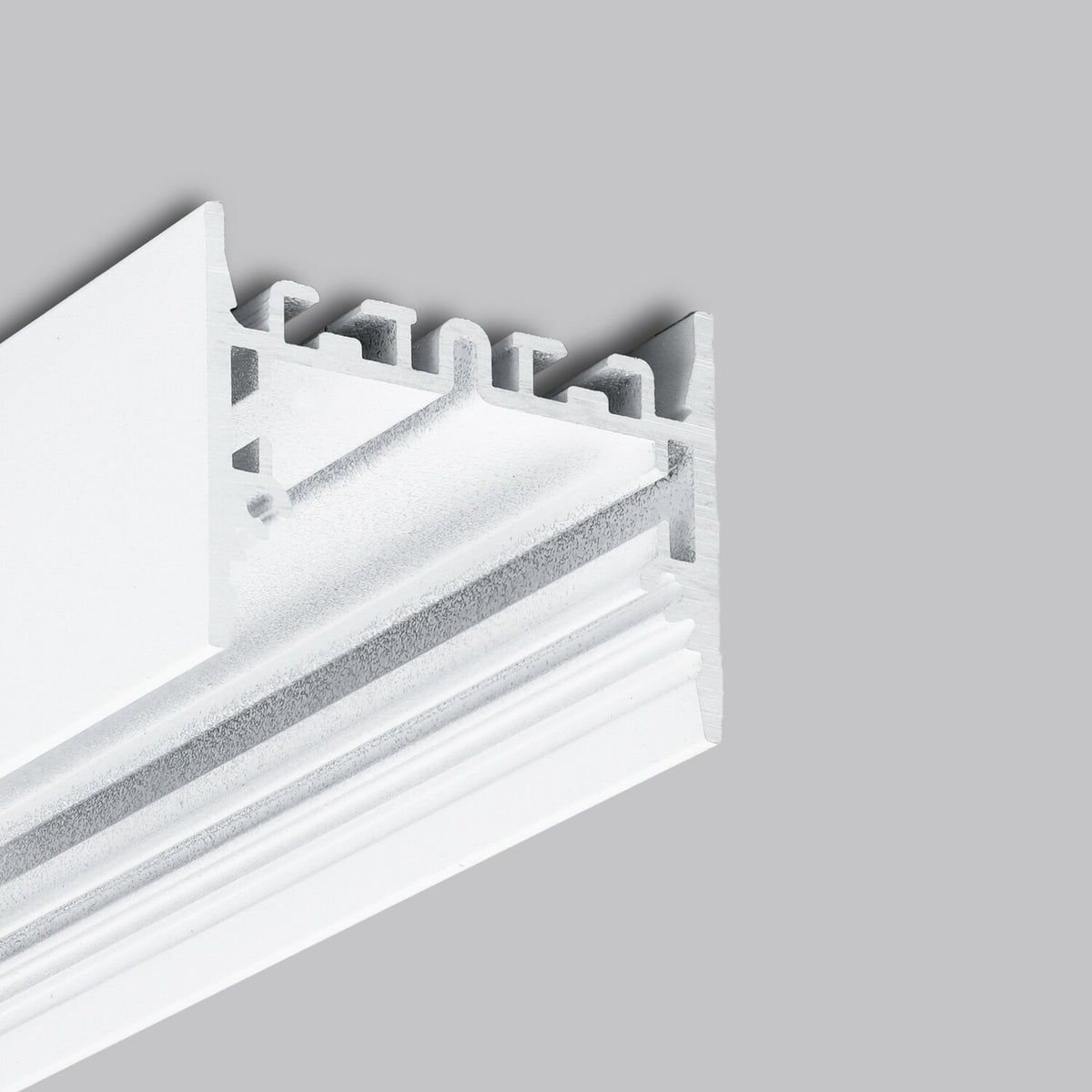

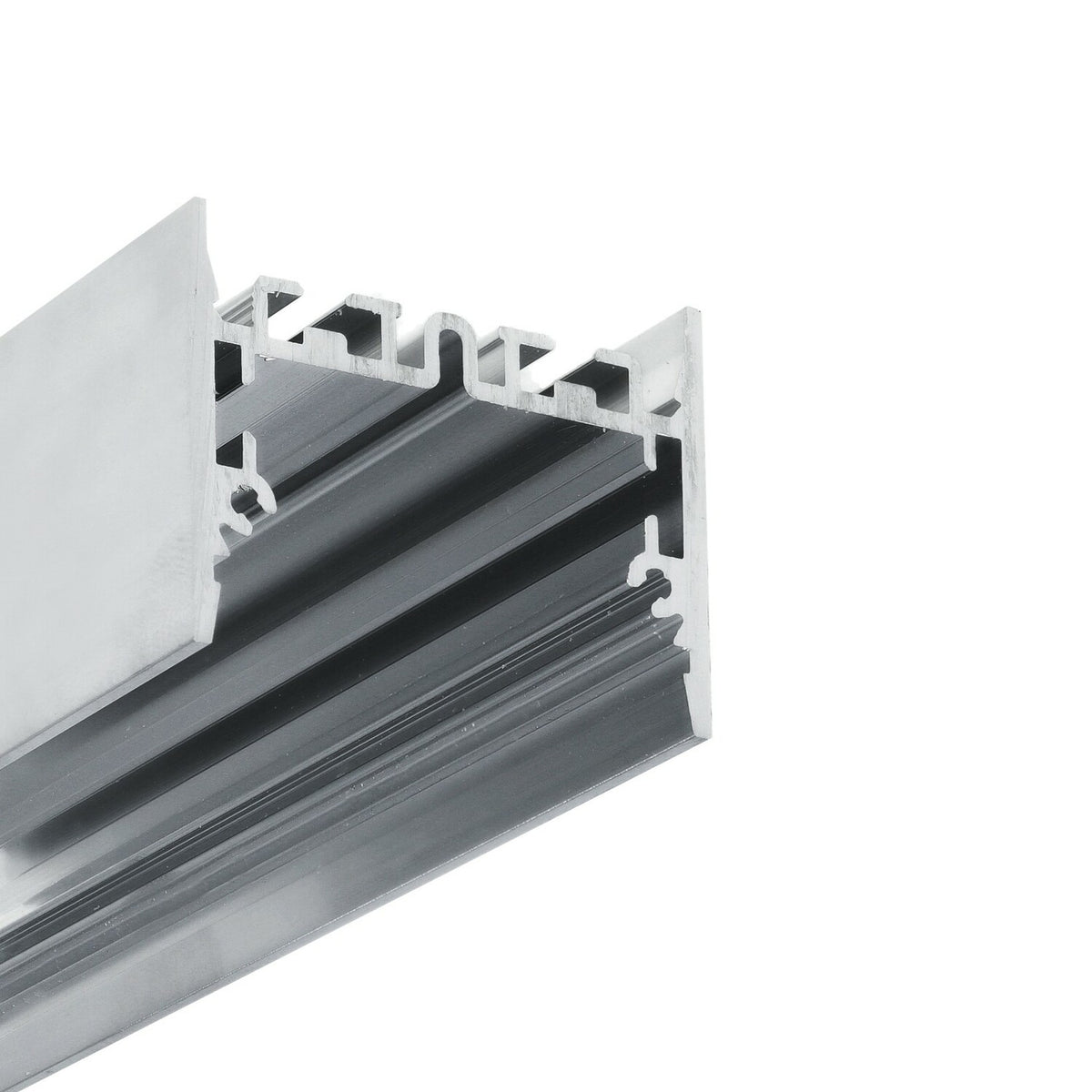

1.73" Suspended/Surface Mount LED Channel ~ Model Pixel33-01

Profile only - diffusers and all other accessories are sold separately

Description

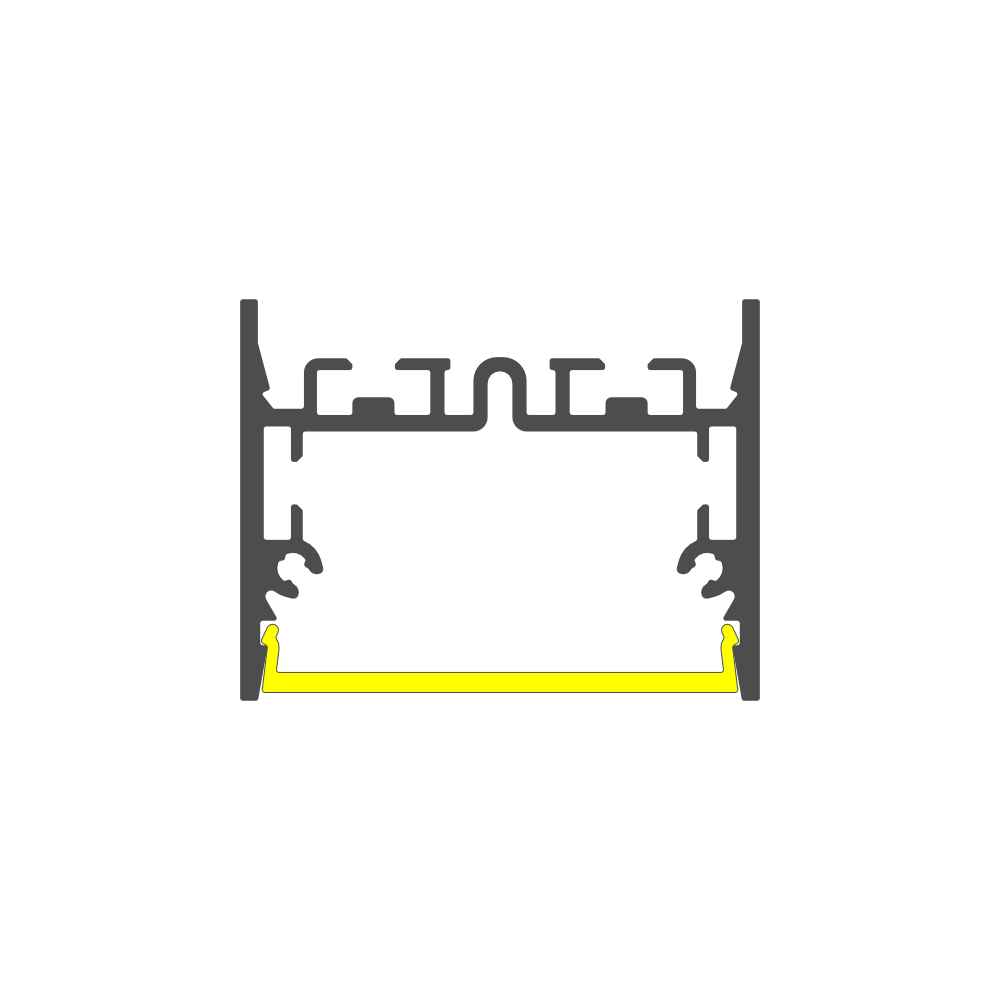

The Pixel33-01 LED profile is a suspended or surface-mounted aluminum LED channel designed to create clean, continuous linear lighting. Its larger profile accommodates LED strip lights up to 33 mm wide, making it an excellent choice for brighter, high-output lighting installations on ceilings, walls, cabinets, shelves, furniture, and other interior surfaces.

Made from high-quality aluminum, this LED channel provides efficient heat dissipation to help extend the lifespan of LED strips while protecting them from dust and everyday wear. When paired with a compatible diffuser cover, it helps reduce visible LED dots, lowers glare (UGR), improves light direction, and delivers a smooth, uniform line of light with reduced screen reflections for a clean, professional finish.

General specifications

• Installation type: Surface mount, suspended
• Material: Aluminum

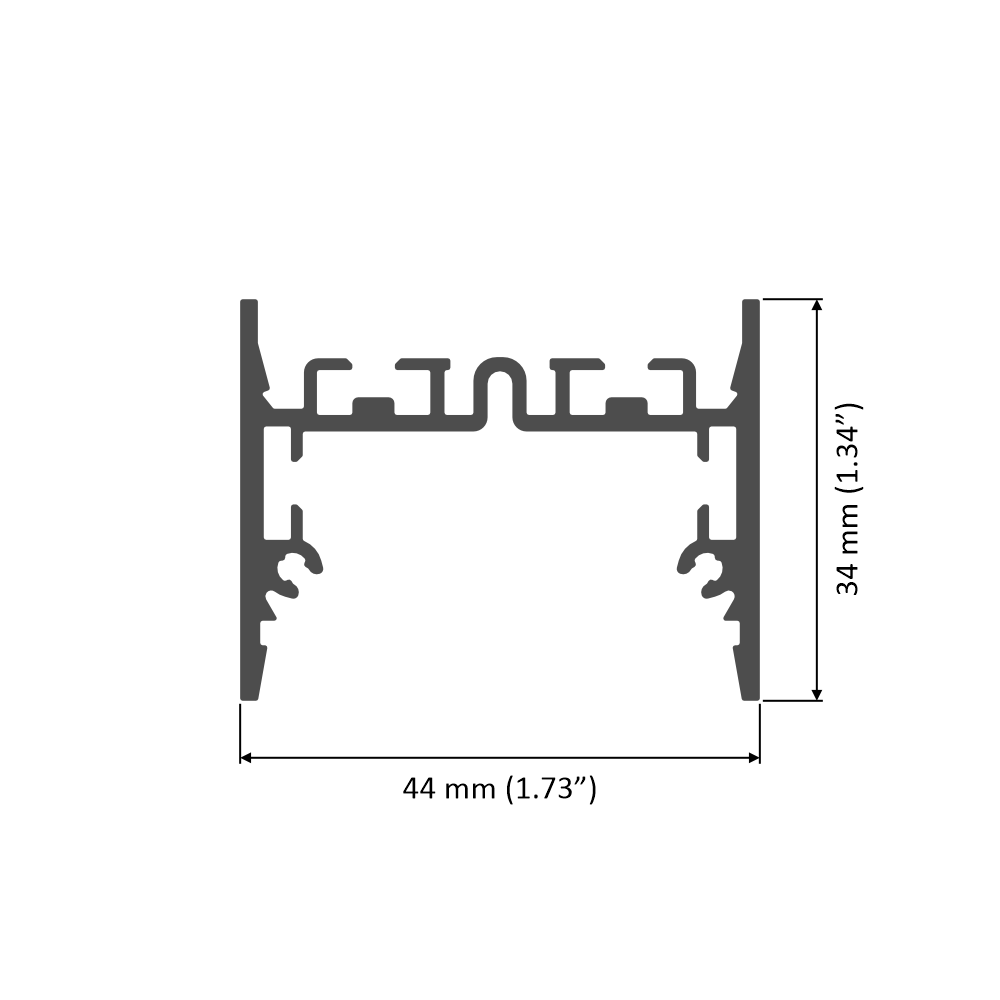

• Overall dimensions: 44mm x 34mm (1.73” × 1.34”)
• Maximum LED strip width: 33mm

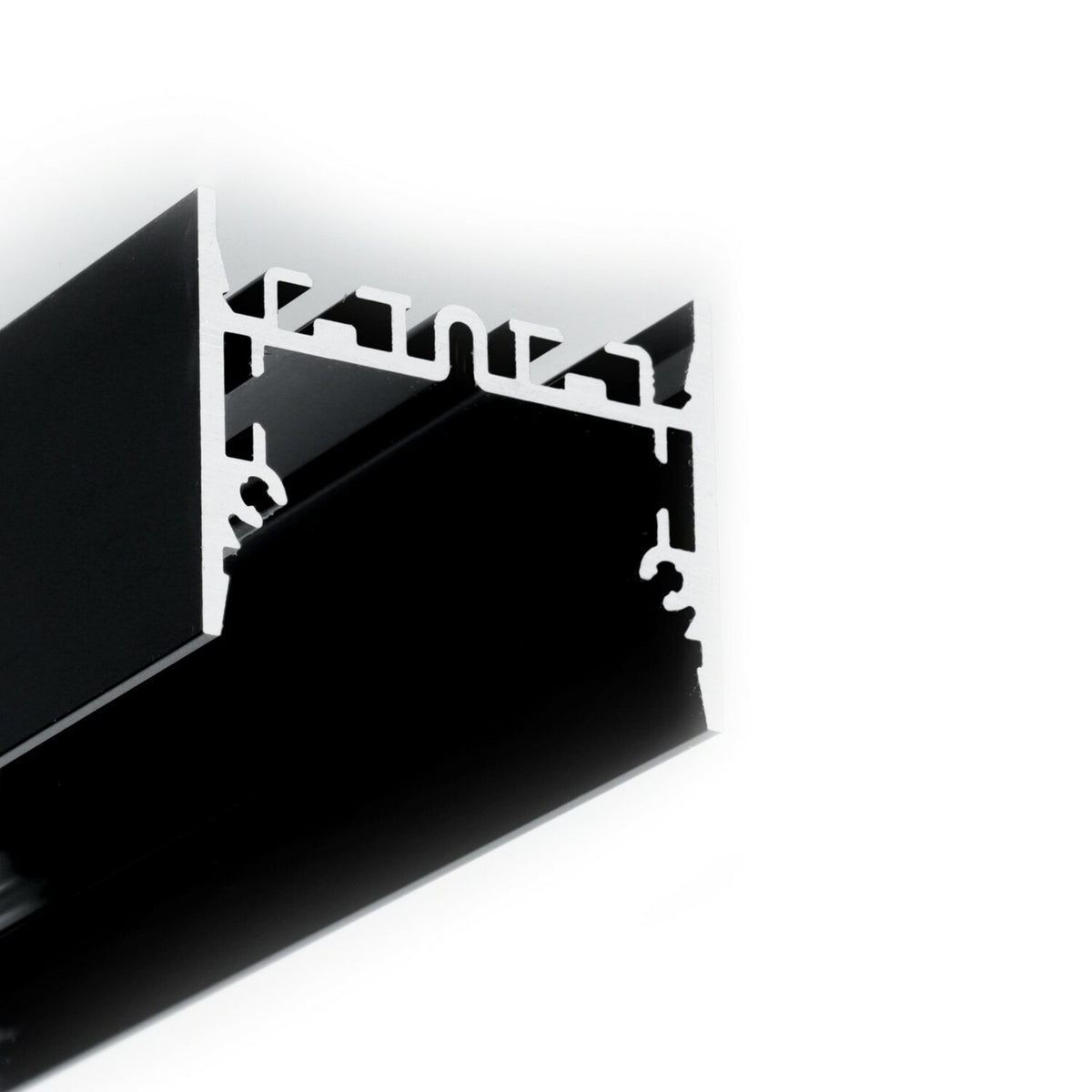

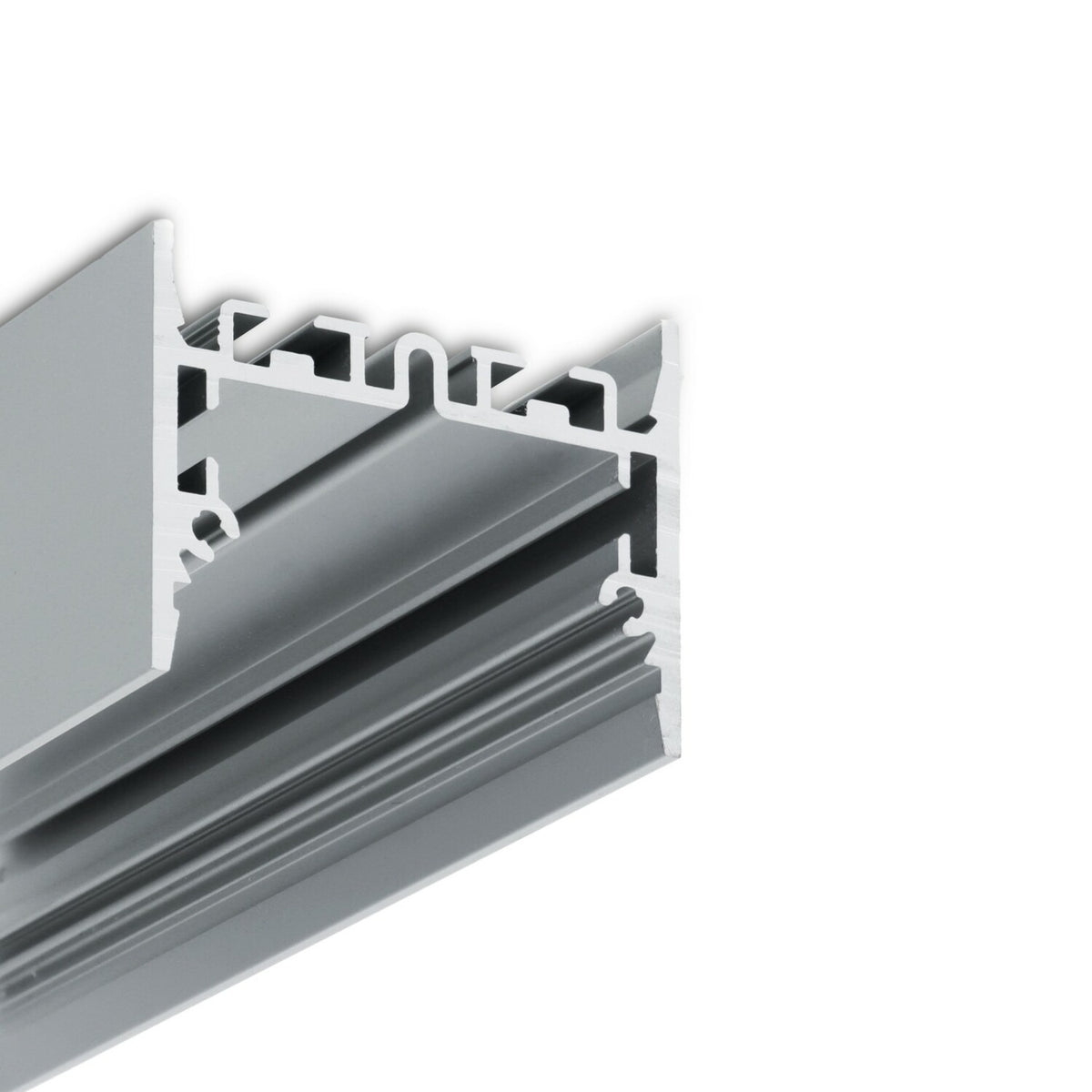

• Color & Finish: Raw aluminum, Silver anodized, Black anodized, White painted

Downloads

• Pixel33-01 cut sheet

Important notes

• You can easily cut LED profiles by hand or by machine.
• For your convenience Wired4Signs USA can cut LED profiles according to your requirements. Please leave instructions in the order comment box.
• We recommend double-checking the measurements before cutting LED profiles and covers to avoid any unnecessary loss. Please note that if you cut LED profiles and covers, we cannot refund or replace them.
• We ship items in stock the same day from Knoxville, Tennessee, United States.
• Bulk pricing is available on request.
