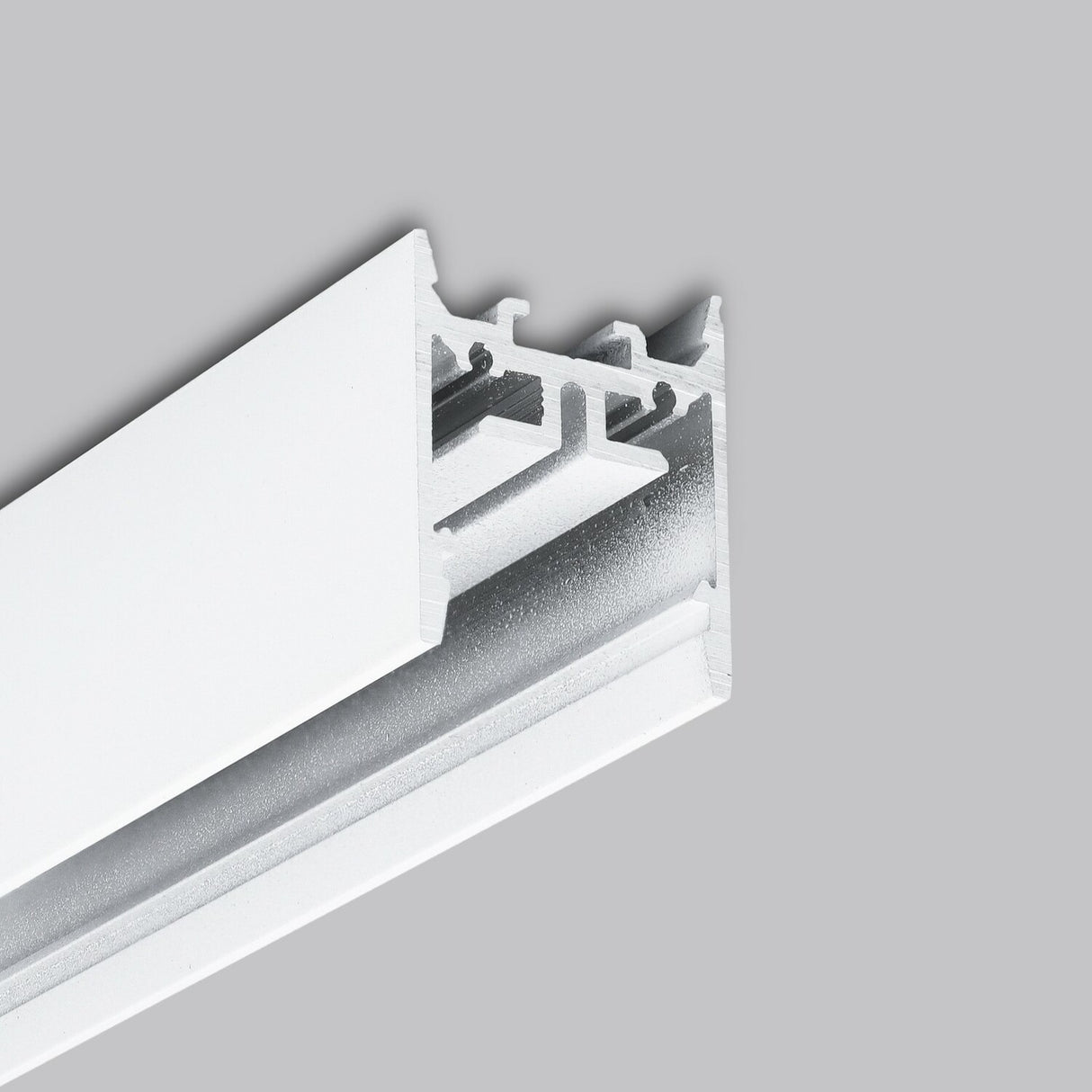

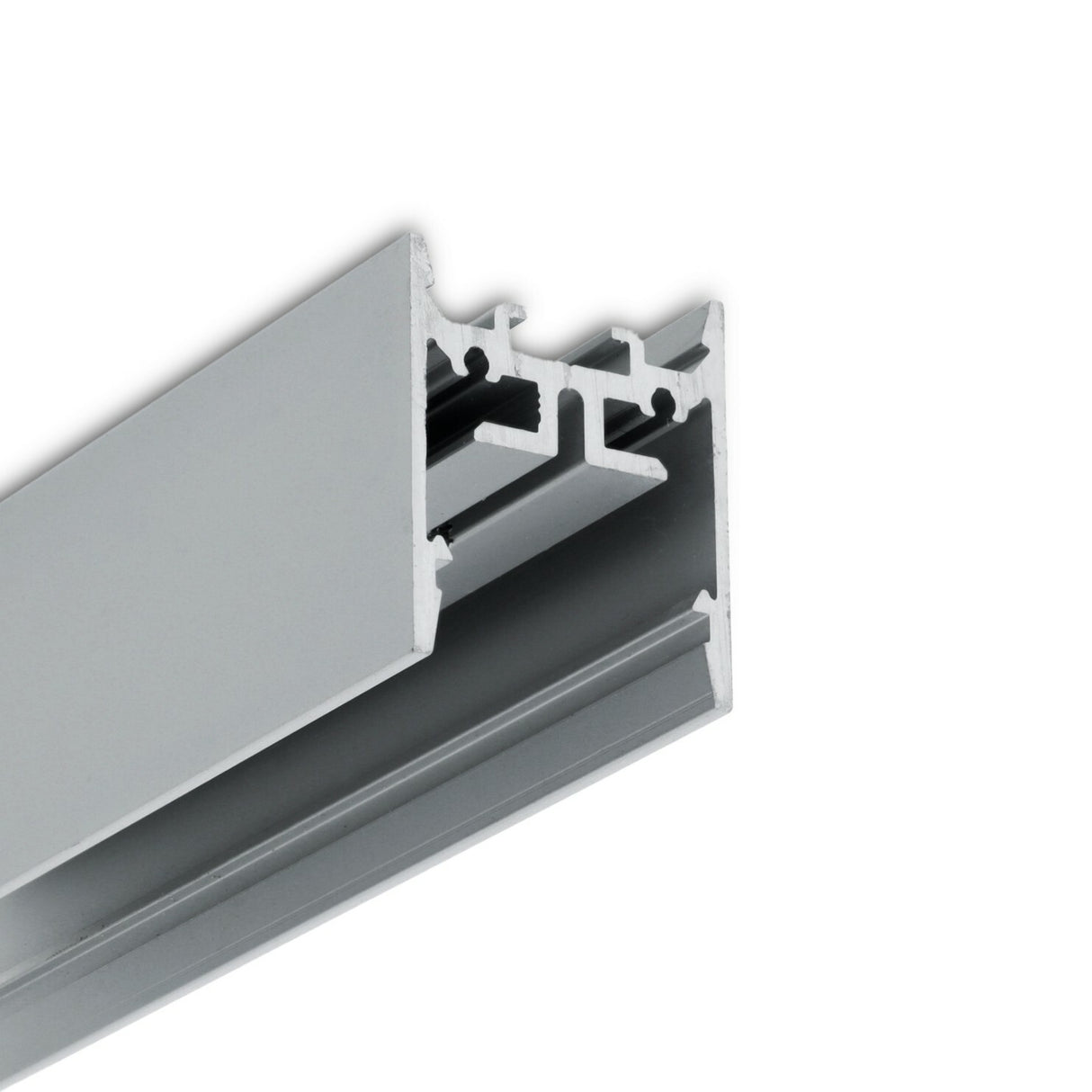

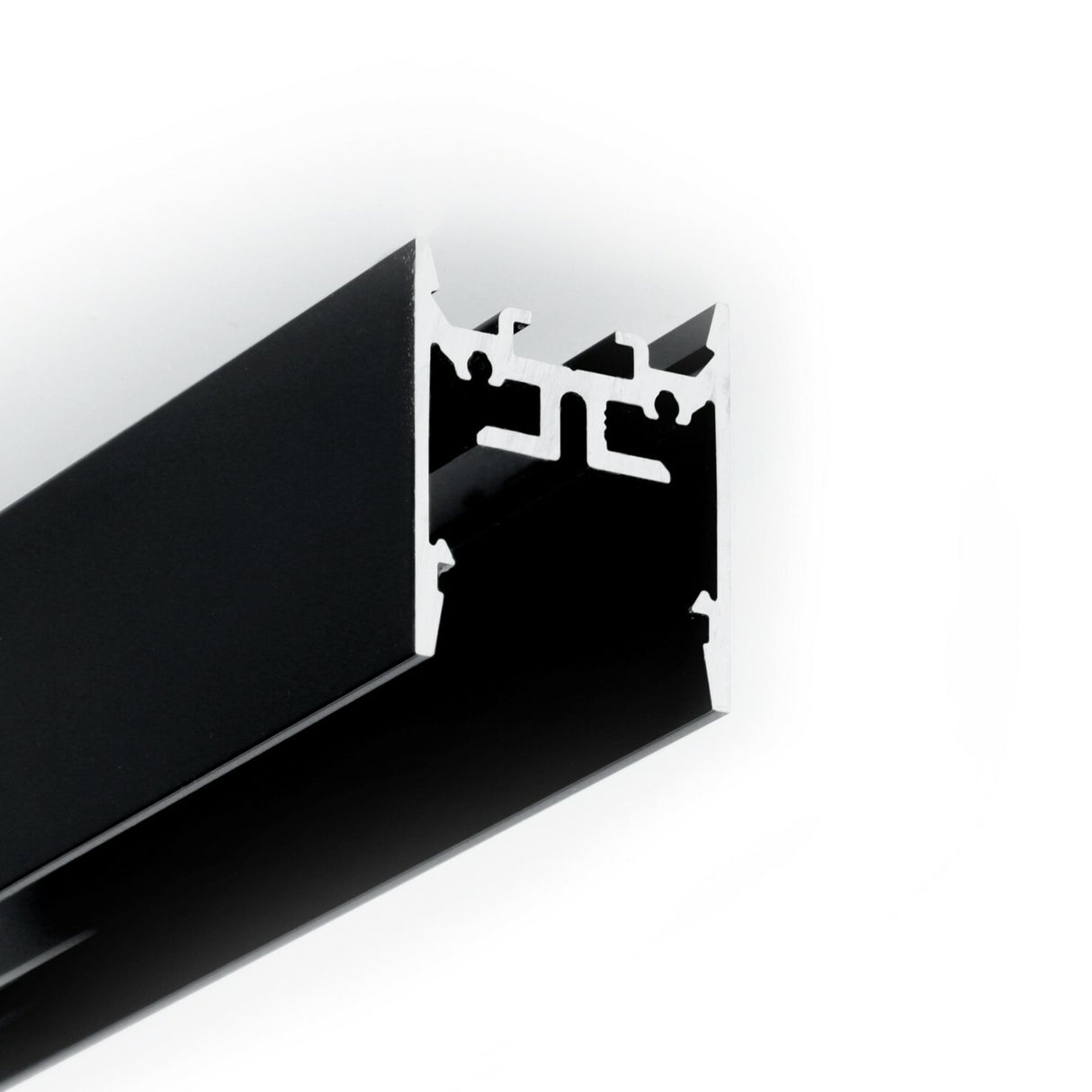

1" Suspended/Surface Mount LED Channel ~ Model Pixy20-01

WIRED4SIGNS USA • FREE shipping on orders over $349 T&C apply

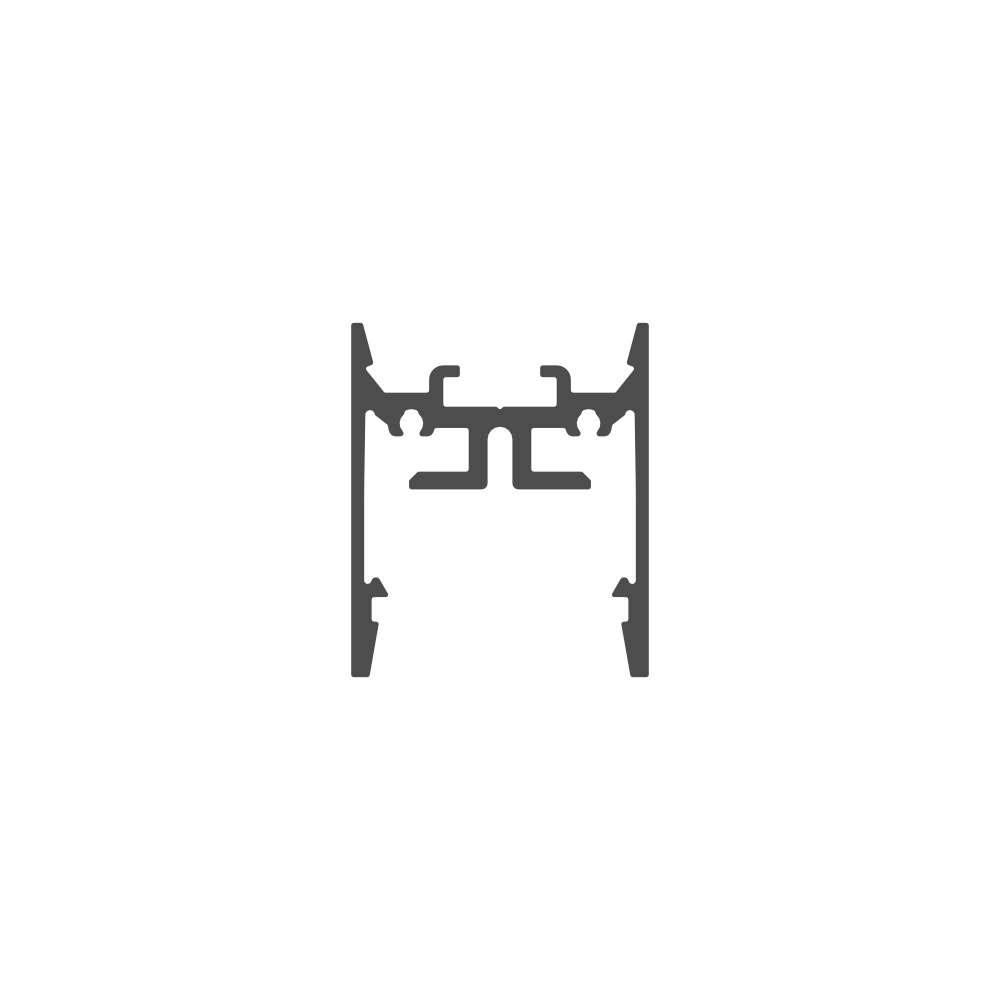

A black, symmetrical, abstract shape resembling two vertical brackets with horizontal and angled extensions—much like the cross-section of the 1″ Suspended/Surface Mount LED Channel (Model Pixy20-01)—centered on a white background.

Short

No power supply cavity
Technical drawing of a cross-section of the 1″ Suspended/Surface Mount LED Channel, Model Pixy20-02, shown in black with internal cavities and grooves, depicted against a white background.

Tall

With power supply cavity

1" Suspended/Surface Mount LED Channel ~ Model Pixy20-01

SKU: LED-P5000320-3
Color
Length
$127.52 USD
Shipping calculated at checkout.

Buy in bulk and save

By becoming a wholesale customer, you can save money on your orders. Apply here.

Compatible Components and Accessories

View all

Custom Fabrication

Made to Measure

Have your channels cut and your strips soldered for you. We’ll do 5 of each for you at no additional cost.

20+ YEARS LED EXPERIENCE

20+ YEARS LED EXPERIENCE

SHIPPED FROM TENNESSEE

SHIPPED FROM TENNESSEE

COMMERCIAL GRADE QUALITY

COMMERCIAL GRADE QUALITY

EXPERT TECH SUPPORT

EXPERT TECH SUPPORT

Profile only - diffusers and all other accessories are sold separately

Description

The Pixy20-01 LED profile is a compact, surface-mounted aluminum channel engineered for clean, professional lighting installations. Its streamlined design reduces glare (UGR) and minimizes screen reflections, making it ideal for offices, retail spaces, and modern interiors where visual comfort is essential.

The low-profile housing provides precise light direction control and high lighting efficiency, while the high-quality aluminum construction ensures effective heat dissipation and long-term durability.

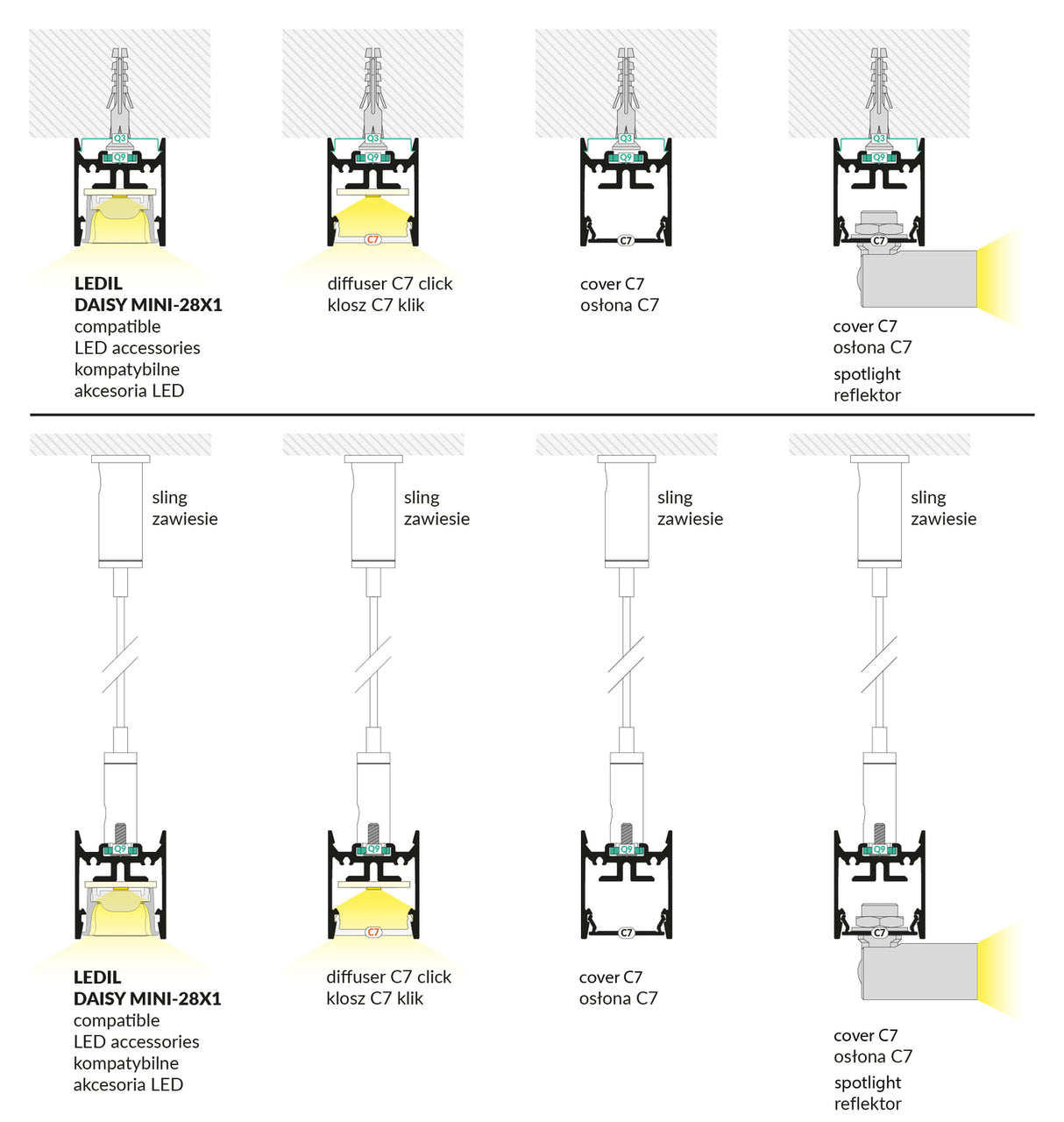

Suitable for both surface and suspended mounting, the Pixy20-01 accommodates LED strips up to 20mm wide – delivering versatile, refined illumination with a sleek architectural finish.

General specifications

  • Installation type: Surface mount, suspended
  • Material: Aluminum

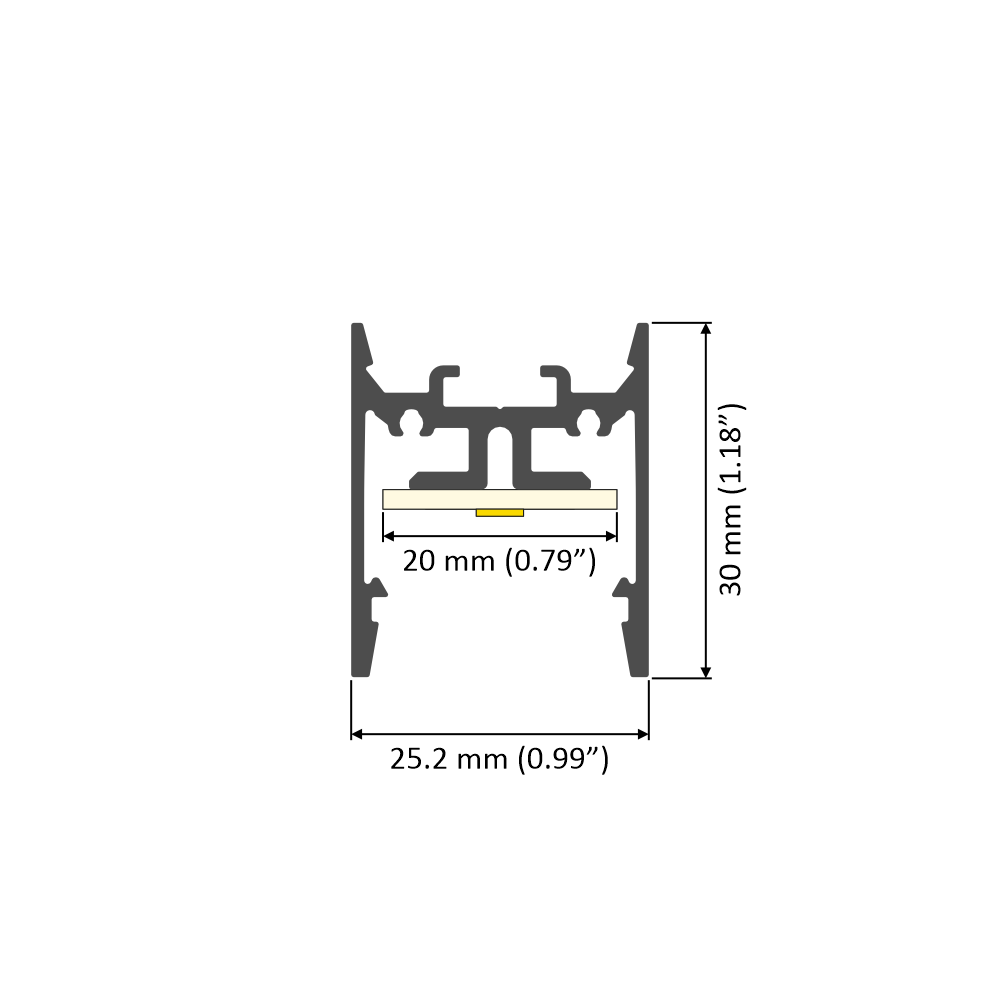

  • Overall dimensions: 25.2mm x 30mm (0.99" x 1.18")
  • Maximum LED strip width: 20mm
  • Color & Finish: Raw aluminum, Silver anodized, Black anodized, White painted

Downloads

Important notes

  • You can easily cut LED profiles by hand or by machine.
  • For your convenience Wired4Signs USA can cut LED profiles according to your requirements. Please leave instructions in the order comment box.
  • We can assemble a plug and play light fitting with this profile according to your specifications.
  • We recommend double-checking the measurements before cutting LED profiles and covers to avoid any unnecessary loss. Please note that if you cut LED profiles and covers, we cannot refund or replace them.
  • We ship items in stock the same day from Knoxville, Tennessee, United States.
  • Bulk pricing is available on request.
