360 Degree Suspended Tube LED Lighting Channel ~ Model Cartago

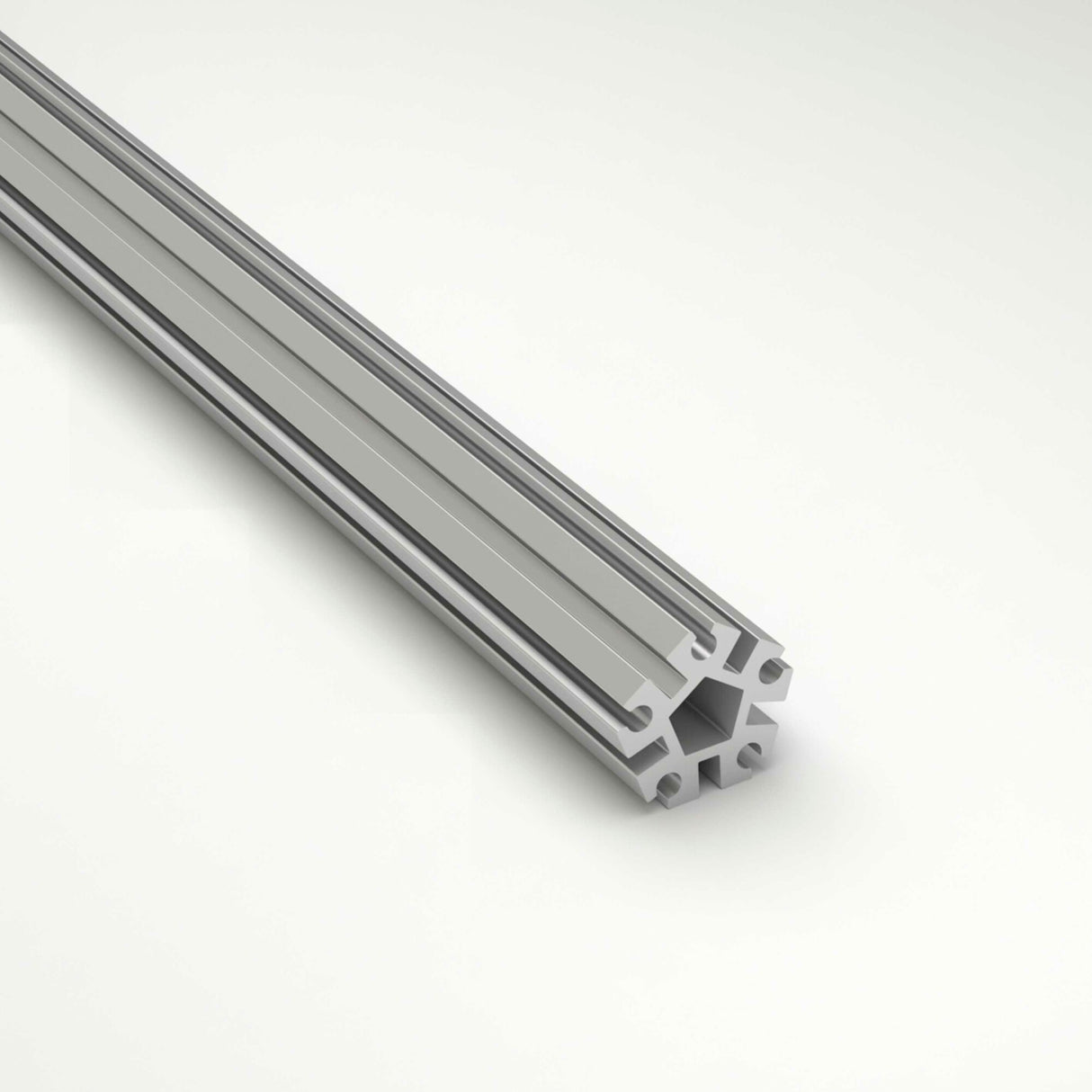

The Cartago profile is a LED tube lighting channel used for suspended lighting with 360-degree illumination. This profile is perfect for vertical hanging, featuring an opal polycarbonate cover and a pentagonal internal core made of high-quality aluminum.

The profile's design offers 360° light emission, creating an pleasant visual effect especially suitable for commercial or domestic lighting applications, restaurants, hotels, showrooms, and reception areas where a contemporary and sophisticated style is required.

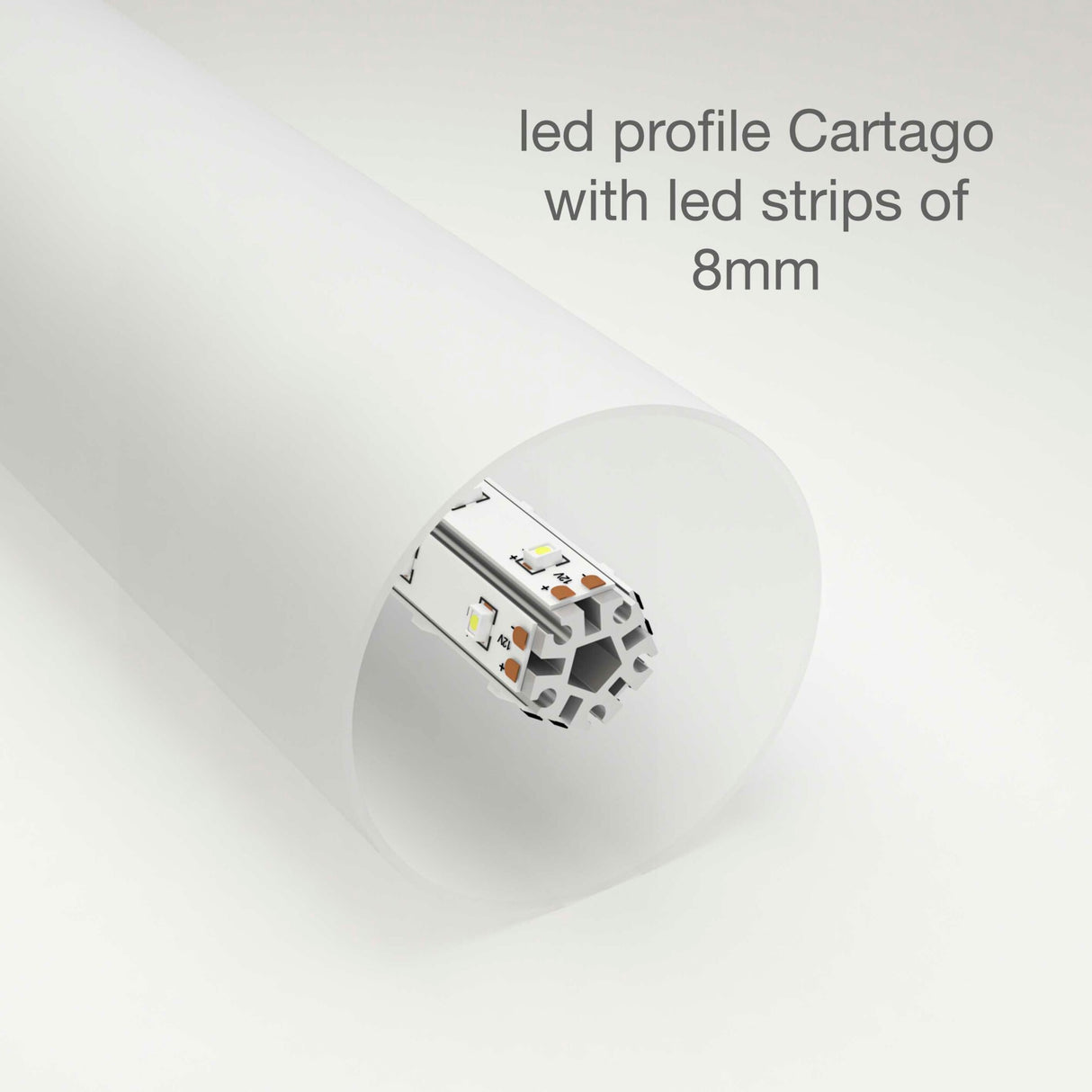

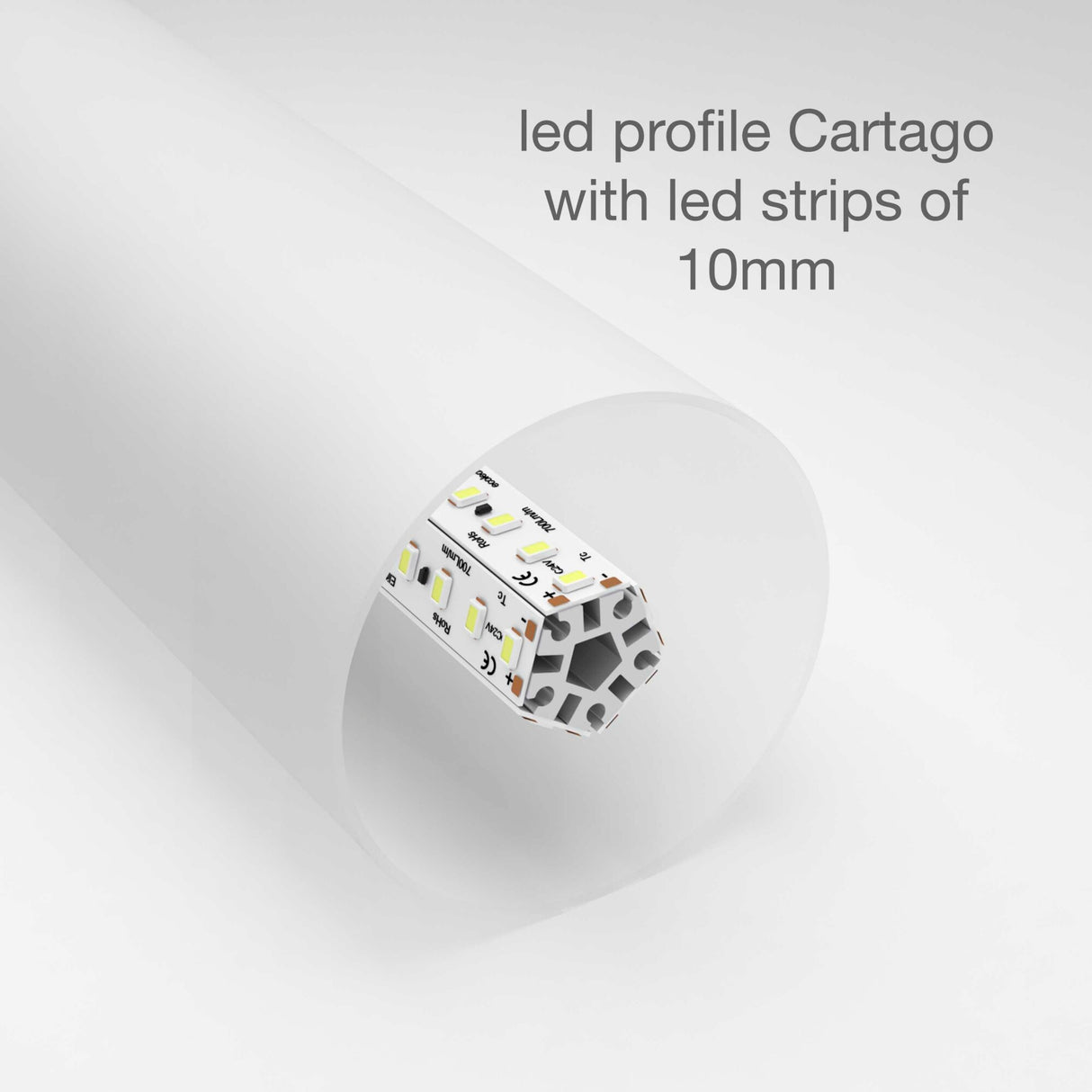

The Cartago profile safely houses 5 LED strips inside, protecting them and providing efficient heat dissipation to maintain optimal performance of the light sources. It is suitable for LED strips with a width of 8-10mm and a total power not greater than 30W/m for all the 5 LED strips.

General specifications

• Material: Aluminum

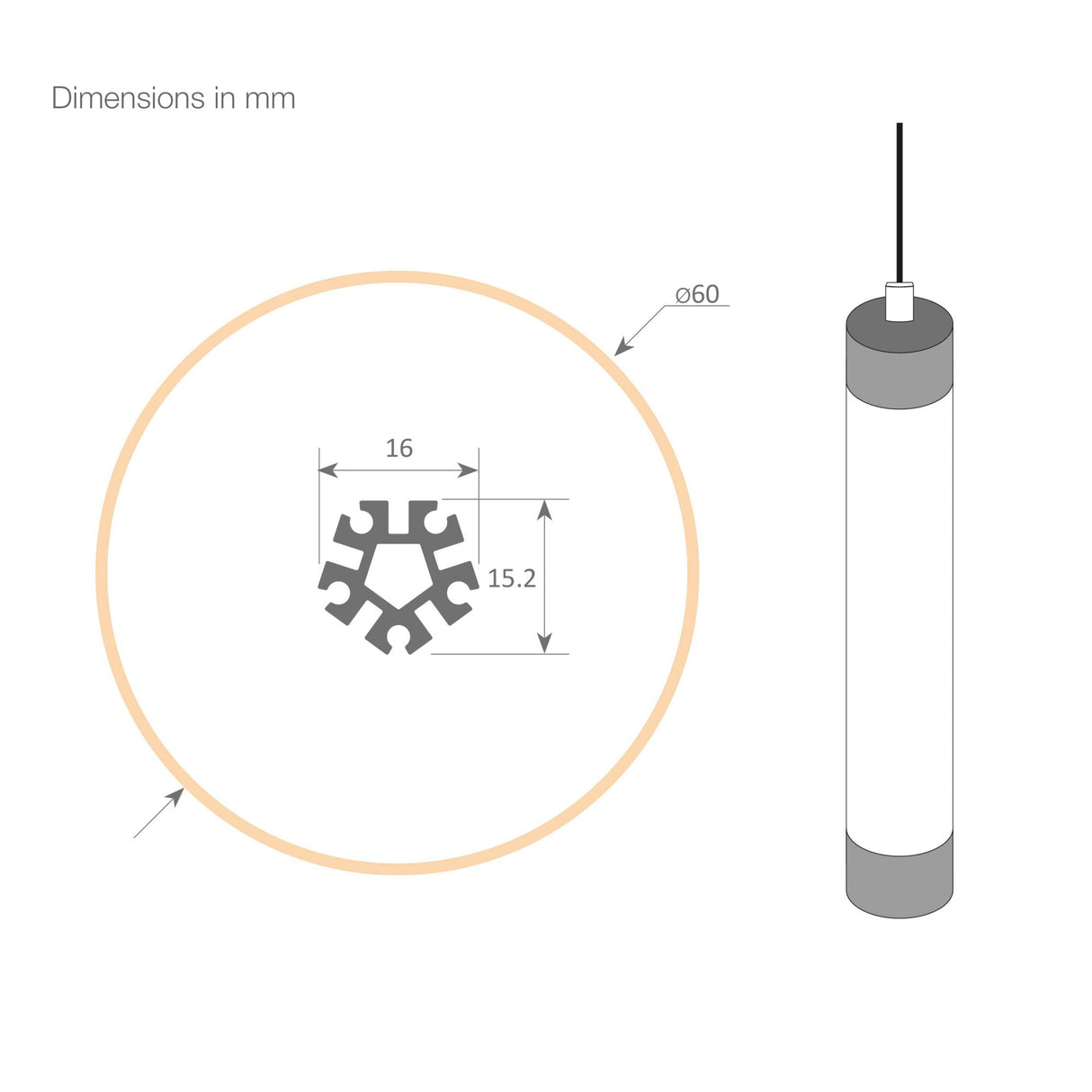

• Diameter: 60mm (2.36”)
• LED strip width: 8-10mm
• Max LED power: 30W/m (total)

Downloads

• Cartago cut sheet (to be added)

Important notes

• Please note that raw or natural profiles or channels are not anodized and need to be coated or painted, or they will oxidize over time in outdoor applications.
• LED profiles can easily be cut by hand or by machine.
• For your convenience Wired4Signs USA can cut LED profiles according to your requirements. Please leave instructions in the order comment box.
• Please note that we cannot refund or replace LED profiles and covers that have been cut.
• Items in stock are shipped the same day from Knoxville, Tennessee, United States.
• Bulk pricing is available on request.
