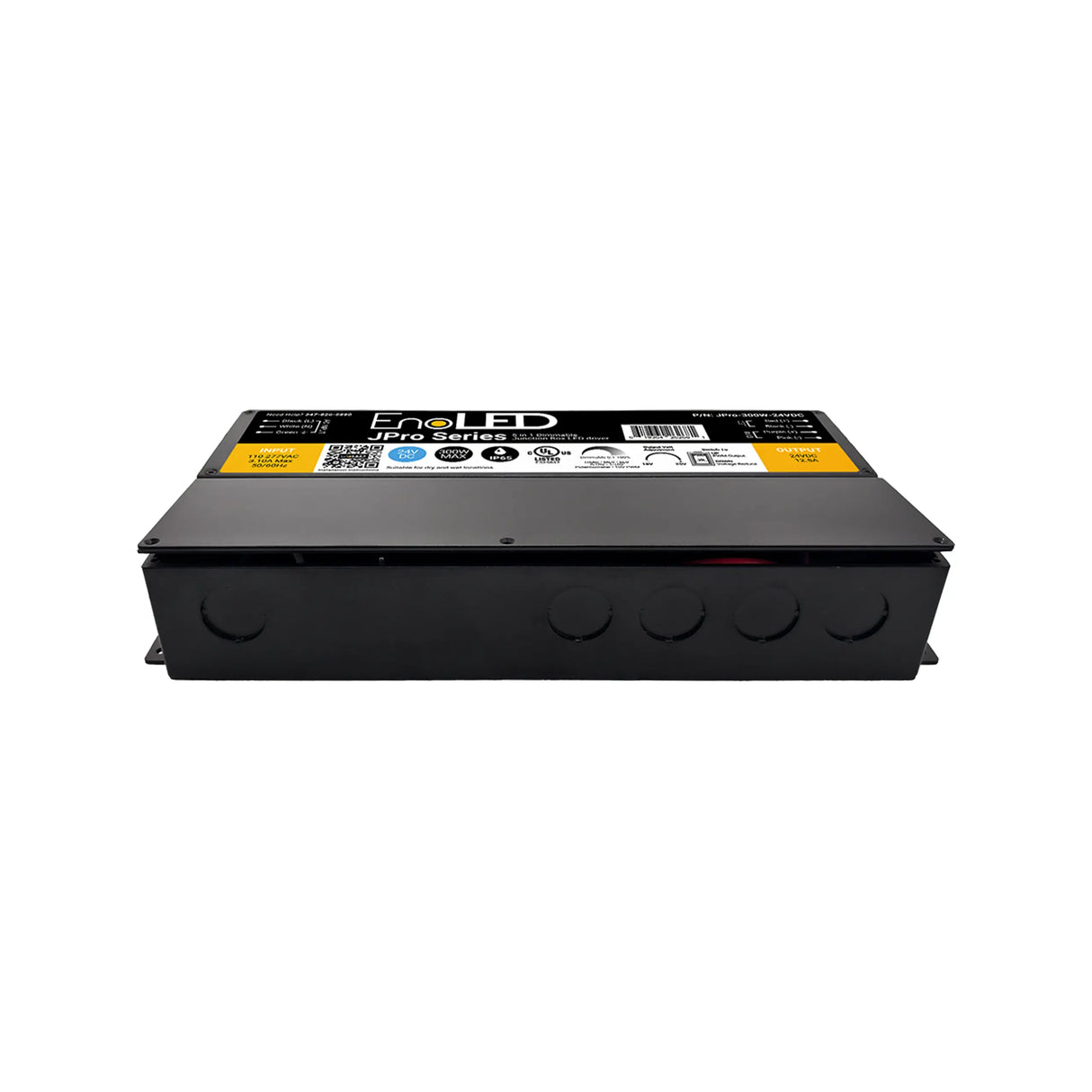

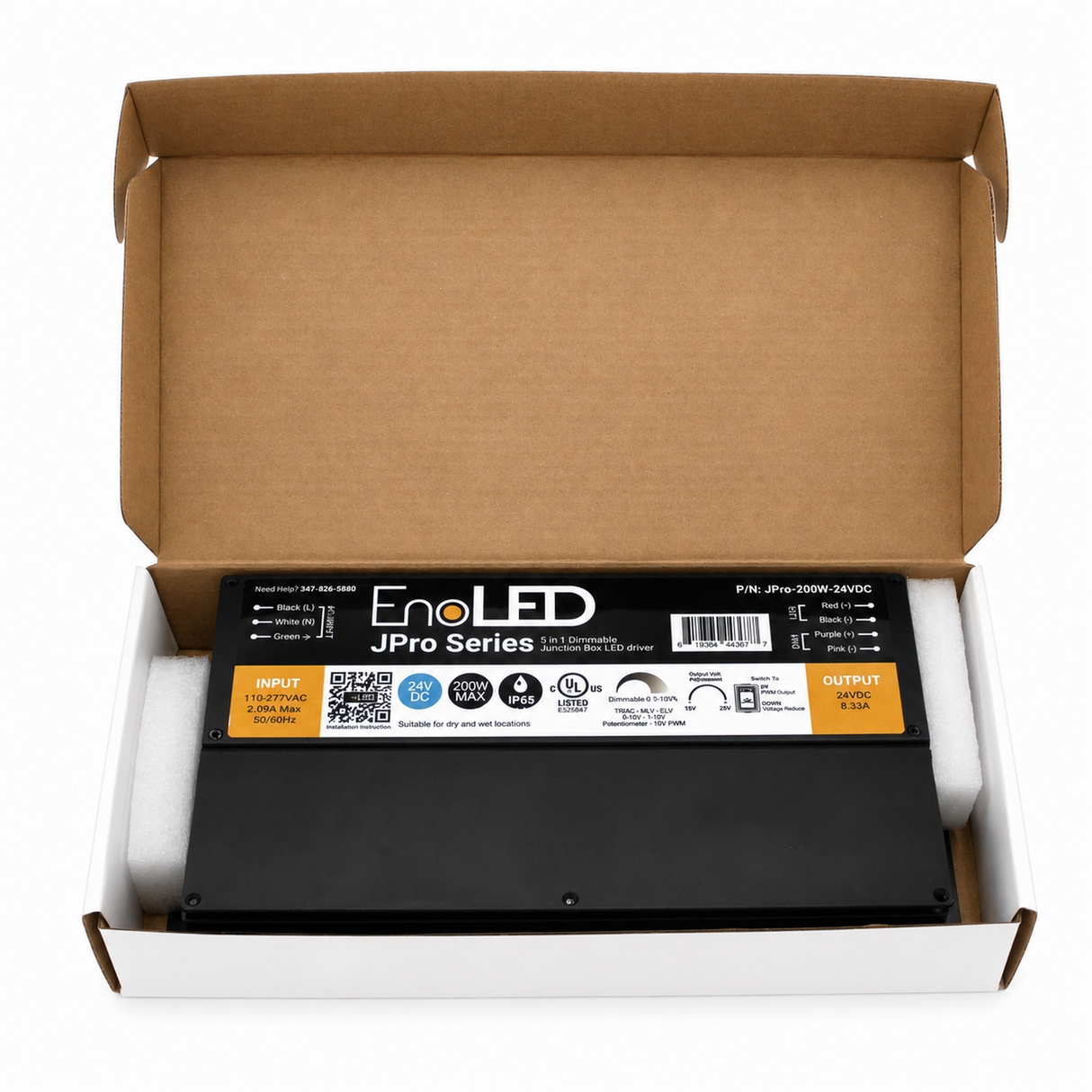

5-in-1 Dimmable J-Box LED Driver (24V) ~ Enoled JPro Series

LED power supply only ~ LED strip and all other components are sold separately

Description

The JPro Series is a professional-grade universal dimmable LED driver designed for high-performance LED tape and architectural lighting. It supports a universal 120–277V AC input and delivers a 24V DC output with up to 96W, 200W OR 300W of power, making it suitable for a wide range of residential and commercial lighting applications.

It features 5-in-1 dimming compatibility, supporting TRIAC, MLV, ELV, 0-10V, and 10V PWM controls. With both PWM and voltage reduction dimming modes, it provides smooth, flicker-free dimming down to 0.1%. Long-run voltage drop compensation helps maintain consistent brightness across extended LED strip installations.

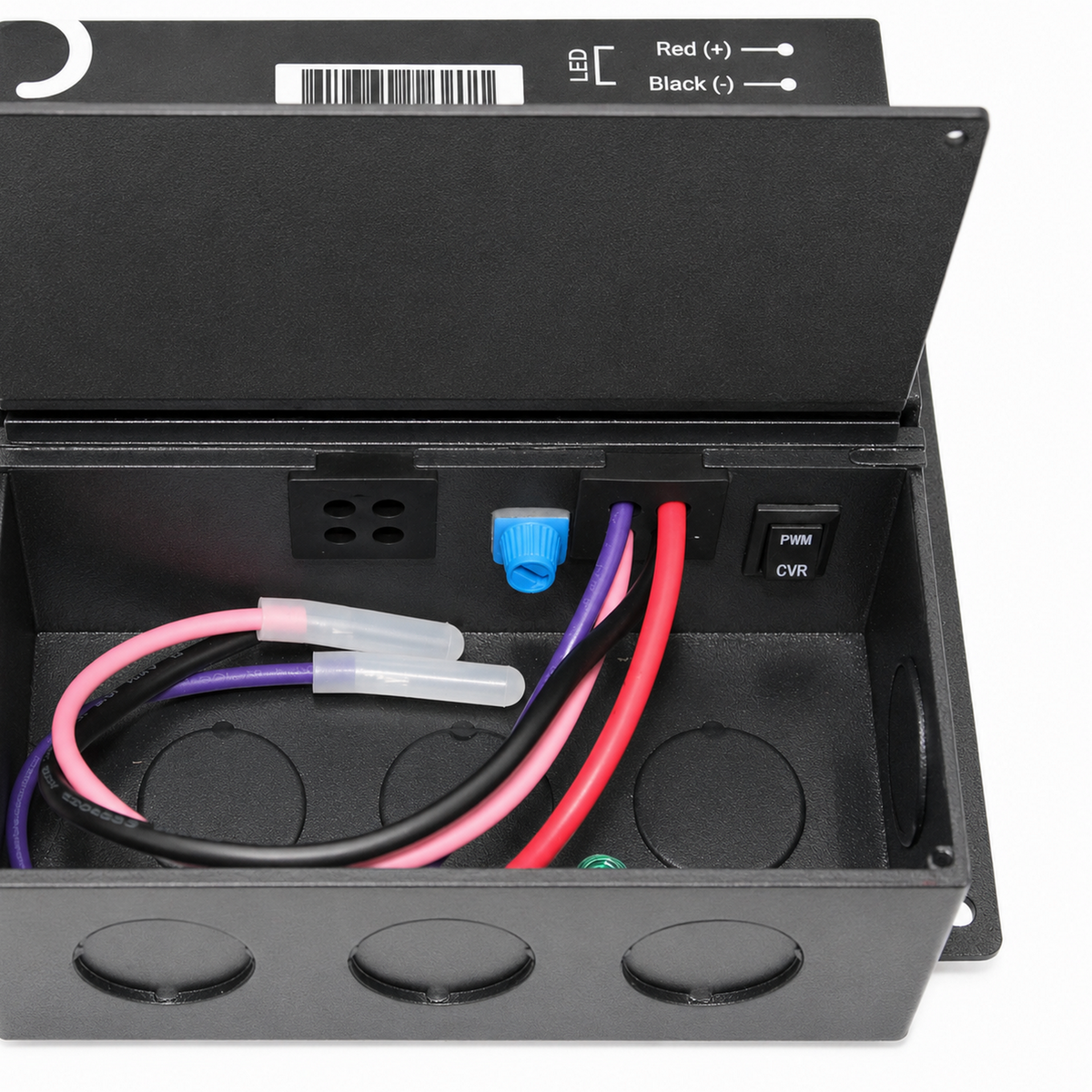

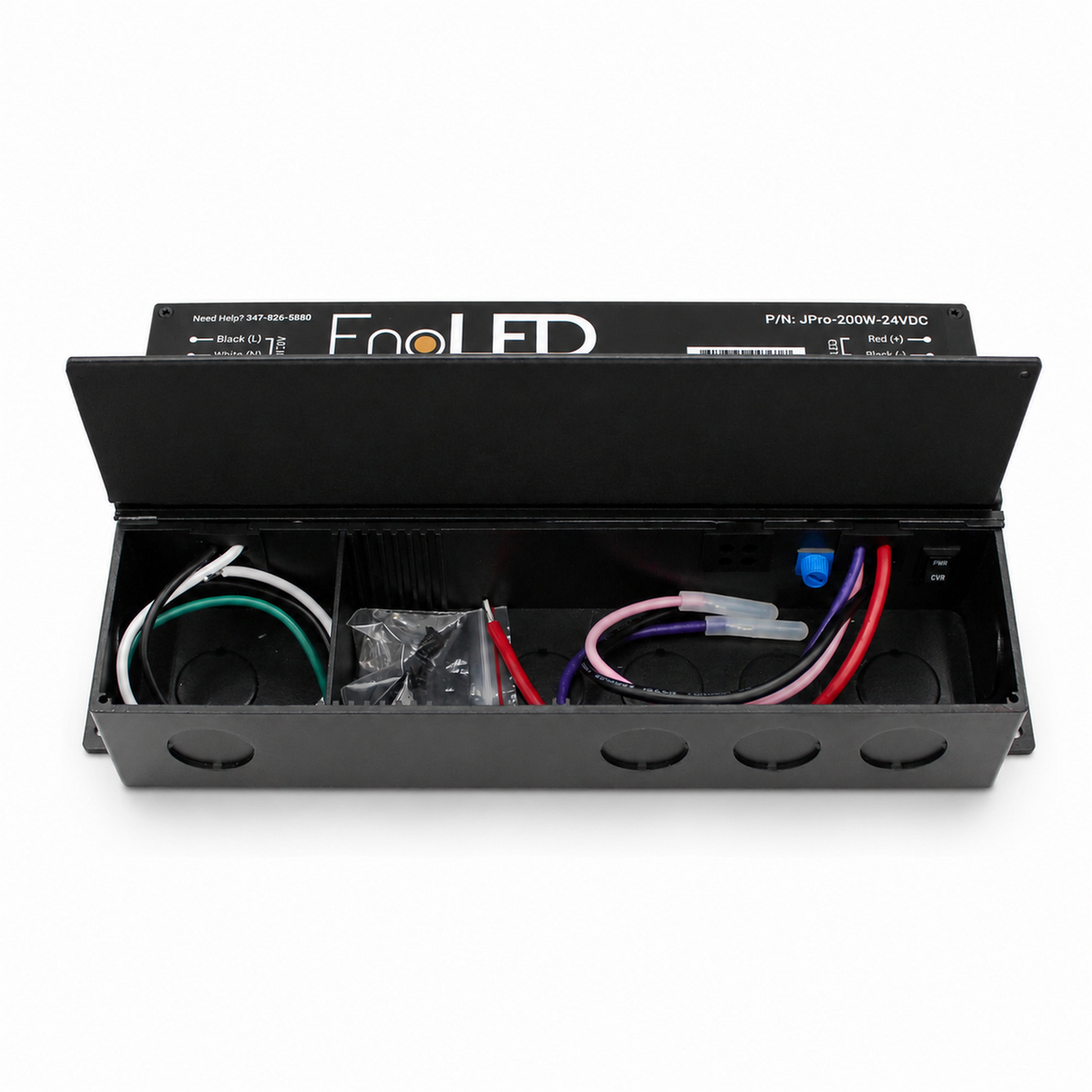

The IP65-rated, Class 2 junction box enclosure is designed for both indoor and outdoor use while simplifying wiring and installation. With up to 90% full-load efficiency and a 6-year limited warranty, the JPro Series delivers reliable, energy-efficient performance for long-term use.

Designed for professional LED installations, the JPro series drivers with junction-box are UL Listed and Title 24 Part 6 compliant with a 20kHz PWM frequency for flicker-free dimming.

General specifications

• Input voltage: 120-277V AC
• Output voltage: 24V DC
• Power: 96W, 200W or 300W
• Dimmable: TRIAC / MLV / ELV / 0-10V 1-10V / Potentiometer / 10V PWM
• Protection rating: IP65
• Efficiency @ full load: 90%
• Dimming type: PWM 20kHz / voltage reduction
• Certification: UL Listed, Compliant with Title 24 Part 6 flicker requirements
• Warranty: 6 Year limited
• Overall dimensions :

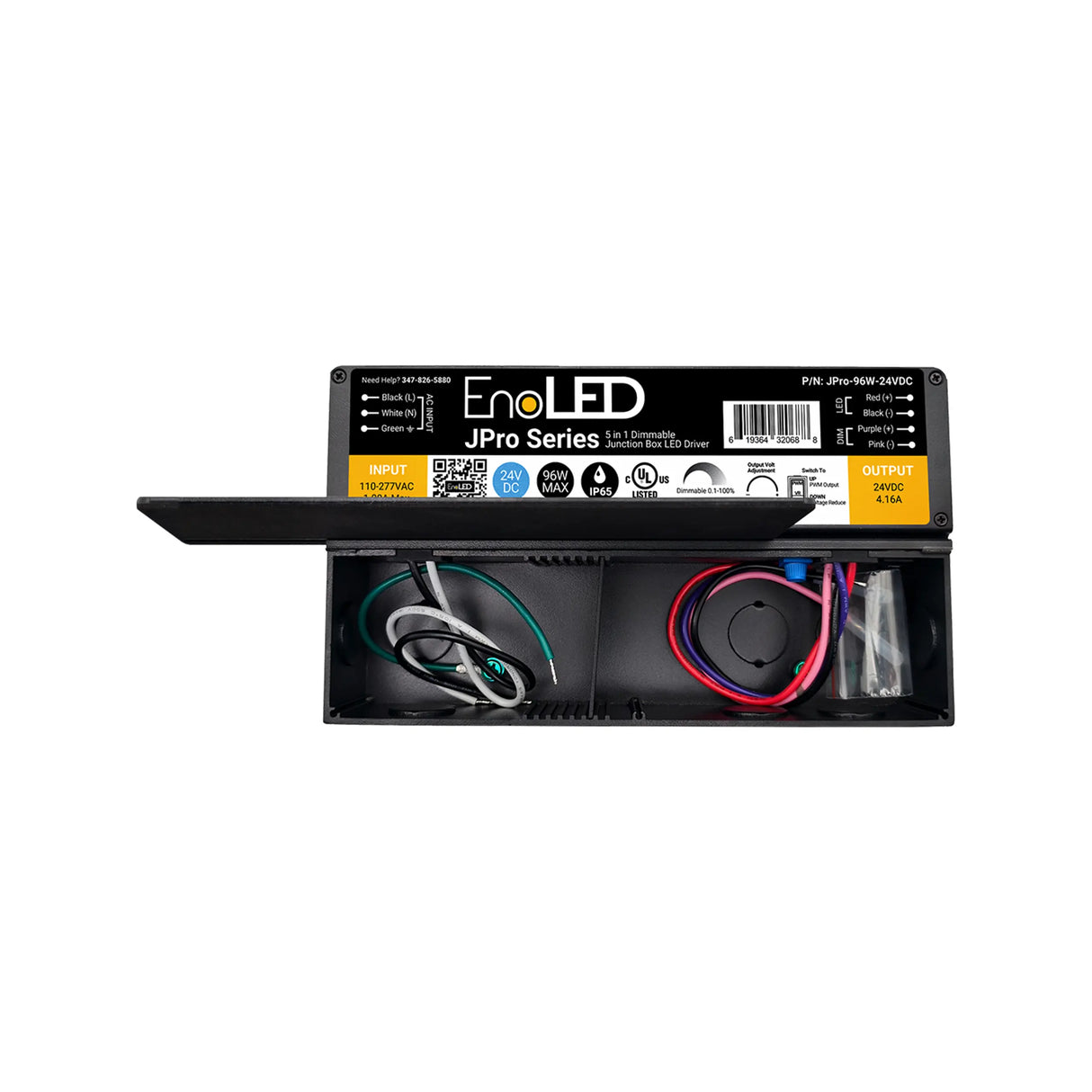

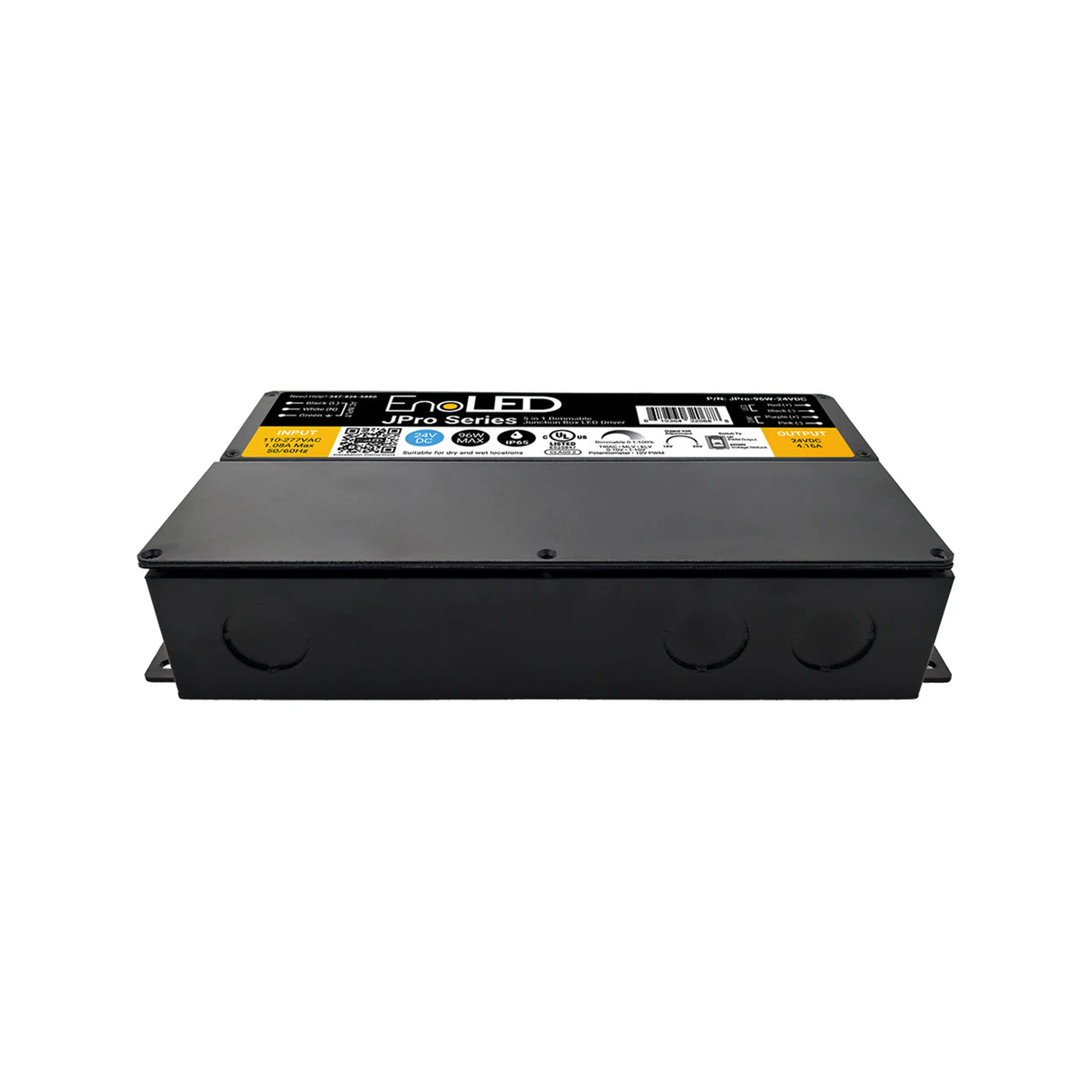

  • JPro-96W-24VDC: 226.31 x 117.35 x 42.42 mm (8.91" x 4.62" x 1.67")

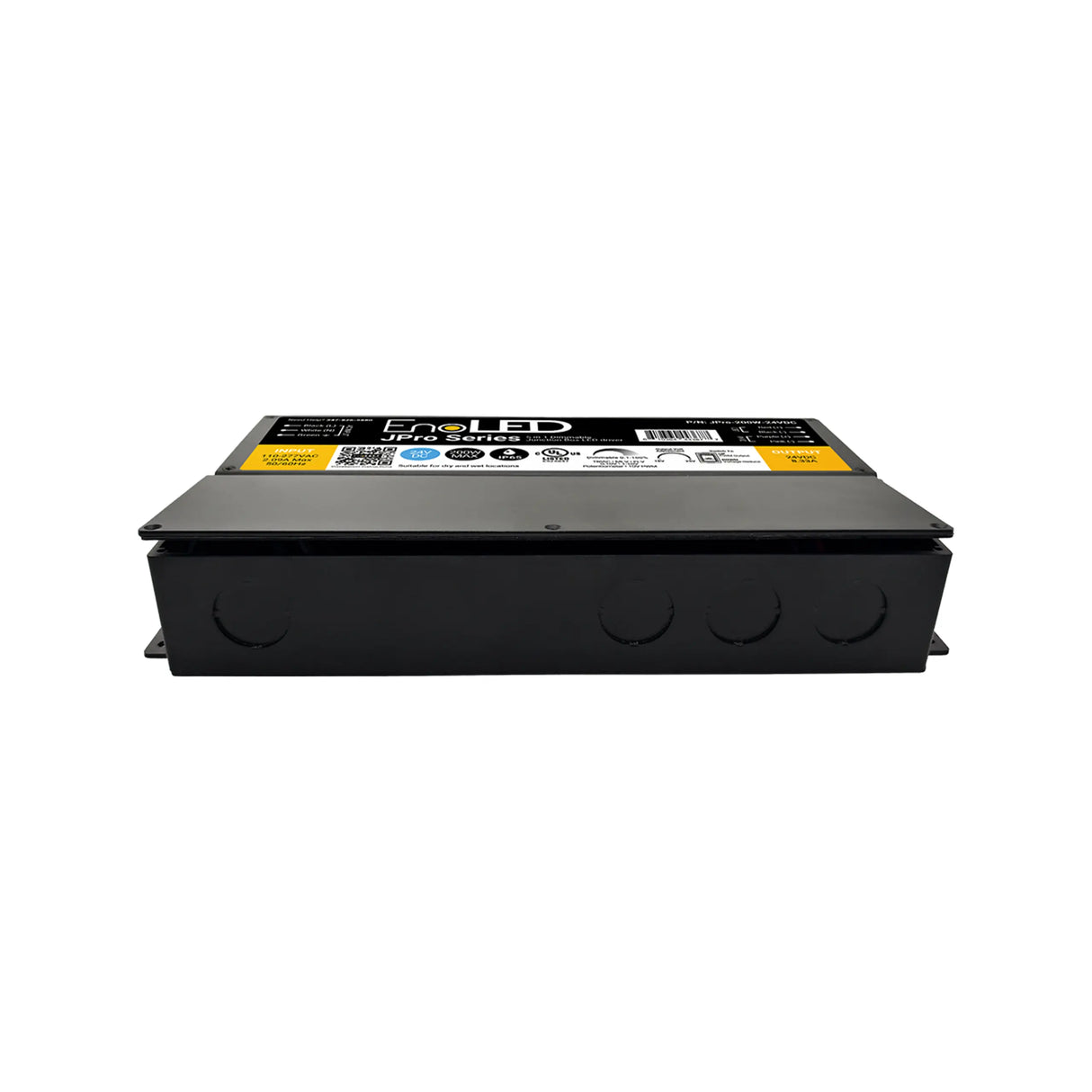

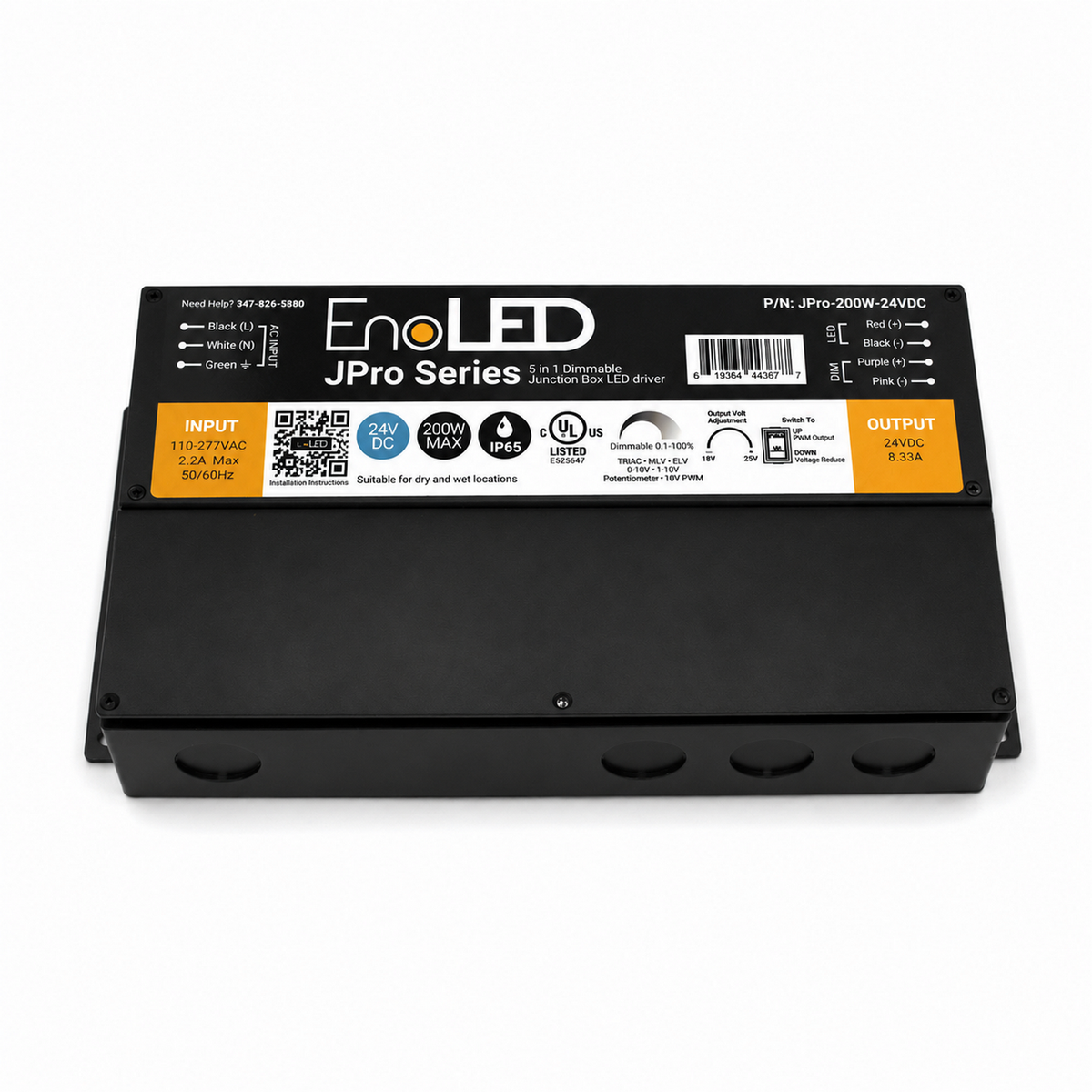

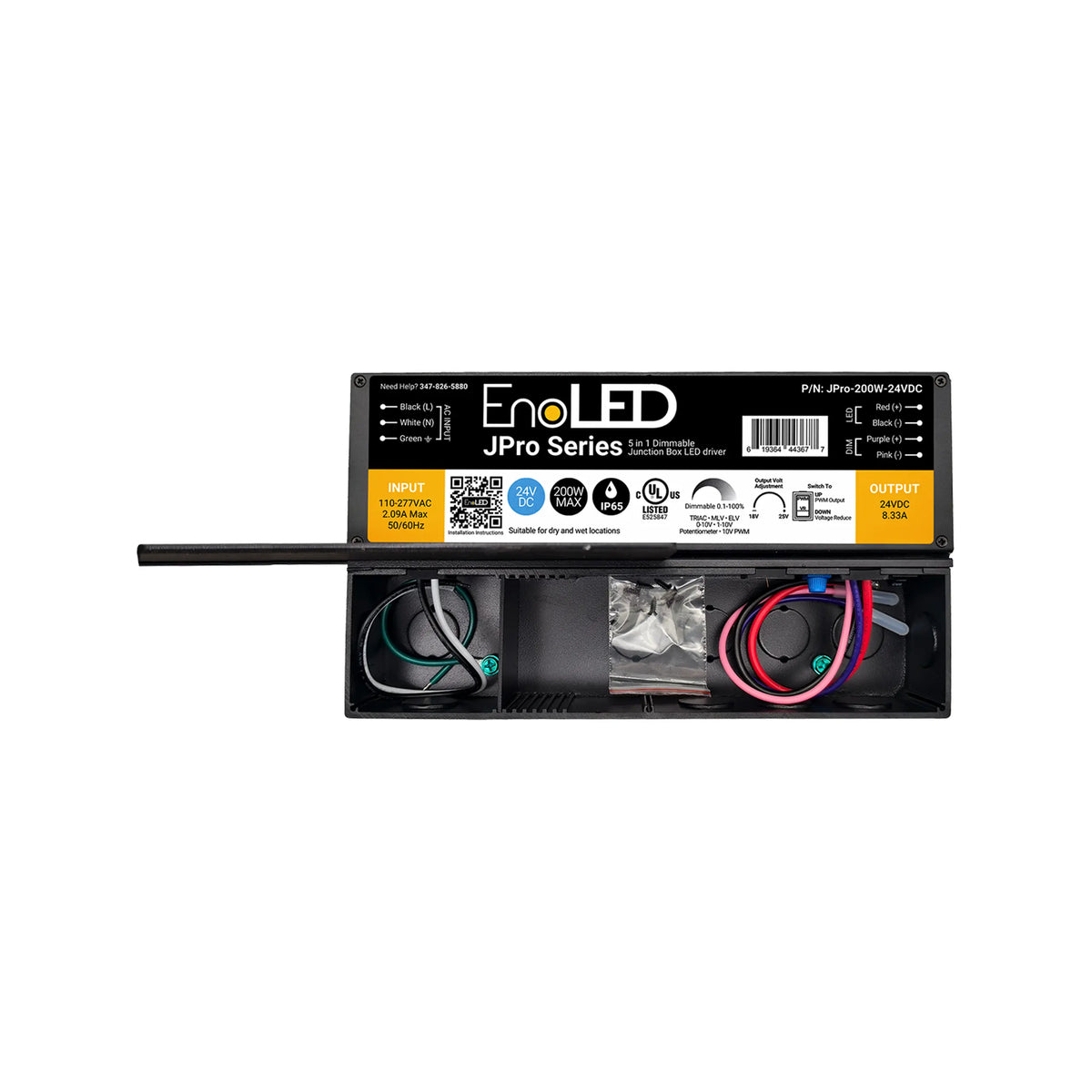

  • JPro-200W-24VDC: 254 x 131.83 x 42.42 mm (10" x 5.19" x 1.67")

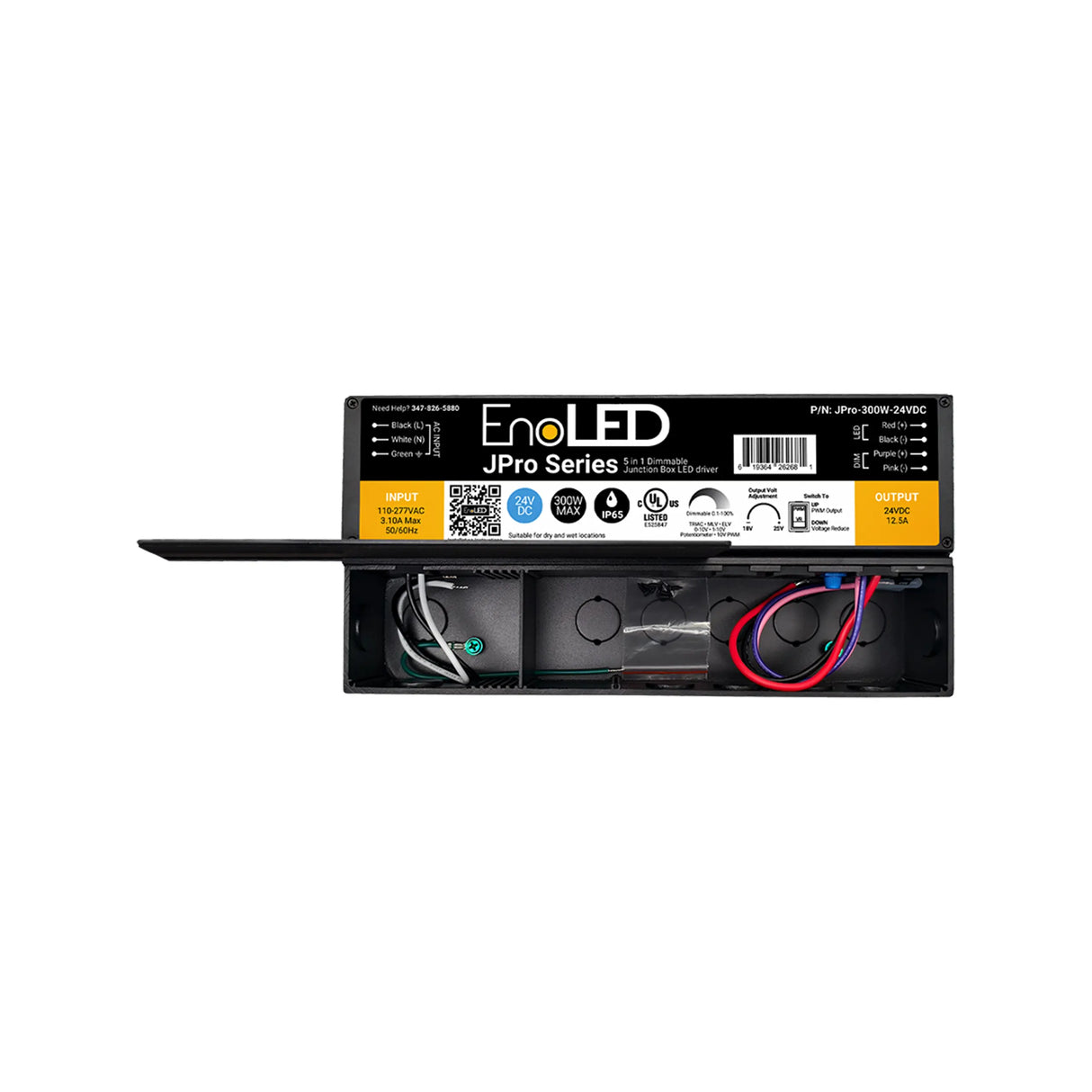

  • JPro-300W-24VDC: 288.80 x 131.83 x 48.77 mm (11.37" x 5.19" x 1.92")

Downloads

• JPro Series spec sheet
• JPro Series installation instructions
• JPro cut sheet - 96W
• JPro cut sheet - 200W
• JPro cut sheet - 300W

Important notes

• Items in stock are shipped the same day from Knoxville, Tennessee, United States.
• Bulk pricing is available on request.
