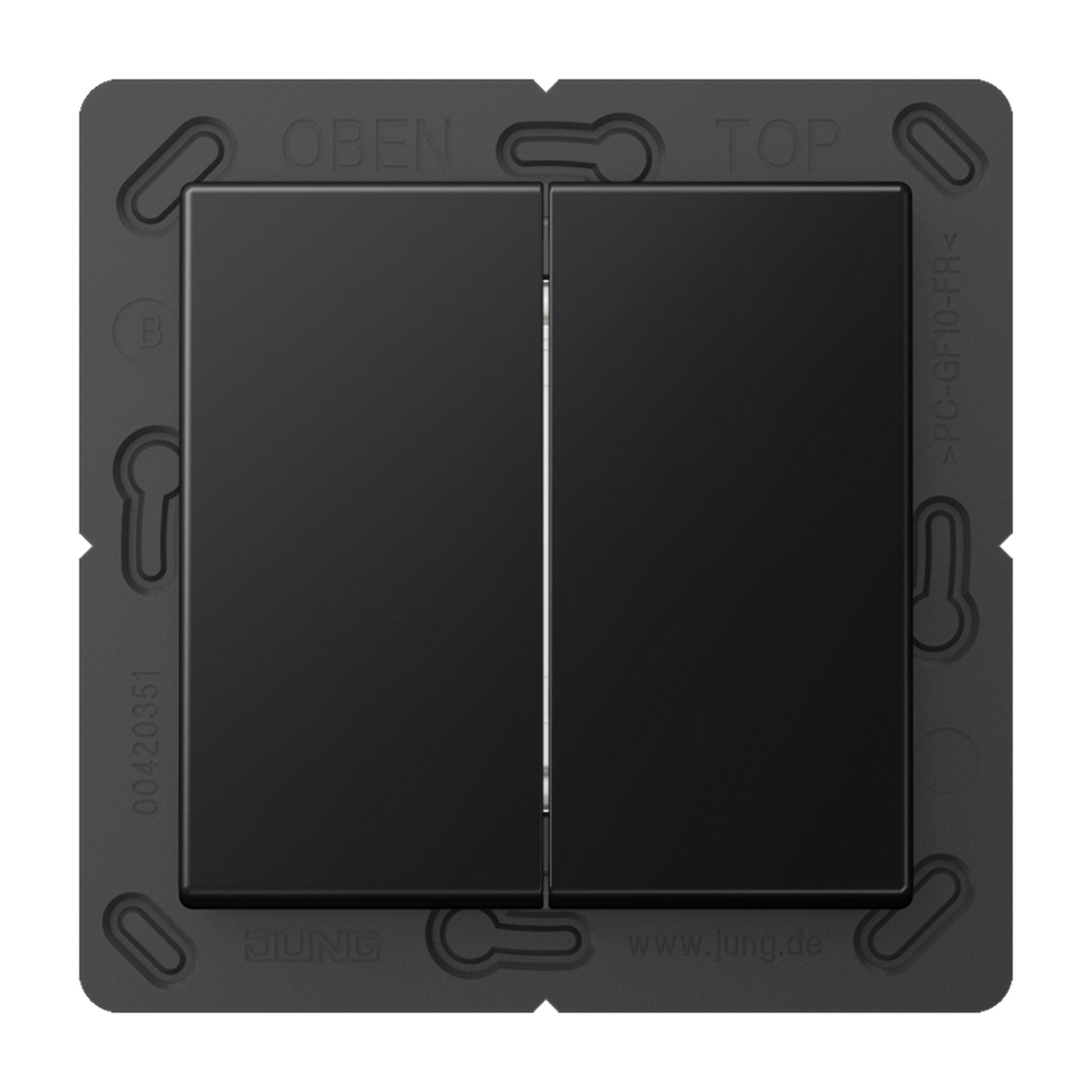

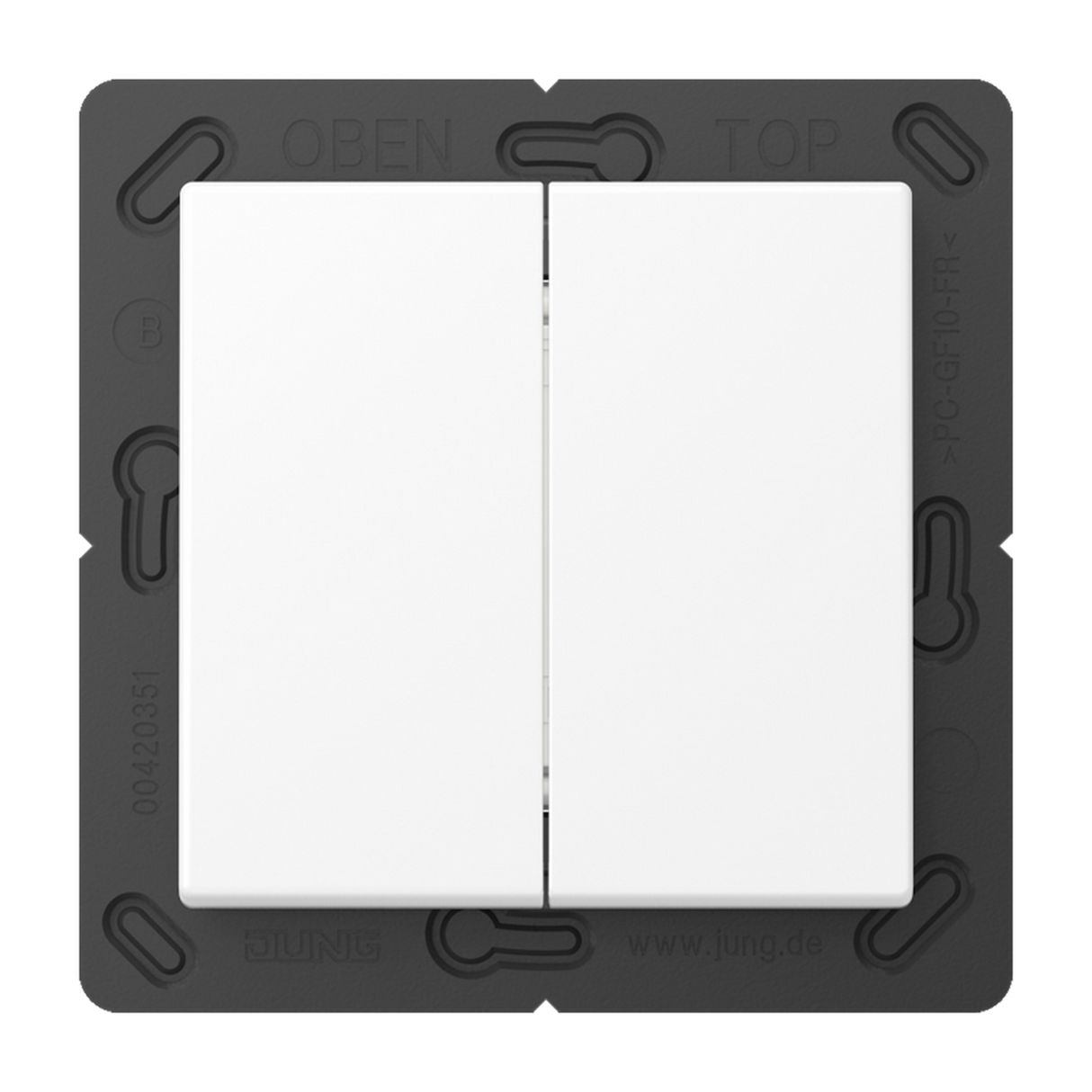

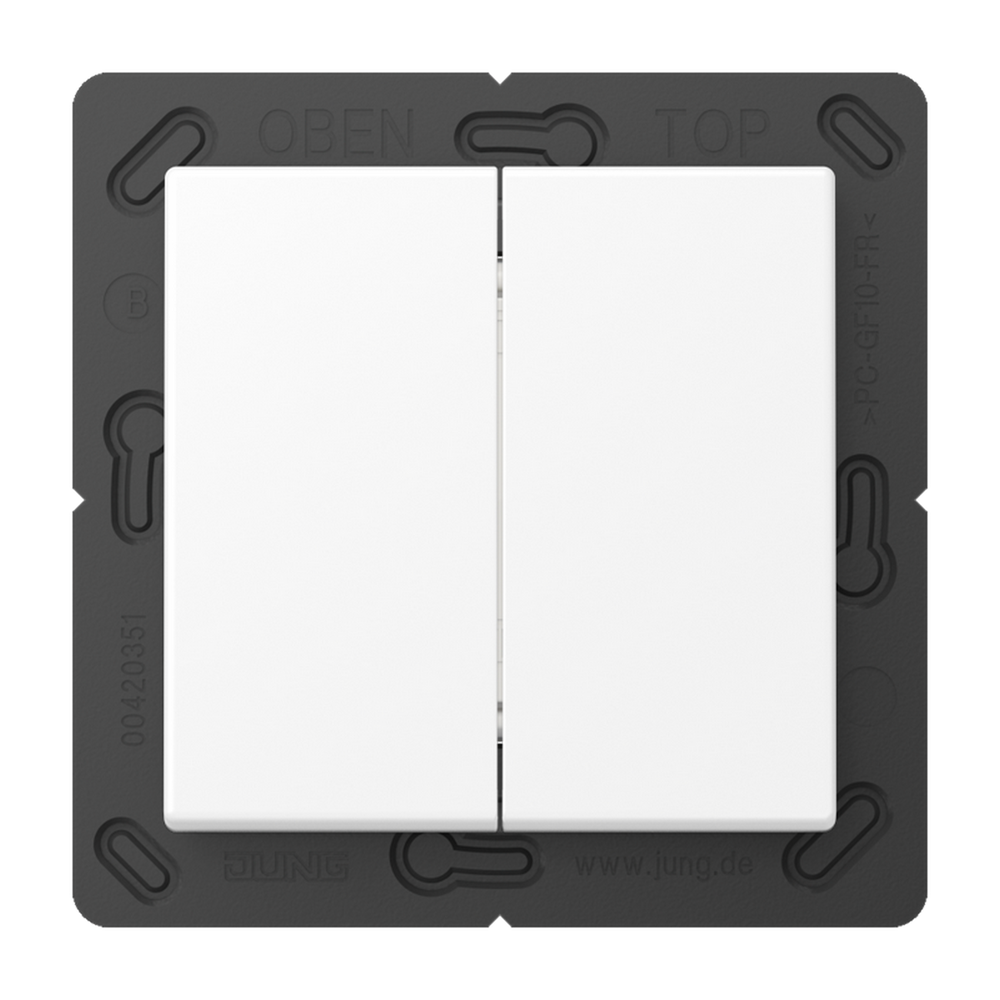

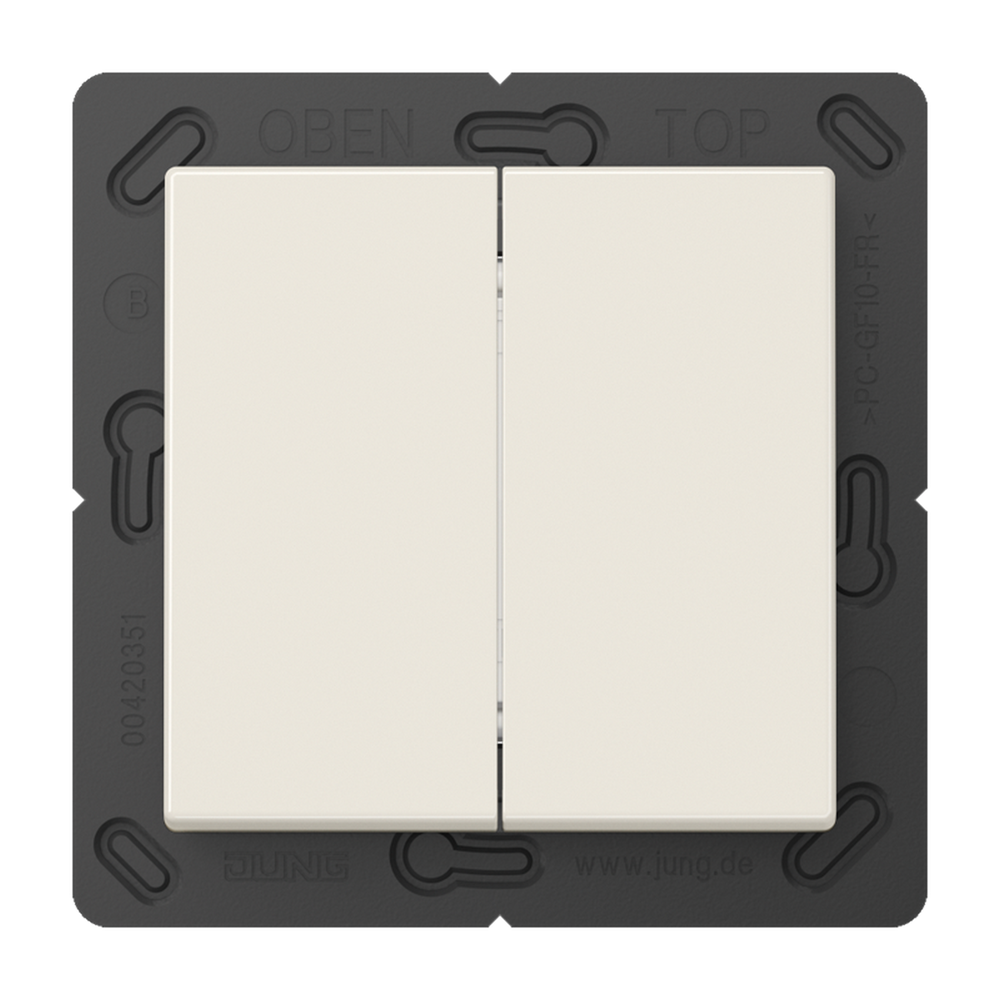

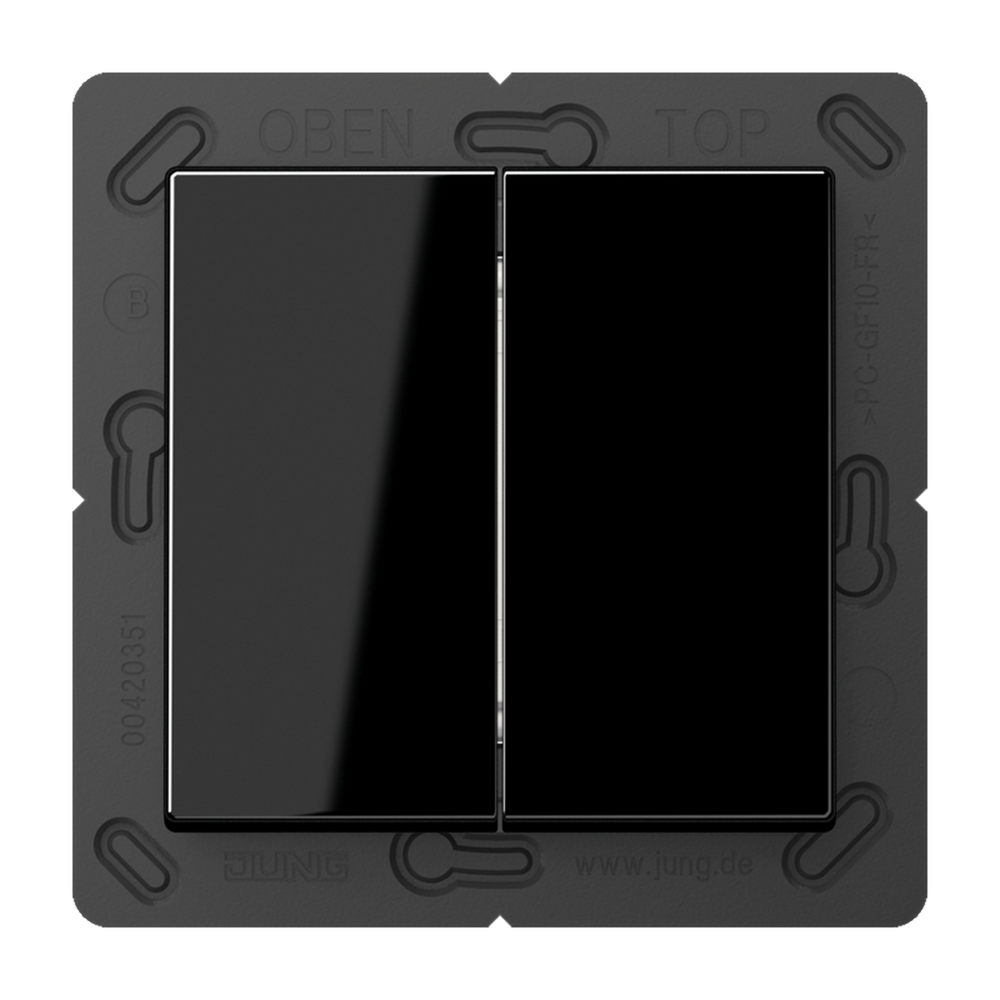

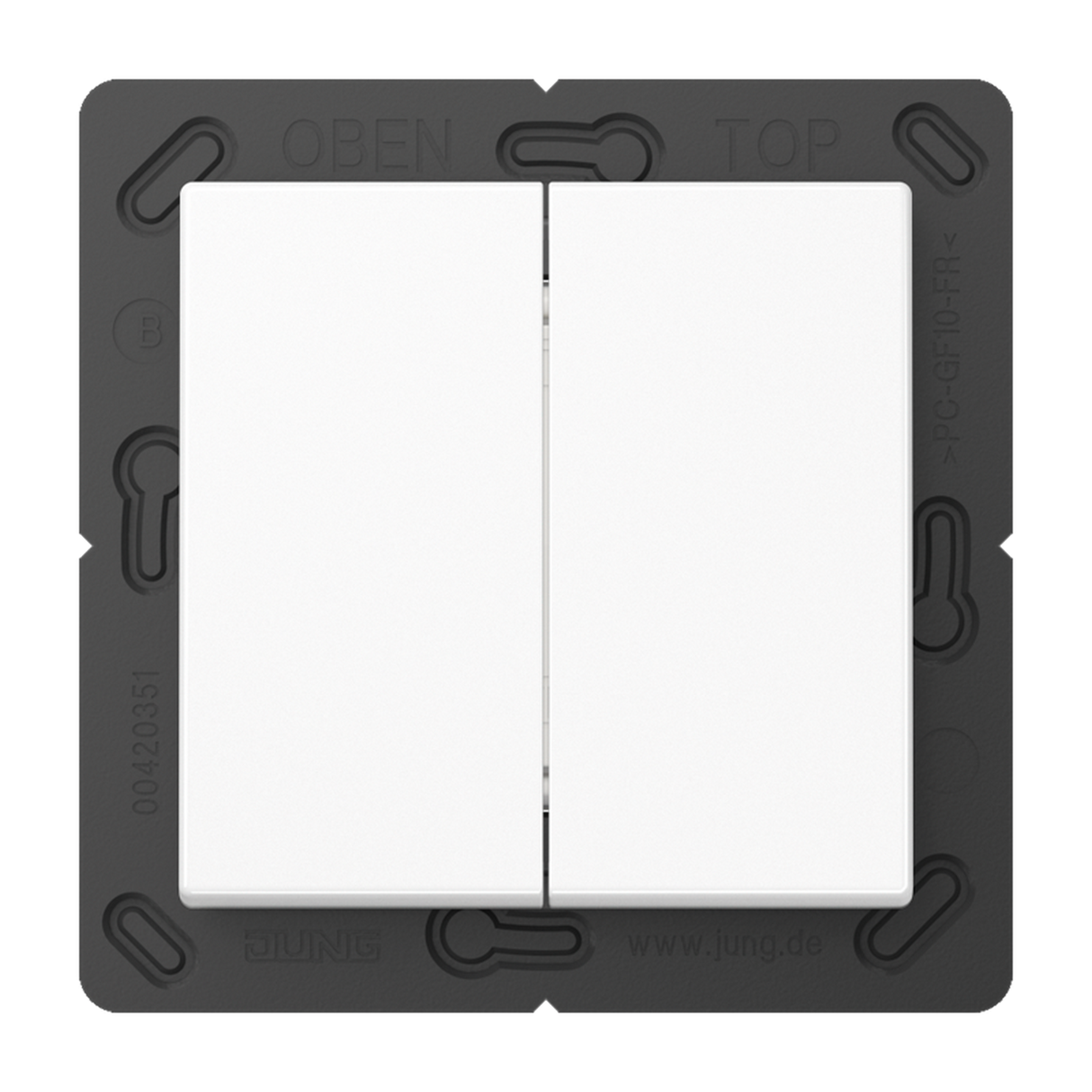

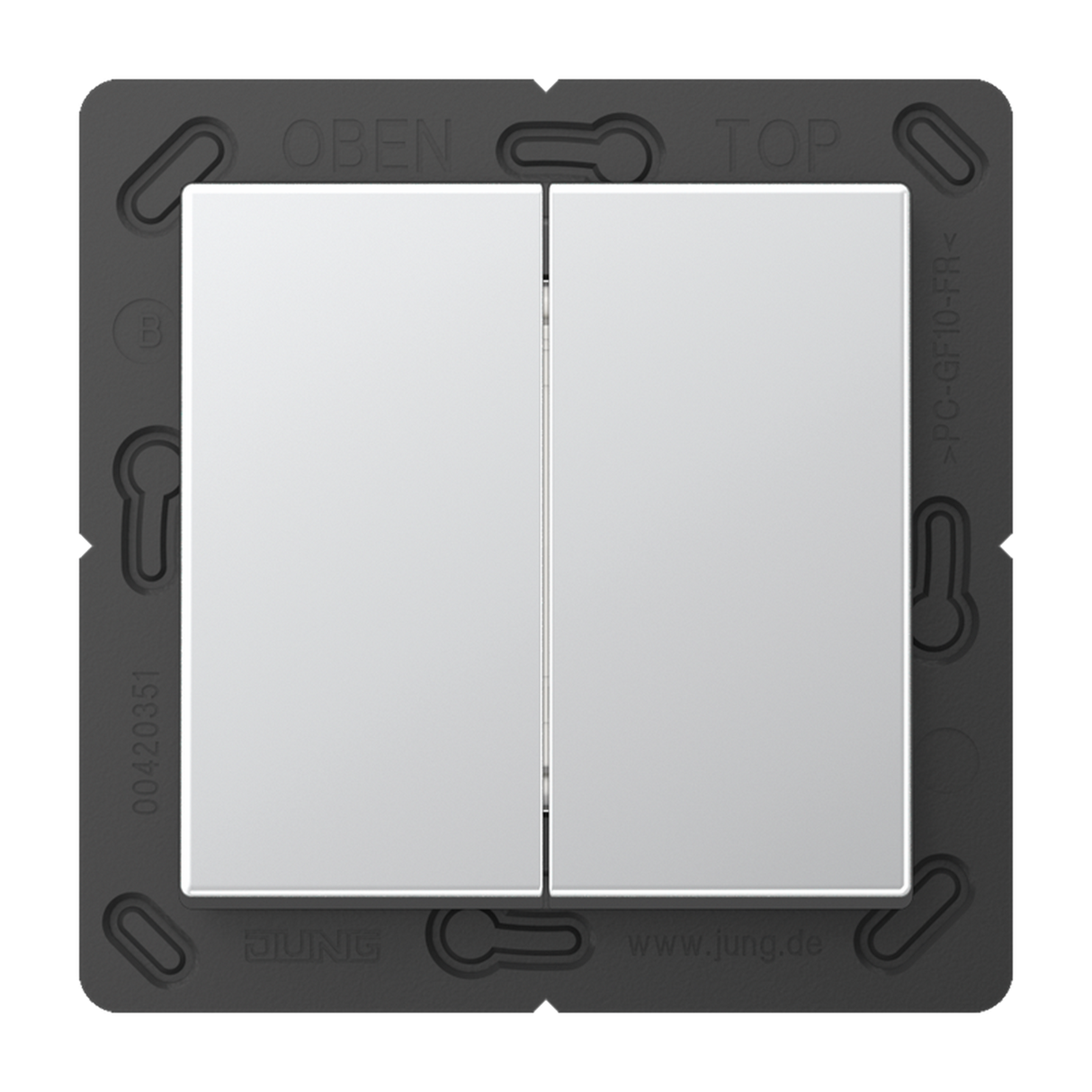

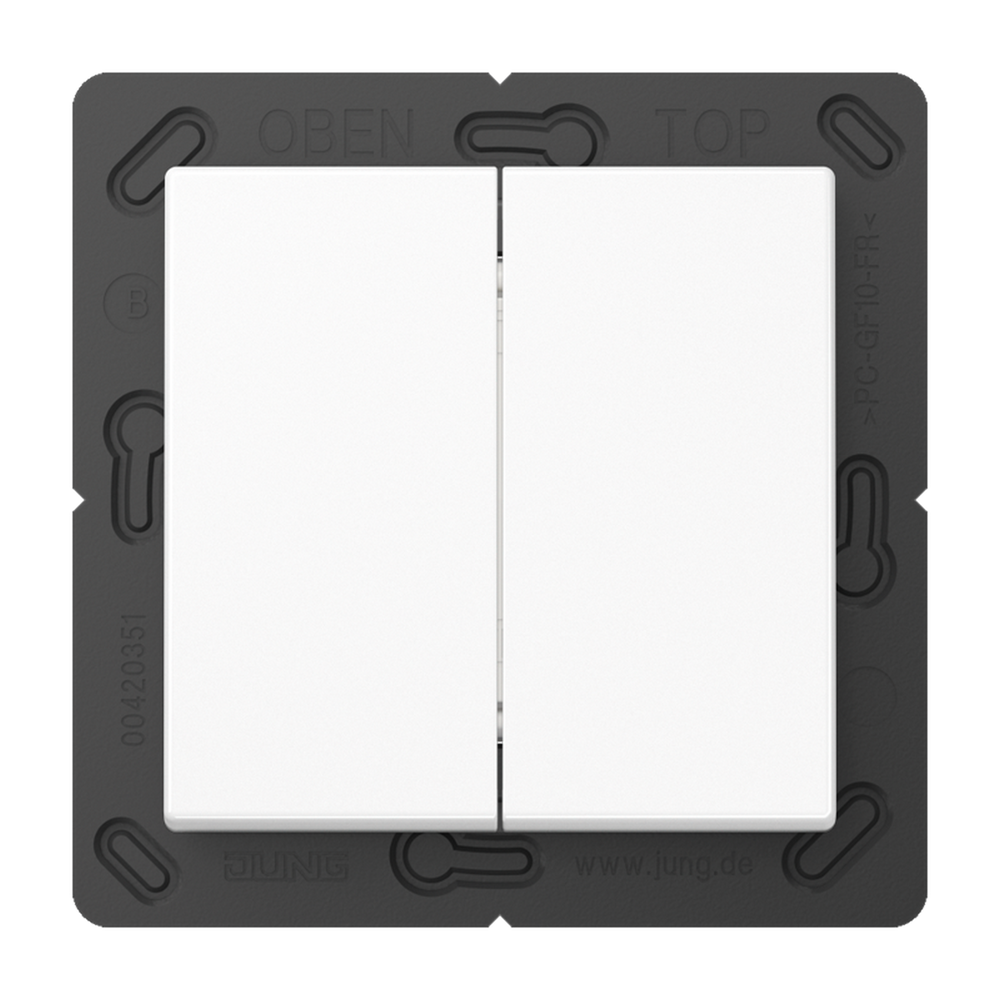

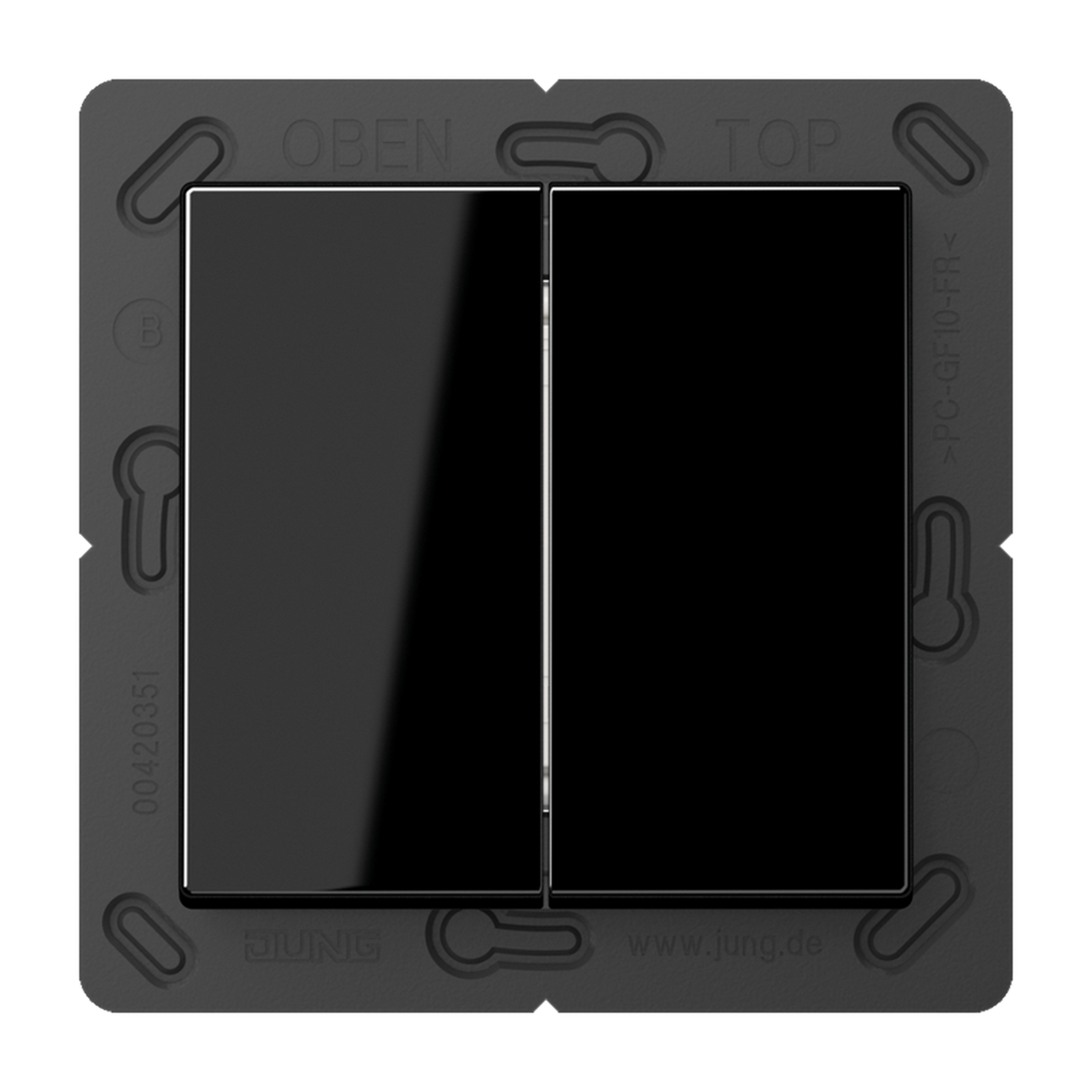

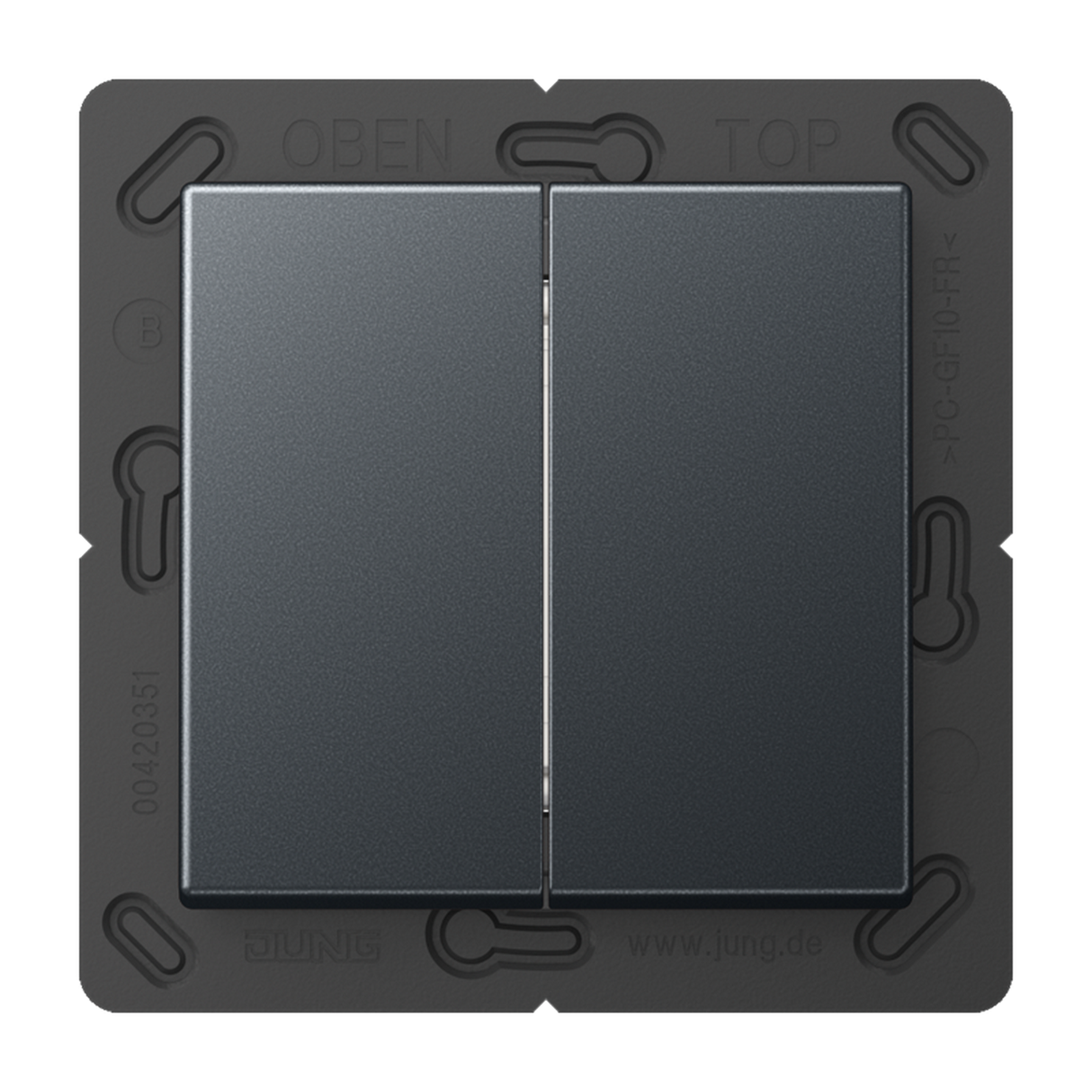

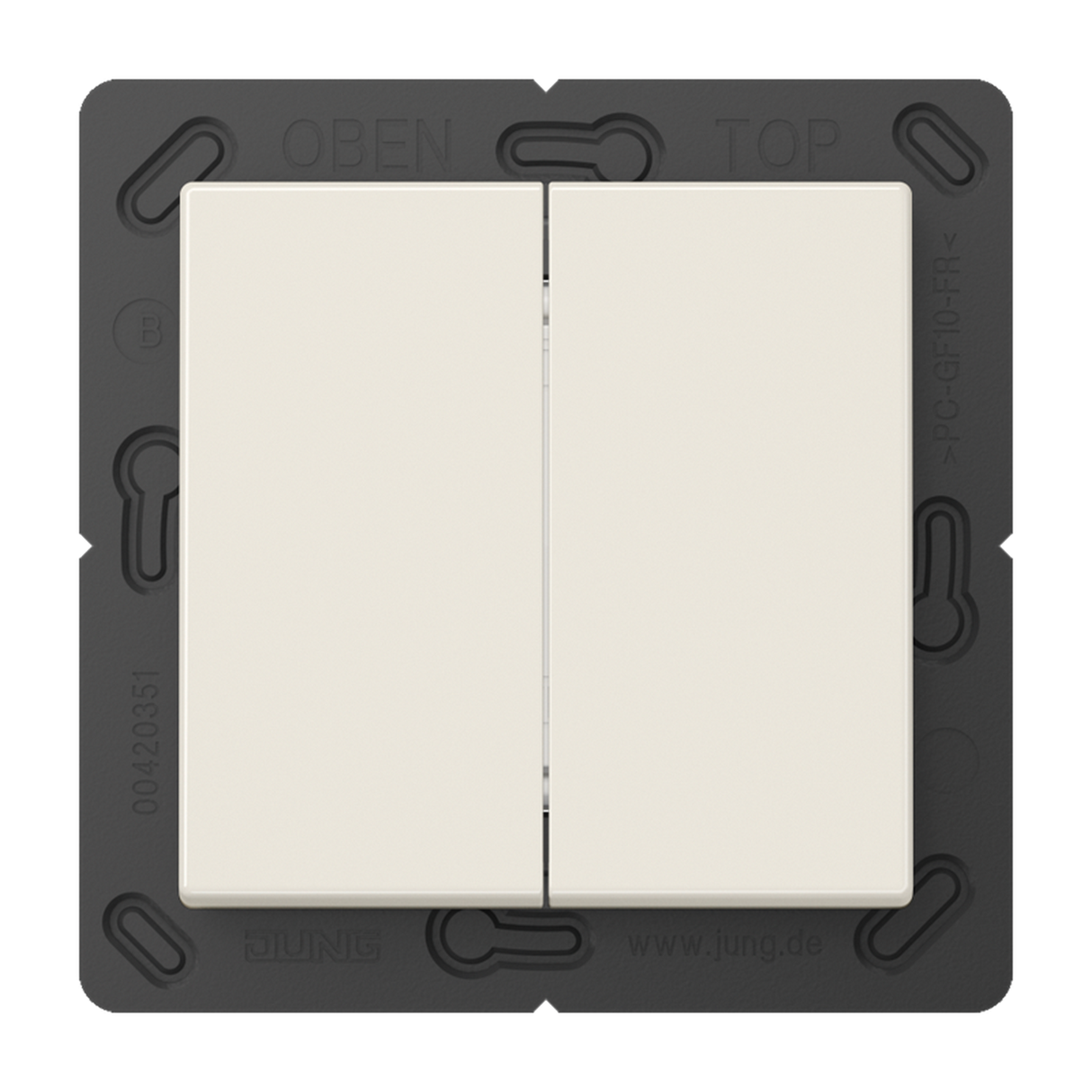

Casambi 2-Button Wireless Wall Switch ~ Model Jung BLE A 595

Casambi 2-Button Wireless Wall Switch only ~ all other accessories are sold separately

Description

The Jung BLE A 595 is a smart 2-button wireless wall switch for wireless control of lighting devices. It enables switching, dimming, and managing individual light scenes without the need for an external power supply.

The smart BLE A 595 transmitter mounts directly onto standard flush boxes (DIN 49073) and can also be fixed to smooth surfaces like glass using adhesive. It operates without batteries or external power, using energy harvesting technology that generates power from the mechanical actuation of the switch.

This BLE A 595 transmitter offers secure communication with AES-128 encryption (CBC mode) and a sequence counter. It supports automatic range extension via Bluetooth Mesh devices connected to mains power, enhancing network coverage and reliability.

General specifications

• Model: Jung BLE A 595
• Material: Thermoplastic
• Power source: Battery-free
• Transmission range:
  • In free field: Up to 75 m
  • In buildings: Approx. 15 m
• Transmitting power: 4 dBm / 2.5 mW
• Ambient temperature: −5/+45 °C (23°F/113°F)
• Storage/transport temperature: −25/+65 °C (−13°F/149°F)
• Compatible with these wireless Bluetooth® systems: Casambi, XICATO Controls, Häfele Connect, WiSilica, Wirepas, Blu2Light (Vossloh Schwabe), Aruba, Fulham, Helvar

Downloads

• Casambi 4-Channel Wireless Radio Transmitter cut sheet

Important notes

• Items in stock are shipped the same day from Knoxville, Tennessee, United States.
• Bulk pricing is available on request
