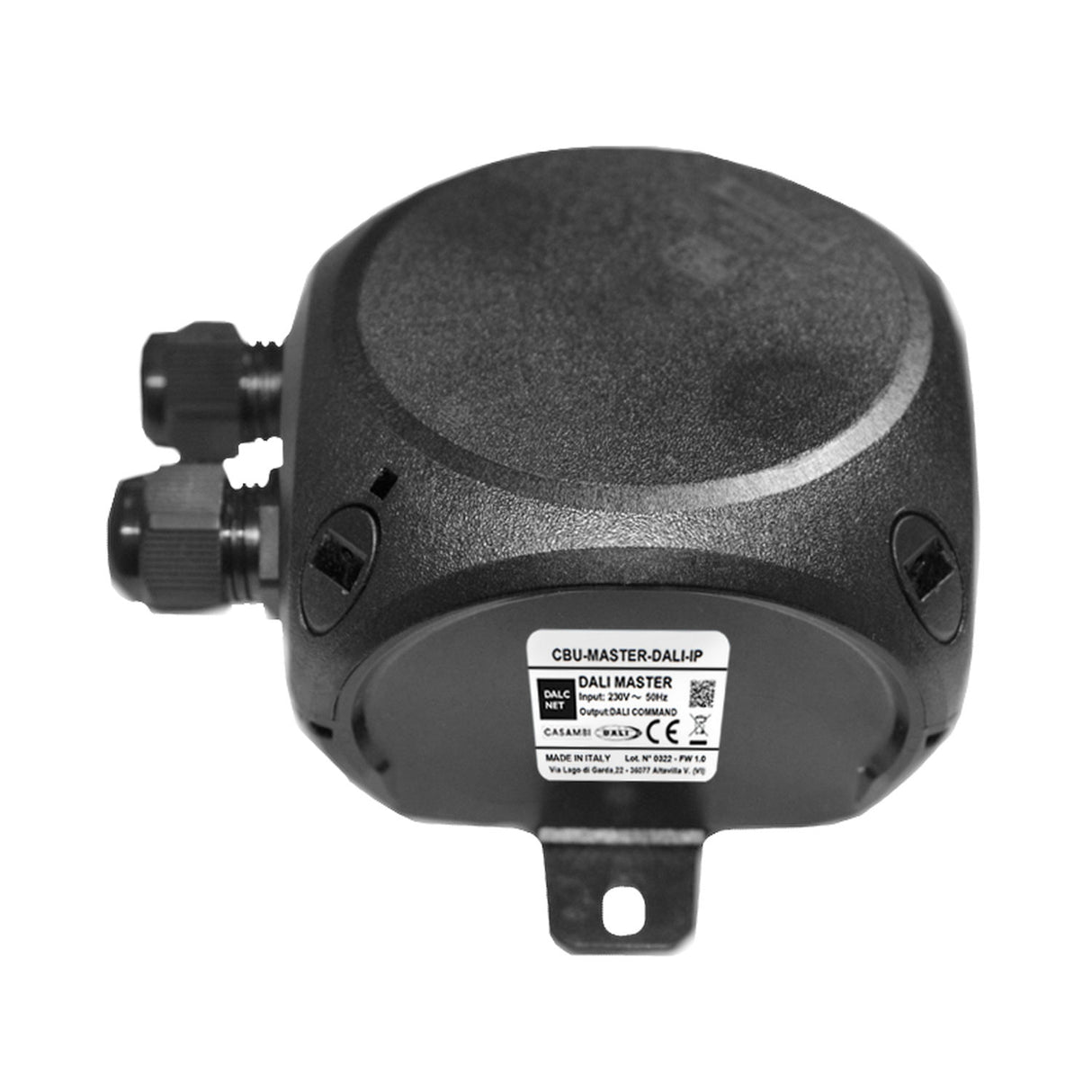

Casambi Enabled DALI Master with Mains Power ~ Model CBU-MASTER-DALI-IP

Controller only ~ power supply, LEDs and all other accessories are sold separately

Description

The CBU-MASTER-DALI-IP from Dalcnet is the ultimate solution added wireless control to DALI lighting devices in a wide range of indoor and outdoor applications.

Certified as DALI 2 and DT8 compatible, the converter offers unrivaled performance and flexibility. It offers wide-range AC mains power supply compatibility, so SELV power supply is not required. The simple power supply, coupled with IP66 environmental protection, means that this Casambi-enabled DALI master can be confidently and easily installed in both outdoor and indoor environments.

Designed to simplify DALI integration into a Casambi network, the CBU-MASTER-DALI-IP acts as a gateway between DALI lighting equipment and a Casambi wireless network. The integrated DALI bus power supply makes it a complete all-in-one solution for wirelessly controlling your DALI fixtures.

A comprehensive selection of profiles allows you to experience precise control and customization of your DALI lighting systems using the Casambi wireless network system. The Casambi to DALI converter empowers you to create captivating lighting scenes, optimize energy efficiency, and elevate the ambiance in any space without complication.

Please note: To ensure reliable wireless communication, this device should not be installed in a shielded or metal enclosure.

General specifications

• Model: CBU-MASTER-DALI-IP
• Supply Voltage: 230V AC nominal (100-240V AC 50/60Hz)
• Input Bus: Casambi
• Output Bus: DALI
• Integrated Bus Supply: 15V 150mA
• Working Temperature Range: -25/+60°C
• Environmental Protection: IP66 Waterproof
• Dimensions: 90 x 90 x 65mm (3.54" x 3.54" x 2.55")
• Unit Weight: 88g
• Warranty: 5 years

Downloads

• CBU-MASTER-DALI-IP cut sheet

Important Notes

• Items in stock are shipped the same day from Knoxville, Tennessee, United States
• Bulk pricing is available on request
