Color 3LED V05 LED Sign Modules ~ 5 Year Warranty

Description

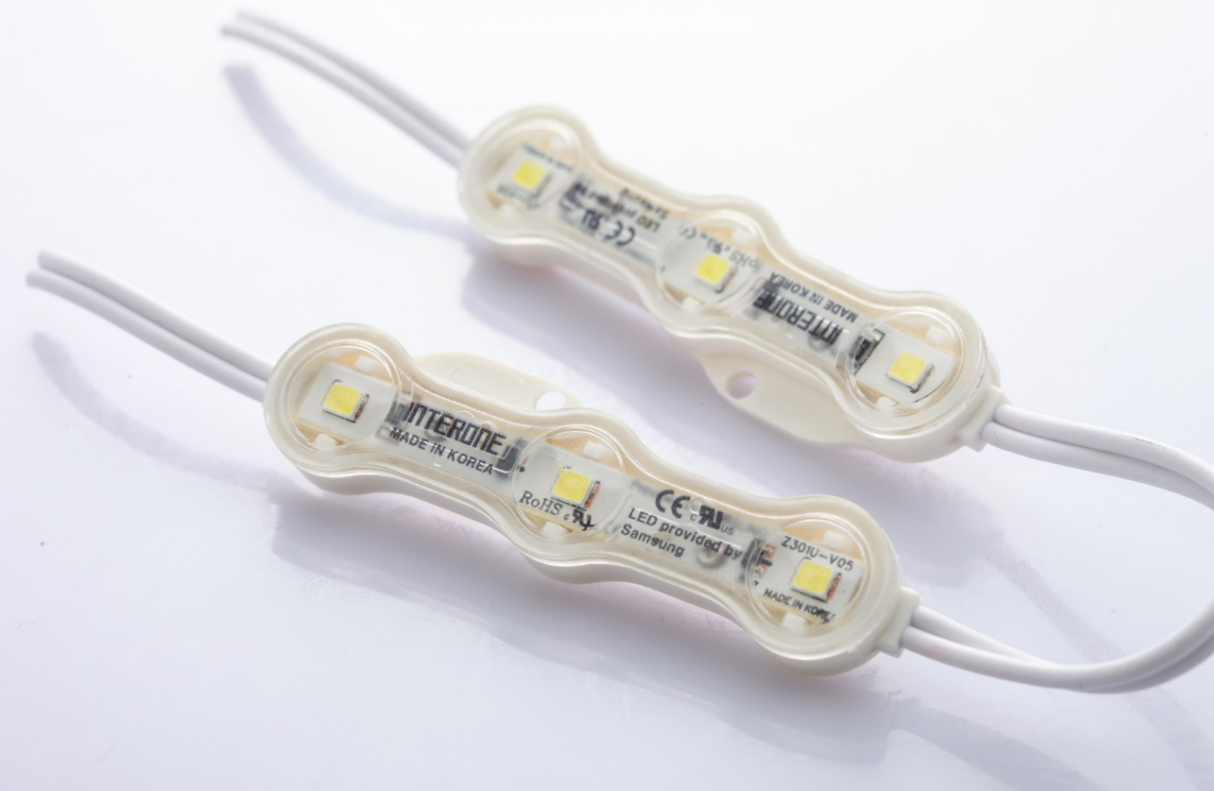

Color 3LED V05 LED Sign Modules ~ 5 Year Warranty

This Korean LED module is a reliable and efficient lighting solution, with 140° beam angle and 2 modules per foot, providing even illumination. It features IP68 waterproofing, 50 modules per string, and a 5-year warranty for long-lasting performance. With a 3.15" UL 18 AWG pair wire length and 12V DC power input, it offers great convenience and flexibility. Upgrade your lighting system now with this Korean LED module.

General specifications

• Voltage: 12V DC
• Colors available: Red, Green, Yellow, Blue

• Beam angle: 140°
• Density: 2 modules per foot (50 modules per 25ft string)
• Power consumption: 0.72 W/module
• Mounting: 3M adhesive backing or screw
• Environmental temperature: -22°F – 158°F

• Environmental protection: IP68 waterproof
• Lifespan: >50,000 hours
• Warranty: 5 years

• Chips: Korean LED chip
• Wire: 3.15" UL 18 AWG pair wire length

Downloads

• Cut sheet

Important notes

• Items in stock are shipped the same day from Knoxville, Tennessee, United States.
• Bulk pricing is available on request.
