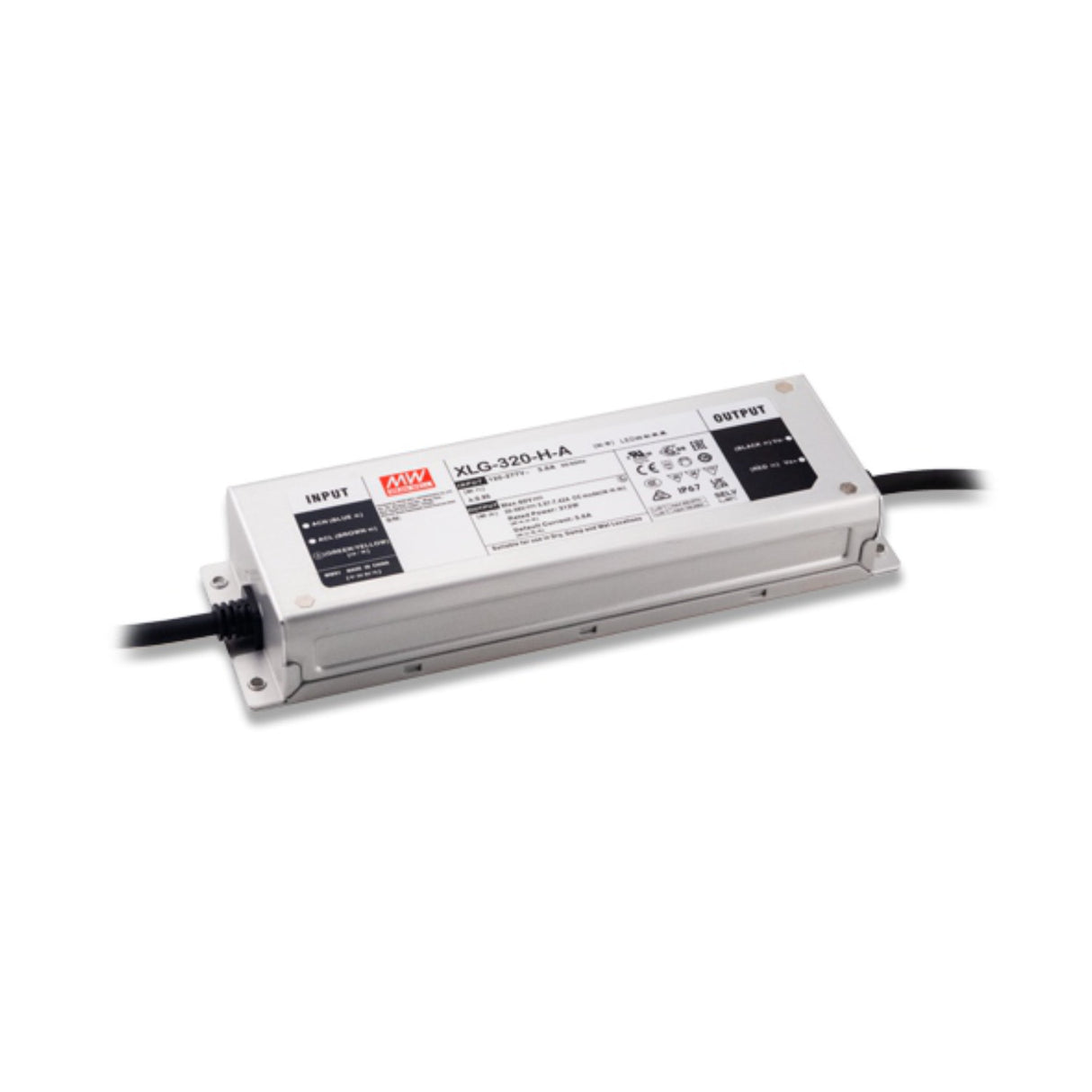

Compact IP67 Waterproof LED Driver with Selectable Voltage ~ Meanwell XLG Series

LED power supply only ~ LED strip and all other components sold separately

Description

The Meanwell XLG series LED drivers are compact, high performance power supplies with a constant power mode design which means that they can operate at 70-100% of their current range while delivering their full rated power output. A wide-range AC input capability means that they can be installed in almost any supply system and comprehensive UL 8750 and IEC 61347 approvals (amongst others) ensure they meet project & code requirements.

These compact waterproof LED power supplies are ideal for high power lighting applications including stage lighting, flood lighting, and agricultural or horticulture lighting.

The selectable voltage models of the XLG Series allow you to use the same model of driver in 12V or 24V lighting installation, making them a very versatile adjustable output LED power supply option. The models are designated by a nominal rating, with specific ratings depending on which output voltage is selected. For example, the norminal 320W driver can support 216W @ 12V DC or 312W @ 24V DC.

General specifications

• Input voltage: 100-305V AC
• Rated output:
  • XLG-320-V-A
    • 12V DC (SELV) / 18A / 216W
    • 24V DC (SELV) / 13A / 312W
• Dimensions:
  • XLG-320-V-A: 246 x 77 x 40mm (9.69 x 3.03 x 1.57")
• Connection type: Flying leads
• Electrical protections: Short-circuit (SCP), Over-voltage (OVP), Over-temperature (OTP), Over-load (OL)
• Surge protection: 6kV Line-Earth & 4kV Line-Line
• Environmental protections: IP67 waterproof
• Working temperature: -40°F to 185°F (-40°C to 85°C)
• Certifications: IEC/EN 61347 independent control gear, ANSI/UL 8750 LED Equipment
• Warranty: 5 years

Downloads

• XLG 320W cut sheet

Important notes

• Items in stock are shipped the same day from Knoxville, Tennessee, United States.
• Bulk pricing is available on request
