Double-Sided Bendable LED Channel ~ Model Arc12 Duo

Profile only ~ diffusers, end caps and other accessories sold separately

Description

The Arc12 Duo is a bendable surface mount LED channel designed for creating curved, twisted, and three-dimensional lighting fixtures. Its dual-sided design allows light to be projected in multiple directions, making it suitable for linear runs, arches, circles, waves, and custom decorative lighting forms. The tubular aluminum profile provides a clean appearance while offering flexibility for architectural, commercial, and residential lighting applications.

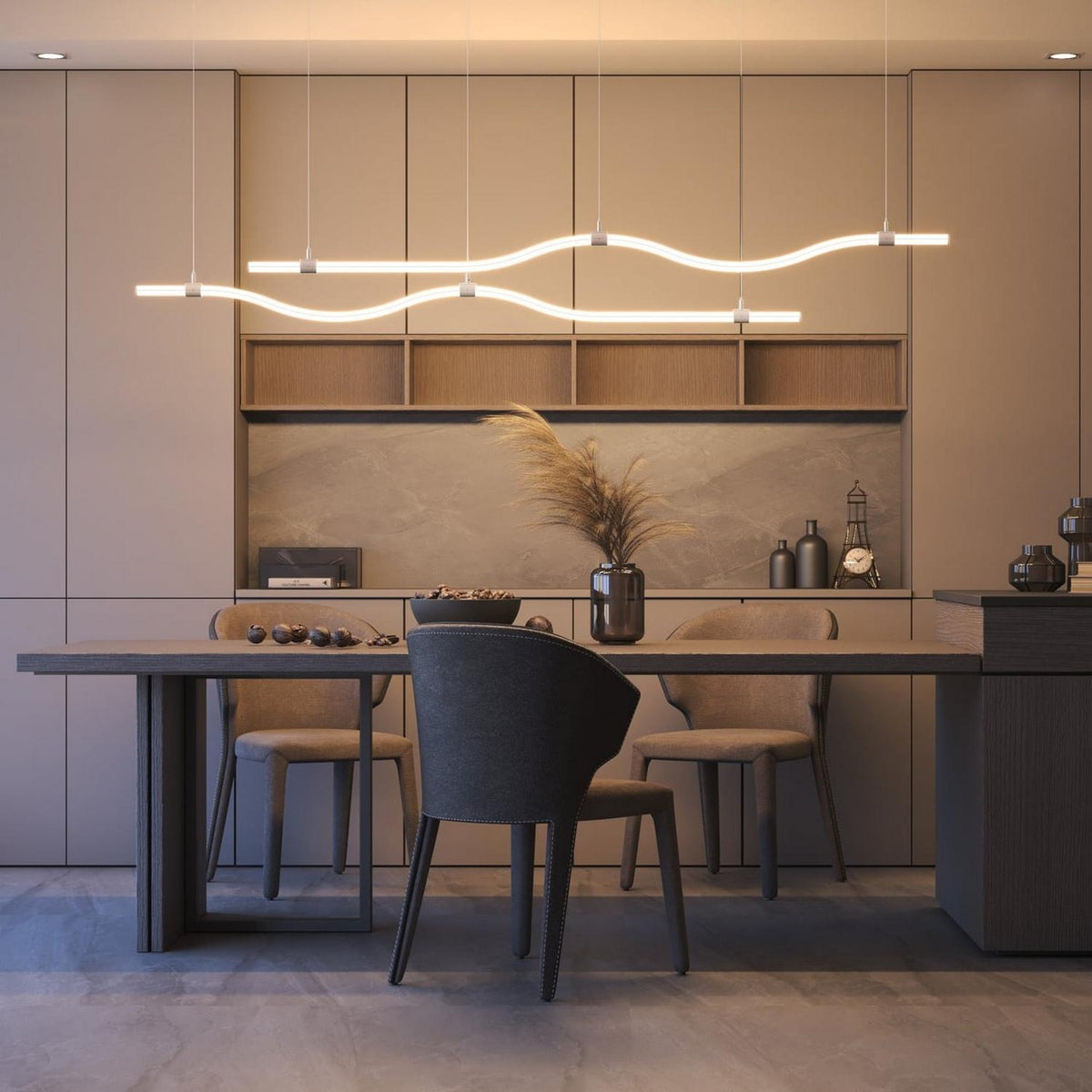

This flexible Arc12 Duo LED channel can be bent and twisted to follow ceiling contours, architectural features, furniture designs, and custom interior layouts. The profile can be rotated up to 360° per meter, giving designers greater control over light direction and enabling unique spatial lighting effects that are difficult to achieve with standard LED profiles.

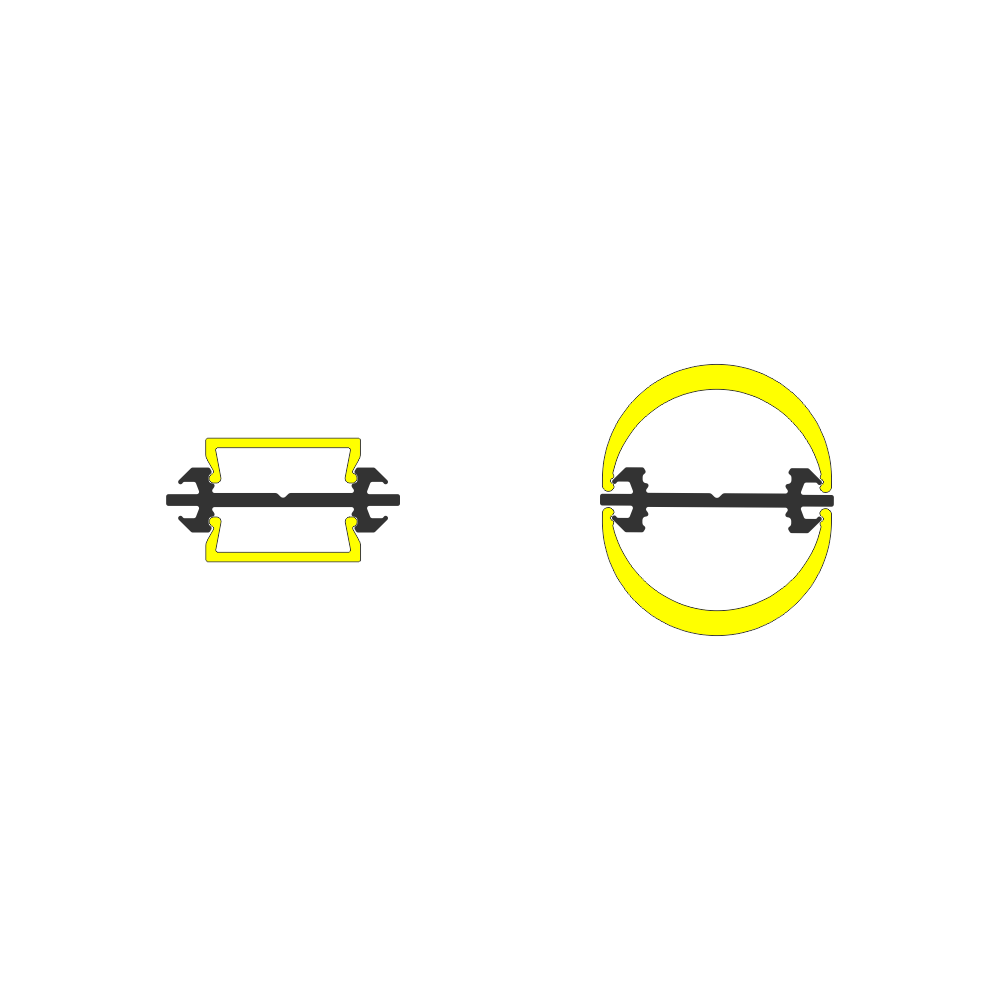

The Arc12 Duo supports separate bidirectional lighting, allowing two LED light sources to operate independently within a single profile. Different LED strips can be used to achieve varying brightness levels, color temperatures, colors, or lighting functions. This makes it possible to combine decorative, accent, and functional LED lighting in one fixture, providing greater versatility for custom lighting designs.

General specifications

• Material: Aluminum, anodized silver
• Maximum LED strip width: 12mm
• Possibility of twisting: Up to 360° / 1m
• Minimum bending radius with D click cover: 45 cm (17.72”)
• Minimum bending radius with C click cover: 15 cm (5.91”)

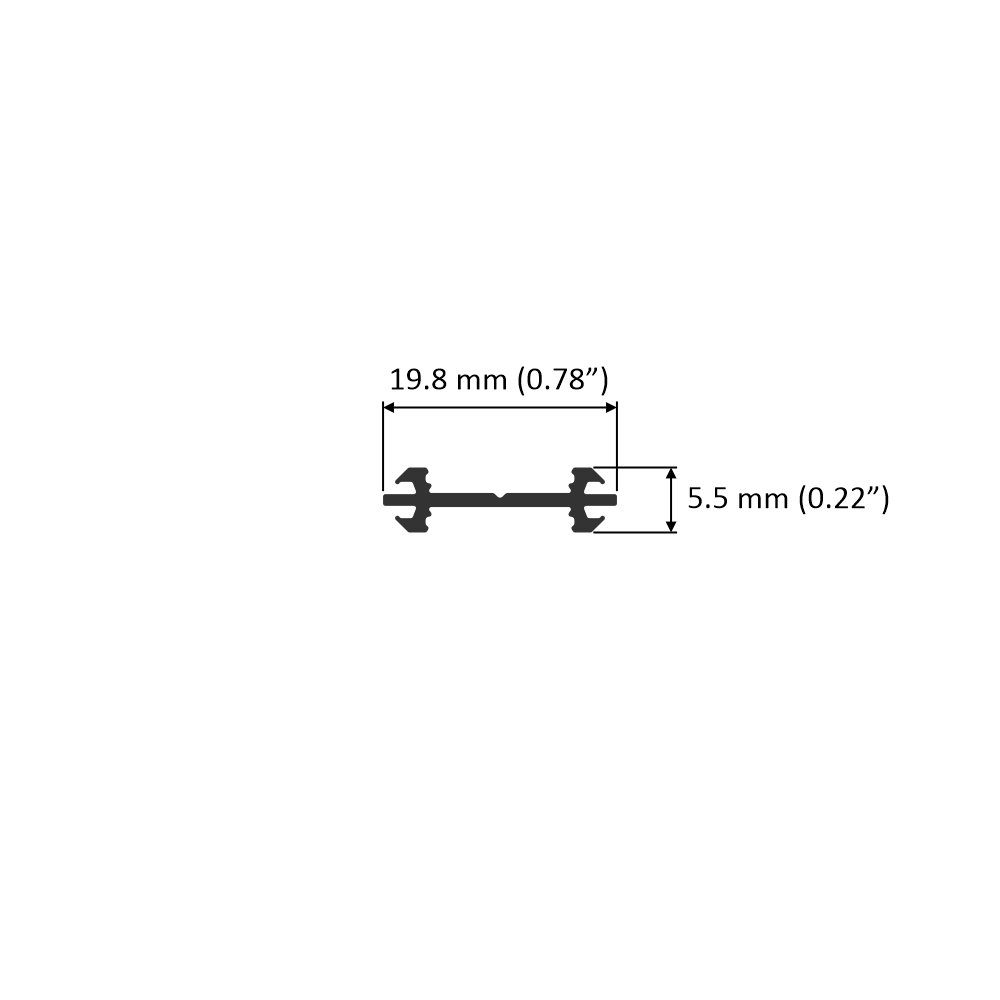

• Overall dimensions: 5.5mm x 19.8mm (0.22” × 0.78”)

Downloads

• Arc12 Duo cut sheet

Important notes

• Please note that raw or natural profiles or channels are not anodized and need to be coated or painted, or they will oxidize over time in outdoor applications.
• LED profiles can easily be cut by hand or by machine.
• For your convenience Wired4Signs USA can cut LED profiles according to your requirements. Please leave instructions in the order comment box.
• We can also assemble a plug and play light fitting with this profile according to your specifications.
• Please note that we cannot refund or replace LED profiles and covers that have been cut.
• Items in stock are shipped the same day from Knoxville, Tennessee, United States.
• Bulk pricing is available on request.
