Floor Transition Strip LED Channel ~ Model Broadway

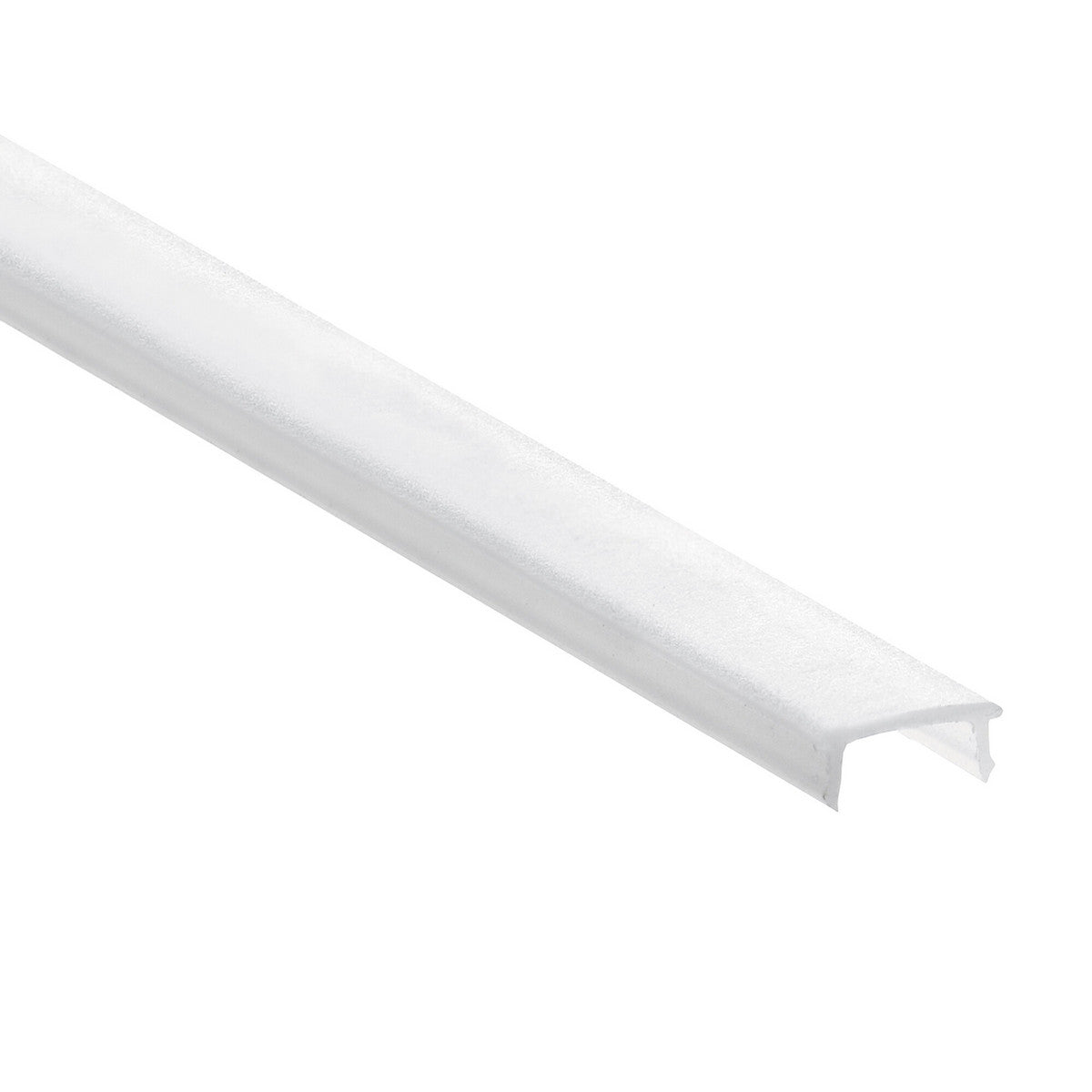

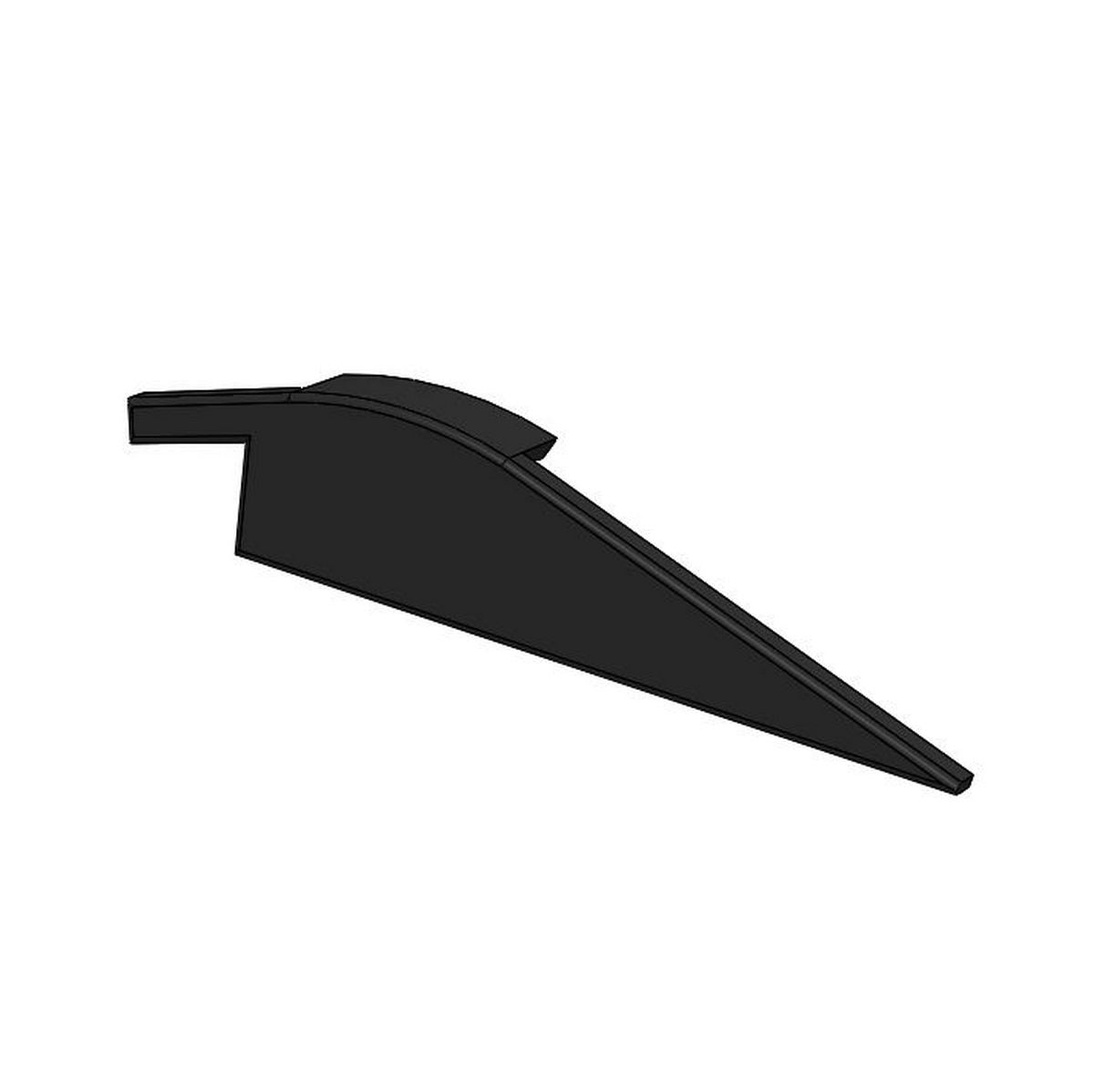

Profile only ~ diffuser, end caps and all other accessories are sold separately

Description

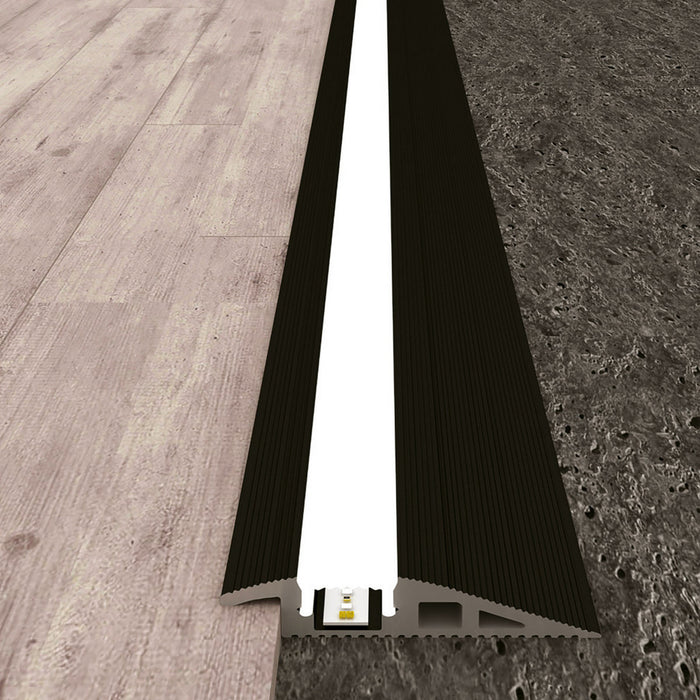

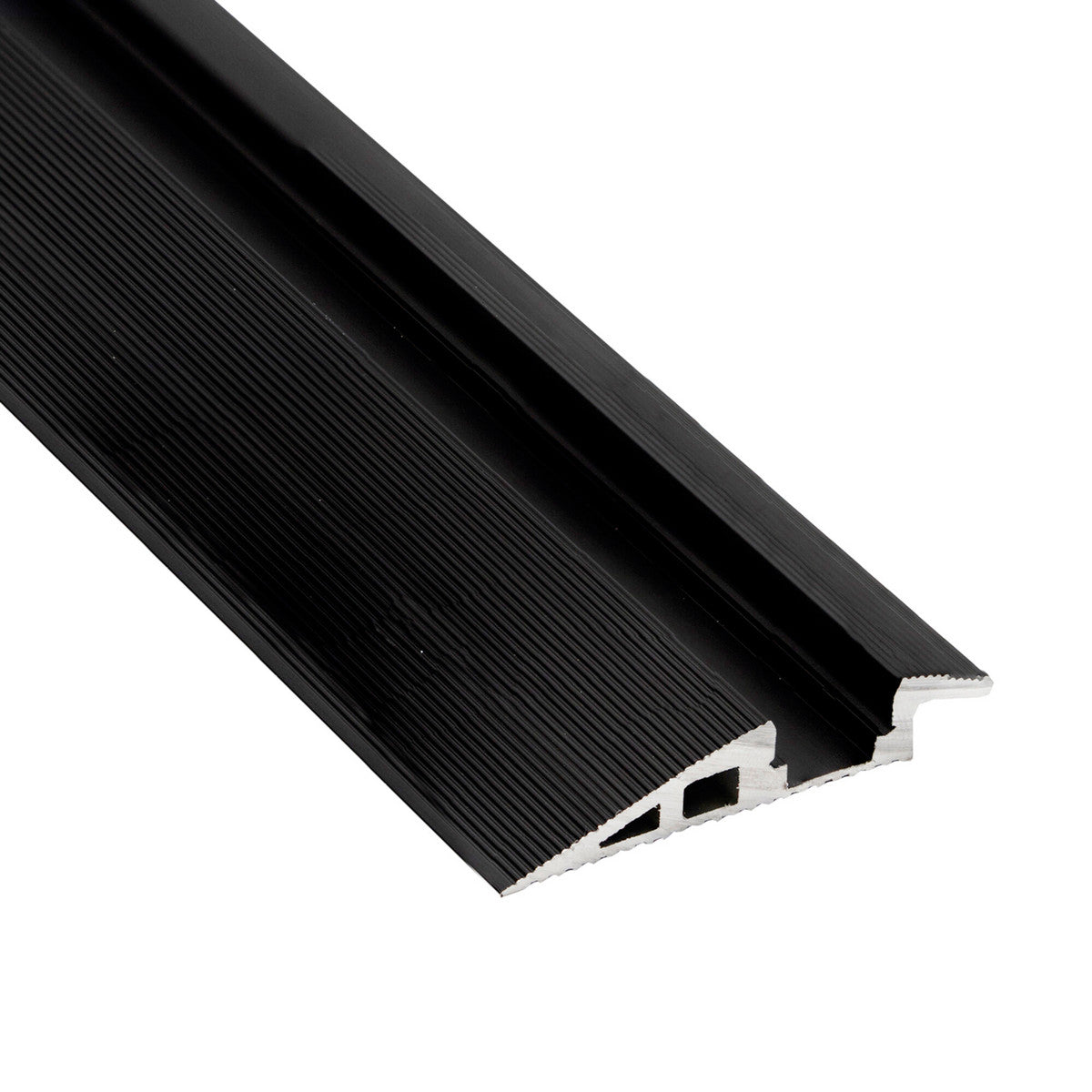

The Broadway profile is a floor transition LED channel designed in the USA and manufactured in North America. This treadable floor transition LED channel is built for indoor applications, providing both functional and aesthetic lighting. It is specifically engineered to create illuminated transitions between hard floor surfaces such as tile, stone, or concrete and softer flooring types like carpet, parquet, or laminate wood.

It is finished with a specialized hard-coat two-step anodizing process that provides an extremely durable, UV-proof finish, making it ideal for use in high-traffic areas and spaces exposed to sunlight.

The internal cavity is large enough to fit LED strips up to 20mm wide, and is high enough to fit waterproof strips. It also includes space that can be used to run wiring for powering long lengths of LED strip.

Lengths of this profile can be joined using the wide range of Q9 connectors.

The Broadway profile is supplied with a rubber gasket to help prevent water damage to laminate floors. The gasket seals the joint between the profile and the laminate flooring, preventing water from seeping through and under the flooring. The profile itself can be made water-resistant by sealing the diffuser with silicone sealant.

The Broadway LED profile enhances safety and visibility while adding a modern design element to floor transitions. Its durable construction ensures it can withstand foot traffic while maintaining consistent light distribution.

Product video

General specifications

• Made in USA
• Material: Aluminum
• Colors: Black two-step hard-wearing anodized
• Maximum LED strip width: 20mm

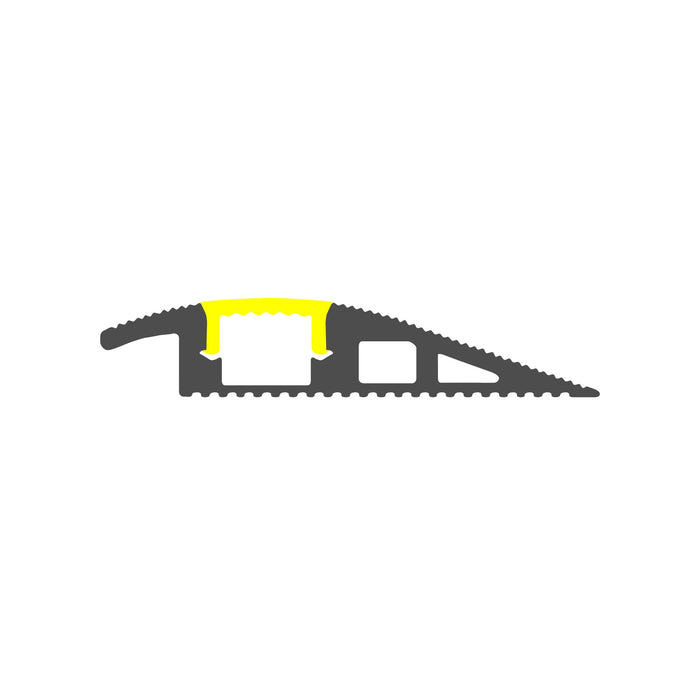

• Overall dimensions: 67.17mm x 12.73mm (2.64" × 0.50")

Downloads

• Broadway cut sheet

Important notes

• You can easily cut LED profiles by hand or by machine.
• For your convenience, Wired4Signs USA can cut LED profiles according to your requirements. Please leave instructions in the order comment box.
• We recommend double-checking the measurements before cutting LED profiles and covers to avoid any unnecessary loss. Please note that if you cut LED profiles and covers, we cannot refund or replace them.
• Items in stock are shipped the same day from Knoxville, Tennessee, United States.
• Bulk pricing is available on request.
