LED Floor Lighting Strip Surface Mount Channel ~ Model Alu-Flat

Profile only - LEDs and all accessories sold separately

Please contact us for a custom complete LED fixture using this channel

Description

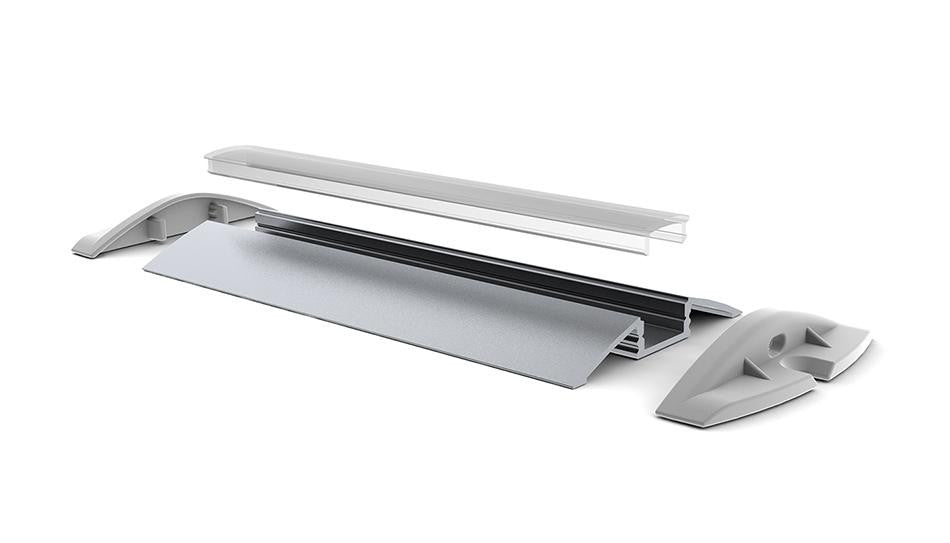

Alu-Flat is a quality, anodized or white aluminum LED floor lighting strip surface mount channel profile and may be installed on the floor, thanks to strong aluminum walls and a damage resistant diffuser. Alu-flat has many different applications: for example may be installed under a shelf, a kitchen cabinet or on the floor.

The LED Floor Lighting Strip Surface Mount Channel accommodates mid power LED strips up to 25W/m, 12mm wide. The profile performs both roles of a LED heat sink and of an aesthetic stylish housing for the LED stripes.

General specifications

• Maximum safe LED power 25W/m

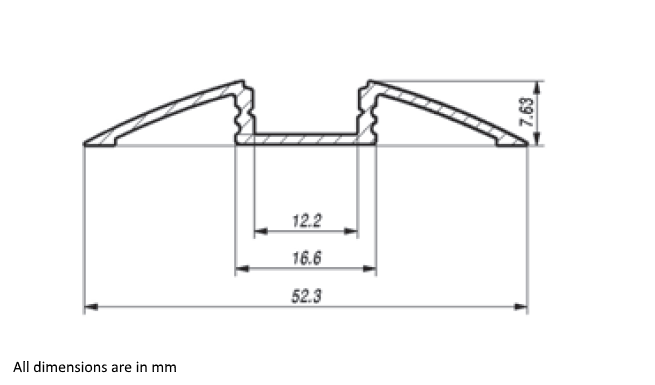

• Maximum LED strip width that will Alu-flat: 0.48Inch (12mm)
• Optional covers for Alu-flat are high-quality UV and damage resistant snap-in diffusers: frosted, 50% frosted and smooth.
• Other optional accessories for Alu-Flat is two types of end caps that help to professionally finish the installation.
• Lighting test report for diffusers

Downloads

• Alu-flat cut sheet
• Alu-Flat mounting instructions

Important notes

• We sell LED strips, covers, mounting brackets, end caps, shelf/sign panels and other accessories separately from the aluminum profile. Therefore, please select the available components below.
• Please note that in outdoor applications, raw or natural profiles or channels will oxidize over time unless they are coated or painted, as they are not anodized.
• You can easily cut LED profiles by hand or by machine.
• For your convenience Wired4Signs USA can cut LED profiles according to your requirements. Please leave instructions in the order comment box.
• We can also assemble a plug-and-play light fitting with this profile according to your specifications. Therefore, please leave detailed instructions in the order comment box.
• We recommend double-checking the measurements before cutting LED profiles and covers to avoid any unnecessary loss. Please note that if you cut LED profiles and covers, we cannot refund or replace them.
• We ship items in stock the same day from Knoxville, Tennessee, United States. Additionally, our team dedicates themselves to carefully packing and safely delivering all packages to their destination.
• Bulk pricing is available on request. Moreover, for larger orders, we offer additional discounts and customized pricing to fit your project needs.
