LED Mounting Kit for Smokies150 Profile with Hexagon Heatsink

LED mounting kit for Smokies150 profile ~ diffuser tube, LED strip, and all other accessories are sold separately

Please get in touch with us for a complete custom LED fixture

Description

This LED mounting kit is for our Smokies150 series and is a 6" diameter round  LED diffuser tube.

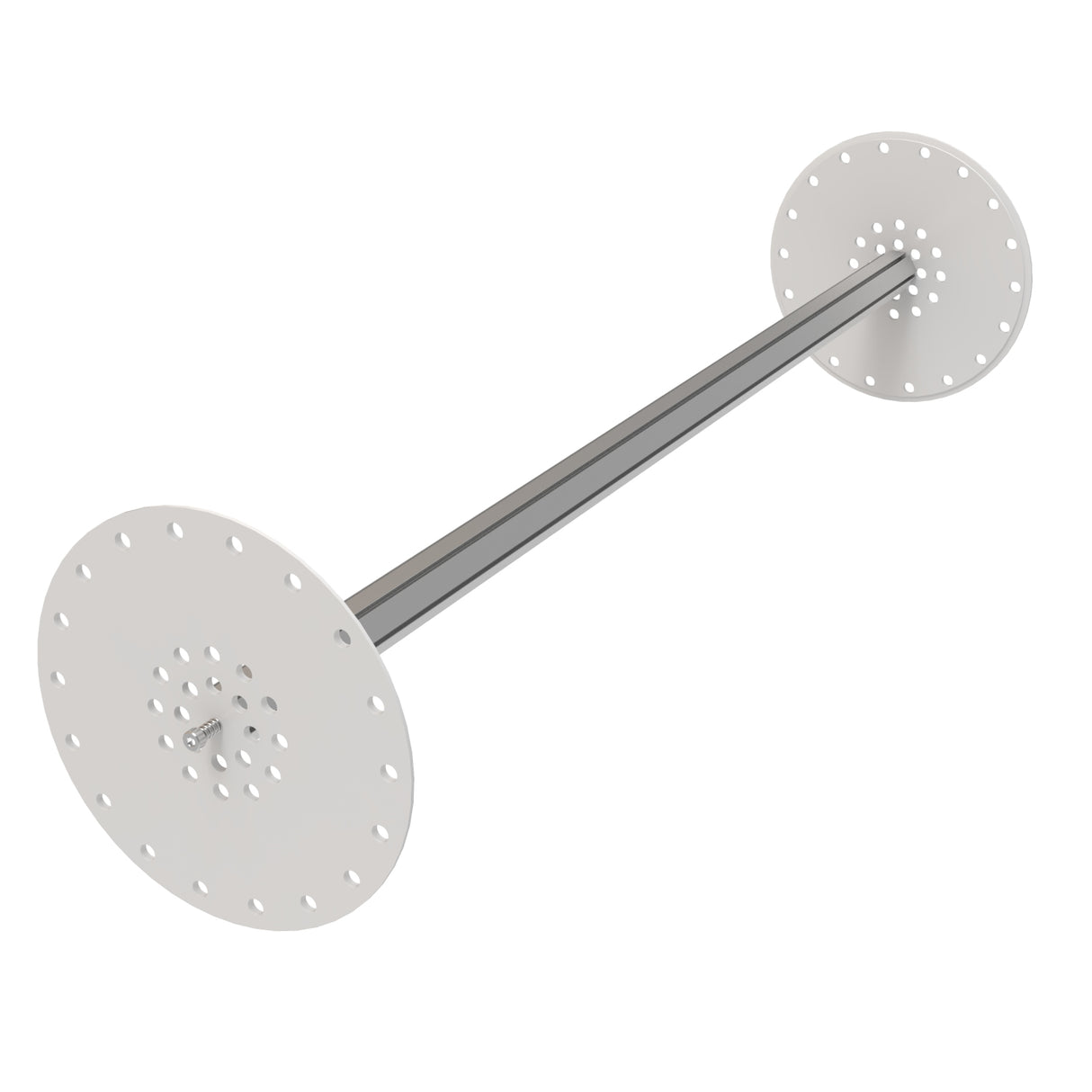

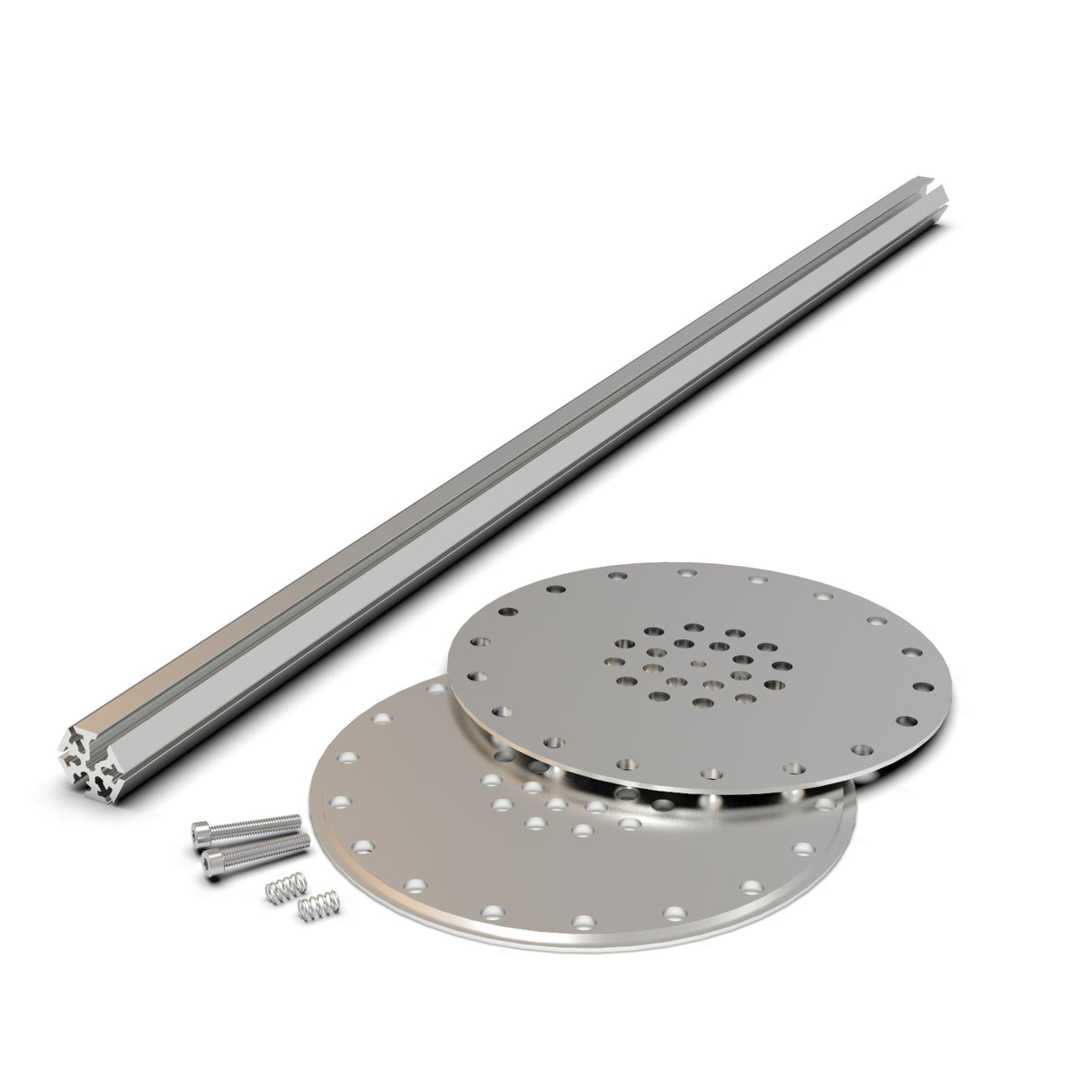

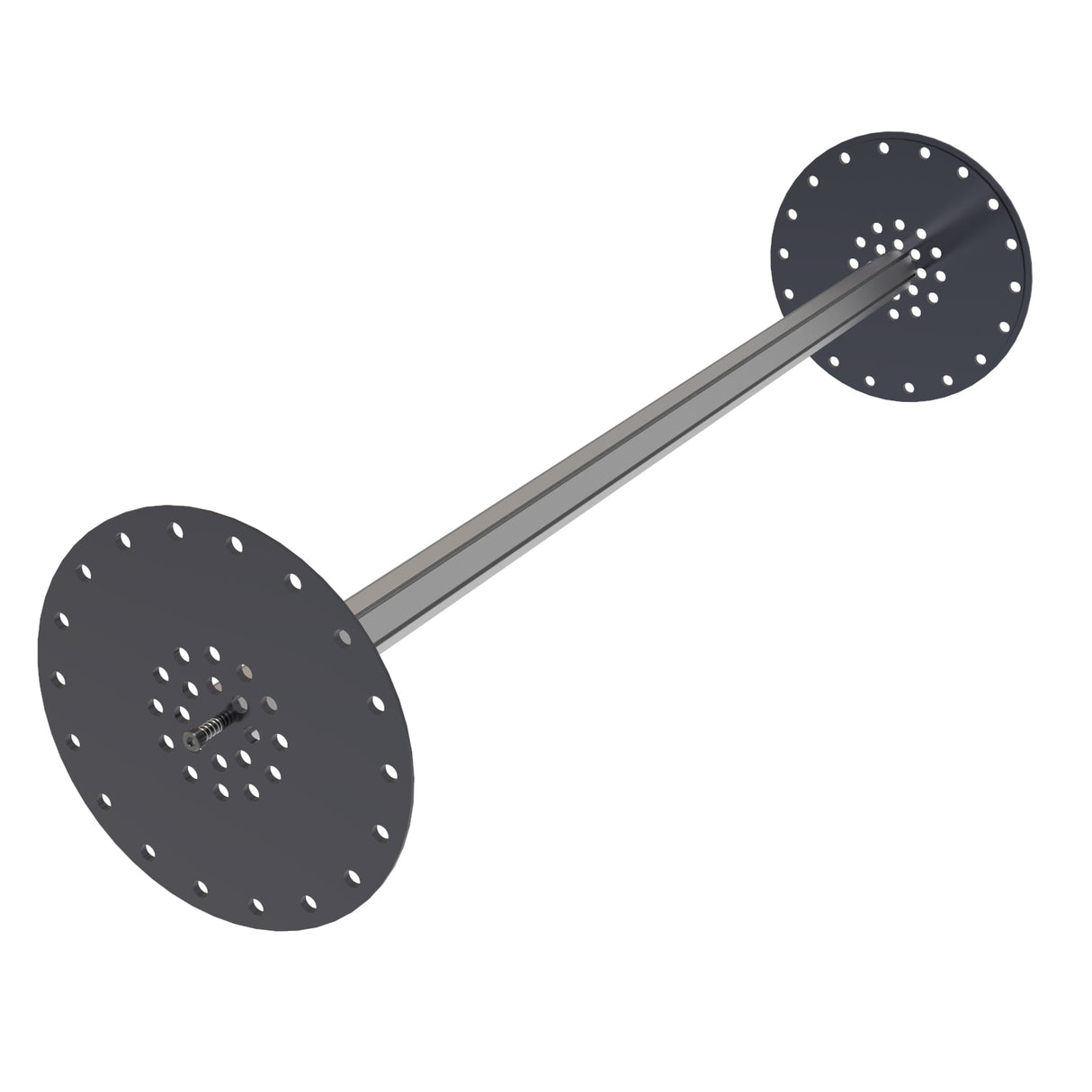

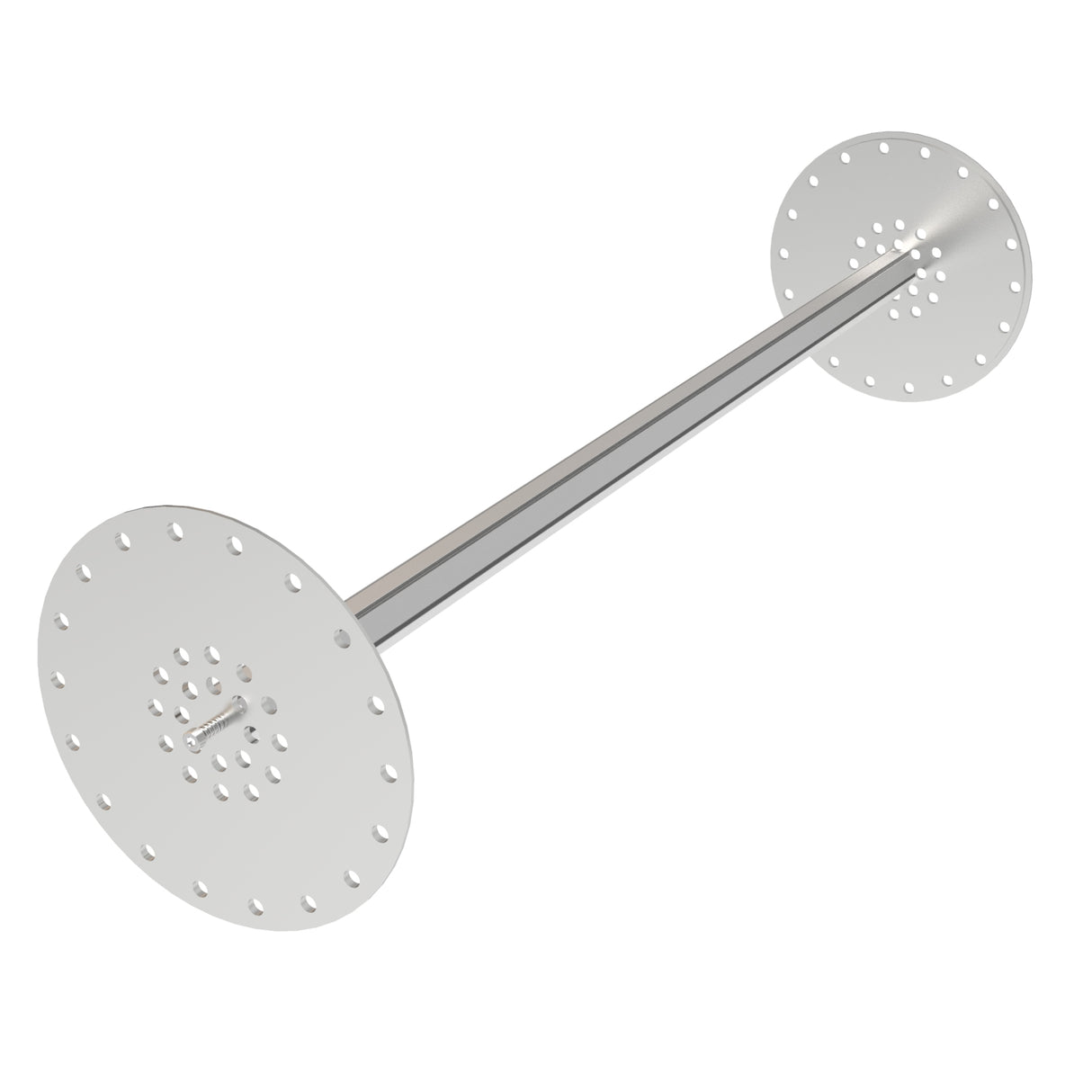

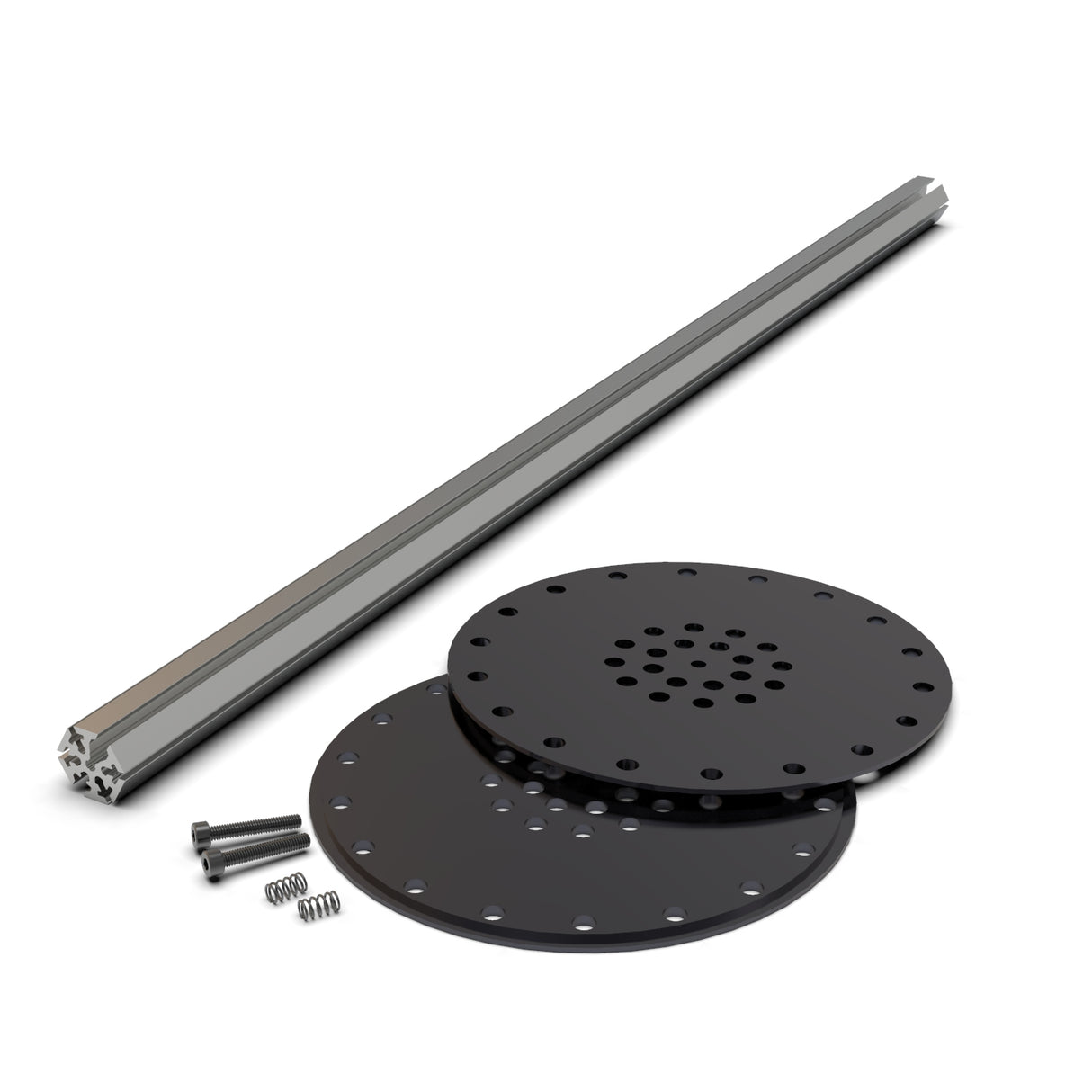

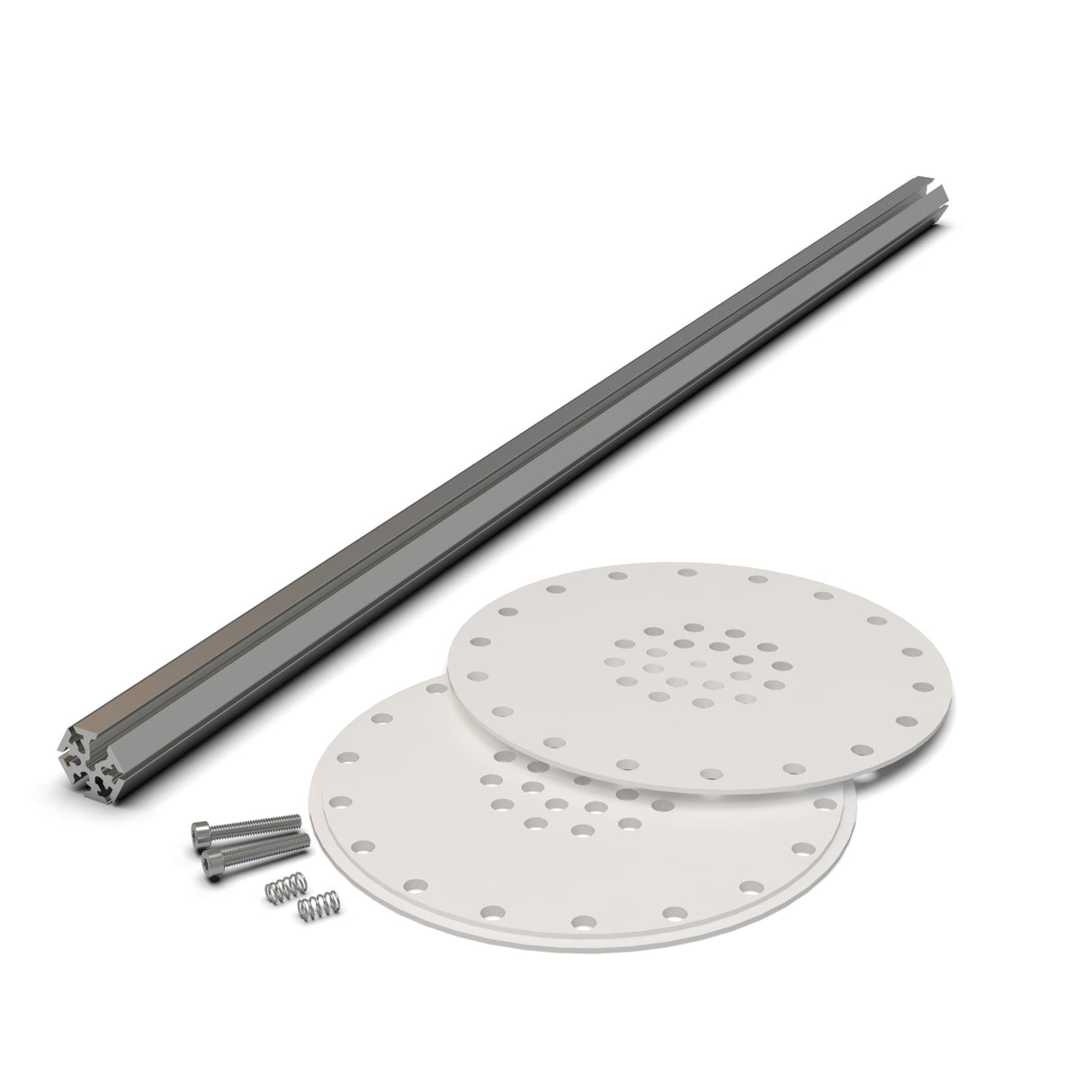

The kit consists of an aluminum Hexagon tube, onto which the LED strip is installed, and two anodized aluminum end cap kits. The LED mounting tube is held in place by the end caps and up to 6 LED strips can be installed on the mounting tube provided the total power does not exceed 30W/m.

Each end cap set contains a socket head screw and spring which is installed through the end cap into the end of the LED mounting tube. For custom length fixtures, you may cut the LED mounting tube to length and thread the end hole with an M4 tap set
A range of mounting accessories are also available and we can custom make or source most mounting brackets.

General specifications

• Maximum LED strip width: 8mm (0.326")
• Maximum LED power 30W/m (5W/m x 6) or 10W/m x 3)
• Hexagon tube size: 22mm (0.866") with M4 threaded holes in each
• End cap colors: Silver, Black, and white
• Materials: Aluminum and various other metals
• Compatible with: Smokies150 profile

Important notes

• LED strips, covers, mounting brackets, shelf/sign panels, and other accessories are sold separately from the aluminum profile. Select the available components below.
• Please note that raw or natural profile channels are not anodized and need to be coated or painted, or they will oxidize over time in outdoor applications.
• LED profiles can easily be cut by hand or by machine.
• For your convenience, Wired4Signs USA can cut LED profiles according to your requirements. Please leave instructions in the order comment box.
• We can also assemble a plug-and-play light fitting with this profile according to your specifications.
• Please note that we cannot refund or replace LED profiles and covers that have been cut.
• Items in stock are shipped the same day from Knoxville, Tennessee, United States.
• Bulk pricing is available on request
