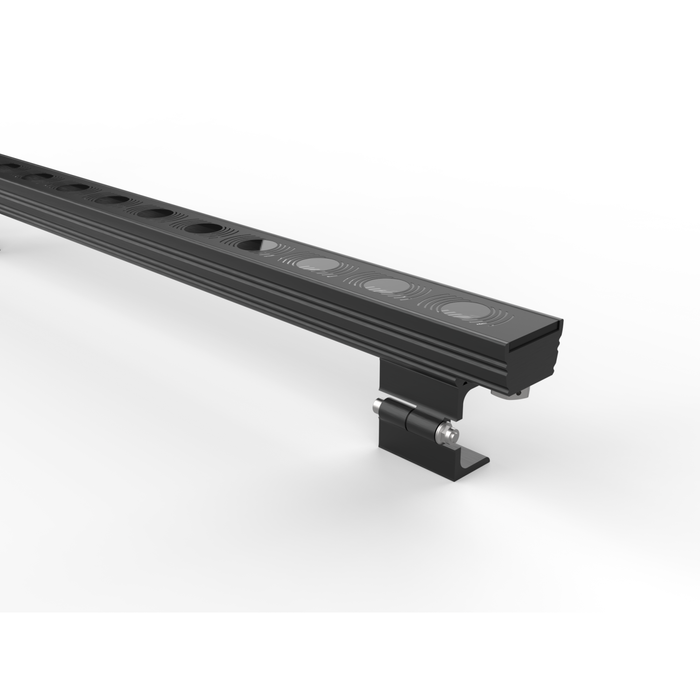

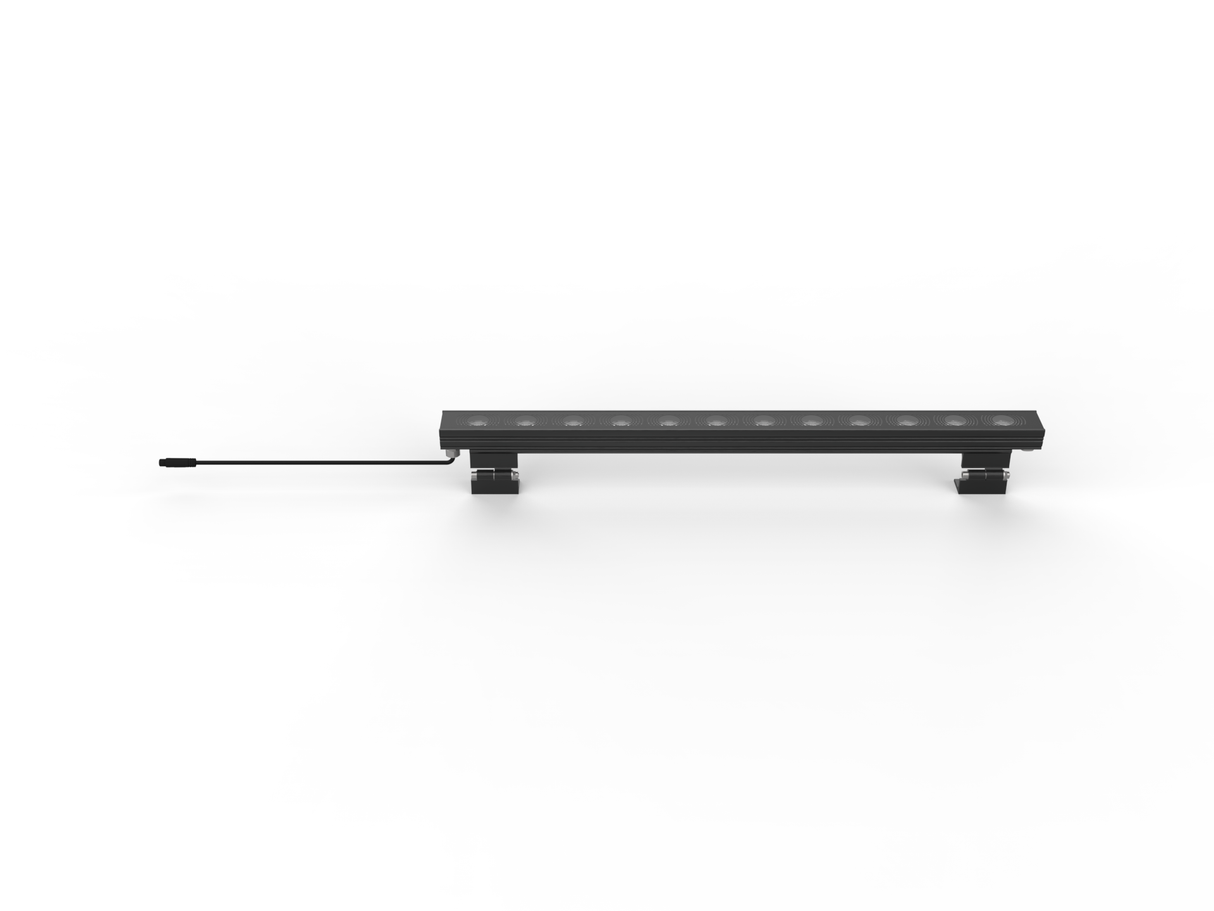

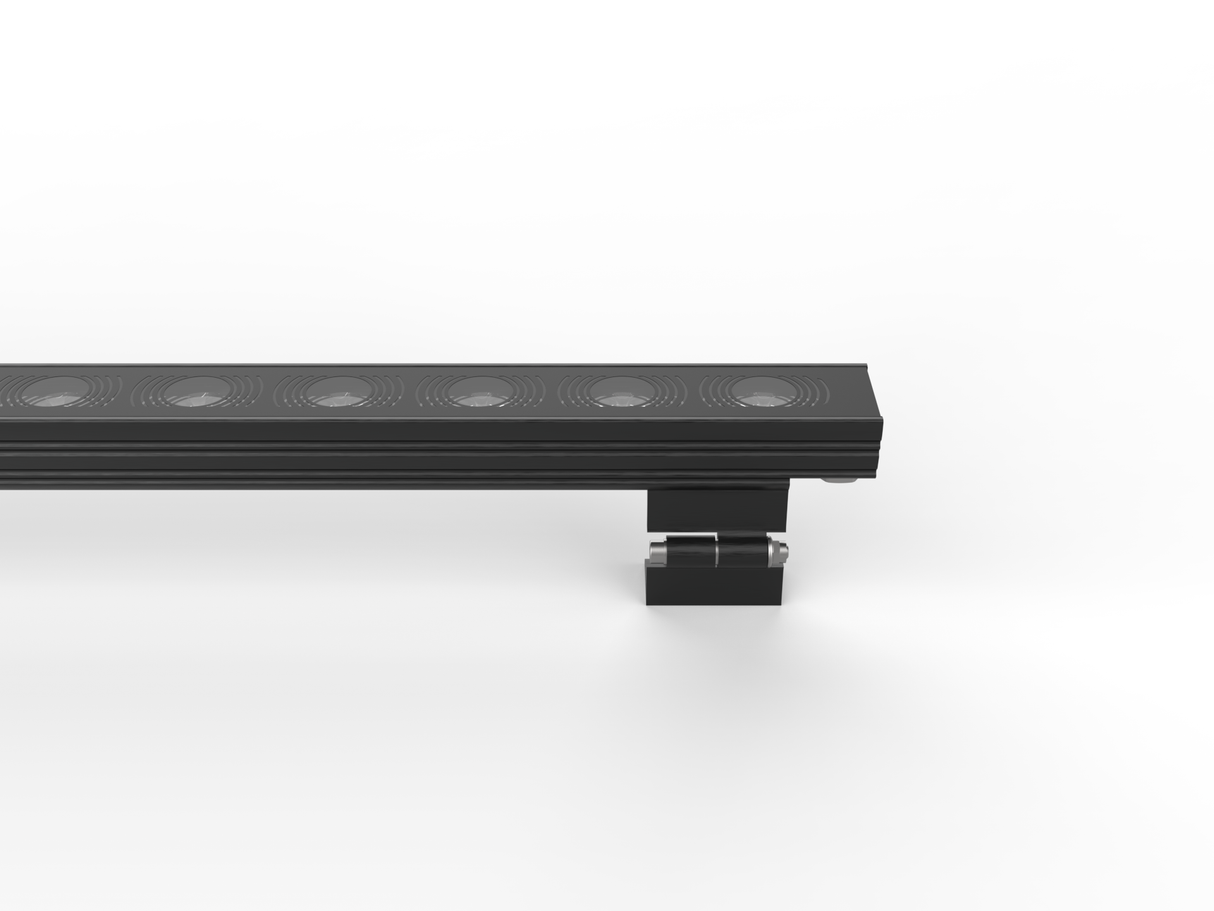

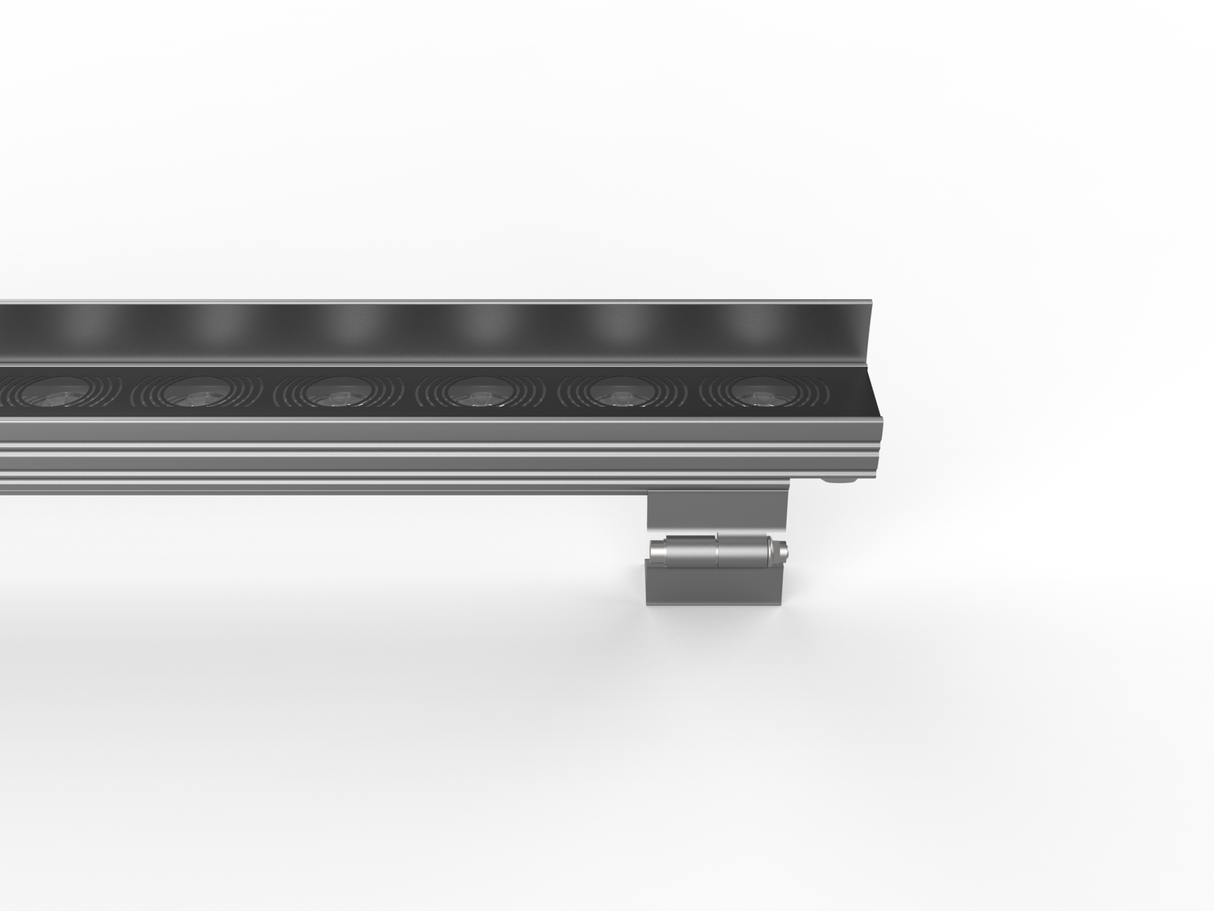

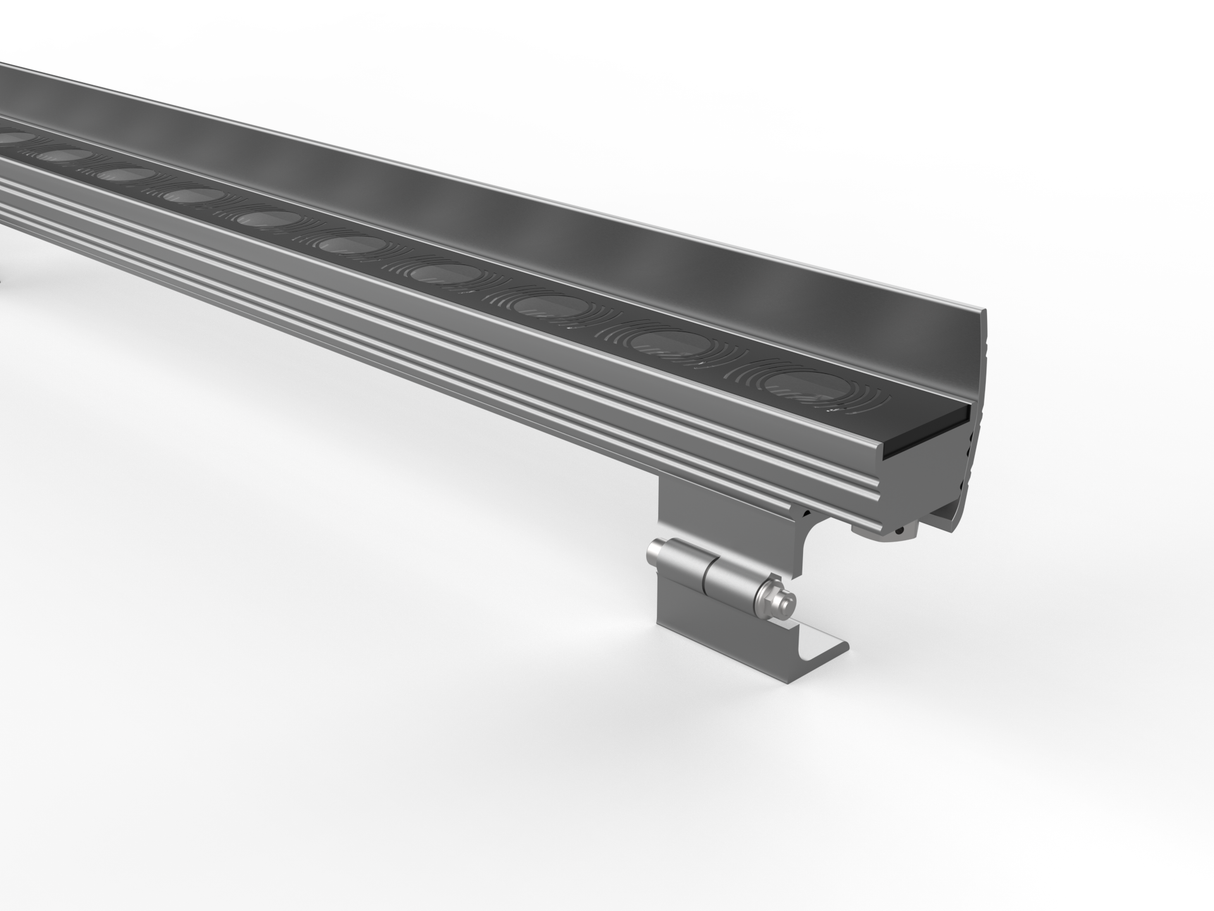

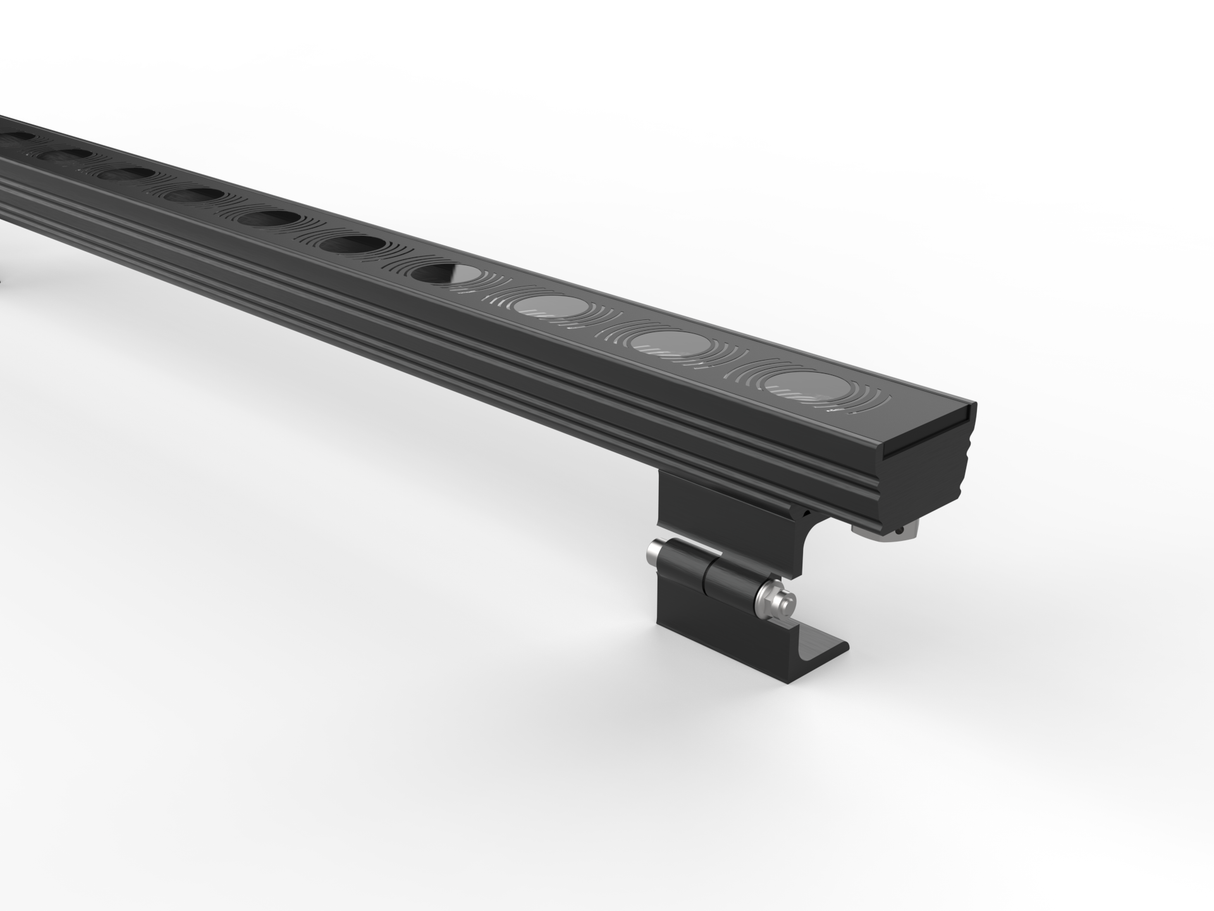

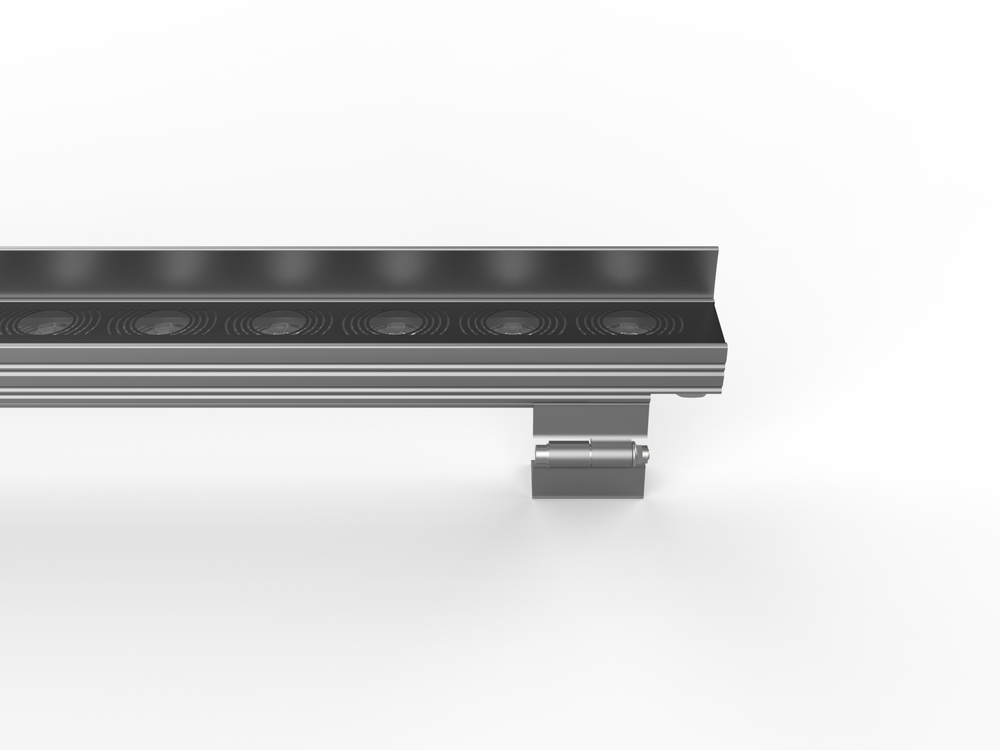

LED Wall Washer Light ~ Model Alphaeus 3 MO50
3000K (Warm White) / 1228mm / Black Anodised
LED Wall Washer Light ~ Model Alphaeus 3 MO50
LED Wall Washer only ~ all other accessories are sold separately
Description
The LED Wall Washer Light Alphaeus 3 MO50 is a high-power linear wall washing solution specifically designed for exterior applications and facades.
With a maximum lumen output of 5059 lumens per 1128mm fixture, the Alphaeus 3 is perfect for wall-washing applications, providing powerful and even illumination. Powered by the latest Luxeon ZES chip, it offers unmatched optical flexibility, precise beam angle control, and high efficacy, resulting in exceptional lighting performance. These fixtures are fully dimmable in conjunction with a constant-current LED driver.
Its sleek design not only enhances its visual appeal but also ensures excellent thermal management, ensuring long-lasting performance. And its IP67 rating ensures durability and protection against outdoor elements.

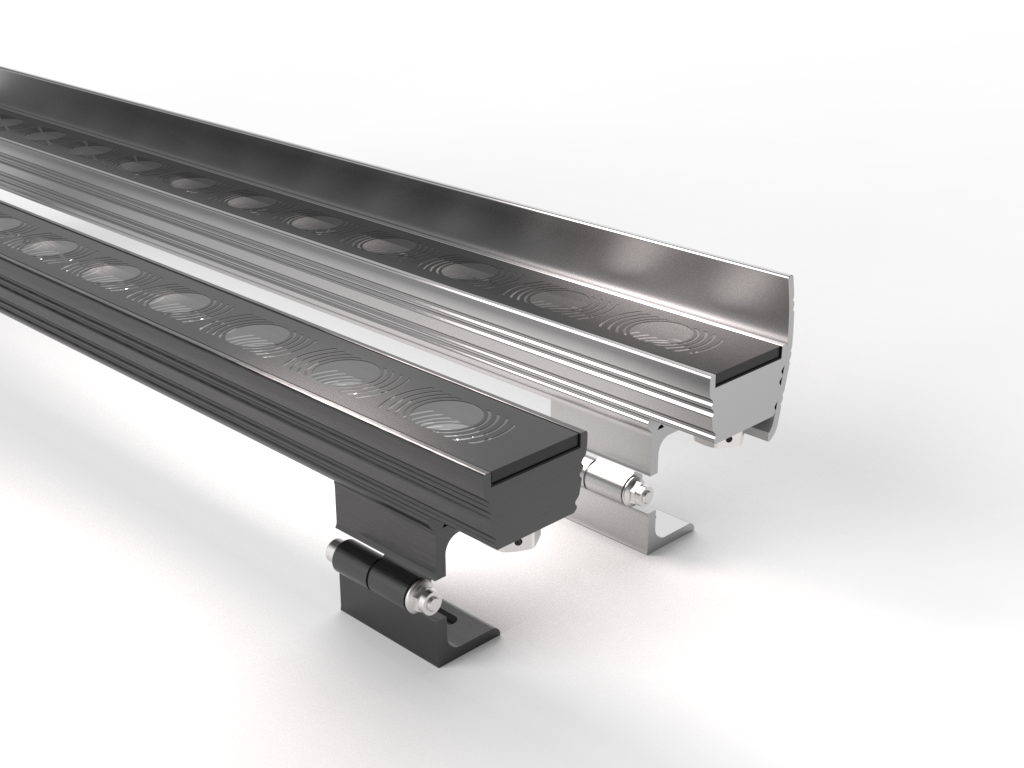

The Alphaeus 3 MO50 wall washing light fixture offers a range of color temperatures, from 2200K to 5700K, allowing for customization based on specific lighting requirements. It is also available in different finishes, providing further design flexibility. There are also options for anti-glare accessories, custom finishes, custom mounting brackets, and more.
Simply contact us with your needs!
General specifications
- Applications: Facades, Landscapes, Wall Washing
- Colors available:
- White: 2200K (Ultra Warm White), 2700K (Ultra Warm White), 3000K (Warm White), 3500K (Warm White), 4000K (Natural White), 5000K (Cool White), 5700K (Cool White)
- Colors: Red, Green, Blue, Royal Blue, Amber
- CRIs available: >80 or >90
- Luminous fluxes available (per 1228mm @ 4000K & 80 CRI): 2775lm, 3592lm, 5059lm
- Drive type: Constant current
- Forward voltage: 33.6V DC
- Drive currents available: 700mA, 1050mA, 1400mA
- Powers available (per 1228mm @ 4000K): 24W, 36W, 48W
- LED chip: Luxeon ZES
- Lens: Toughened screen-printed clear glass
- Beam angles available: 10°, 25°, 32°, 45°, 50° x 11°
- Environmental protection: IP67
- Operating temperature: -25°C to 55°C
- Lifetime: 50,000 @ 25C
- Weight: 2.3 kg/m
- ROHS compliant: Yes
- Material: Aluminium
