Miniature Daylight Switch for LED Channel ~ twilightSwitch by BleBox

SKU: LED-TWILIGHTSWITCH

Type

IP20 Non-Waterproof IP68 Waterproof

$17.56 USD

Shipping calculated at checkout.

Buy in bulk and save

By becoming a wholesale customer, you can save money on your orders. Apply here.

Custom Fabrication

Made to Measure

Have your channels cut and your strips soldered for you. We’ll do 5 of each for you at no additional cost.

Compare to similar products

20+ YEARS LED EXPERIENCE

SHIPPED FROM TENNESSEE

COMMERCIAL GRADE QUALITY

EXPERT TECH SUPPORT

Description

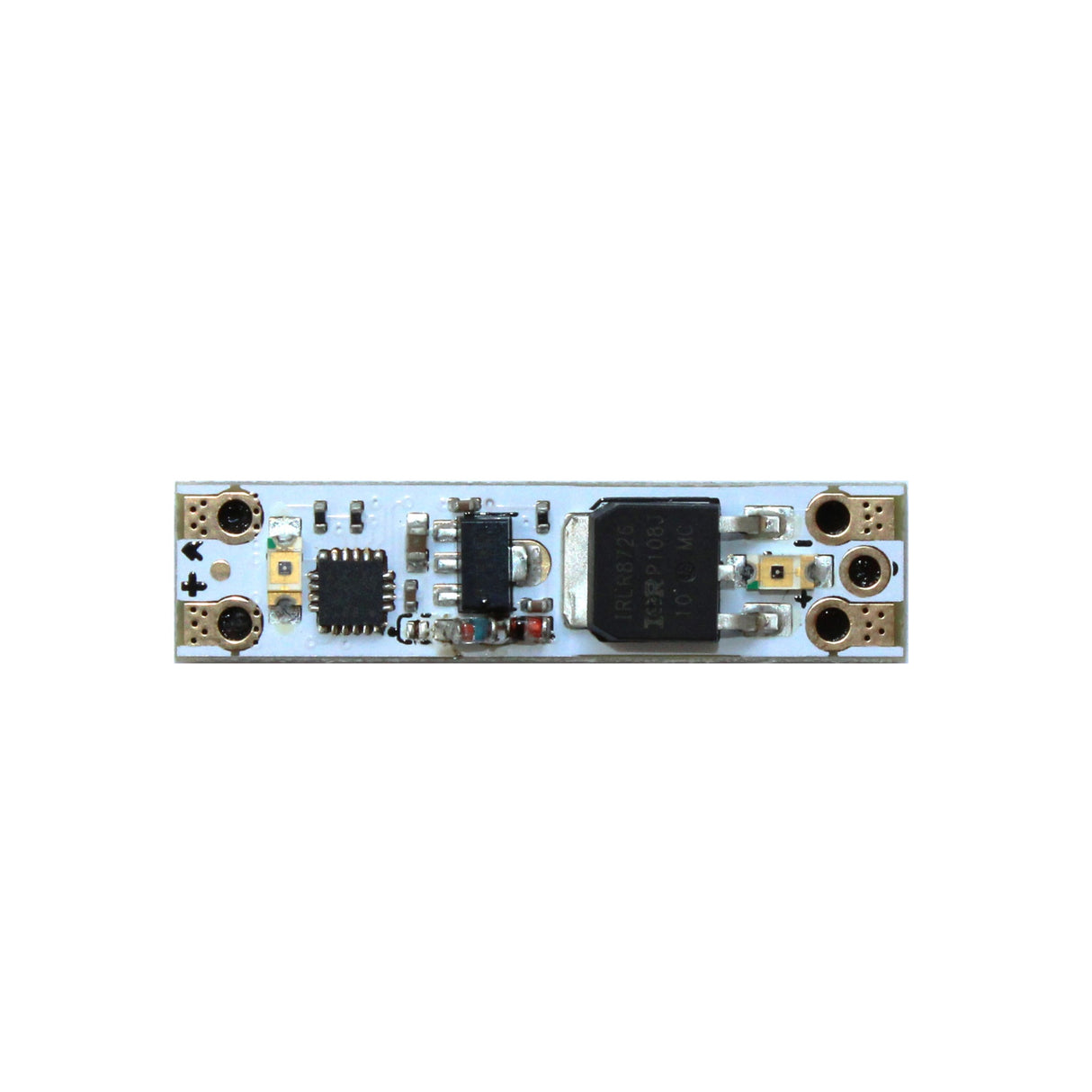

Miniature Daylight Switch for LED Channel ~ twilightSwitch by BleBox

This switch will automatically turn lighting on at night and turn it off again when the sun rises.

Miniature Daylight Switch for LED Channel ~ twilightSwitch by BleBox can be used as a Photocell Switch to control the lighting for several applications, including:

monuments
outdoor parking
parks
gardens and balconies
street lighting
public buildings

The twilightSwitch mini photocell switch for LEDs works as a Photocell Switch for most low voltage LED strips. It is also available in a waterproof version with an IP68 rating for outdoor installations requiring strong environmental protection.

General specifications

Supply voltage: 12–24V DC
Maximum output current: 4A
Maximum output power: 96W
Energy consumption: < 0.1W

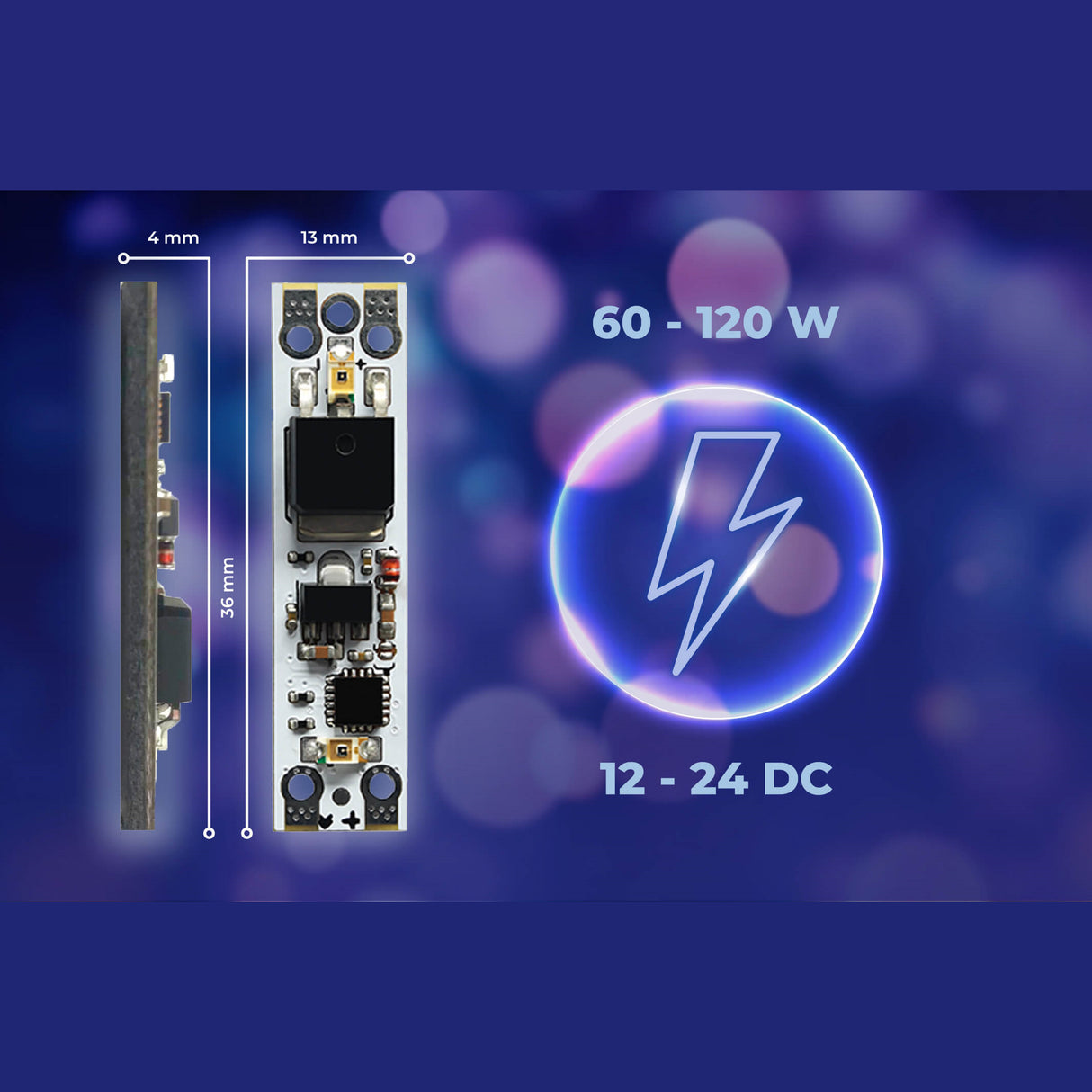

Dimensions: 34 x 8 x 3mm
Sensor: Optical, photodetector
Protection Rating: IP00 / IP68

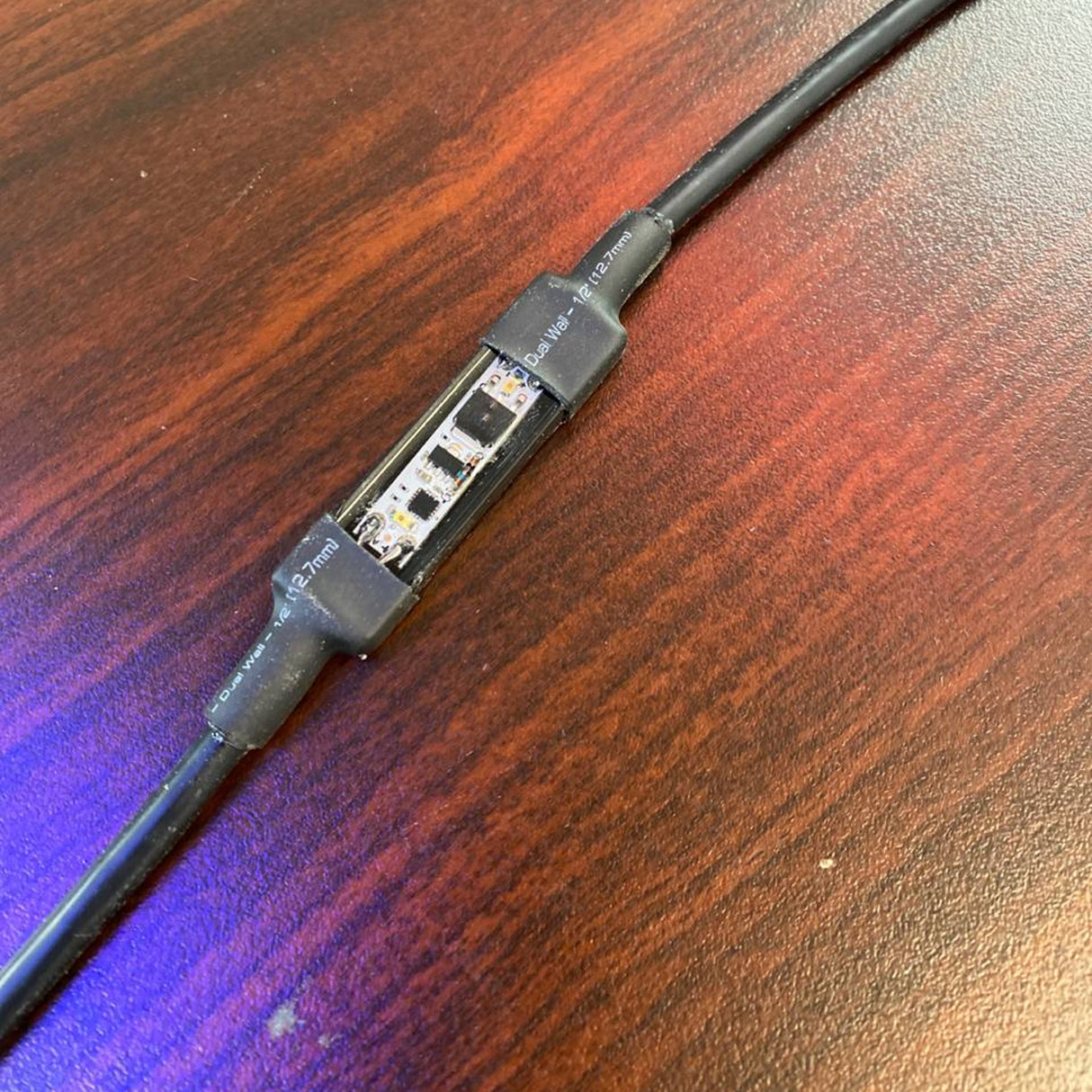

Mounting: in LED profile / heat-shrink tubing
Operating temperature: -10 to +40°C
Calibration: Automatic
Connection method: Soldering, screw terminal

Warranty details

Downloads

Cut sheet

Important notes

Items in stock are shipped the same day from Knoxville, Tennessee, United States.
Bulk pricing is available on request.
