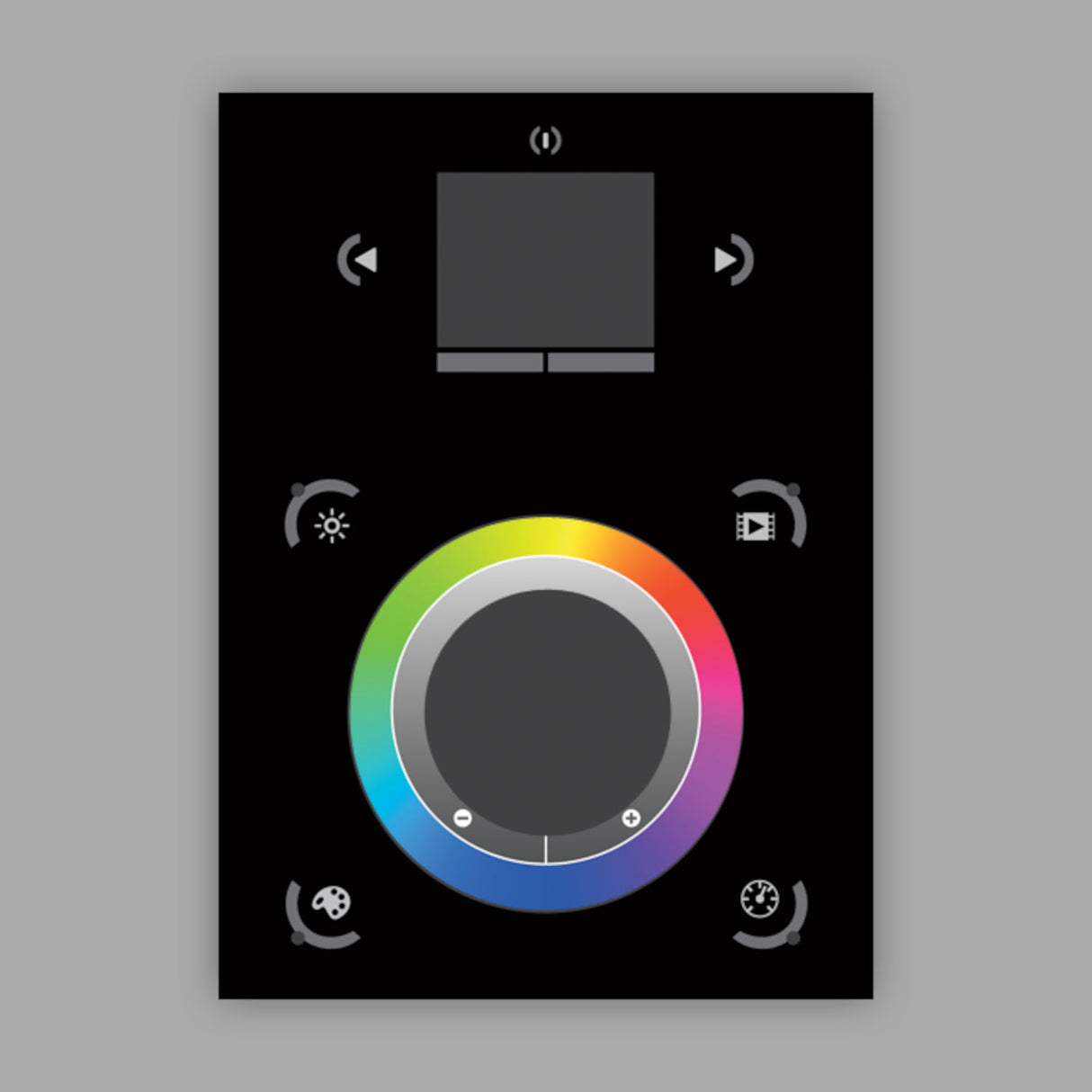

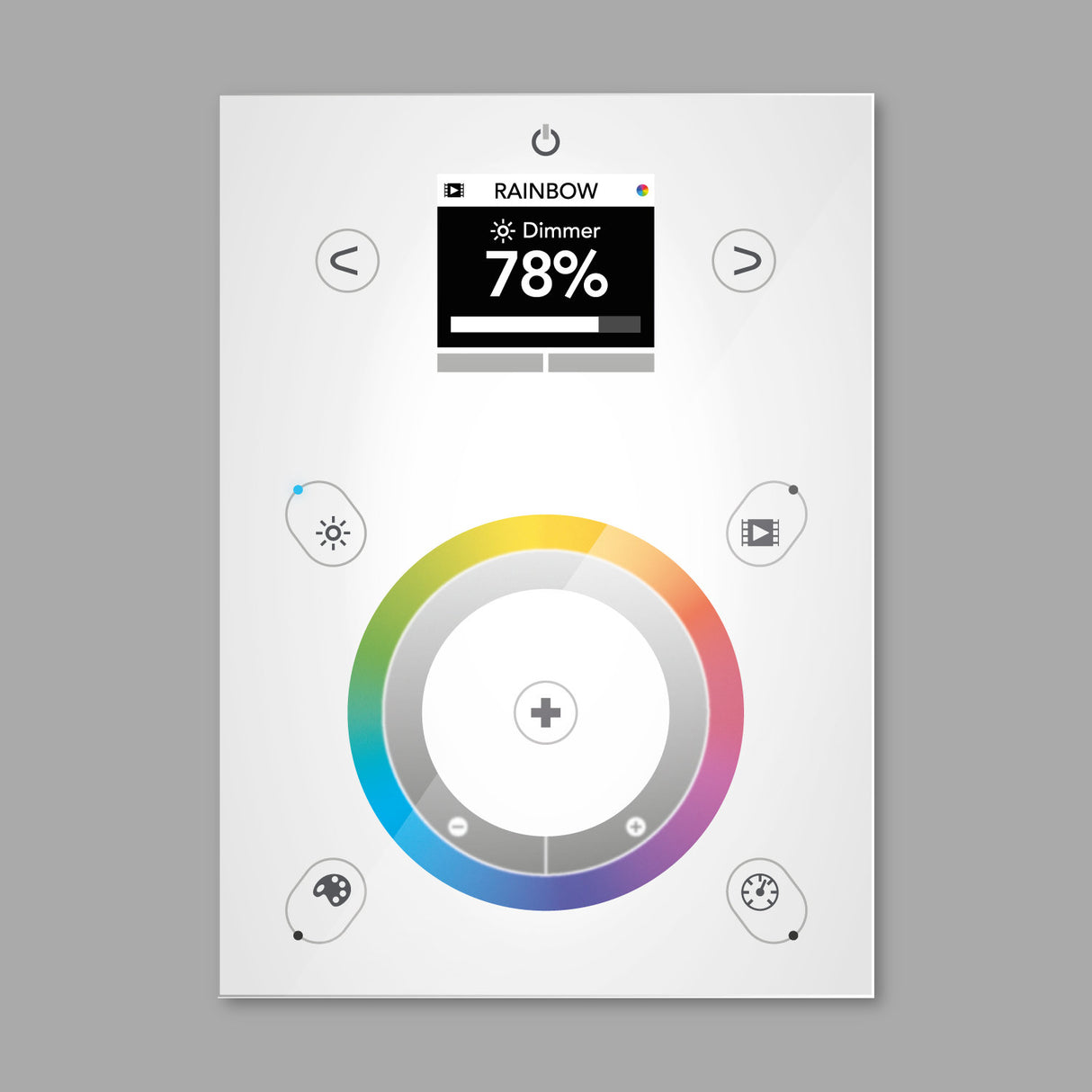

It is all in the name: S.T.I.C.K. stands for "Sunlite Touch-sensitive Intelligent Control Keypad" and that is what it is!

Did you know that you can turn your Wall-mounted Touch Sensitive DMX Lighting Controller - Nicolaudie STICK-DE3 into a Casambi color wheel wall mount RGBW controller? While there are currently no Casambi-enabled color wheel controllers on the market, you can use the DMXcas to link your STICK-DE3 controller to the Casambi network and achieve this functionality.

With this integration, you can take advantage of the Casambi platform's advanced features for control and automation of lighting and other devices. The STICK-DE3's touch-sensitive panel provides precise and intuitive control of color and other lighting effects, making it an ideal choice for those looking to upgrade their lighting control system.

To enable this integration, you will need to connect the DMXcas to your STICK-DE3 controller using DMX cables, and then use the Casambi app to set up and configure the integration. Once the integration is complete, you can control your STICK-DE3 controller using the Casambi app, essentially turning it into a wall mount Casambi color wheel LED controller.

If you're looking to take your lighting control system to the next level, this integration is a great choice. Contact Wired4Signs USA to learn more about this powerful and versatile lighting controller, as well as how to integrate it with the Casambi DMXcas for even more advanced control and automation.

The main lighting control features are:

• Zones: Select a zone and run up to 10 scenes simultaneously
• Scenes: Choose from 50 static or dynamic scenes
• Dimmer: Control the brightness and saturation of your lighting
• Speed: Increase or decrease the playback speed of dynamic scenes
• Color control: Scroll through 16 million colors on the color wheel, or blend your adjustable white LEDs

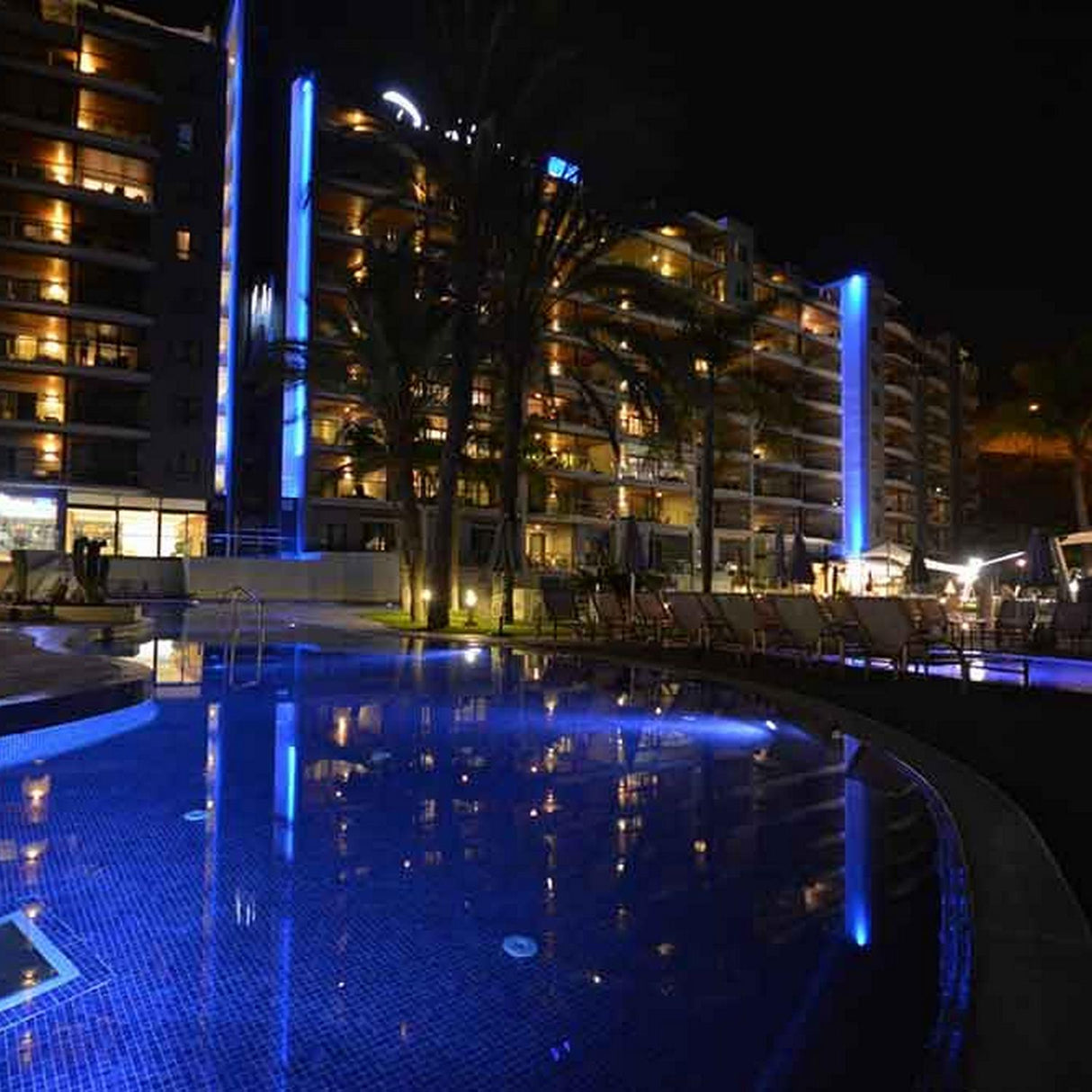

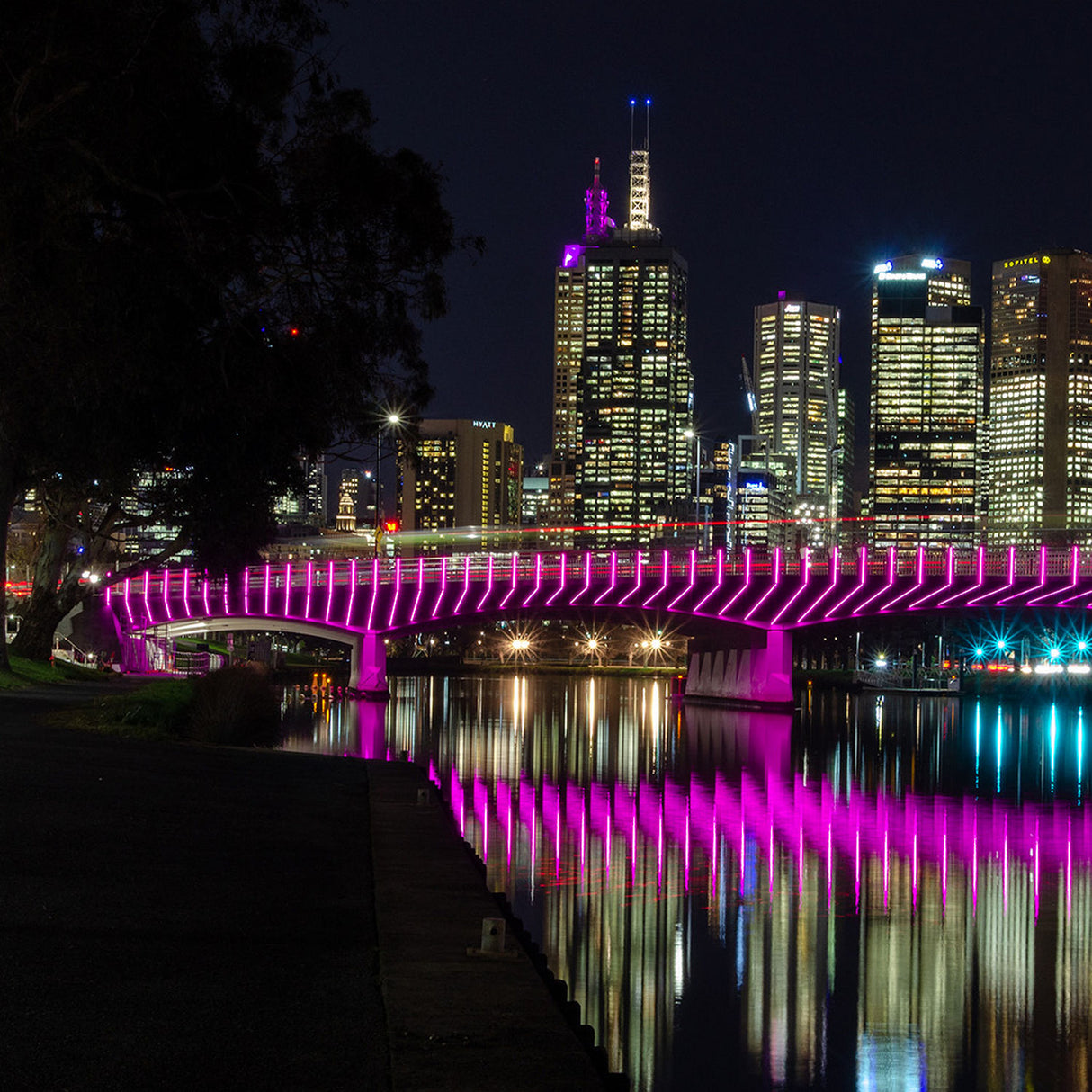

Typical architectural lighting control applications include:

• Landscape lighting control
• Monument lighting control
• Fountain lighting control
• Theme park lighting control

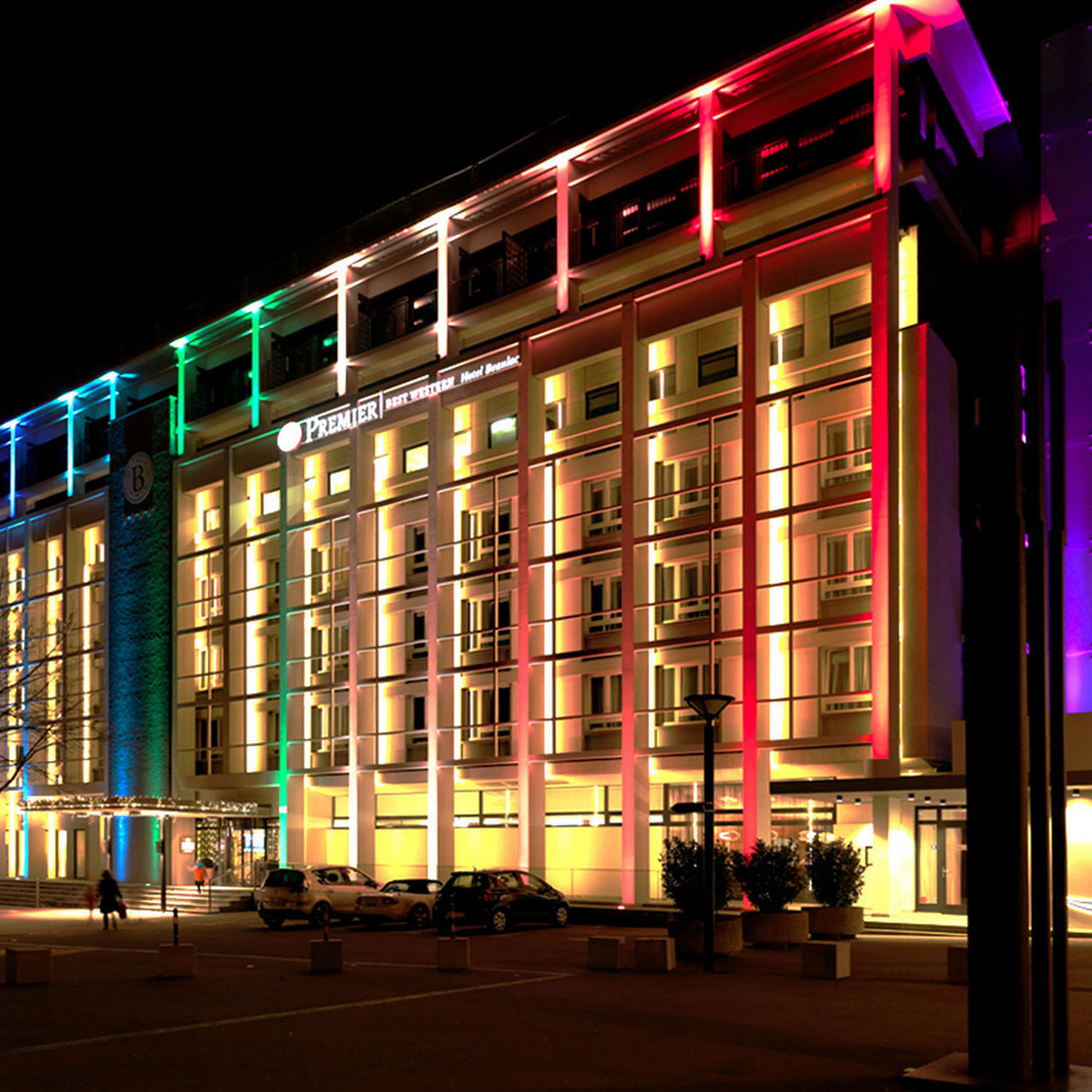

• Building facade lighting control
• Stadium lighting control
• Airport lighting control
• Museum lighting control
• Hotel lighting control
• Commercial and mall lighting control
• Office and workspace lighting control
• Upmarket residential lighting control
• Yacht lighting control

You can install this DMX user interface into a standard single or double electrical wall backbox. You will also need to connect a DC power supply to it (5-15V) and then connect your DMX-512 wiring to the controller output. The STICK-DE3 offers two 512-channel DMX universes worth of control output and the ability to store 500 scenes across 10 zones, making it capable of coordinating very complex lighting installations from a simple and easy to use interface. When you look at the feature set for this controller, it makes one of the best value propositions on the market today. It is no wonder that the STICK-DE3 is a favorite in the architectural lighting control market!

• Display: Graphical color display
• User interface: 10 buttons + touch wheel
• Zone: Up to 10 zones
• Scenes: Up to 500 scenes (50 per zone)
• Output channels: 1024 DMX-512 channels (2 universes)
• Connectivity: USB, RS232 & Ethernet
• Storage: MicroSD card
• Software: Windows (PC) & Mac
• Remote control: iPhone, iPad & Android

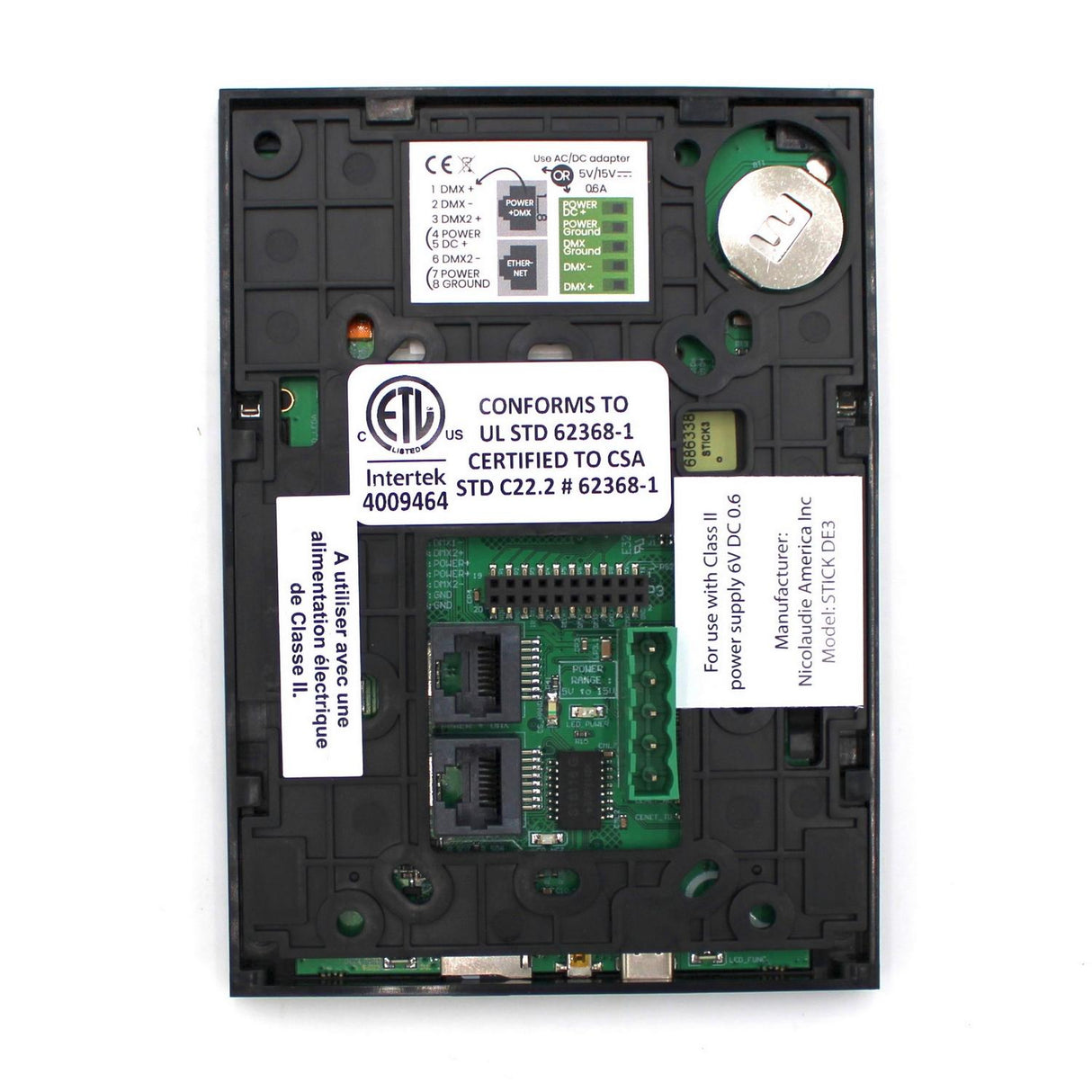

• Electrical connection: Screw terminal or RJ45 (Power & DMX combined)

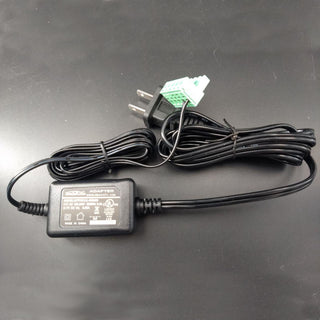

• Power supply: 5-15V DC
• Dimensions: 106 x 146 x 10mm (4.17 x 5.75 x 0.39")

This DMX keypad is also available in other faceplate colors and styles, and with alternative styles for the color wheel. Please contact us if you require a specific combination for your project and we will gladly assist you.

Faceplate styles:

BD1	WD1	AD1	DD1

Color wheel styles:

DE3	CU4	PAD	LUM	ARC

Documentation:

• Nicolaudie Controllers Brochure
• Nicolaudie STICK-DE3 Datasheet
• Nicolaudie STICK3 Ethernet remote control protocol
• DMX to  Casambi wiring diagram

Software:

• Easy Stand Alone 2 software for Windows
• Easy Stand Alone 2 software for Mac
• ESA Pro 2 software for Windows
• ESA Pro 2 software for Mac
• Hardware Manager for Windows (firmware)
• Hardware Manager for Mac (firmware)
